Kenmore
Gas Range

Model # 9113658812 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 9113658812 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Igniter 337263
#2

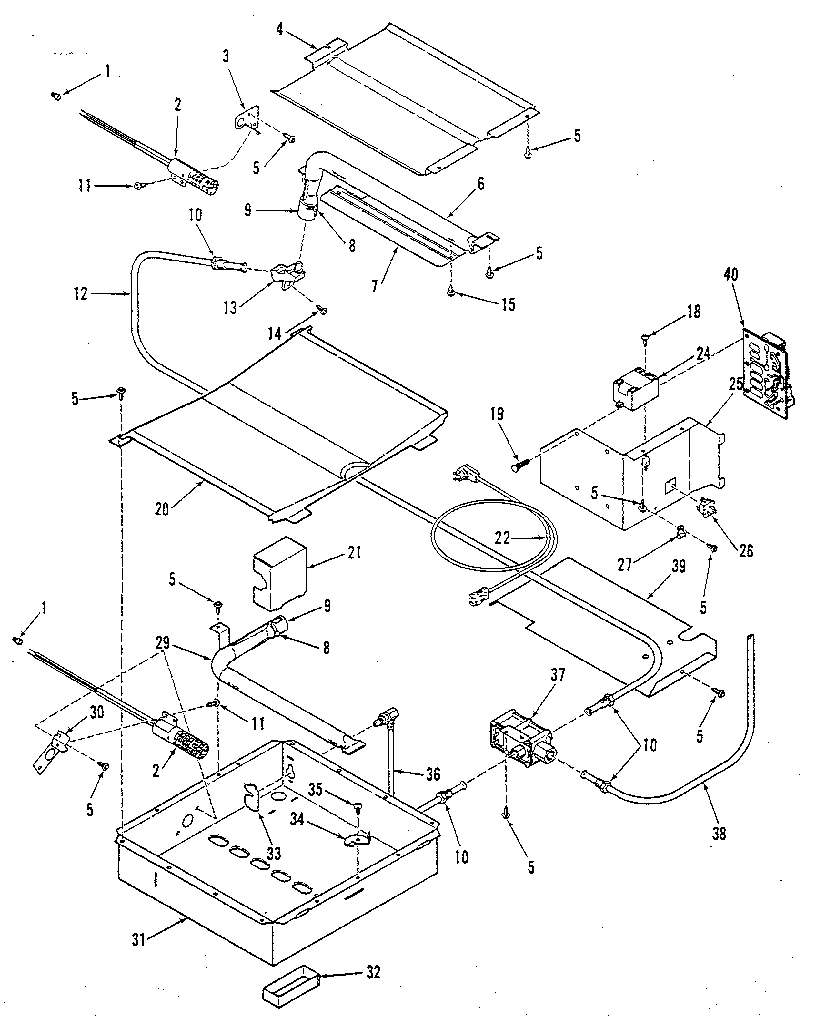

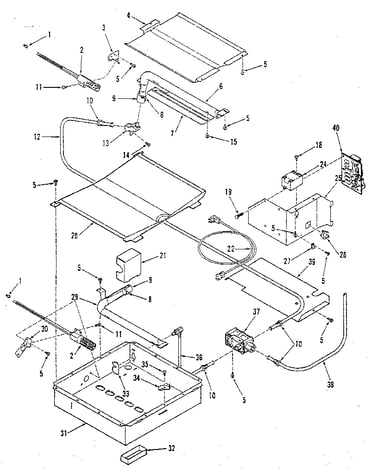

Broiler and oven burner section diagram

Igniter

Part #337263

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces 337263. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Lamp Bulb STD372401
#42

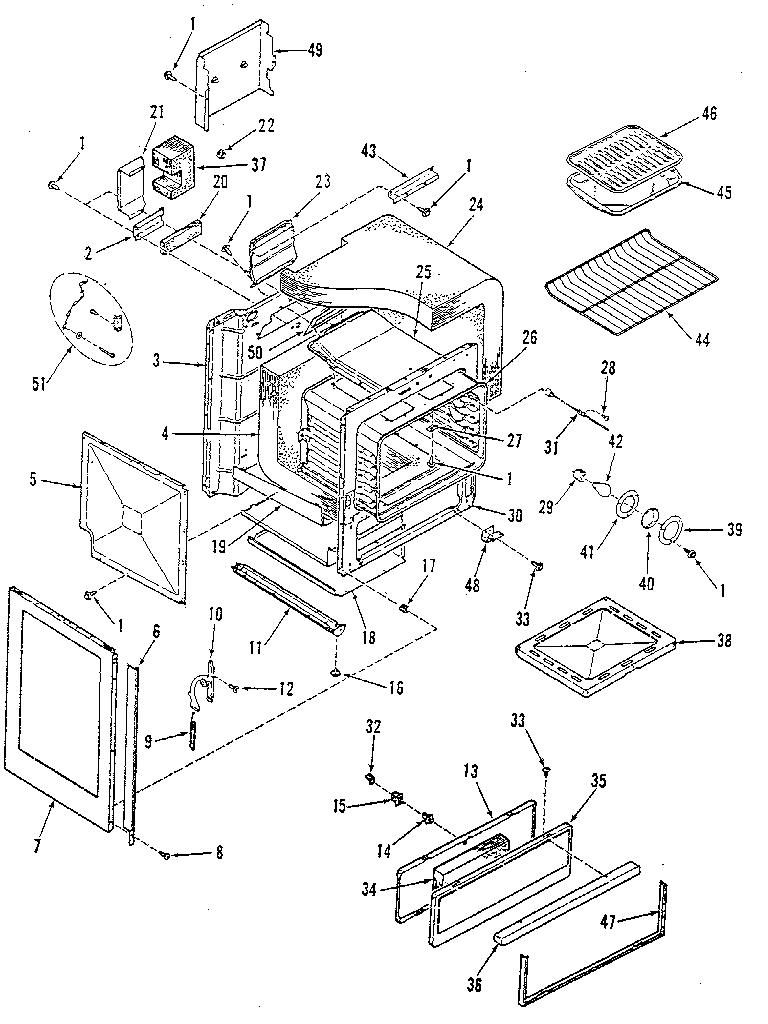

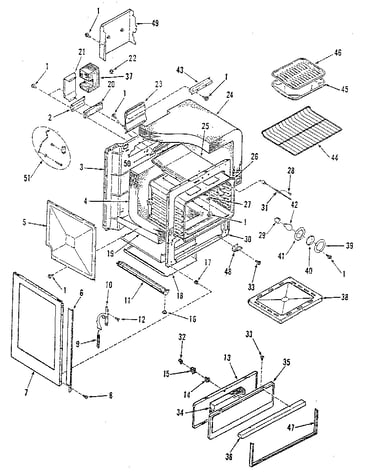

Oven body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 311484
#11

Broiler and oven burner section diagram

Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
#14

Broiler and oven burner section diagram

Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Burner Bowl 336363
#28

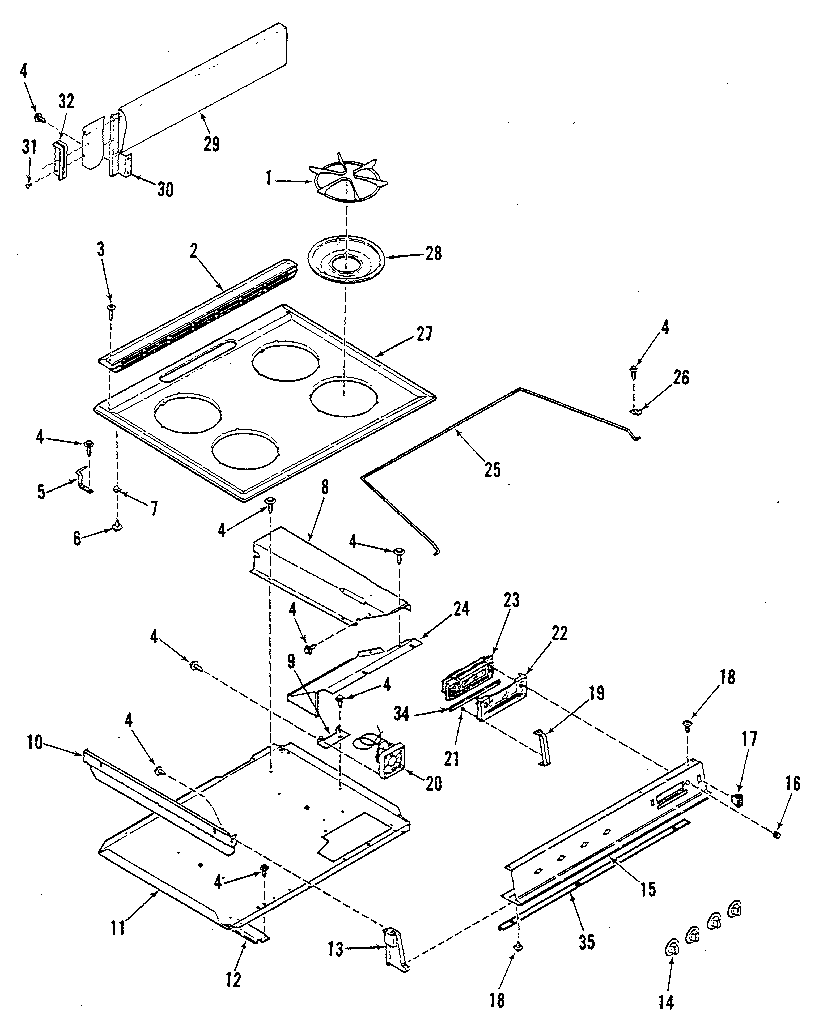

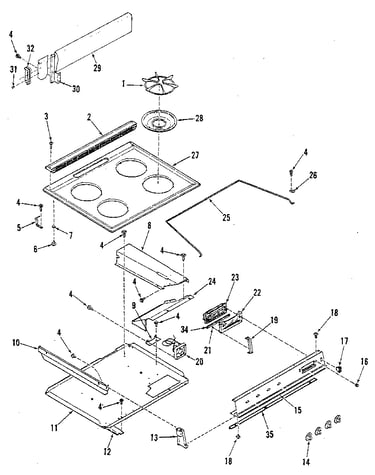

Main top section diagram

Burner bowl

Part #336363

Replaced by #WB31K5026

?
Manufacturer substitution
This part replaces 336363. Substitute parts can look different from the original.
$25.99 |
19% OFF Phone Price : $31.99
In Stock
Bracket 311689
#30

Broiler and oven burner section diagram

Bracket

Part #311689

$7.71
In Stock
Gasket 292244
#19

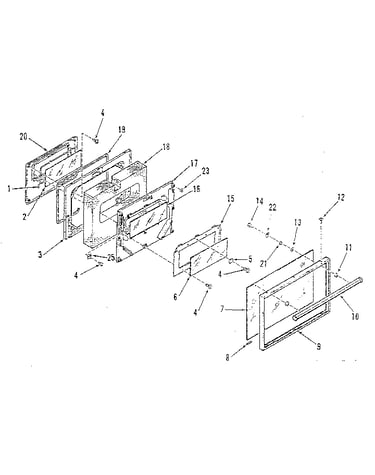

Oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Screw 301911
#15

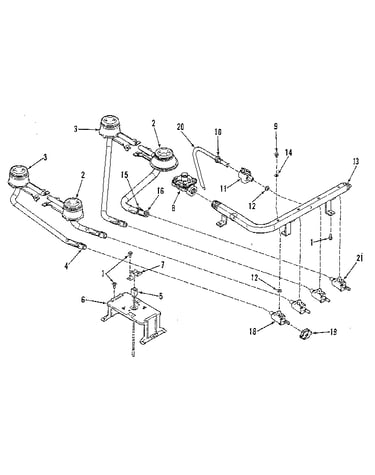

Top burner section diagram

Screw

Part #301911

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 301911. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Burner Box 339463
#11

Main top section diagram

Burner box

Part #339463

$26.49
In Stock
Ge Screw 120855
#28

Oven body section diagram

Ge screw

Part #120855

This item is not returnable
$7.14
In Stock
