Model # AD40TJ0 Official Whirlpool dehumidifier

Here are the diagrams and repair parts for Official Whirlpool AD40TJ0 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Strainer 1162526
#3

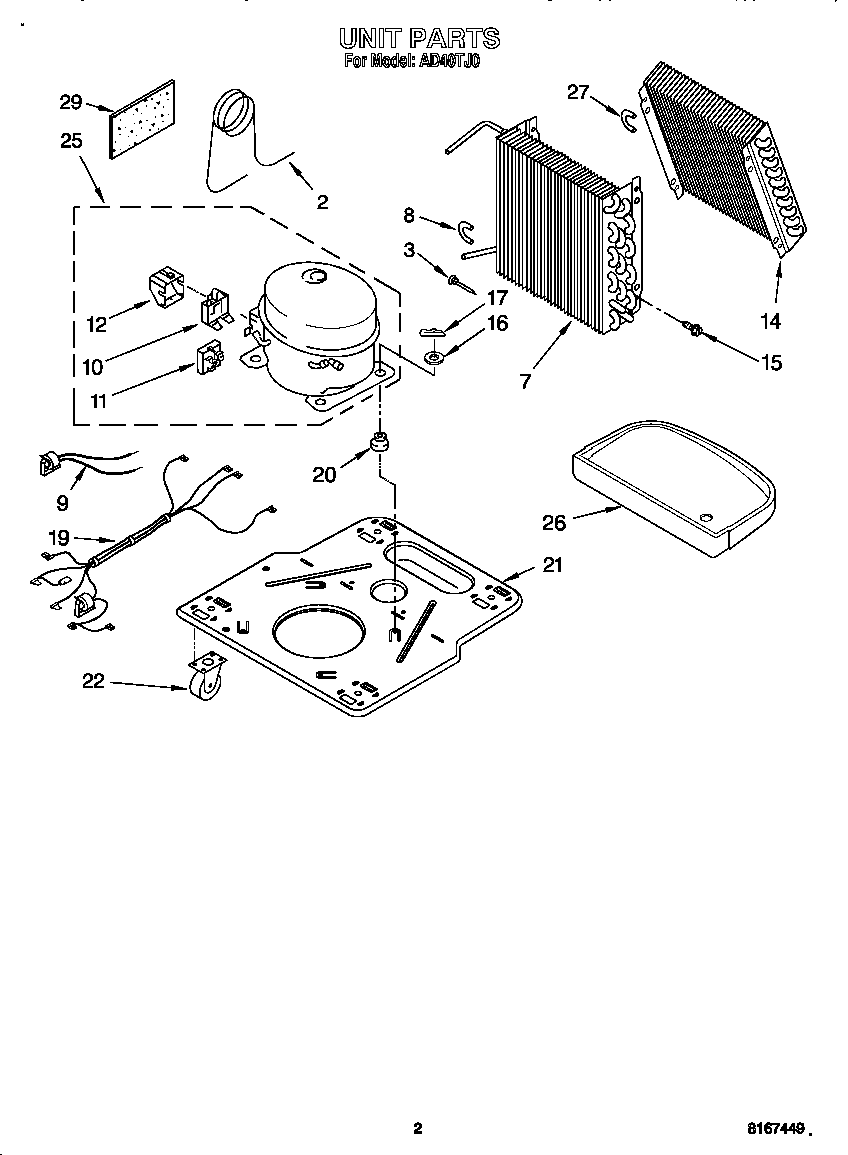

Unit diagram

Strainer

Part #1162526

Replaced by #WP1162526

?
Manufacturer substitution
This part replaces 1162526. Substitute parts can look different from the original.
$29.89
In Stock
Fan Motor 1183425
#10

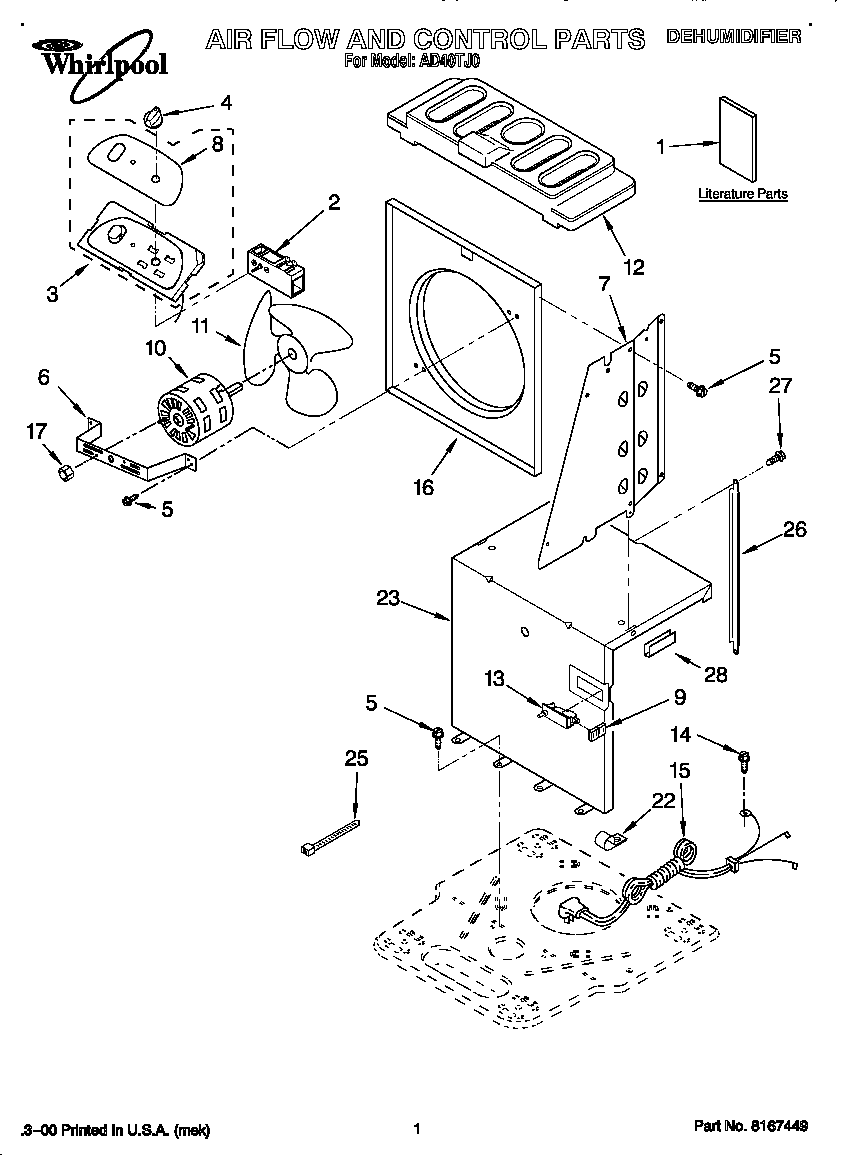

Air flow and control diagram

Fan motor

Part #1183425

Replaced by #4389130

?
Manufacturer substitution
This part replaces 1183425. Substitute parts can look different from the original.
$191.18
In Stock
Refrigerator Screw 1157158
#27

Air flow and control diagram

Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cable Tie 857547
#25

Air flow and control diagram

Cable tie

Part #857547

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Grommet 1168722
#20

Unit diagram

Grommet

Part #1168722

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 1183427
#6

Air flow and control diagram

Motor bracket

Part #1183427

The manufacturer no longer makes this part, and there's no substitute part

Panel 1168758
#7A

Air flow and control diagram

Panel

Part #1168758

The manufacturer no longer makes this part, and there's no substitute part

Condenser 1168724
#7

Unit diagram

Condenser

Part #1168724

The manufacturer no longer makes this part, and there's no substitute part

Water-level Switch 1168699
#13

Air flow and control diagram

Water-level switch

Part #1168699

The manufacturer no longer makes this part, and there's no substitute part
