Model # WSM2700WCWWW Official GE washer/dryer

Here are the diagrams and repair parts for Official GE WSM2700WCWWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

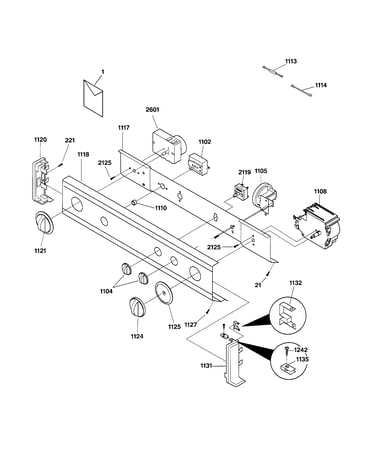

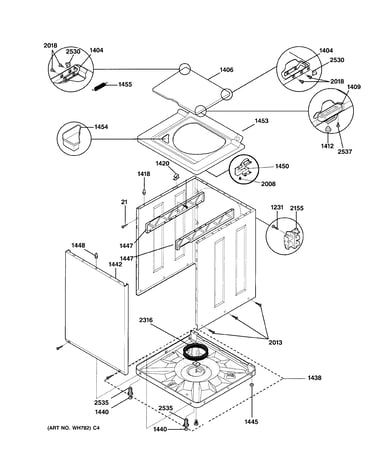

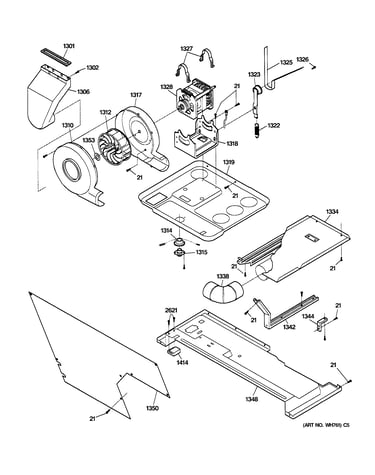

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Belt WH07X10002
#1528

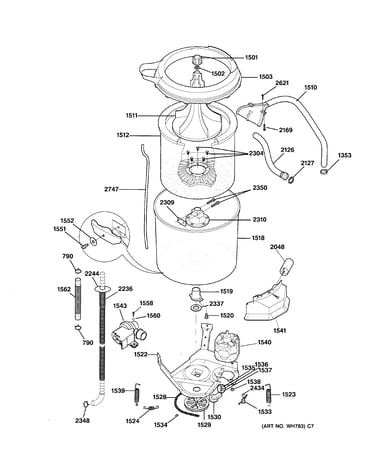

Washer tub, hoses & motor diagram

Belt

Part #WH07X10002

Replaced by #WH07X10009

?
Manufacturer substitution
This part replaces WH07X10002. Substitute parts can look different from the original.
$67.43 |
8% OFF Phone Price : $73.43
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

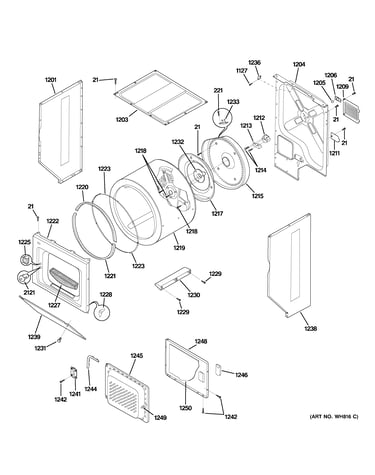

Dryer upper cabinet, drum & heater diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Drum Front Glide WE03X10007
#1223

Dryer upper cabinet, drum & heater diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Dryer Thermal Limiter WE04X10094
#1236

Dryer upper cabinet, drum & heater diagram

Dryer thermal limiter

Part #WE04X10094

$49.91 |
11% OFF Phone Price : $55.91
In Stock
Heater Housing WE11X0099
#1215

Dryer upper cabinet, drum & heater diagram

Heater housing

Part #WE11X0099

Replaced by #WE11X99

?
Manufacturer substitution
This part replaces WE11X0099. Substitute parts can look different from the original.
$265.40 |
$12.00 OFF Phone Price : $277.40
In Stock
Dryer Drum Felt Seal, Lower WE09X10014
#1221

Dryer upper cabinet, drum & heater diagram

Dryer drum felt seal, lower

Part #WE09X10014

The manufacturer no longer makes this part, and there's no substitute part

Inlet Hose WH41X10062
#2126

Washer tub, hoses & motor diagram

Inlet hose

Part #WH41X10062

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X10062. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Thermostat WE04X10002
#1233

Dryer upper cabinet, drum & heater diagram

Thermostat

Part #WE04X10002

Replaced by #WE4X757

?
Manufacturer substitution
This part replaces WE04X10002. Substitute parts can look different from the original.
$56.17 |
10% OFF Phone Price : $62.17
In Stock
Washer Tub Seal Assembly WH08X10004
#1626

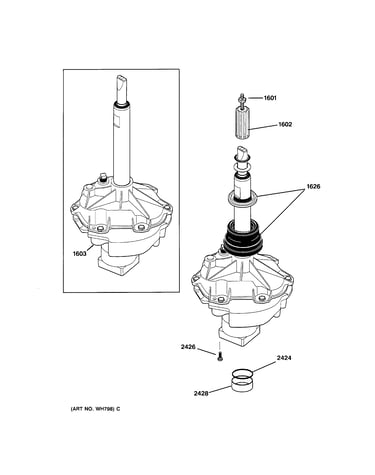

Transmission diagram

Washer tub seal assembly

Part #WH08X10004

$113.43 |
10% OFF Phone Price : $125.43
In Stock
Agitator WH43X10013
#1511

Washer tub, hoses & motor diagram

Agitator

Part #WH43X10013

Replaced by #WH43X119

?
Manufacturer substitution
This part replaces WH43X10013. Substitute parts can look different from the original.
$211.00 |
5% OFF Phone Price : $223.00
In Stock
