Model # 8565L40 Official Roper undercounter dishwasher

Here are the diagrams and repair parts for Official Roper 8565L40 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

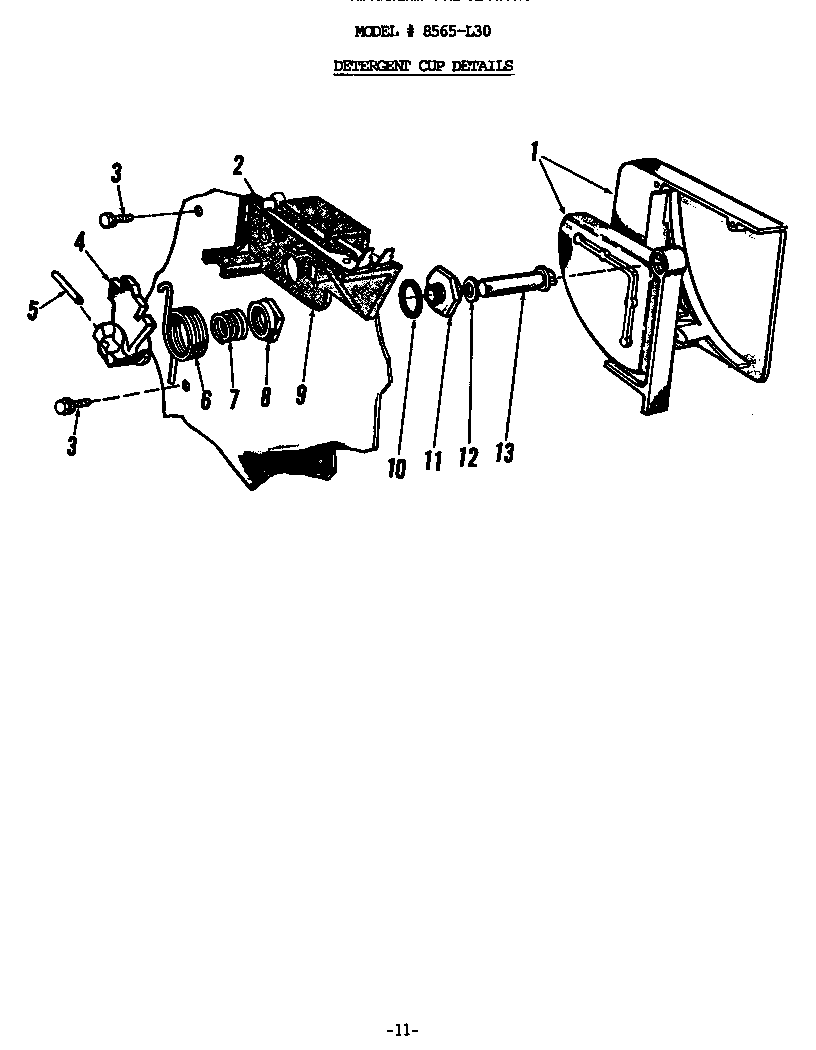

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Clamp Ring(p 807712
#15

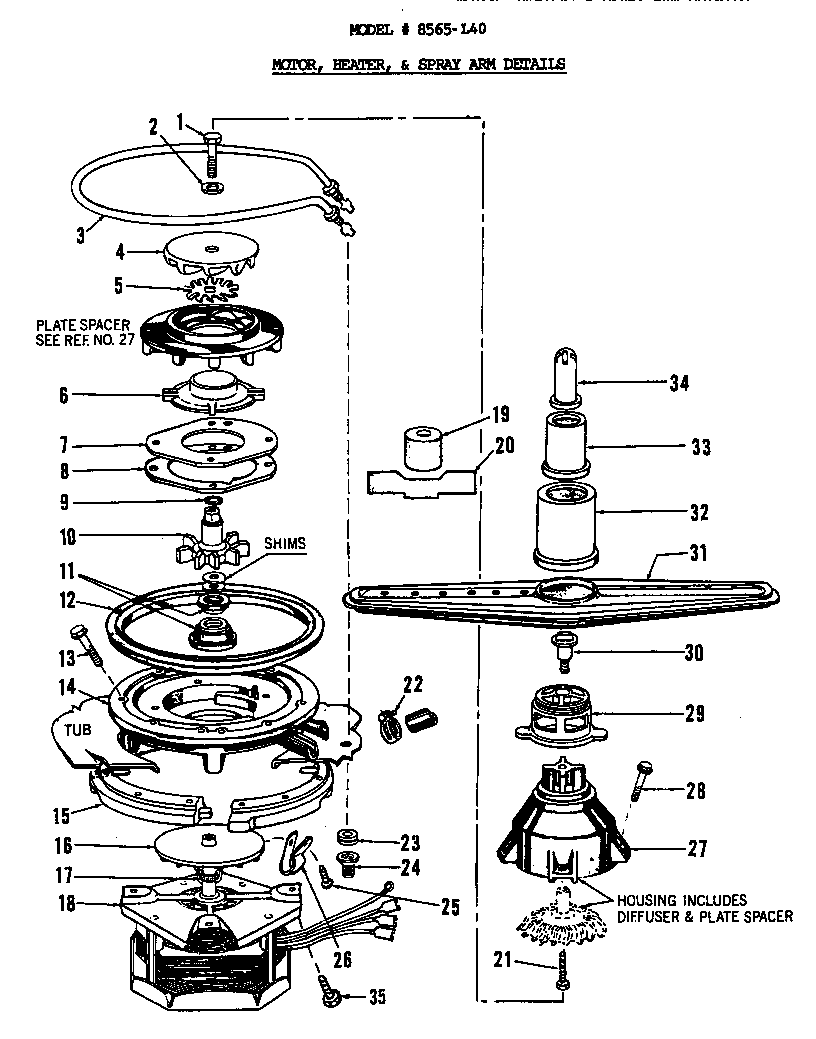

Motor, heater and spray arm diagram

Clamp ring(p

Part #807712

The manufacturer no longer makes this part, and there's no substitute part

Screw 806890
#7

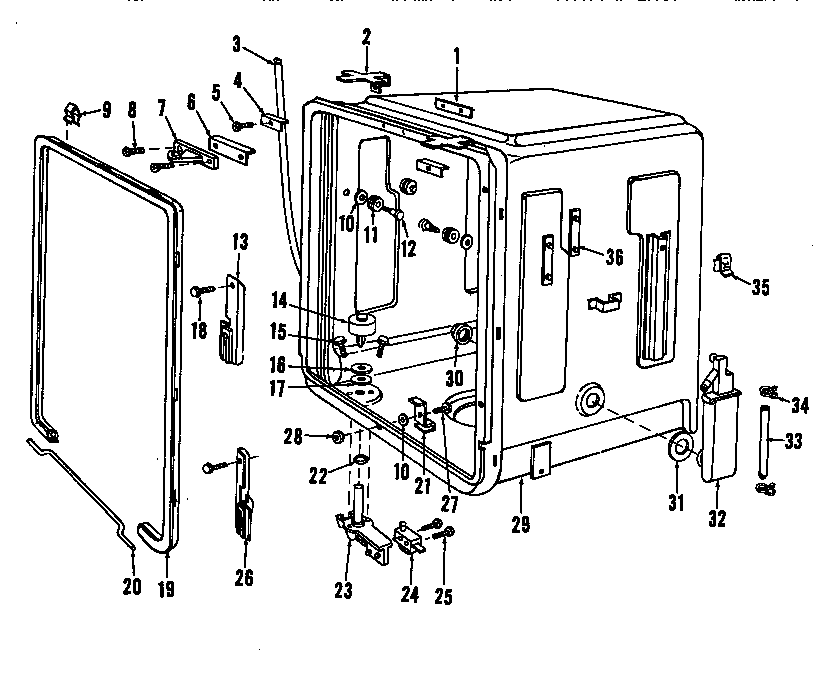

Tub diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Gasket 805763
#8

Tub diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Screw #8 Type "b" X 1/2" Lg. C.r. Truss Hd. St. St. 806967
#7

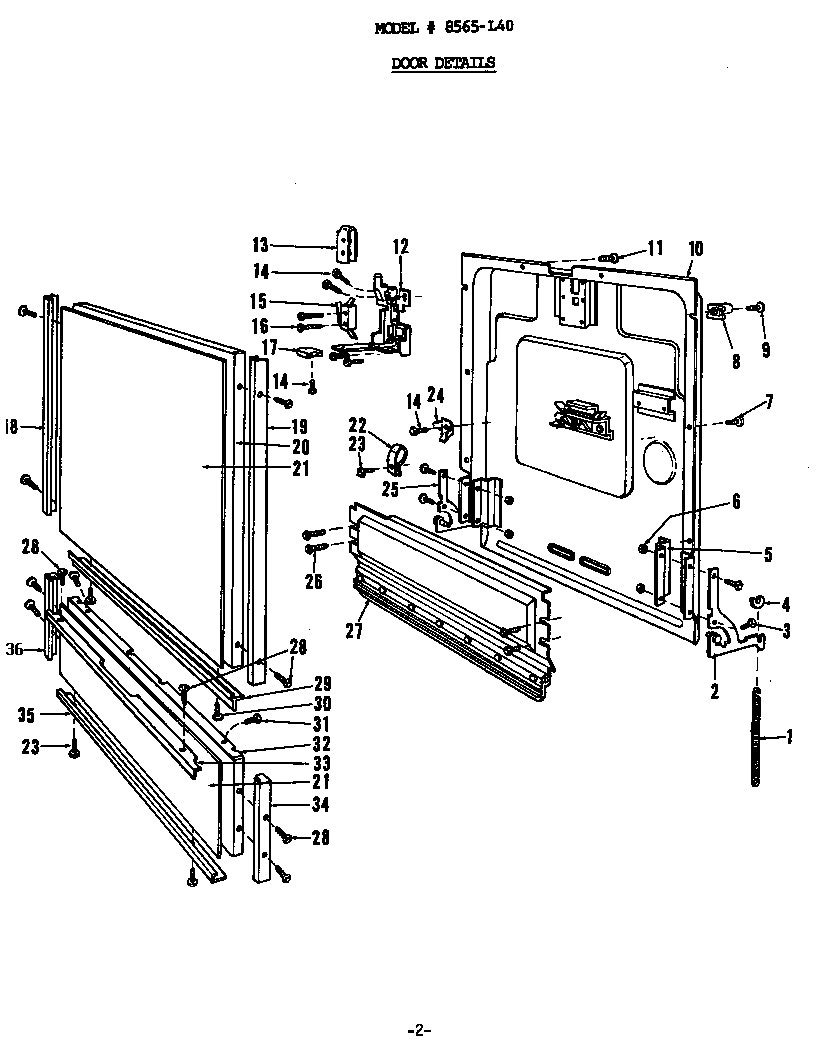

Door diagram

Screw #8 type "b" x 1/2" lg. c.r. truss hd. st. st.

Part #806967

The manufacturer no longer makes this part, and there's no substitute part

Door & Access Panel Insert, Platinum 808910
#21C

Door diagram

Door & access panel insert, platinum

Part #808910

The manufacturer no longer makes this part, and there's no substitute part

Spacer 808424
#14

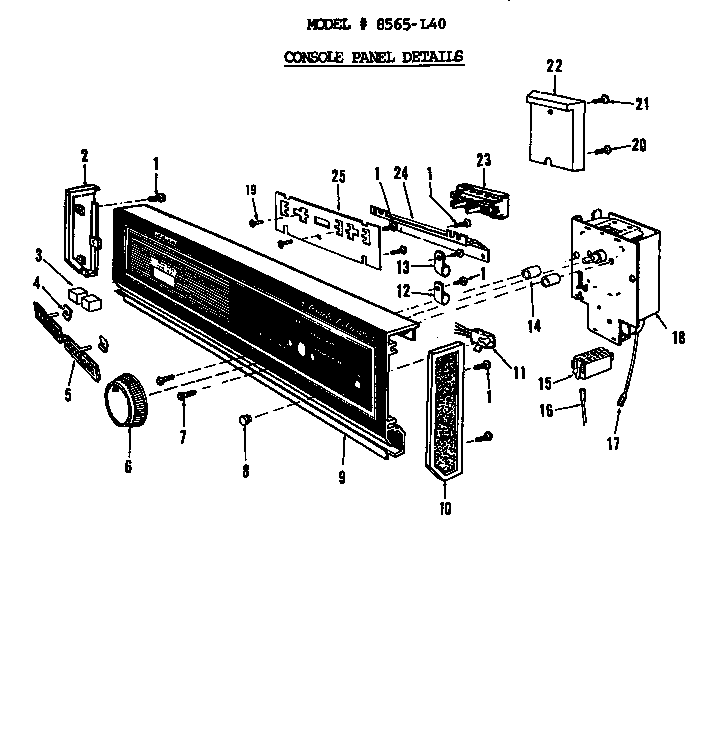

Console panel diagram

Spacer

Part #808424

The manufacturer no longer makes this part, and there's no substitute part

Screw #10 X 1 3/4" Lg. Hex Hd. St. St. 807359
#28

Motor, heater and spray arm diagram

Screw #10 x 1 3/4" lg. hex hd. st. st.

Part #807359

The manufacturer no longer makes this part, and there's no substitute part

Fitting - Retainer 808458
#28

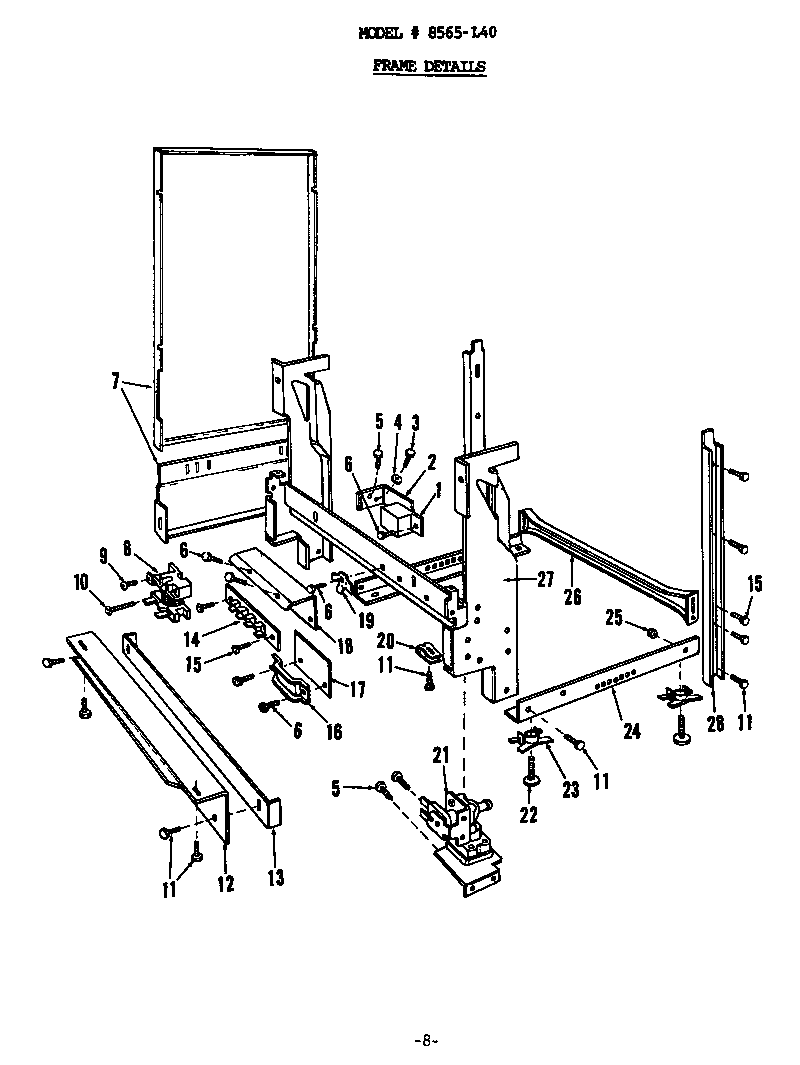

Frame diagram

Fitting - retainer

Part #808458

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Bracket 807008
#7

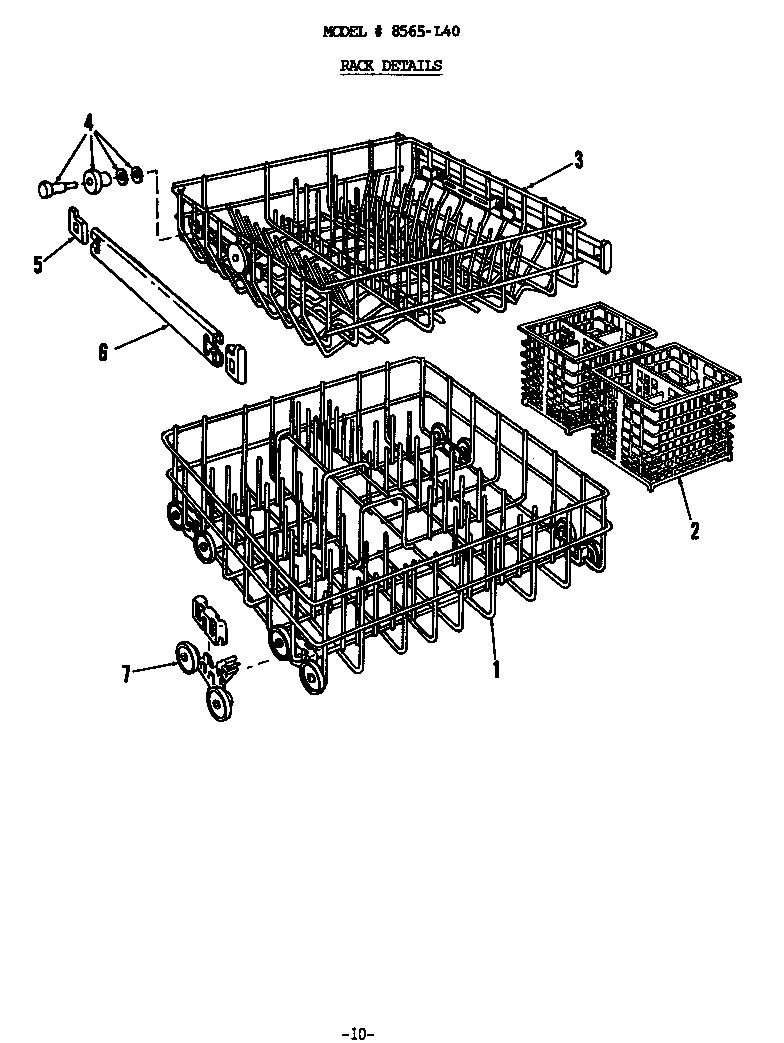

Rack diagram

Capacitor bracket

Part #807008

The manufacturer no longer makes this part, and there's no substitute part

Washer 807373
#4

Frame diagram

Washer

Part #807373

The manufacturer no longer makes this part, and there's no substitute part
