GE
Electric Cooktop

Model # ZHU36RDJ4BB Official GE electric counter unit

Here are the diagrams and repair parts for Official GE ZHU36RDJ4BB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

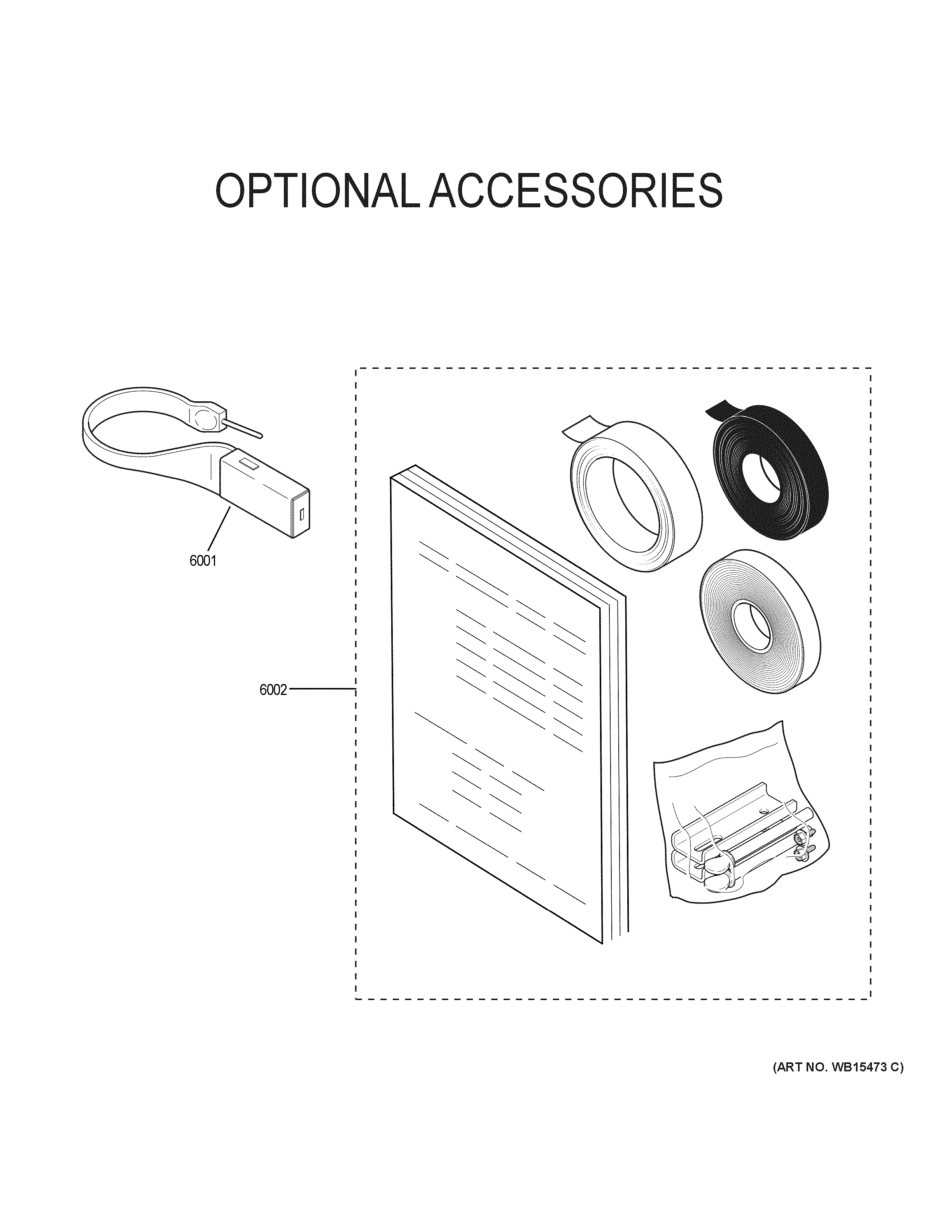

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Cooktop Induction Housing Assembly WB27X33085
#7

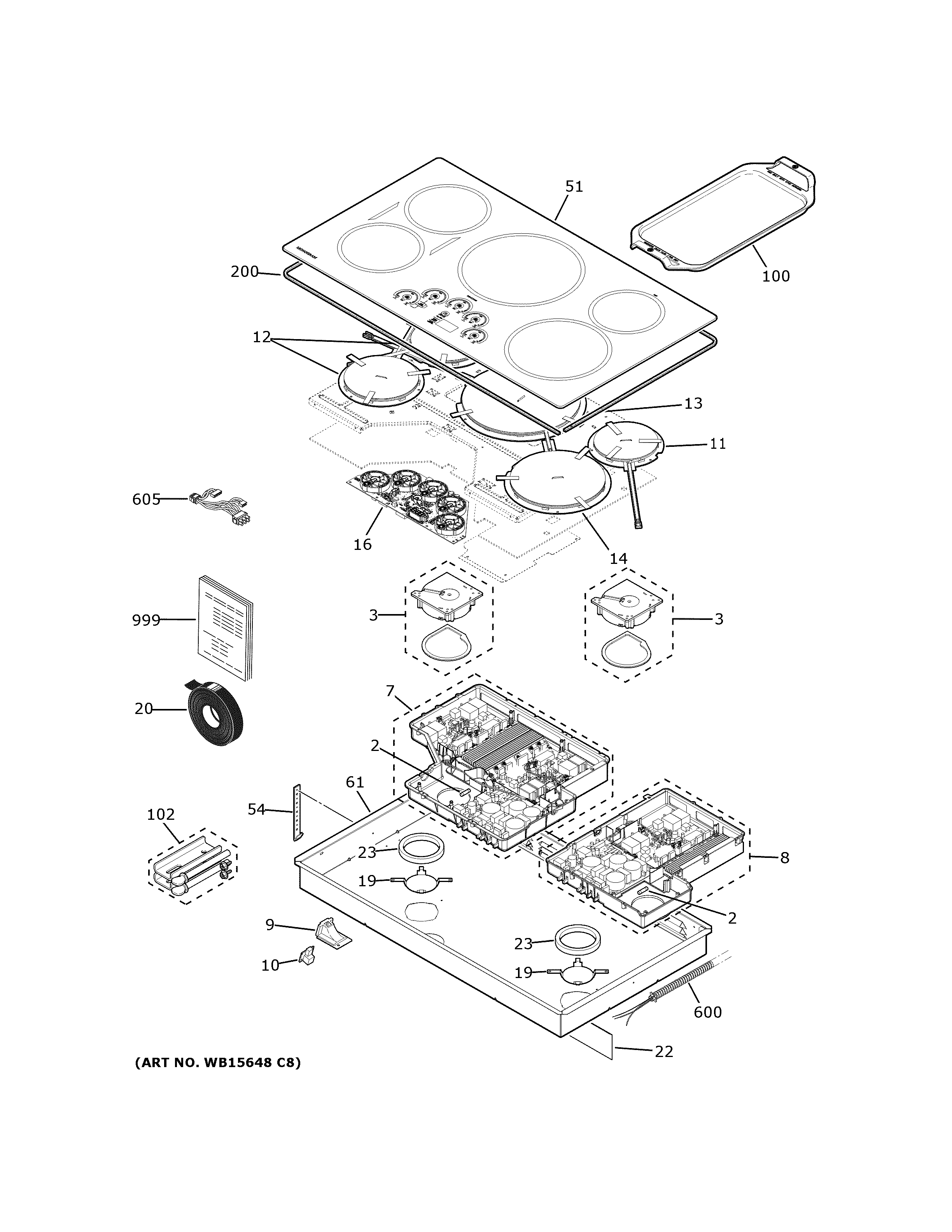

Control panel & cooktop diagram

Cooktop induction housing assembly

Part #WB27X33085

Replaced by #WB27X27184

?
Manufacturer substitution
This part replaces WB27X33085. Substitute parts can look different from the original.
$409.80
In Stock
Cooktop Induction Module (replaces Wb27x24265, Wb27x27844) WB27X33086
#8

Control panel & cooktop diagram

Cooktop induction module (replaces wb27x24265, wb27x27844)

Part #WB27X33086

$372.30 |
$12.00 OFF Phone Price : $384.30
In Stock
Element WB30X24600
#13

Control panel & cooktop diagram

Element

Part #WB30X24600

Replaced by #WB30X38227

?
Manufacturer substitution
This part replaces WB30X24600. Substitute parts can look different from the original.
$111.10
In Stock
Element WB30X24233
#11

Control panel & cooktop diagram

Element

Part #WB30X24233

Replaced by #WB30X38225

?
Manufacturer substitution
This part replaces WB30X24233. Substitute parts can look different from the original.
$72.11
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Tub Insulation WB35X24125
#200

Control panel & cooktop diagram

Tub insulation

Part #WB35X24125

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Baffle WB02X26802
#22

Control panel & cooktop diagram

Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Burner Bottom Box WB63X29540
#61

Control panel & cooktop diagram

Burner bottom box

Part #WB63X29540

$101.98
In Stock
Fuse 250v, 20a Fb WB27X27316
#2

Control panel & cooktop diagram

Fuse 250v, 20a fb

Part #WB27X27316

$22.54 |
21% OFF Phone Price : $28.54
In Stock
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#20

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24 |
10% OFF Phone Price : $57.24
In Stock
