Jenn-Air
Electric Cooktop

Model # CVE3401W Official Jenn-Air cooktop

Here are the diagrams and repair parts for Official Jenn-Air CVE3401W cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

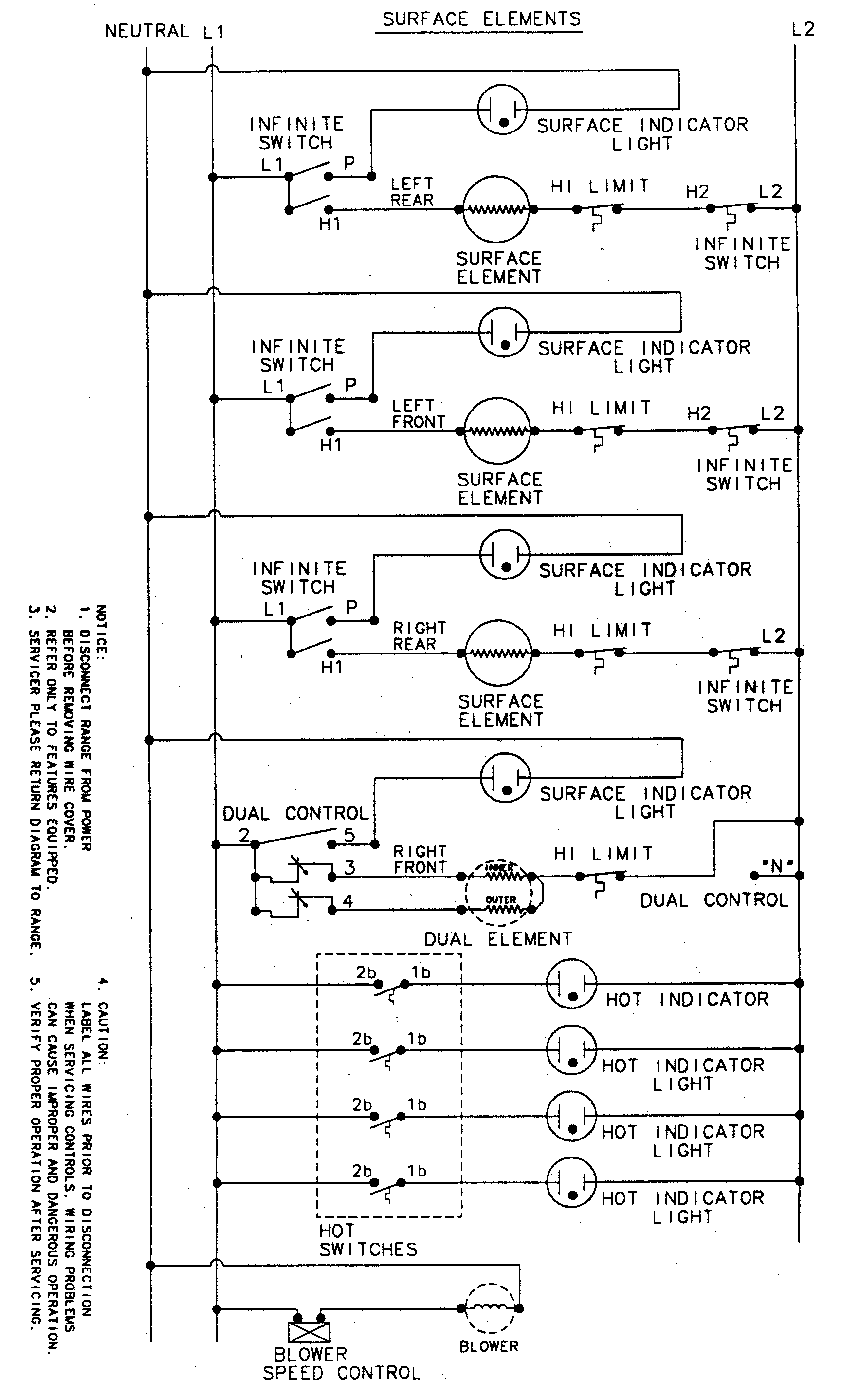

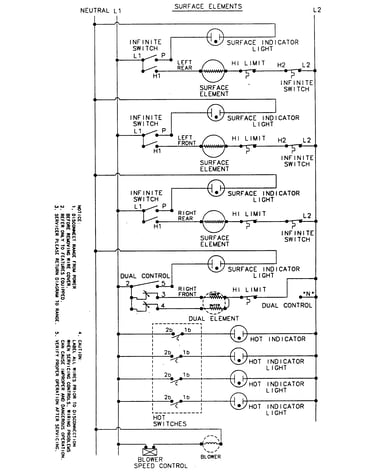

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Cook Top Cle 20000001
#1C

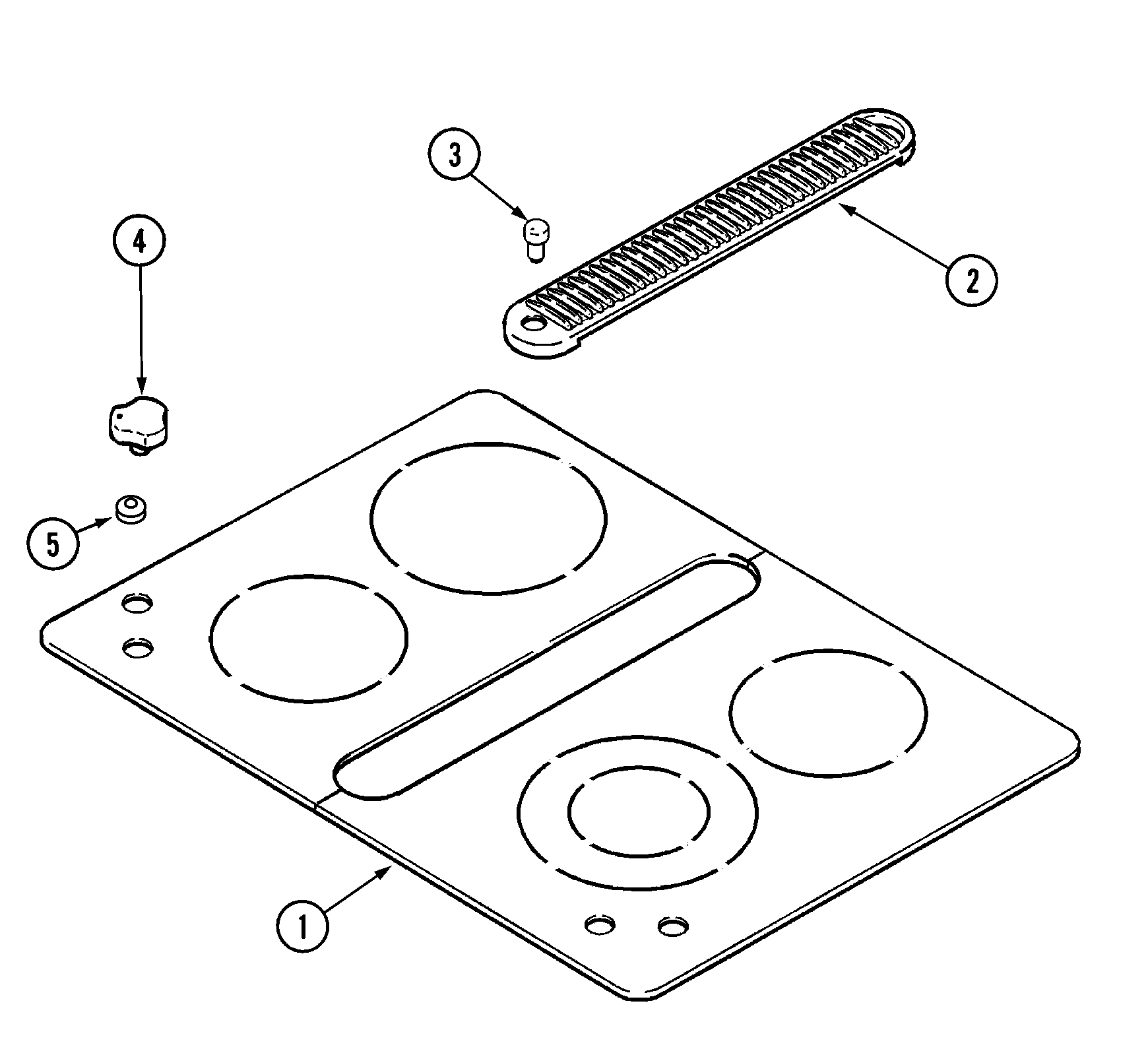

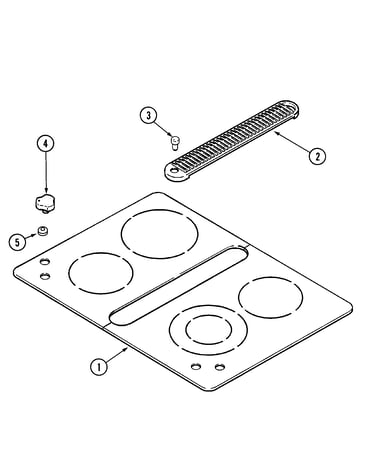

Top assembly diagram

Cook top cle

Part #20000001

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20000001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Surface Element Control Switch 71001166
#9

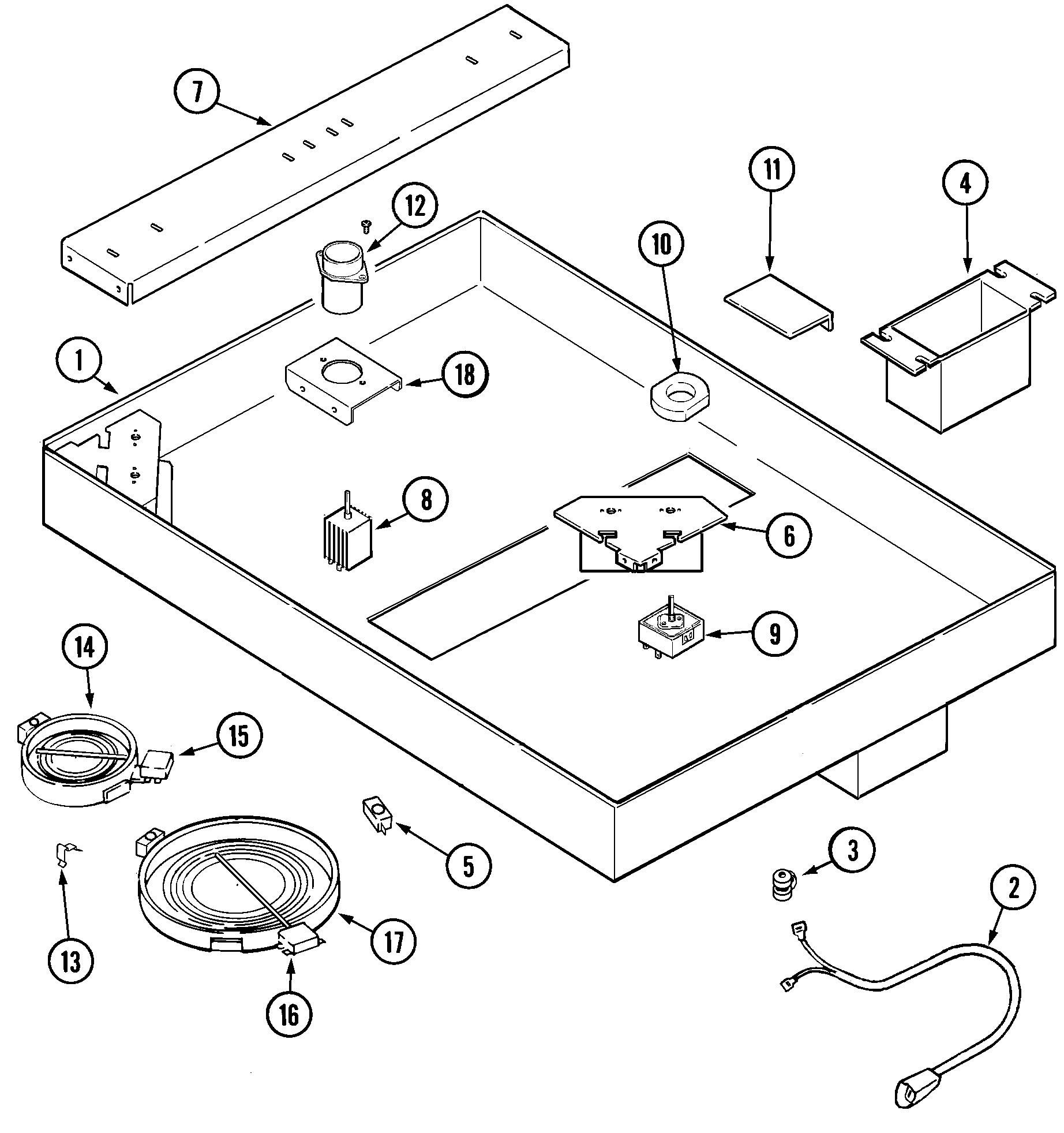

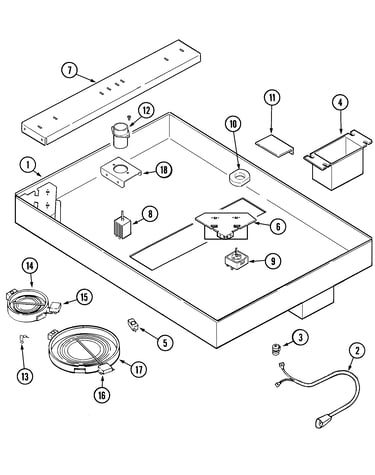

Body diagram

Range surface element control switch

Part #71001166

Replaced by #W11088181

?
Manufacturer substitution
This part replaces 71001166. Substitute parts can look different from the original.
BEST SELLER
$64.27 |
9% OFF Phone Price : $70.27
In Stock
Dual Switch 71001612
#9A

Body diagram

Dual switch

Part #71001612

Replaced by #12002125

?
Manufacturer substitution
This part replaces 71001612. Substitute parts can look different from the original.
BEST SELLER
$64.39 |
9% OFF Phone Price : $70.39
In Stock
Infinite Switch 74007896
#9C

Body diagram

Infinite switch

Part #74007896

Replaced by #12002125

?
Manufacturer substitution
This part replaces 74007896. Substitute parts can look different from the original.
BEST SELLER
$64.39 |
9% OFF Phone Price : $70.39
In Stock
Element W/re 74001012
#17A

Body diagram

Element w/re

Part #74001012

Replaced by #W10823707

?
Manufacturer substitution
This part replaces 74001012. Substitute parts can look different from the original.
BEST SELLER
$126.43 |
9% OFF Phone Price : $138.43
In Stock
Element, Dua 71002253
#17

Body diagram

Element, dua

Part #71002253

Replaced by #W10823709

?
Manufacturer substitution
This part replaces 71002253. Substitute parts can look different from the original.
$108.93 |
10% OFF Phone Price : $120.93
In Stock
Infinite Knob 71003477
#4

Top assembly diagram

Infinite knob

Part #71003477

Replaced by #WP74009592

?
Manufacturer substitution
This part replaces 71003477. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Screw Isolator 71003542
#14

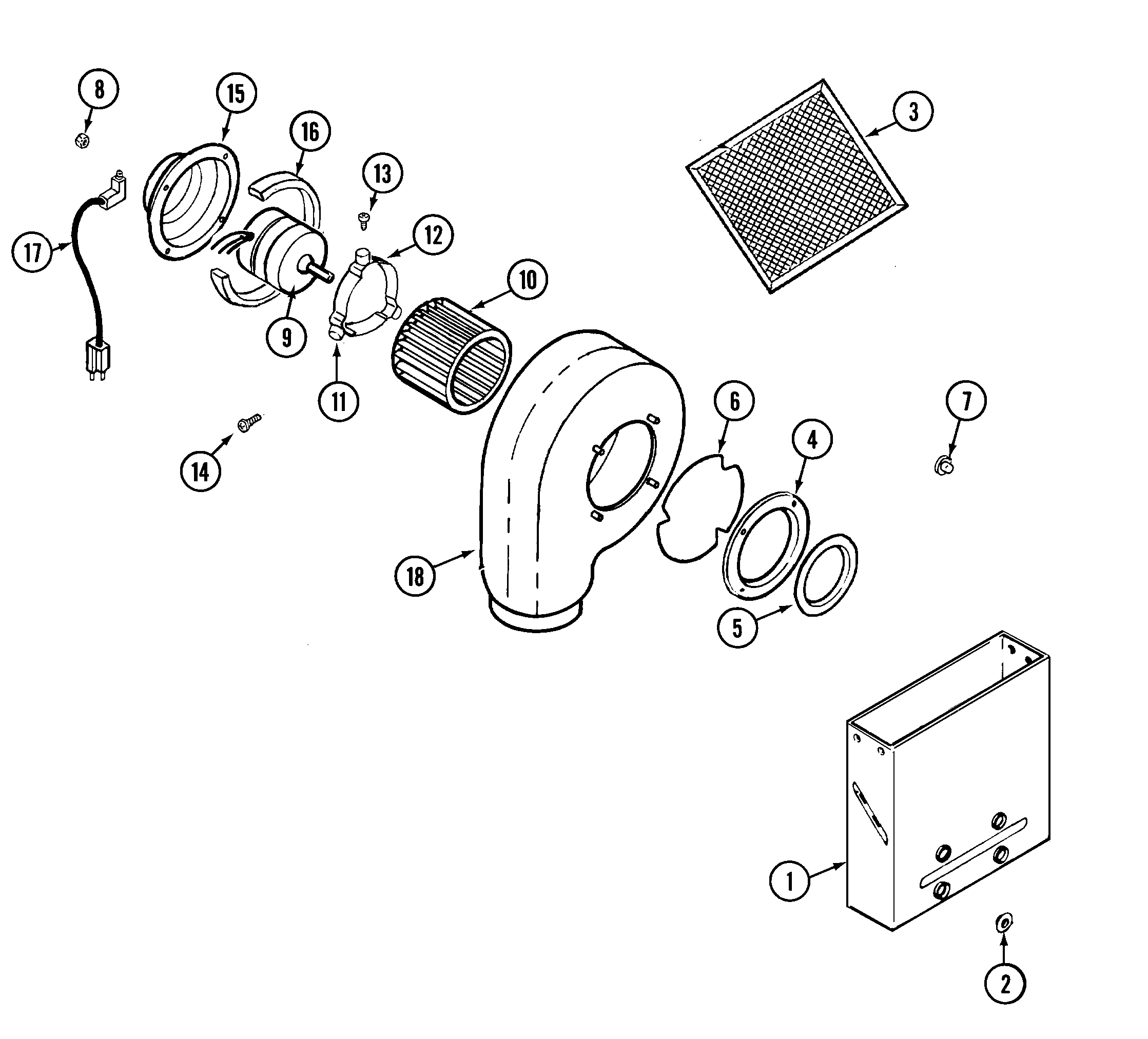

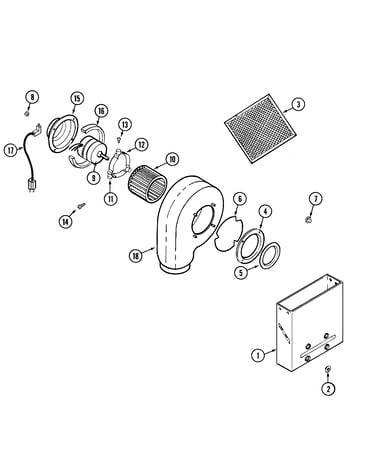

Blower assembly-plenum diagram

Screw isolator

Part #71003542

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 71003542. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Infinite Grommet 706102
#5

Top assembly diagram

Infinite grommet

Part #706102

Replaced by #WPY706102

?
Manufacturer substitution
This part replaces 706102. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Lock Nut 707702
#8

Blower assembly-plenum diagram

Lock nut

Part #707702

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 707702. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
