Model # 502473970 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502473970 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
F Axle Set 303518
#11

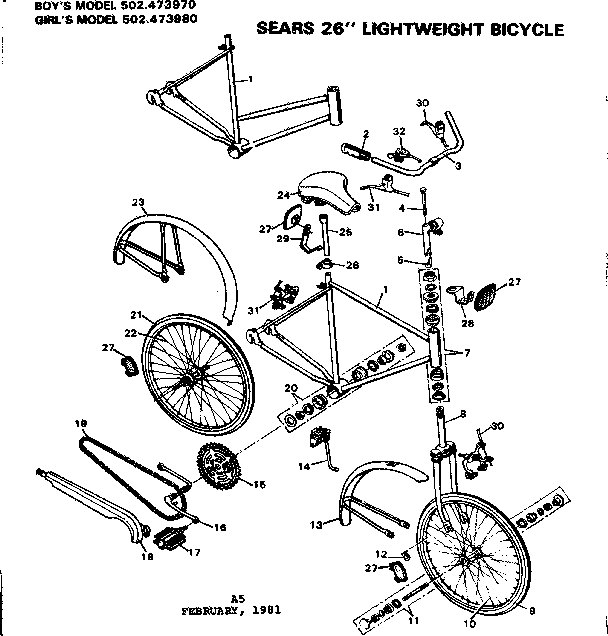

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 300424
#24

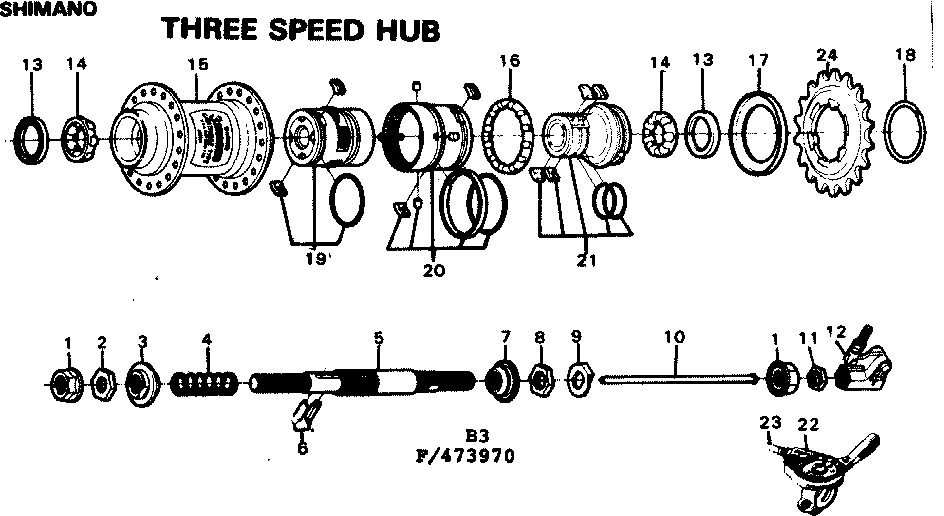

Three speed hub diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#1

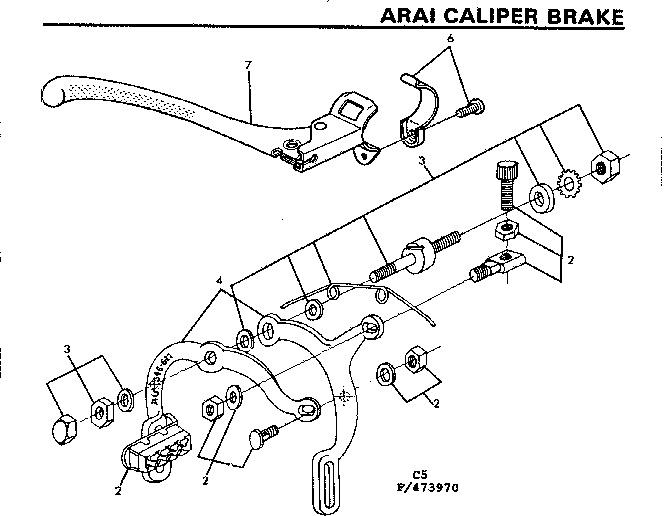

Arai caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Shift Cable 303485
#23

Three speed hub diagram

Shift cable

Part #303485

The manufacturer no longer makes this part, and there's no substitute part

Frame 27005BFD
#1B

Unit parts diagram

Frame

Part #27005BFD

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 13151C
#3

Unit parts diagram

Handlebar

Part #13151C

The manufacturer no longer makes this part, and there's no substitute part

Spring 300019
#4

Three speed hub diagram

Spring

Part #300019

The manufacturer no longer makes this part, and there's no substitute part

Rr Bracket 34499Z
#29A

Unit parts diagram

Rr bracket

Part #34499Z

The manufacturer no longer makes this part, and there's no substitute part

Bolt 302108
#4

Unit parts diagram

Bolt

Part #302108

The manufacturer no longer makes this part, and there's no substitute part
