Troybilt
Gas Pressure Washer

Model # 020344 Official Troybilt pressure washer

Here are the diagrams and repair parts for Official Troybilt 020344 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Accelerator 6048

#NI07

All parts diagram

Accelerator

Part #6048

Replaced by #705001

?
Manufacturer substitution
This part replaces 6048. Substitute parts can look different from the original.
BEST SELLER
$26.04 |
19% OFF Phone Price : $32.04
In Stock
Pressure Washer Hose 196006GS
#9

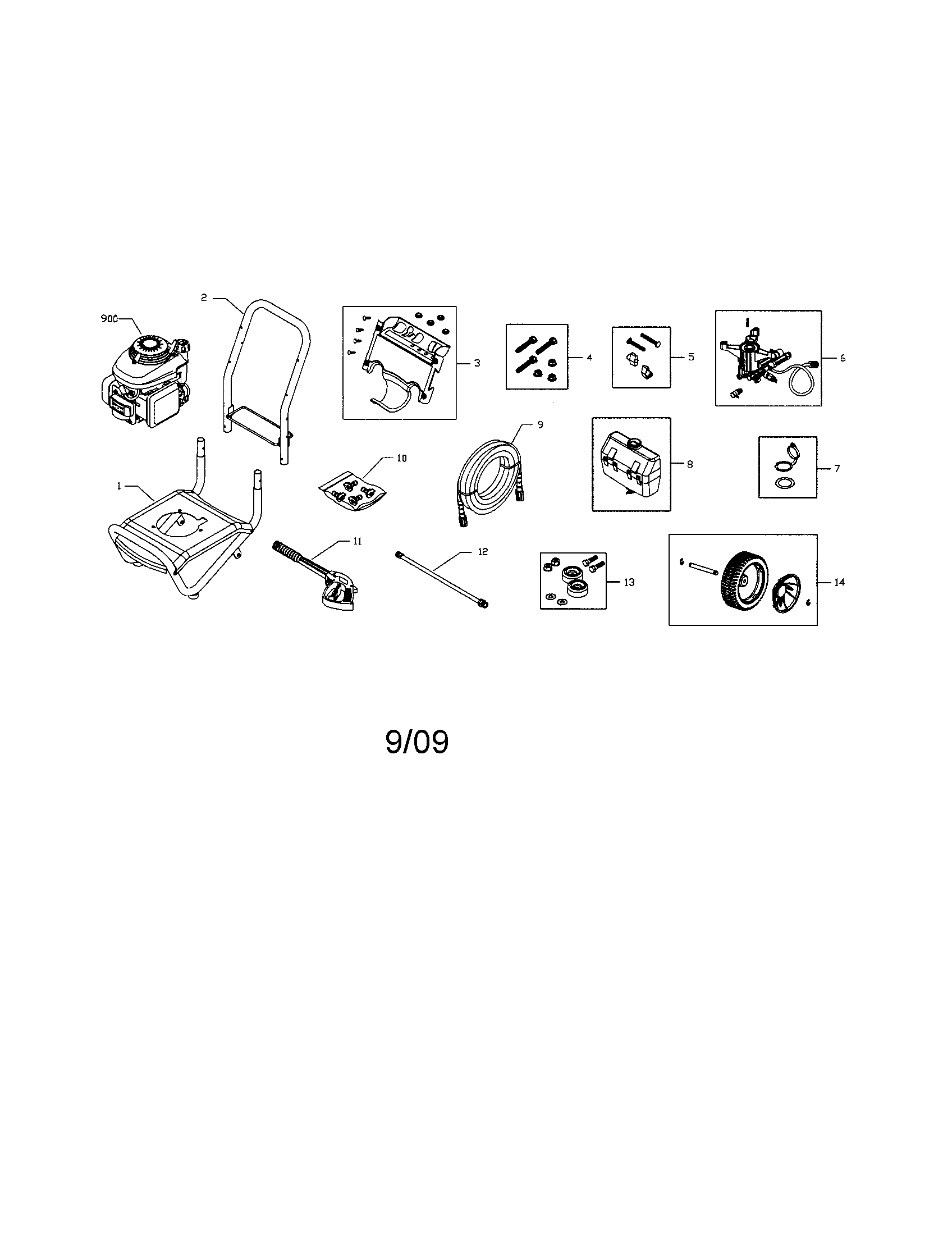

Main unit diagram

Pressure washer hose

Part #196006GS

Replaced by #84006753

?
Manufacturer substitution
This part replaces 196006GS. Substitute parts can look different from the original.
BEST SELLER
$86.25 |
7% OFF Phone Price : $92.25
In Stock
Relief Valve 194298GS
Relief valve

Part #194298GS

Replaced by #208673GS

?
Manufacturer substitution
This part replaces 194298GS. Substitute parts can look different from the original.
BEST SELLER
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Generator Fuel Shut-off Valve Kit (replaces 78299gs, 80270gs) 192980GS
#8A

Main unit diagram

Generator fuel shut-off valve kit (replaces 78299gs, 80270gs)

Part #192980GS

BEST SELLER
$25.92 |
19% OFF Phone Price : $31.92
In Stock
Pressure Washer Pump Kit 202274GS
#6

Main unit diagram

Pressure washer pump kit

Part #202274GS

Replaced by #207365GS

?
Manufacturer substitution
This part replaces 202274GS. Substitute parts can look different from the original.
BEST SELLER
$214.89 |
5% OFF Phone Price : $226.89
In Stock
Pressure Washer Chemical Injection Kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs) 192914GS
#E

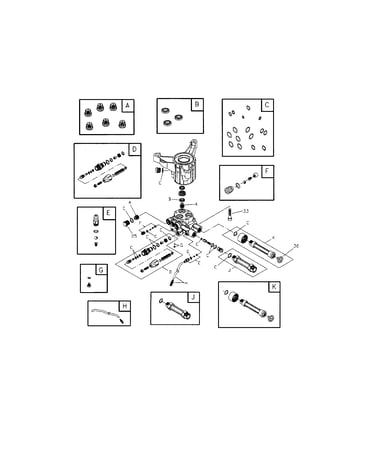

Pump diagram

Pressure washer chemical injection kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs)

Part #192914GS

This item is not returnable
$26.70 |
18% OFF Phone Price : $32.70
In Stock
Briggs & Stratton Pressure Washer Pump Saver (replaces 100515gs) 6039
Briggs & stratton pressure washer pump saver (replaces 100515gs)

Part #6039

$16.56 |
11% OFF Phone Price : $18.56
In Stock
Snapper Pressure Washer Pump Shaft Key (replaces 23139) 23139GS
#6A

Main unit diagram

Snapper pressure washer pump shaft key (replaces 23139)

Part #23139GS

This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Kit 200345GS
#B

Pump diagram

Kit

Part #200345GS

Replaced by #204084GS

?
Manufacturer substitution
This part replaces 200345GS. Substitute parts can look different from the original.
$81.75 |
7% OFF Phone Price : $87.75
In Stock
Husqvarna Pressure Washer Handle Attachment Kit (replaces B2203) B2203GS
#5

Main unit diagram

Husqvarna pressure washer handle attachment kit (replaces b2203)

Part #B2203GS

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Kit 205036GS
    Kit
    $85.38
  • Troybilt Kit 202763GS
    Troybilt kit
    $14.09 |
    12% OFF Phone Price : $16.09
