Model # CGC4M5WSTD Official Gibson gas range

Here are the diagrams and repair parts for Official Gibson CGC4M5WSTD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

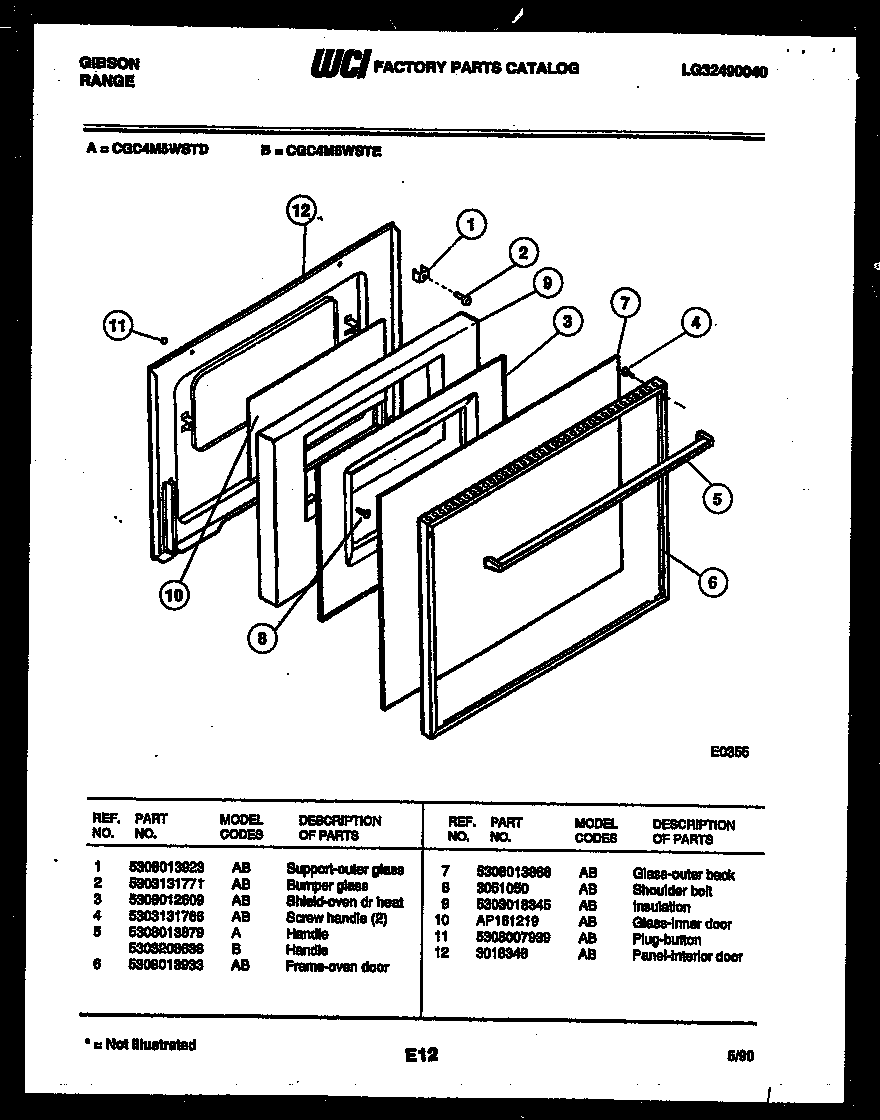

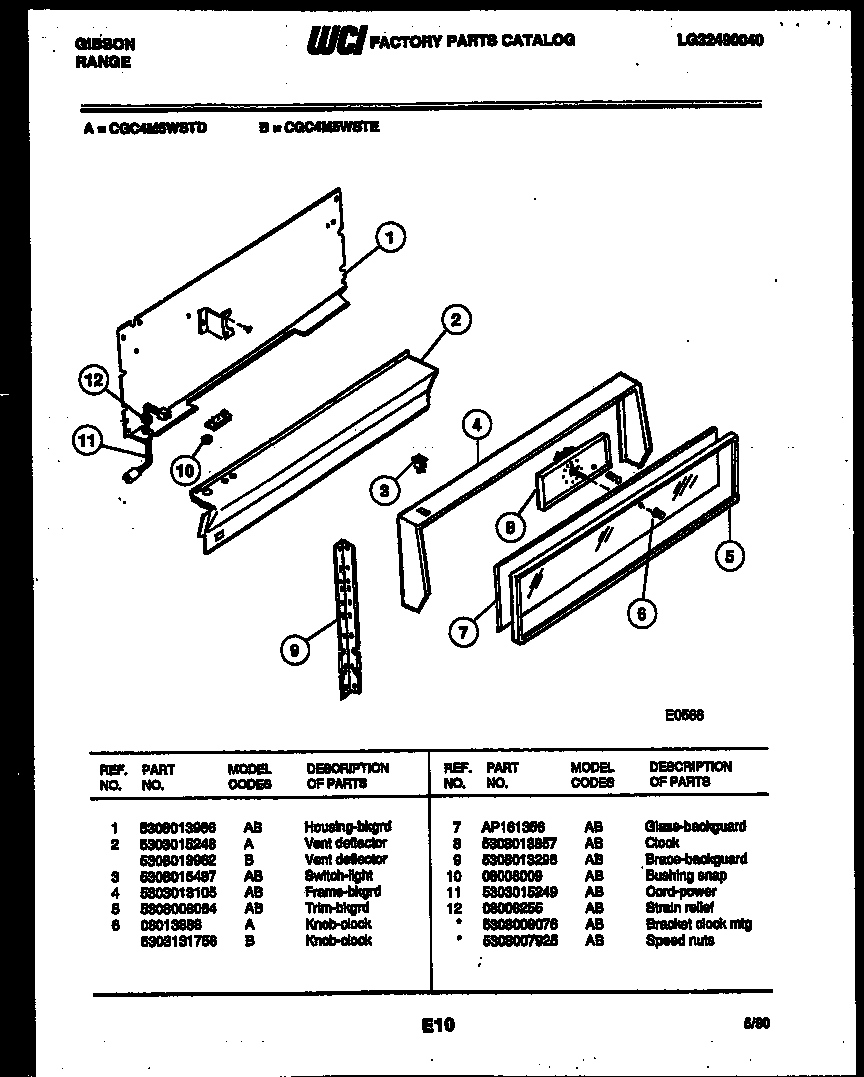

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Igniter 5308009420
#15

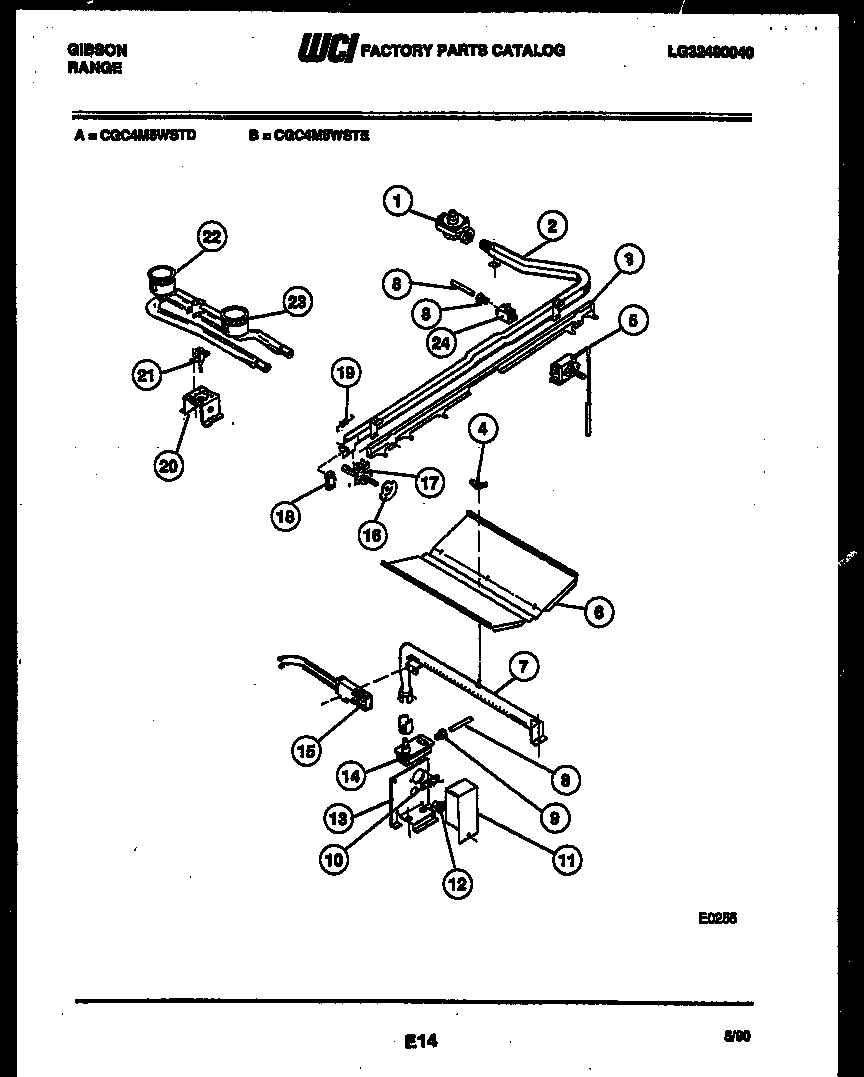

Burner parts diagram

Igniter

Part #5308009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Appliance Light Bulb, 40-watt 5303001179
#12

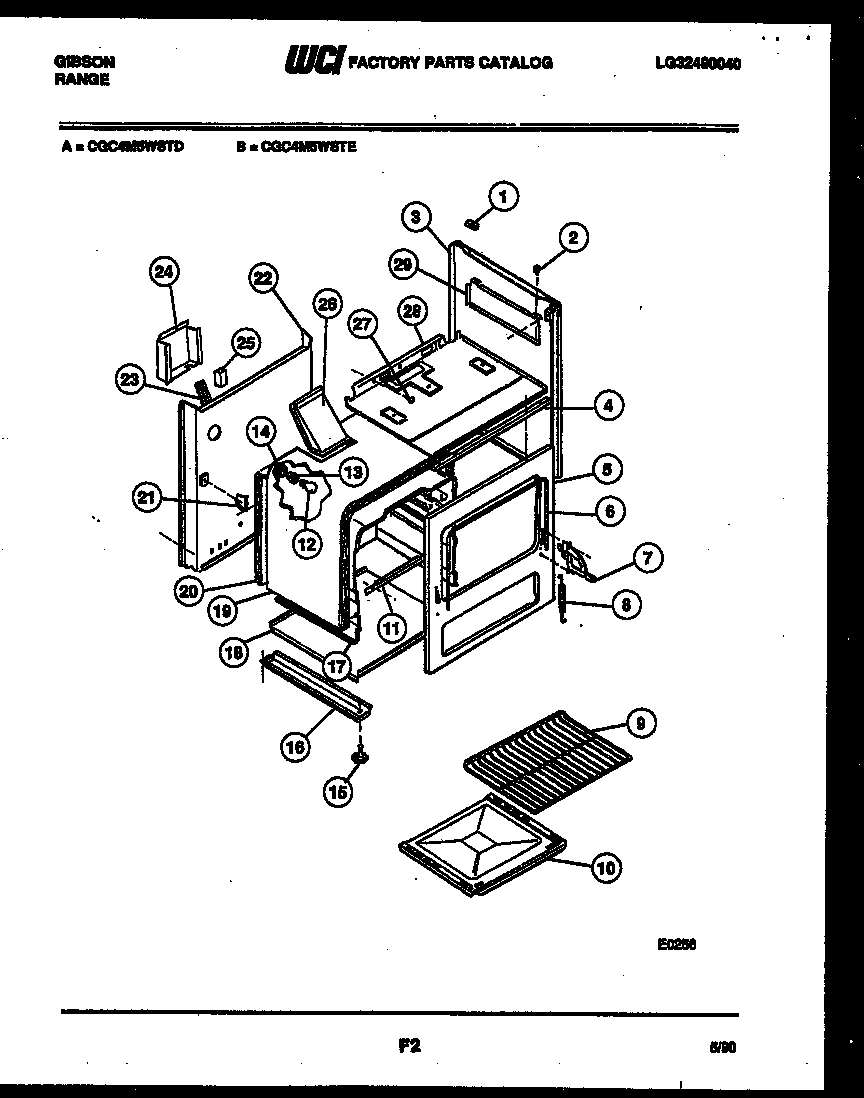

Body parts diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Light Bulb 5303013071
#12

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 5308011085
#13

Body parts diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Receptacle 5303009410
#13

Body parts diagram

Receptacle

Part #5303009410

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5303009410. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Hinge 5303204672
#7A

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Spark Module 5303209931
#25

Body parts diagram

Spark module

Part #5303209931

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303209931. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Module 5303200669
#25

Body parts diagram

Module

Part #5303200669

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303200669. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Adjustment Nut KGM110924
#6

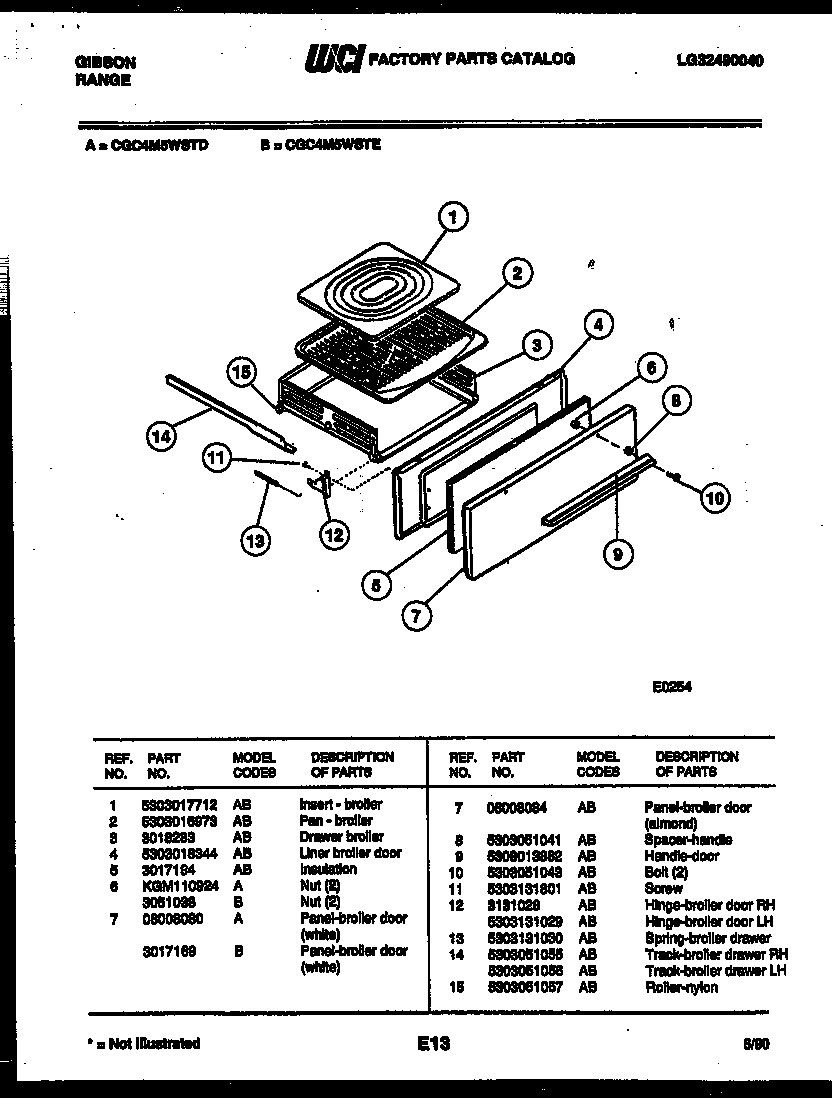

Broiler drawer parts diagram

Adjustment nut

Part #KGM110924

This item is not returnable
$2.16
In Stock
Range Surface Burner Knob 5308013898
#5

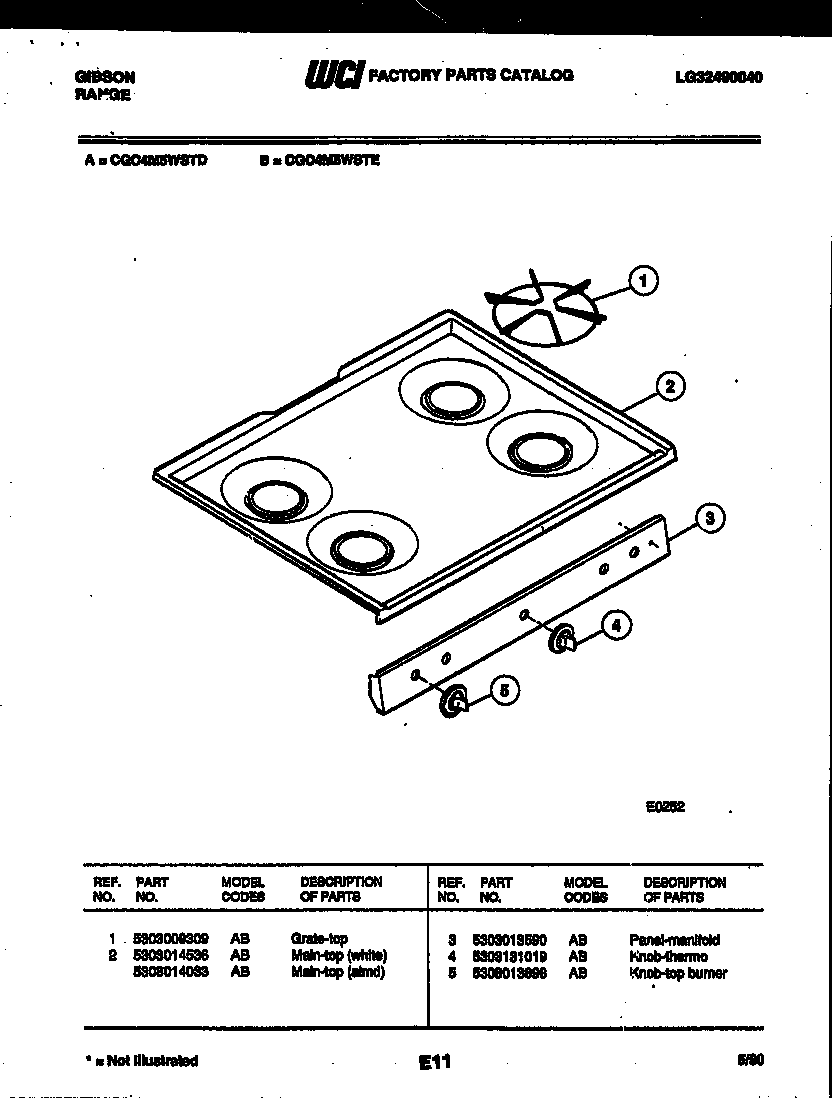

Cooktop parts diagram

Range surface burner knob

Part #5308013898

$26.73
In Stock
