Model # 1165316590 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165316590 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Plug Cover 4156165
#56

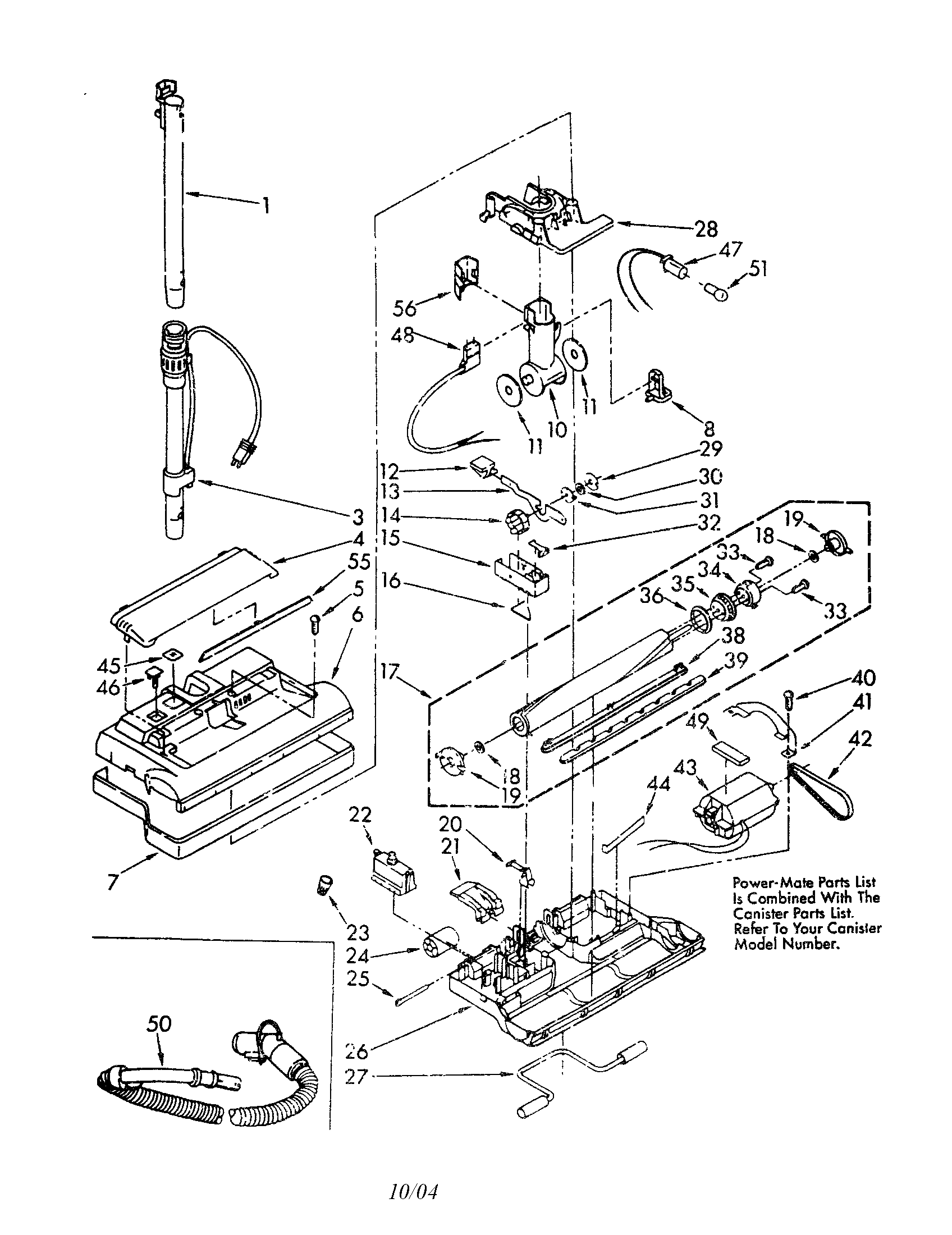

Power-mate diagram

Plug cover

Part #4156165

The manufacturer no longer makes this part, and there's no substitute part

Spring 725775
#16

Power-mate diagram

Spring

Part #725775

The manufacturer no longer makes this part, and there's no substitute part

Bar 742029
#39

Power-mate diagram

Bar

Part #742029

The manufacturer no longer makes this part, and there's no substitute part

Screw 681550
#5

Power-mate diagram

Screw

Part #681550

The manufacturer no longer makes this part, and there's no substitute part

Bearing 743395
#19

Power-mate diagram

Bearing

Part #743395

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 4155536
#28

Power-mate diagram

Swivel cap

Part #4155536

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 4151554
#26

Power-mate diagram

Nozzle base

Part #4151554

The manufacturer no longer makes this part, and there's no substitute part

Bumper 4155587
#7

Power-mate diagram

Bumper

Part #4155587

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part
