Model # GHDA690P00WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GHDA690P00WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

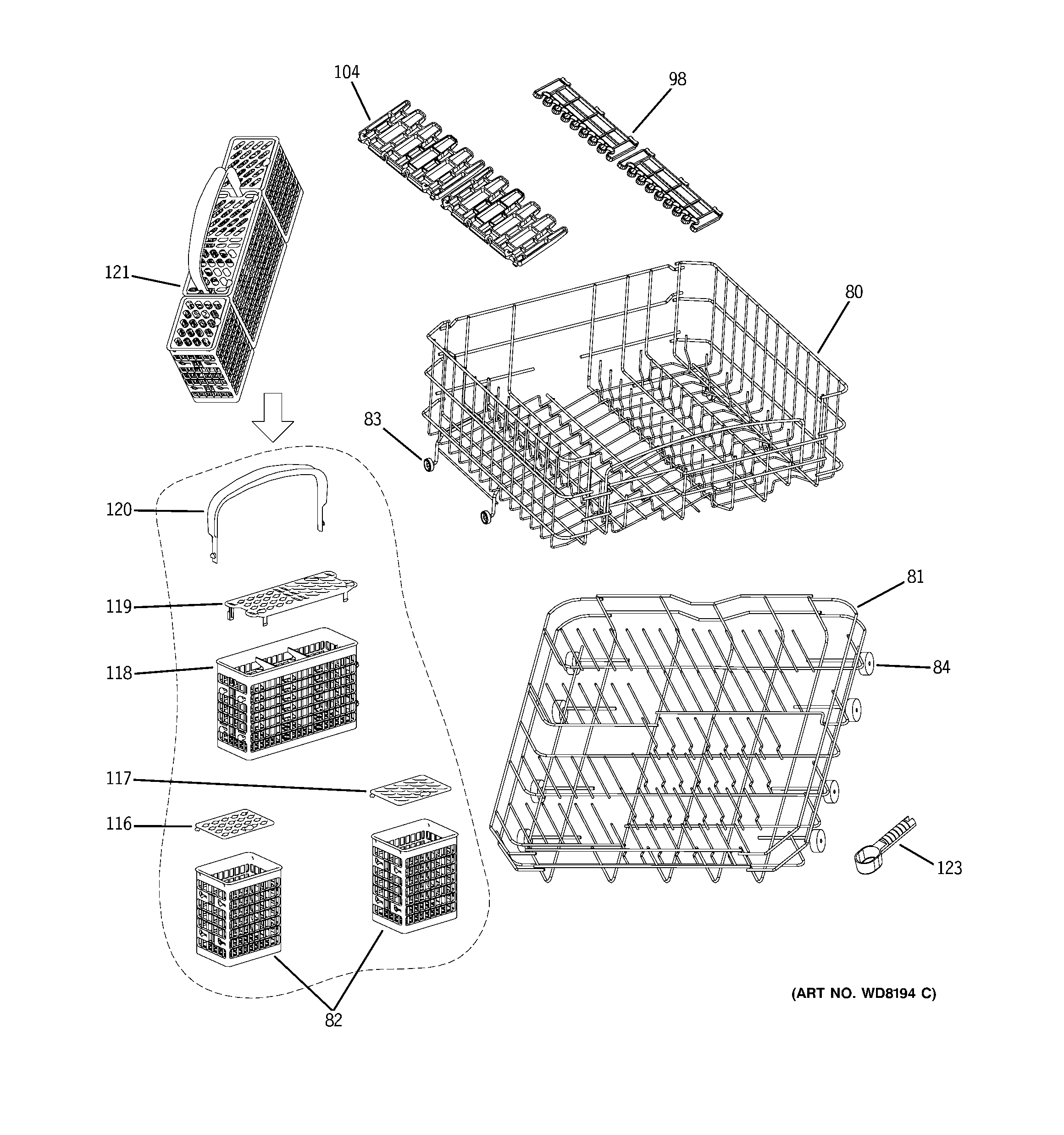

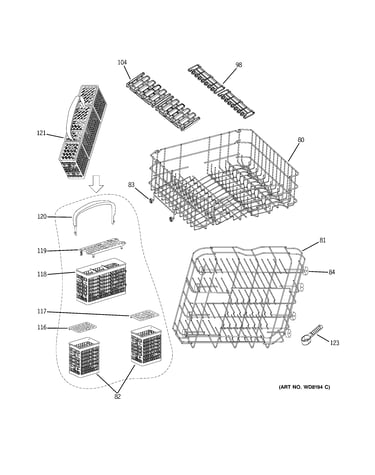

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Dishwasher Dishrack Track Roller WD12X10221
#67

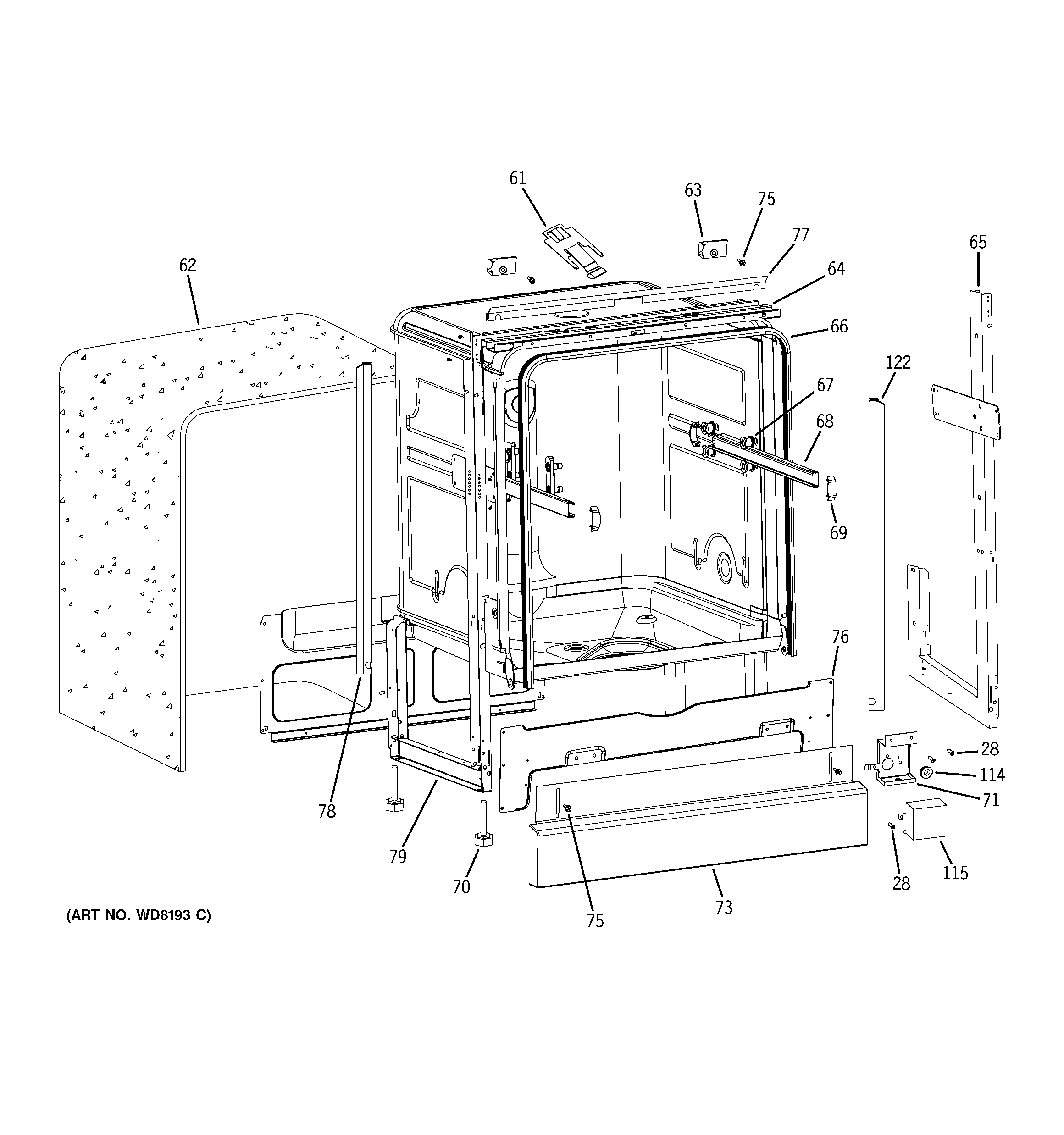

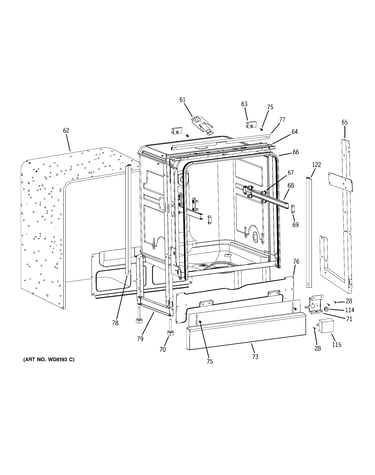

Body parts diagram

Dishwasher dishrack track roller

Part #WD12X10221

Replaced by #WD12X23637

?
Manufacturer substitution
This part replaces WD12X10221. Substitute parts can look different from the original.
$9.84 |
9% OFF Phone Price : $10.84
In Stock
Dishwasher Hinge WD14X10028
#56

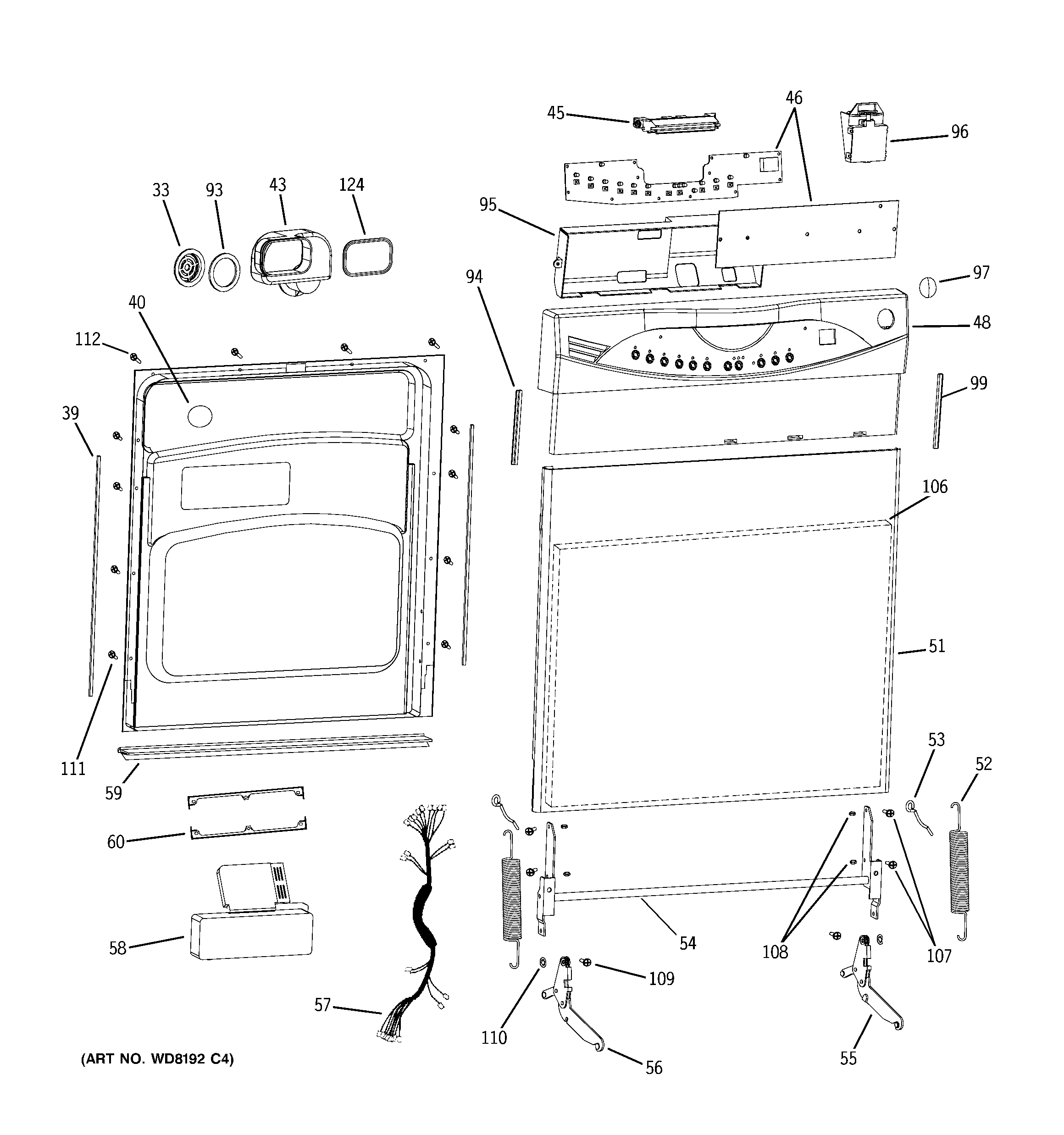

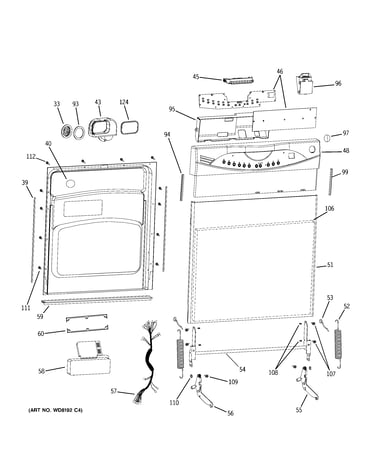

Escutcheon & door assembly diagram

Dishwasher hinge

Part #WD14X10028

$29.64
In Stock
Micro Filter WD12X10218
#9

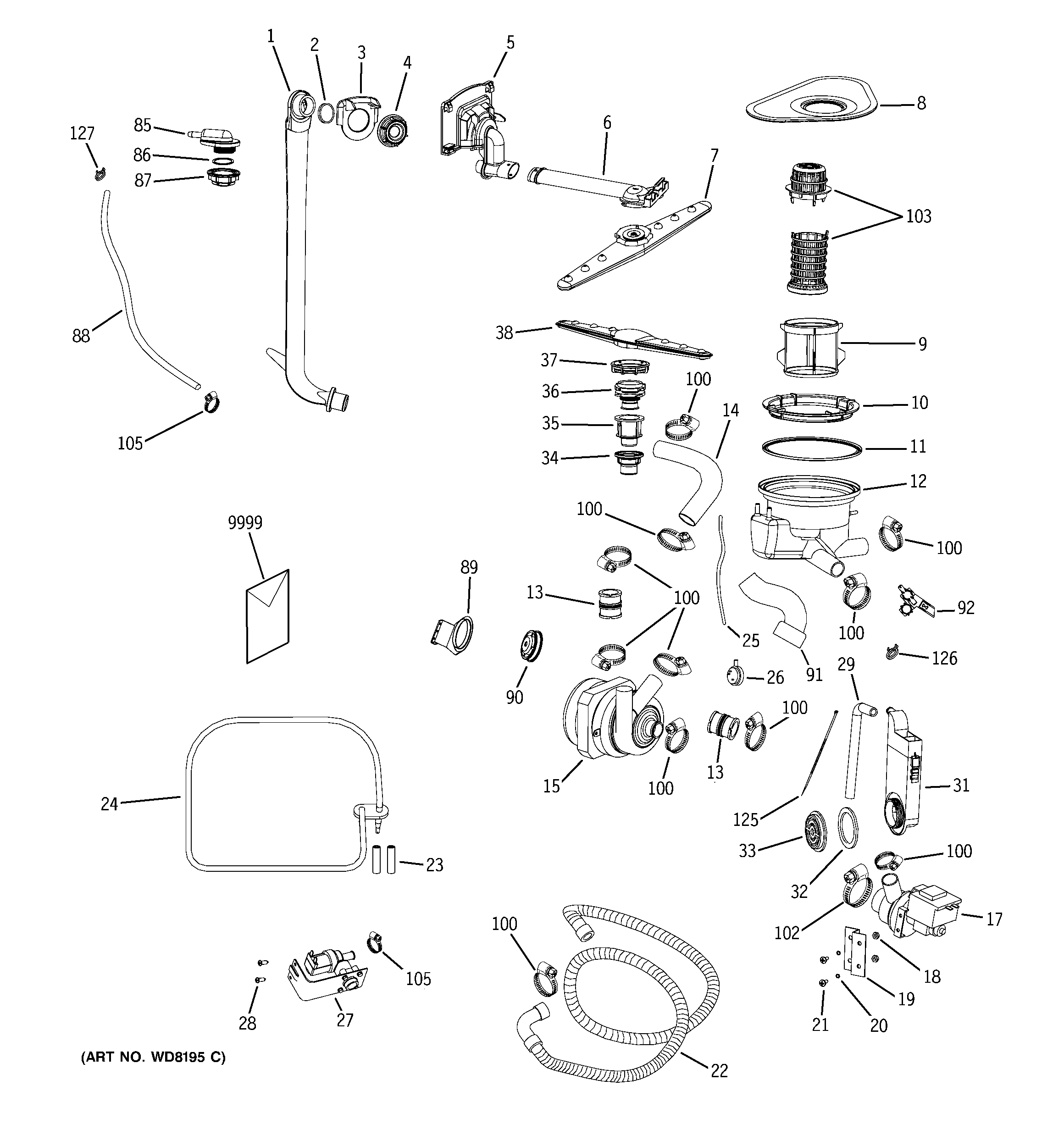

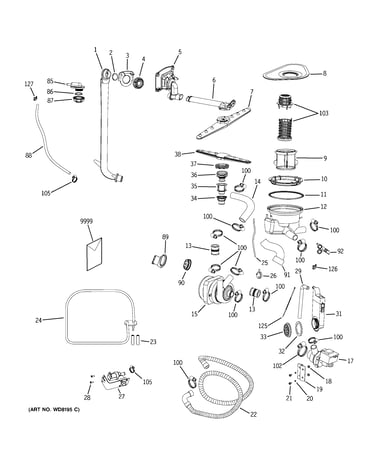

Motor-pump mechanism diagram

Micro filter

Part #WD12X10218

Replaced by #WD12X10286

?
Manufacturer substitution
This part replaces WD12X10218. Substitute parts can look different from the original.
$15.51 |
11% OFF Phone Price : $17.51
In Stock
Dishwasher Upper Spray Arm Manifold Nut WD01X10307
#4

Motor-pump mechanism diagram

Dishwasher upper spray arm manifold nut

Part #WD01X10307

Replaced by #WD02X23651

?
Manufacturer substitution
This part replaces WD01X10307. Substitute parts can look different from the original.
This item is not returnable
$8.94 |
10% OFF Phone Price : $9.94
In Stock
Fill Funnel WD12X10170
#31

Motor-pump mechanism diagram

Fill funnel

Part #WD12X10170

$40.38
In Stock
Haier Dishwasher Water-level Pressure Switch Hose WD24X10030
#25

Motor-pump mechanism diagram

Haier dishwasher water-level pressure switch hose

Part #WD24X10030

$13.80
In Stock
Dishwasher Hinge WD14X10026
#54

Escutcheon & door assembly diagram

Dishwasher hinge

Part #WD14X10026

$32.91
In Stock
Upper Front WD30X10027
#64

Body parts diagram

Upper front

Part #WD30X10027

$25.51
In Stock
Haier Dishwasher Screw WD02X10139
#111

Escutcheon & door assembly diagram

Haier dishwasher screw

Part #WD02X10139

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pcb Cover WD12X10226
#95

Escutcheon & door assembly diagram

Pcb cover

Part #WD12X10226

This item is not returnable
$5.00
In Stock
