Craftsman
Water Pump

Model # 390251901 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251901 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Pump Body Gasket J20-18
#7

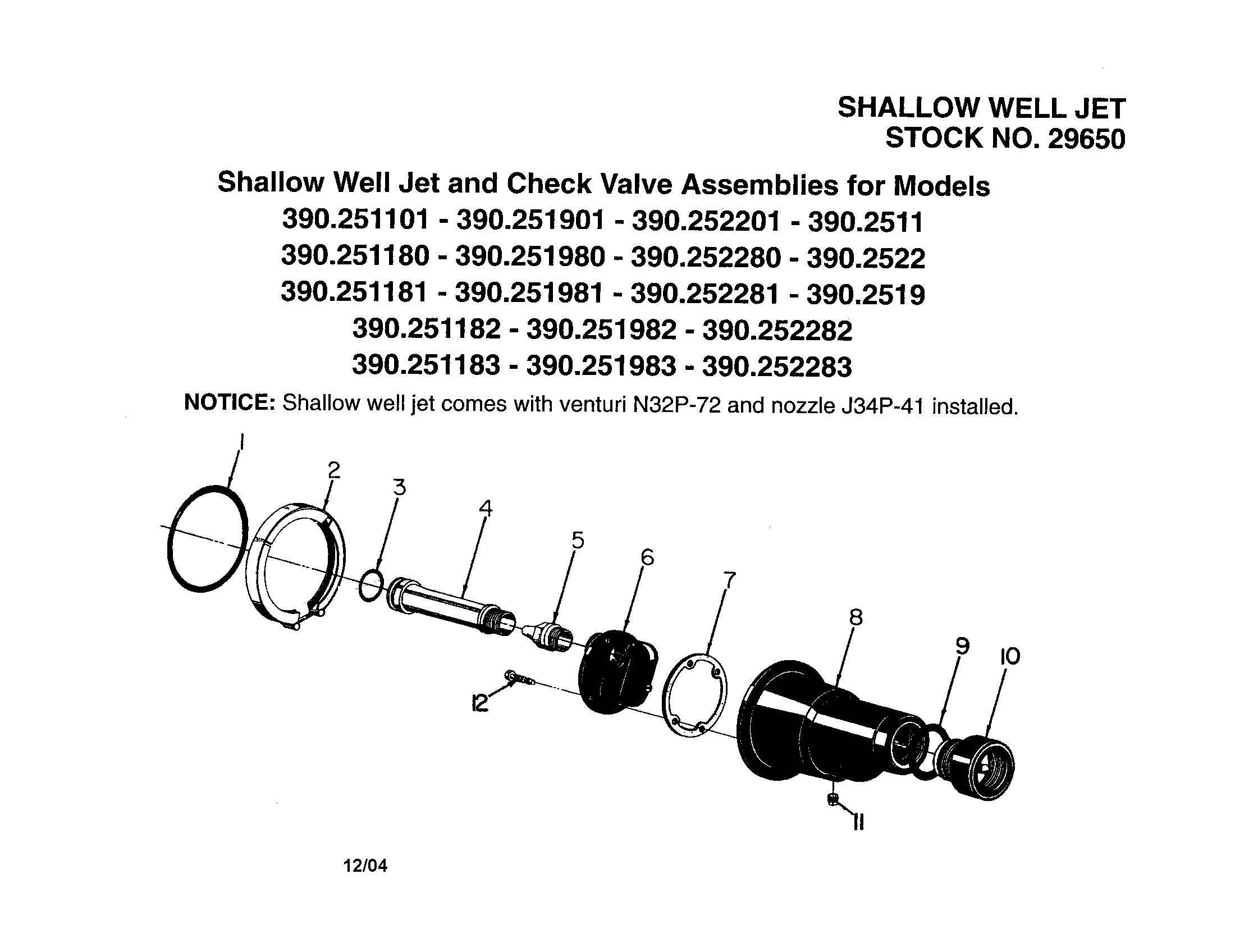

Shallow well set and check valve assemblies diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
Back Order
Tube U37-211P
#14

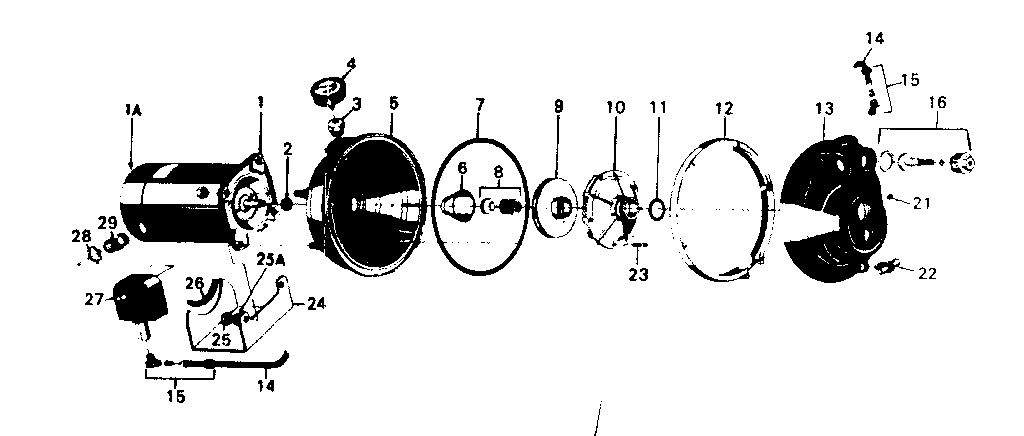

Motor assembly diagram

Tube

Part #U37-211P

Replaced by #U37-673P

?
Manufacturer substitution
This part replaces U37-211P. Substitute parts can look different from the original.
This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
Back Order
Slinger C69-2
#2

Motor assembly diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Shaft Seal 2784
#8

Motor assembly diagram

Shaft seal

Part #2784

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces 2784. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Pressure Switch U217-82A
#27B

Motor assembly diagram

Pressure switch

Part #U217-82A

Replaced by #TC2153-P2

?
Manufacturer substitution
This part replaces U217-82A. Substitute parts can look different from the original.
$59.89 |
9% OFF Phone Price : $65.89
Back Order
Pump Jet Body Leather Seal, 2-in J57-1
#4A

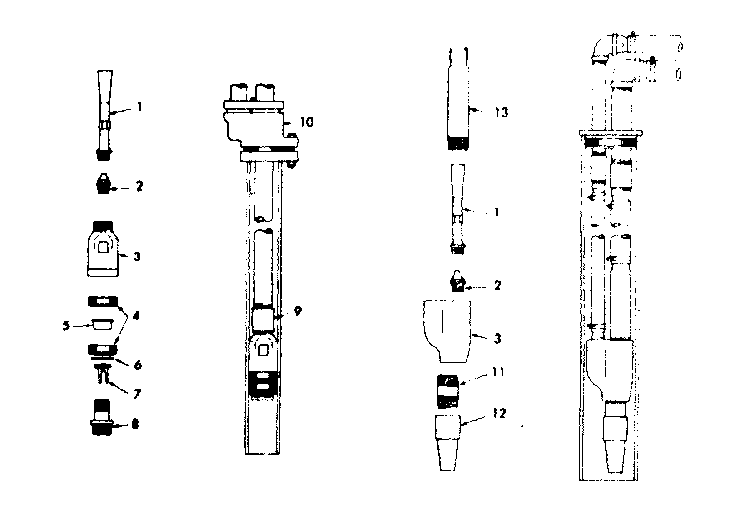

Check valve and venturi diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |
9% OFF Phone Price : $69.99
In Stock
Pump Diffuser J1-40P
#10B

Motor assembly diagram

Pump diffuser

Part #J1-40P

$170.60 |
7% OFF Phone Price : $182.60
Back Order
Complete Fitting U111-86T
#15

Motor assembly diagram

Complete fitting

Part #U111-86T

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U111-86T. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Spacer J43-16
#5B

Check valve and venturi diagram

Spacer

Part #J43-16

$59.85
In Stock
Pump Suction Pipe Seal Ring J21-18
#3

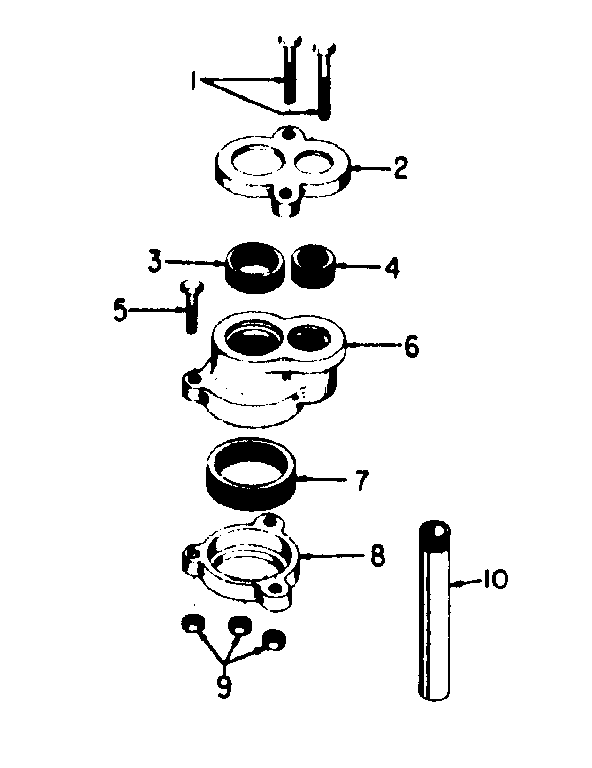

Lower flange diagram

Pump suction pipe seal ring

Part #J21-18

$20.71
In Stock
