Tappan
Gas Range

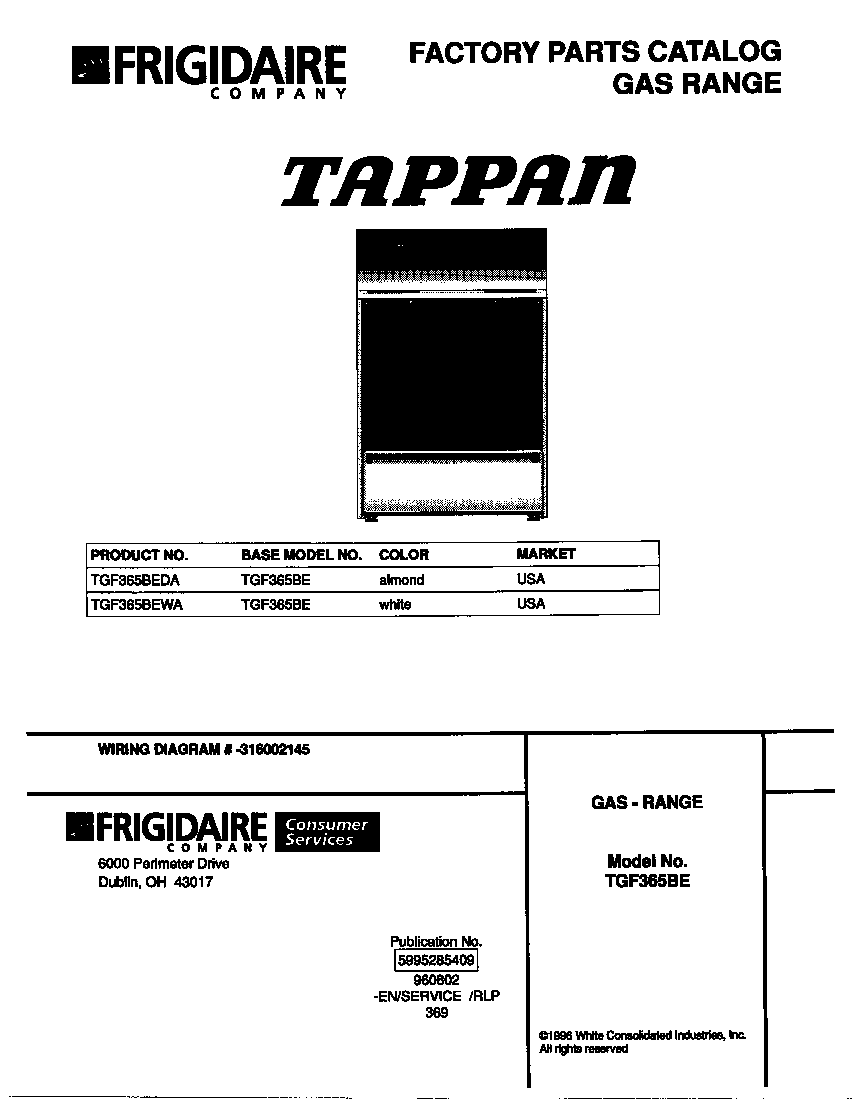

Model # TGF365BEWA Official Tappan gas range

Here are the diagrams and repair parts for Official Tappan TGF365BEWA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

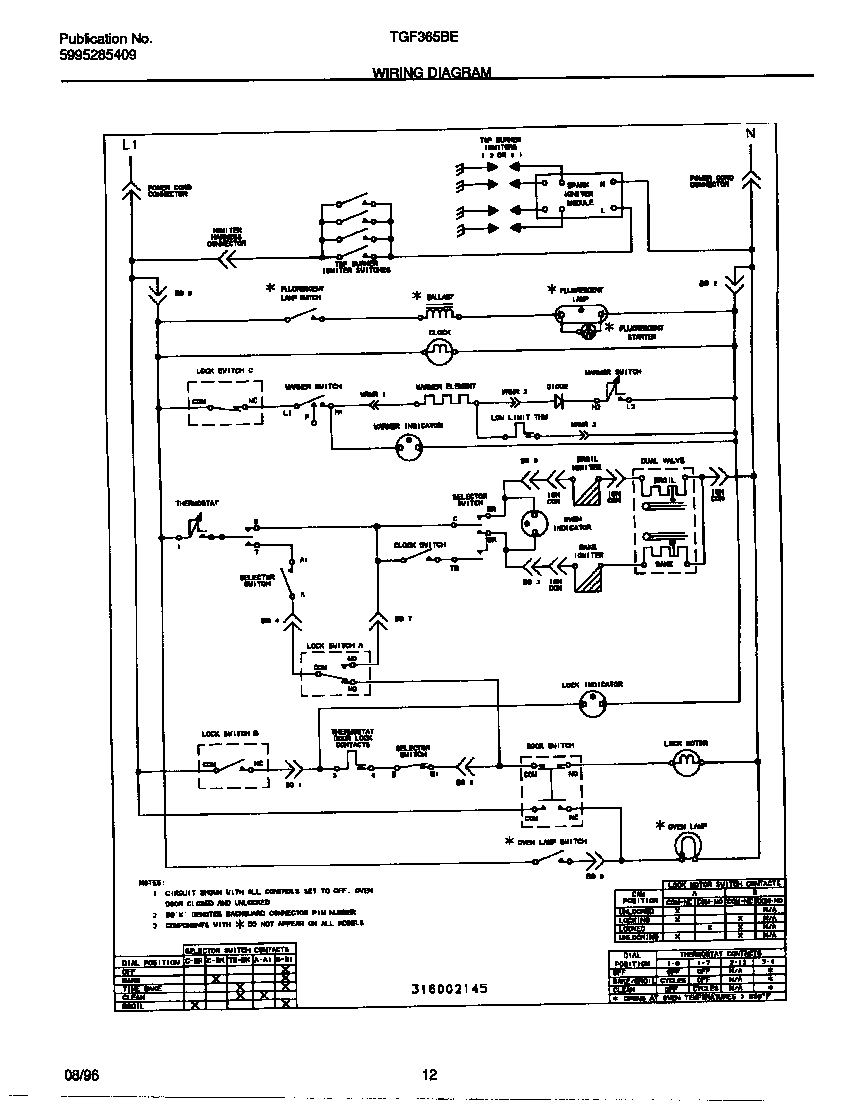

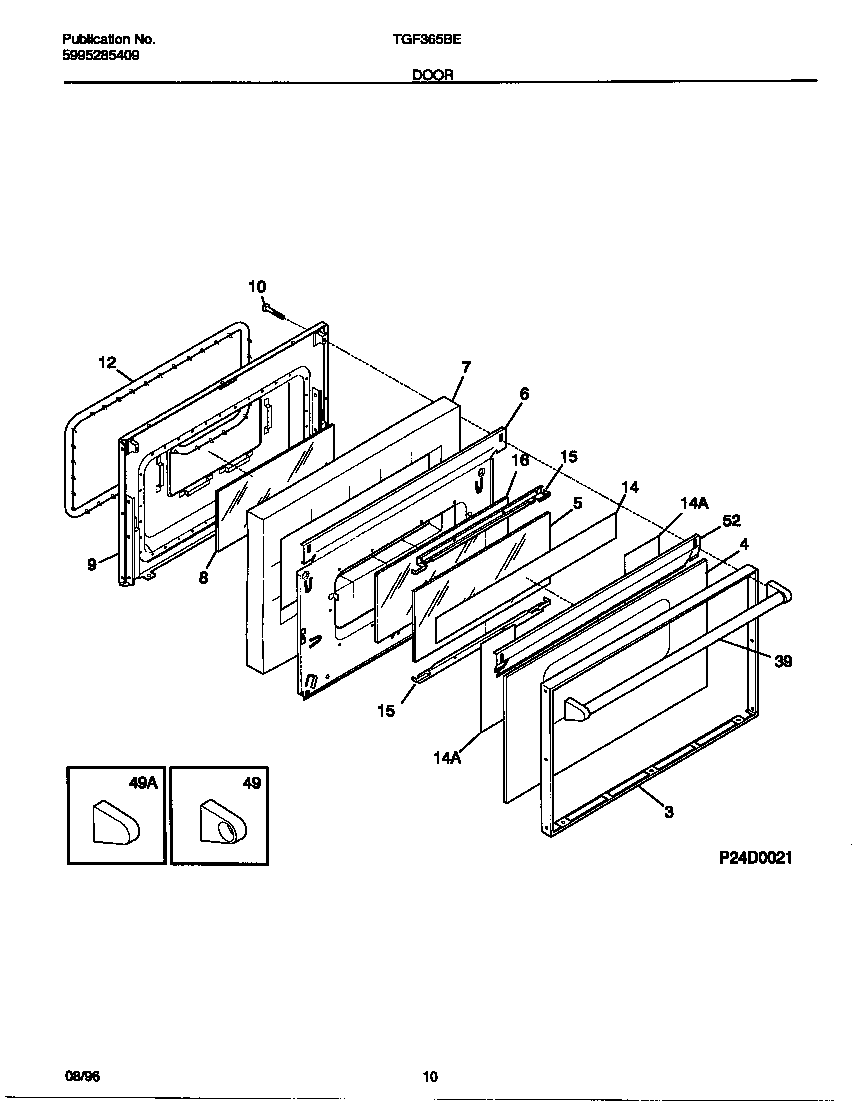

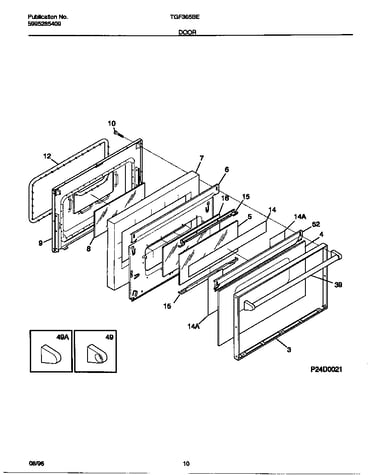

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Igniter 5303131300
#19

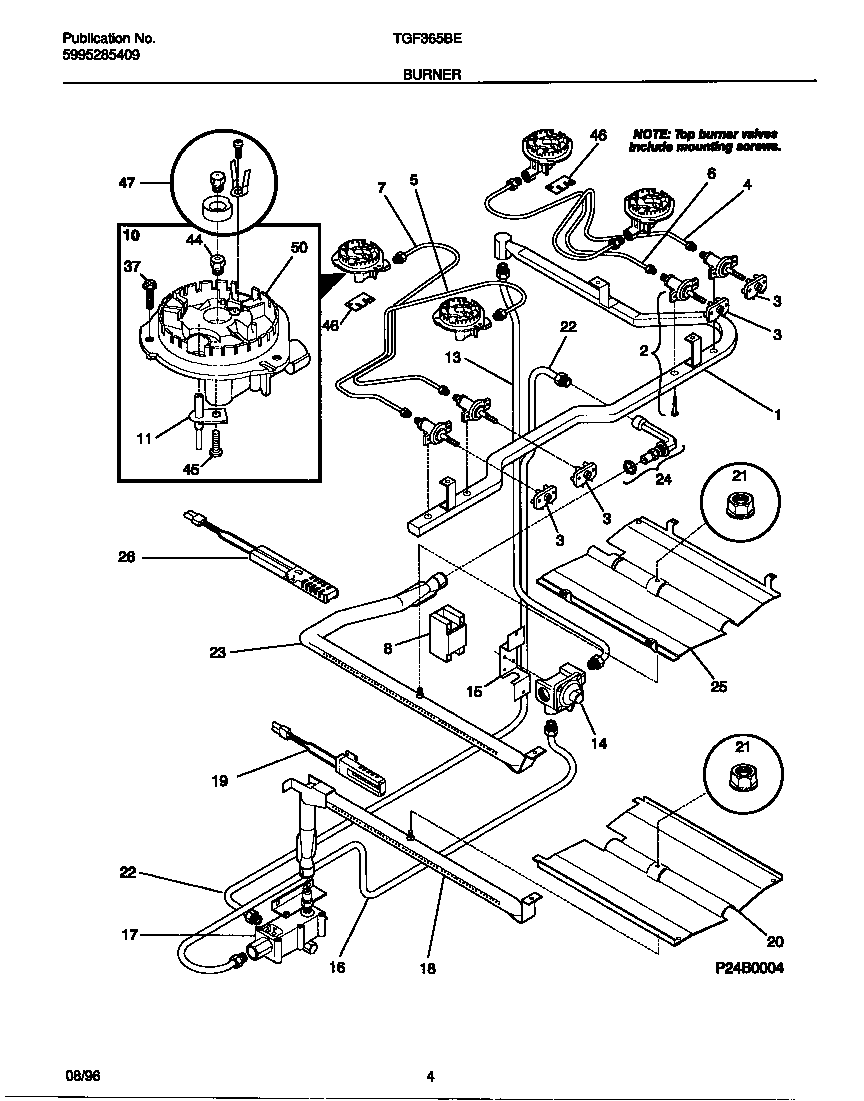

Burner diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#15

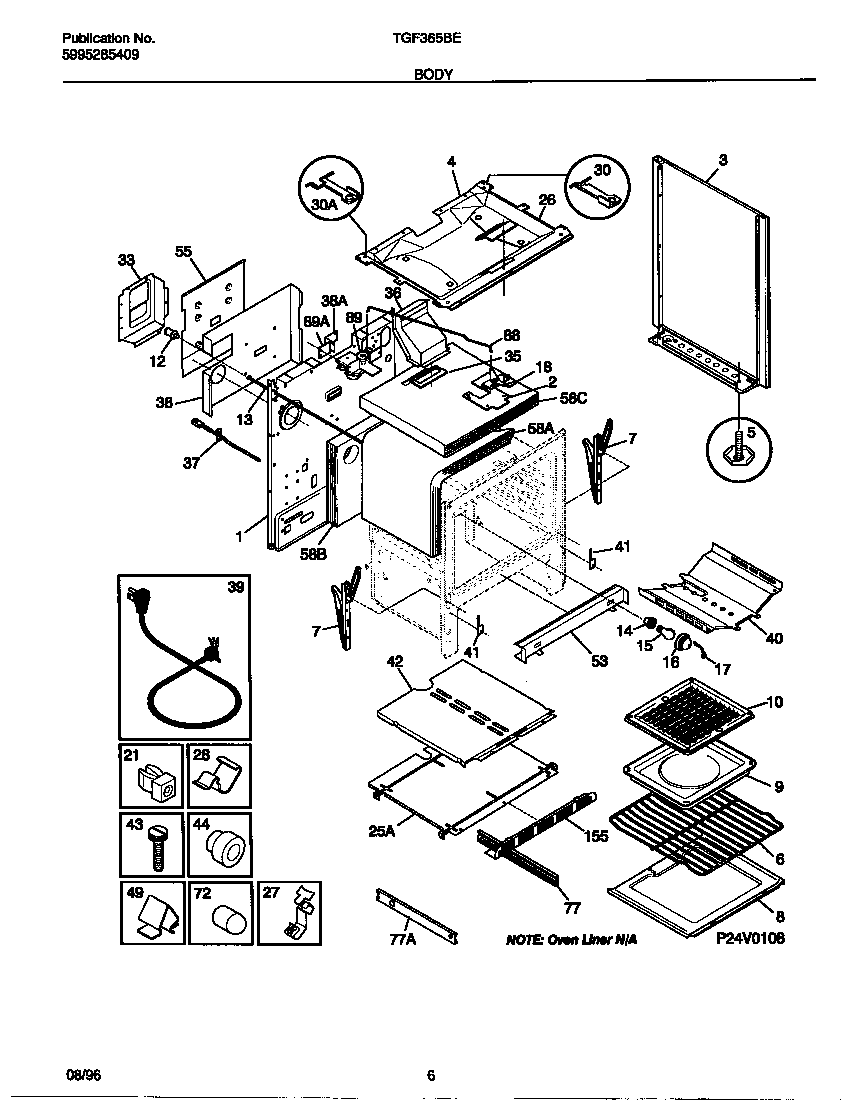

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Indicator Light 316022500
#14

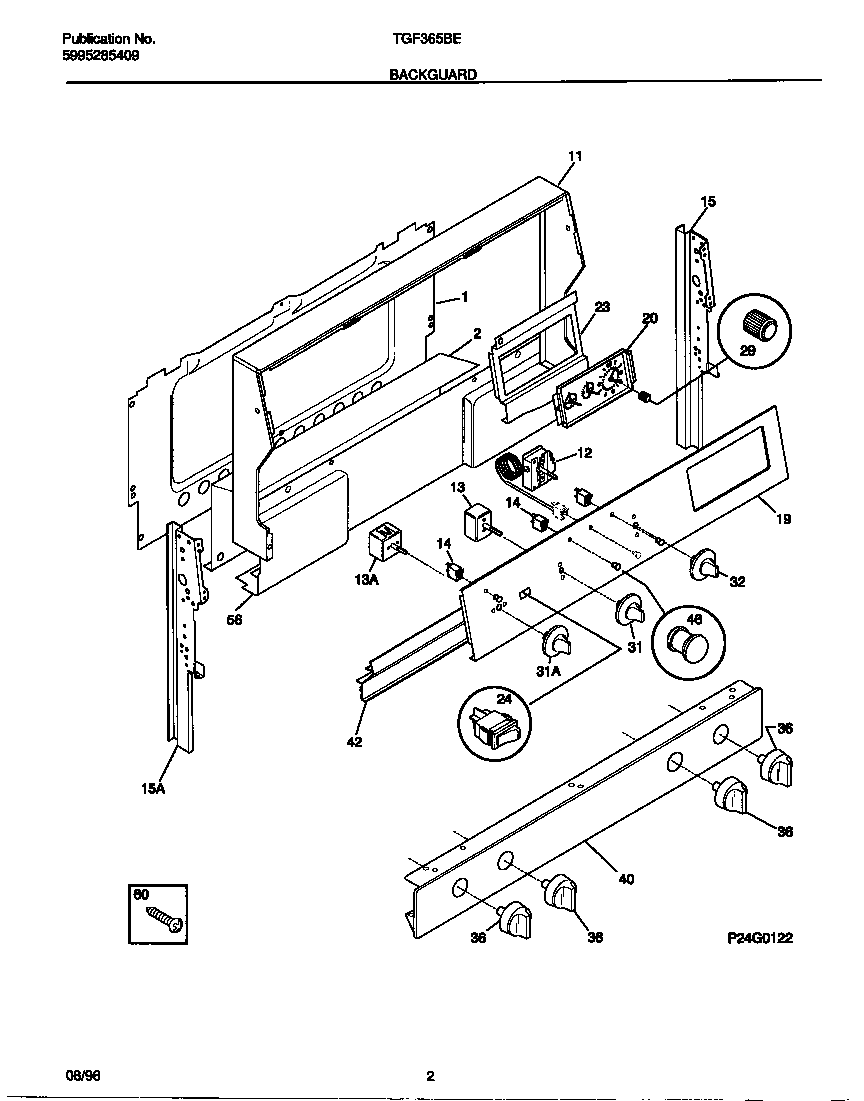

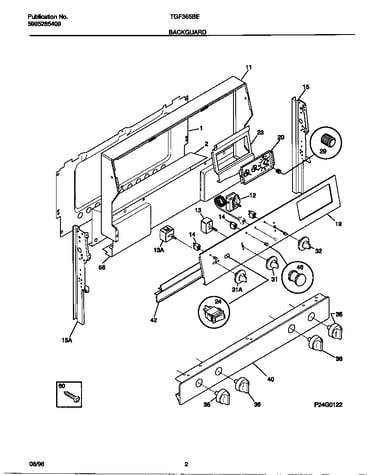

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Igniter Spark Module 5303280394
#8A

Burner diagram

Range igniter spark module

Part #5303280394

Replaced by #316135702

?
Manufacturer substitution
This part replaces 5303280394. Substitute parts can look different from the original.
BEST SELLER
$75.37 |
7% OFF Phone Price : $81.37
In Stock
Socket 3014073
#14

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Light Switch 316005602
#24

Backguard diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Range Drip Pan 316011401
#19

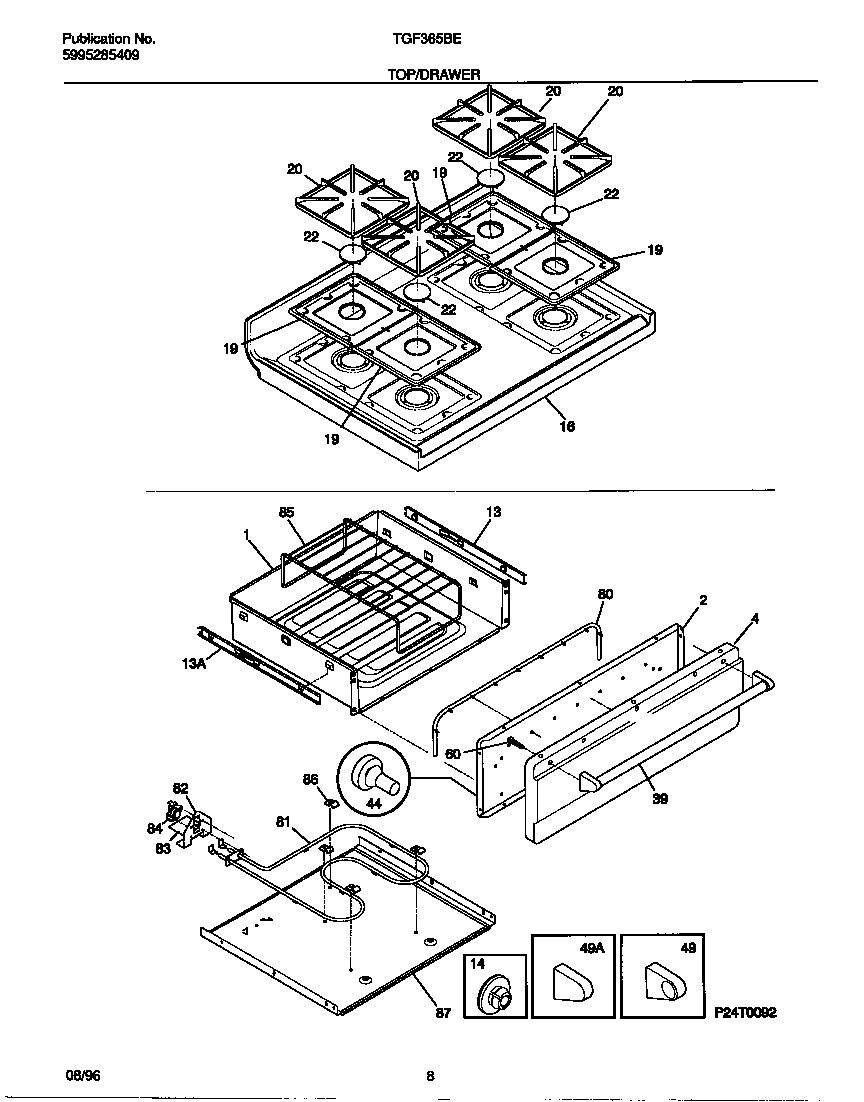

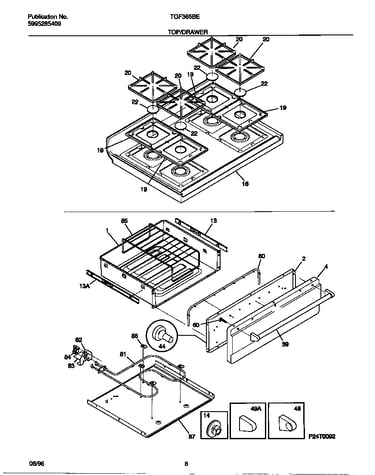

Top/drawer diagram

Range drip pan

Part #316011401

$21.09 |
22% OFF Phone Price : $27.09
In Stock
Range Power Cord 3131425
#39A

Body diagram

Range power cord

Part #3131425

Replaced by #5304509199

?
Manufacturer substitution
This part replaces 3131425. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Range Hex Nut 5303013272
#21

Burner diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
