Model # ECBP85WJ1WW Official GE electric range

Here are the diagrams and repair parts for Official GE ECBP85WJ1WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

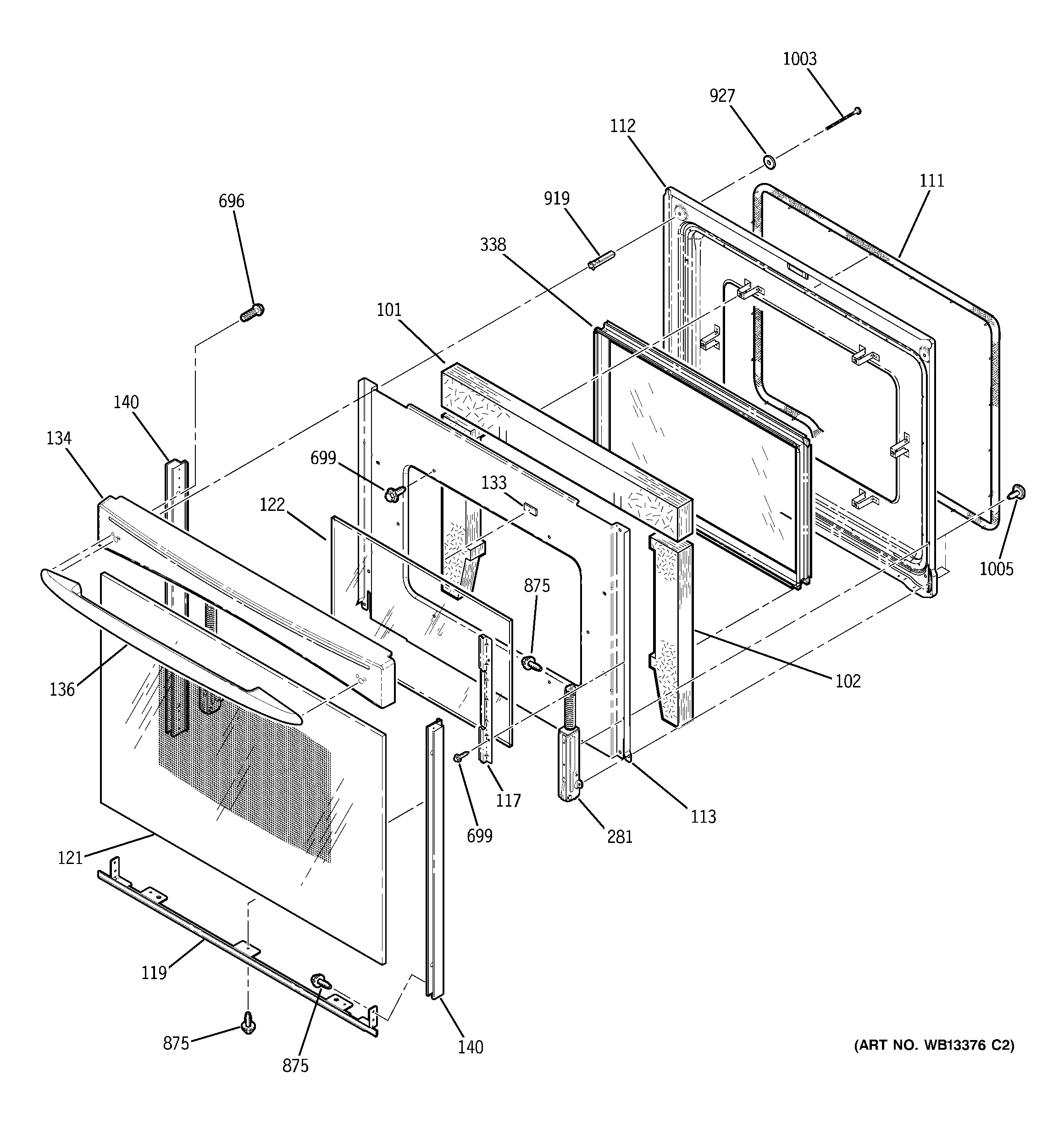

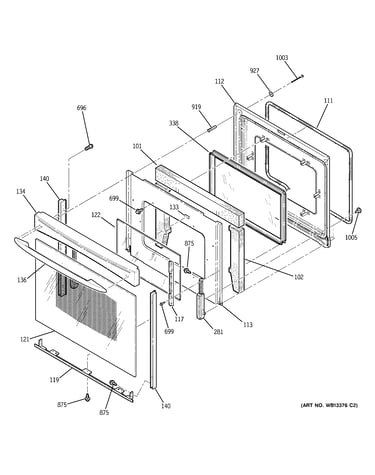

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Range Oven Light Bulb WX12X1510
#257

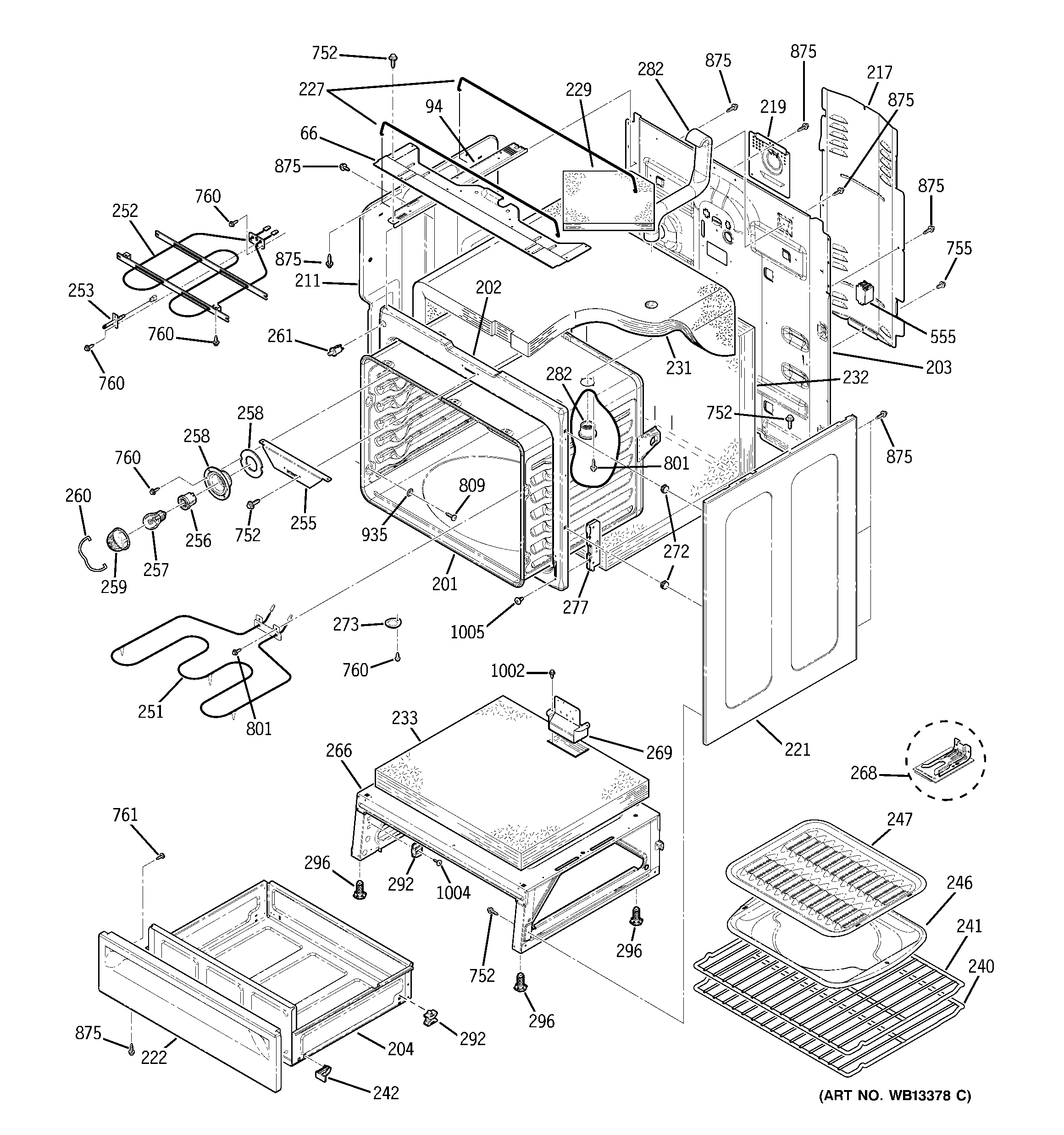

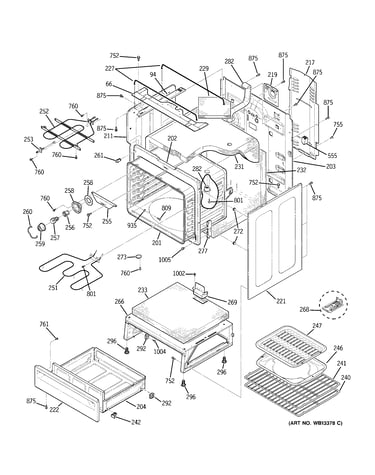

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Infinite Control Switch WB27T10384
#19

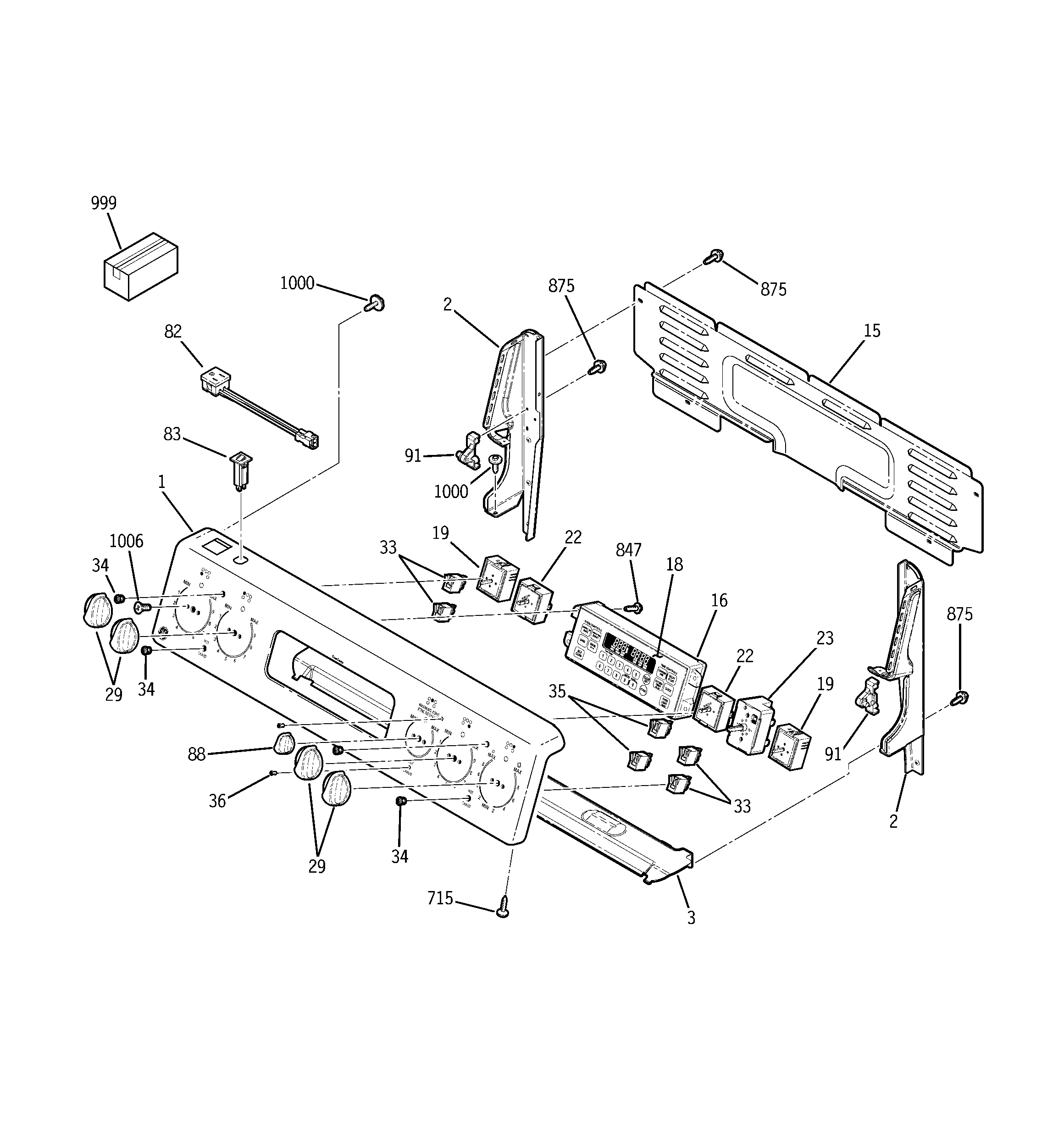

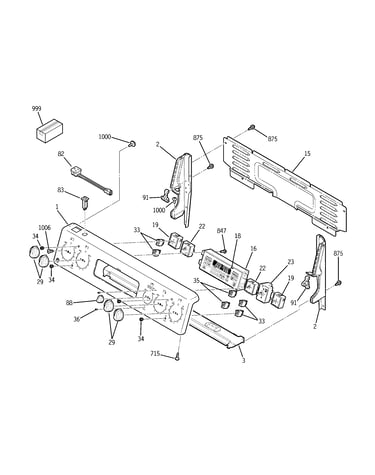

Control panel diagram

Infinite control switch

Part #WB27T10384

Replaced by #WB24T10153

?
Manufacturer substitution
This part replaces WB27T10384. Substitute parts can look different from the original.
BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Range Halogen Surface Element WB30T10044
#58

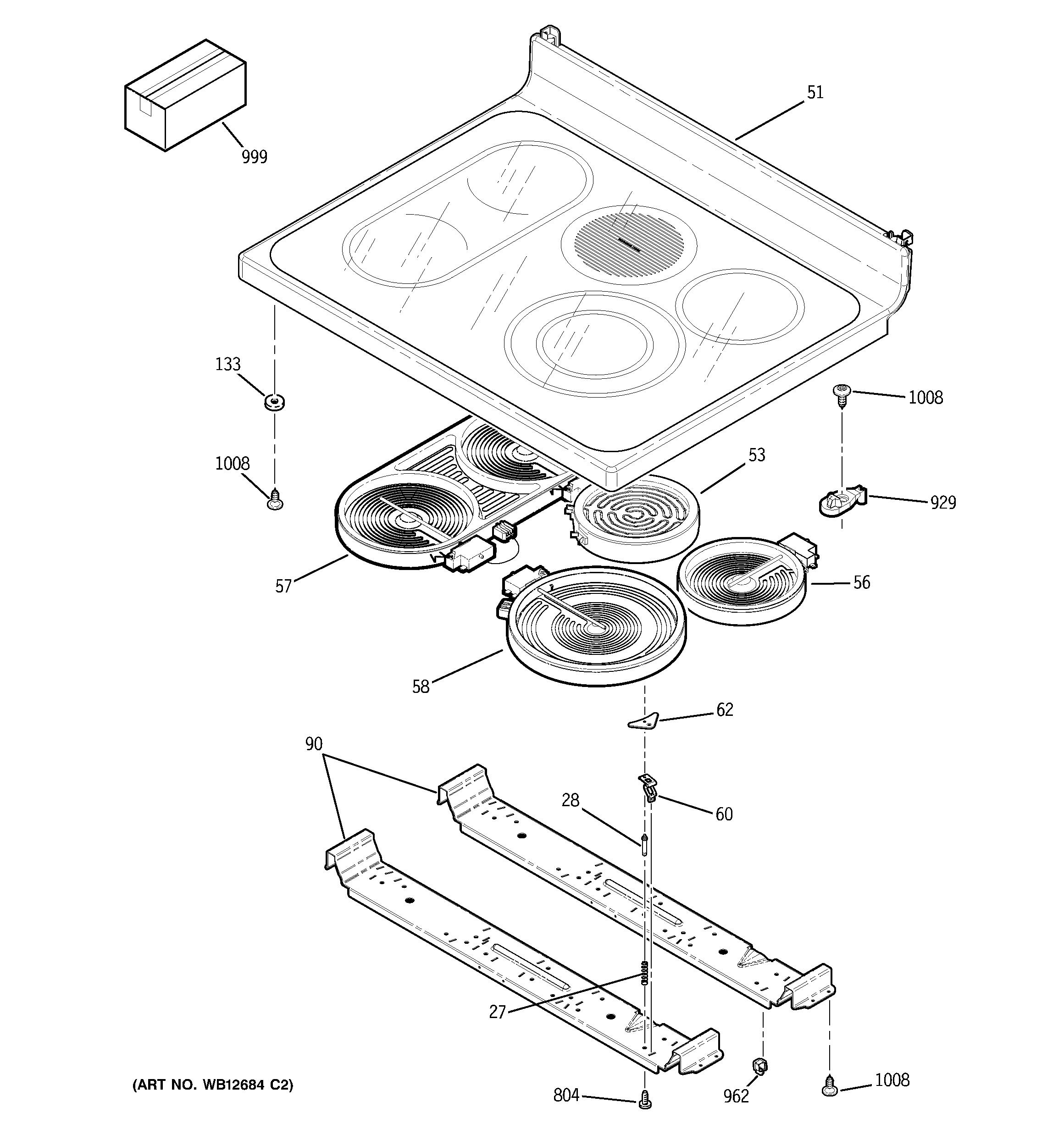

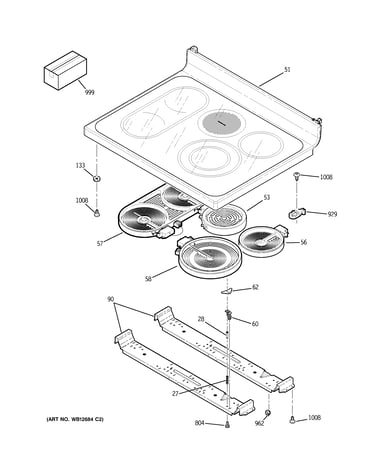

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
BEST SELLER
$100.57 |
11% OFF Phone Price : $112.57
In Stock
Light Switch WB24T10112
#261

Body parts diagram

Light switch

Part #WB24T10112

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24T10112. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Light Lens WB36X0389
#259

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

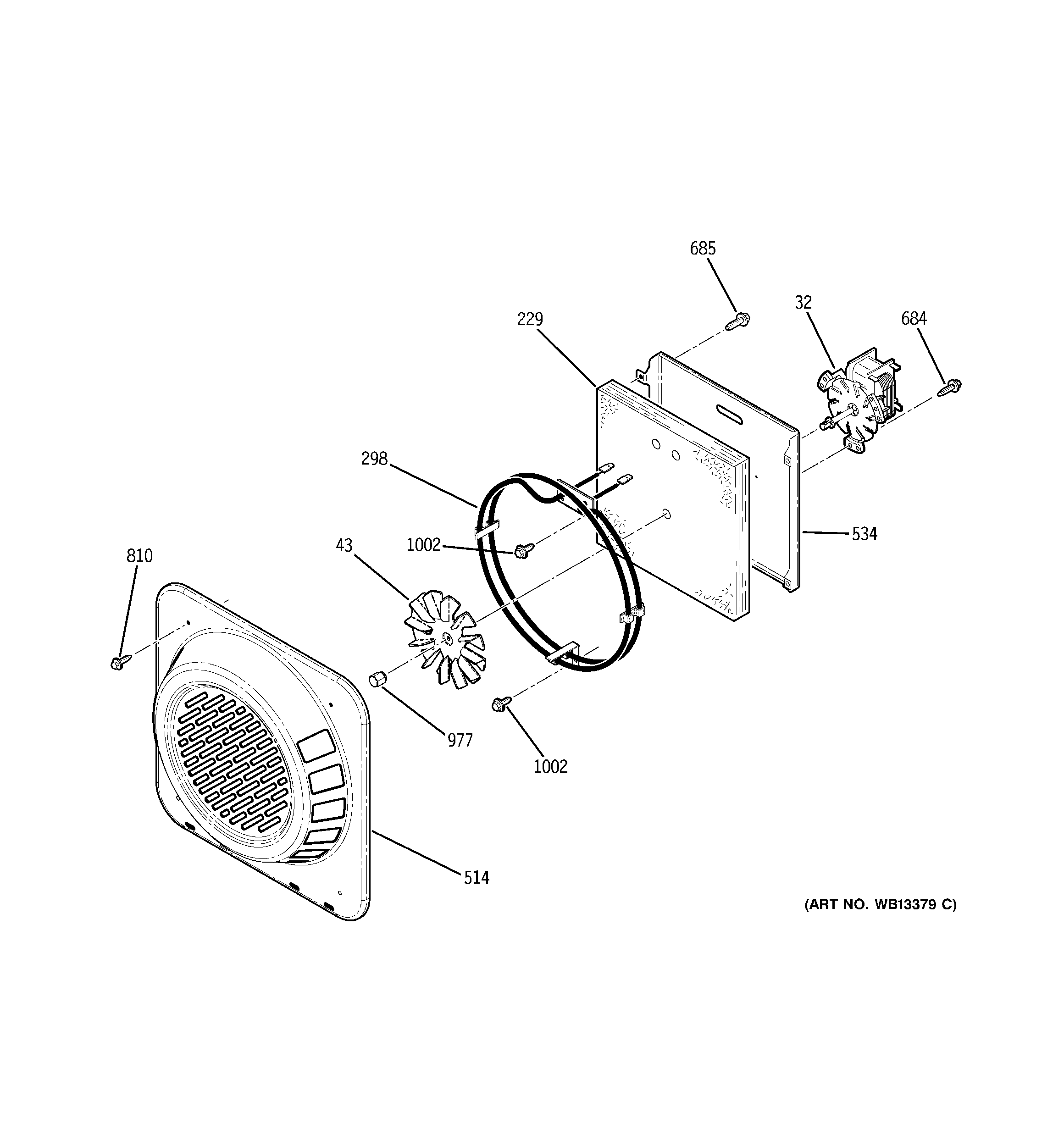

Convection fan diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Blade Hub WB02T10251
#43

Convection fan diagram

Blade hub

Part #WB02T10251

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10251. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
