Model # 217586120 Official Craftsman 7.5-hp deluxe outboard motor
Here are the diagrams and repair parts for Official Craftsman 217586120 7.5-hp deluxe outboard motor, as well as links to manuals and error code tables, if available.

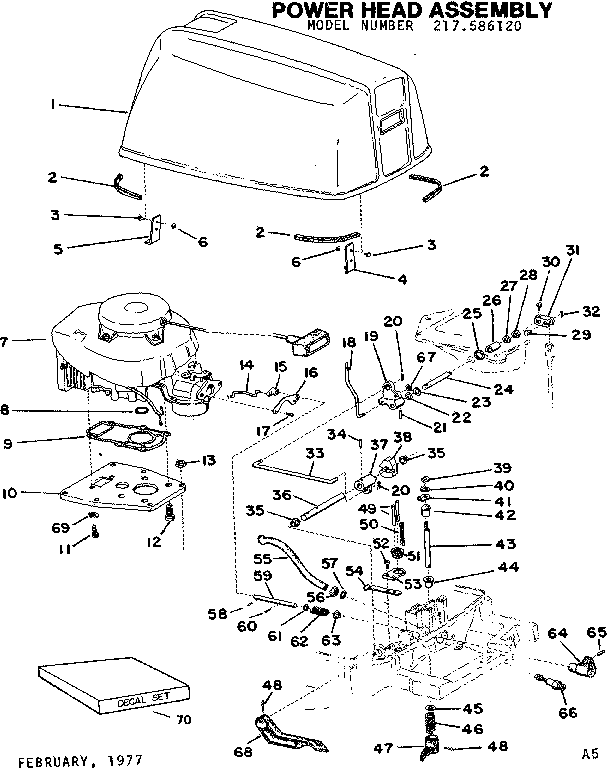

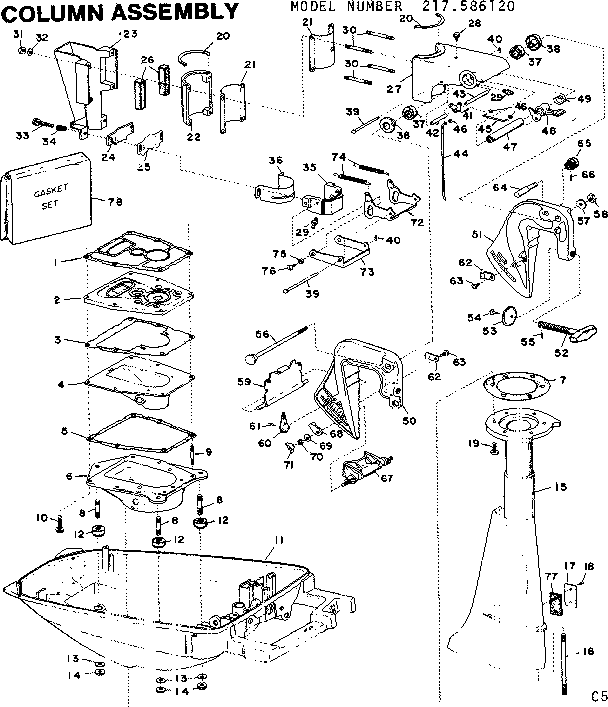

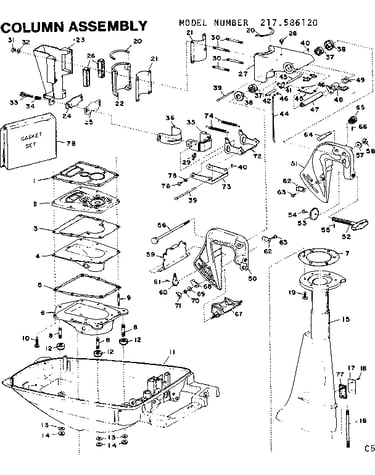

By Schematic
SELECT DIAGRAM
Browse Parts for
217586120 7.5-HP Deluxe Outboard Motor
#25

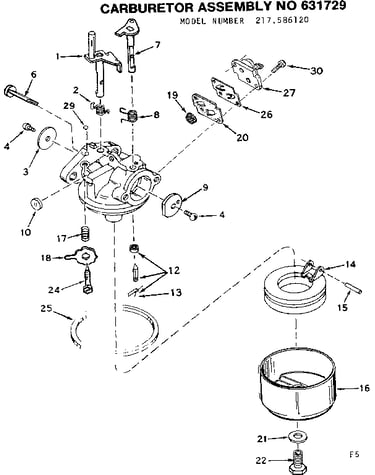

Carburetor assm no. 631729 diagram
Gasket
Part #631028
The manufacturer no longer makes this part, and there's no substitute part
#14
Carburetor assm no. 631729 diagram
Float
Part #631023
The manufacturer no longer makes this part, and there's no substitute part
#43

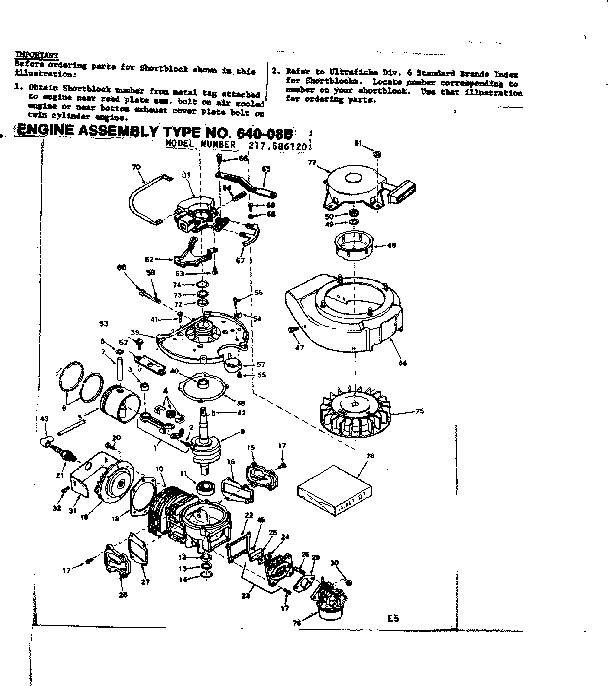

Engine assembly type no. 640-08b diagram
Cover
Part #610118
The manufacturer no longer makes this part, and there's no substitute part
#59

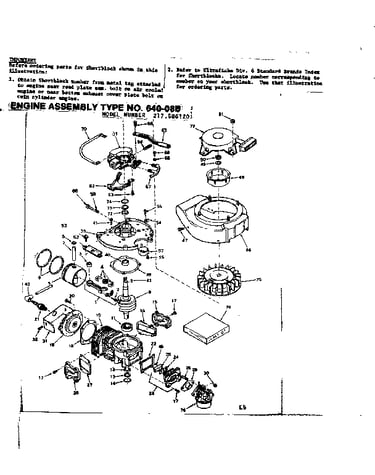

Engine assembly type no. 640-08b diagram
Spring
Part #630766
The manufacturer no longer makes this part, and there's no substitute part
#12
Engine assembly type no. 640-08b diagram
Seal
Part #510105
The manufacturer no longer makes this part, and there's no substitute part
#5

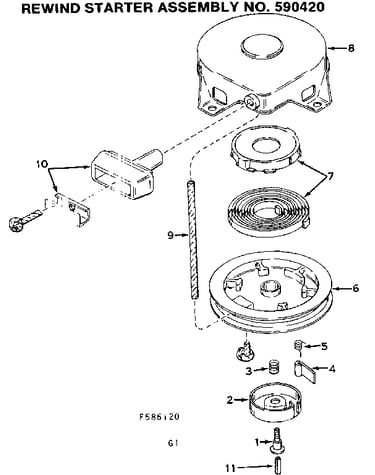

Rewind starter assm no. 590420 diagram
Spring
Part #590412
The manufacturer no longer makes this part, and there's no substitute part
#46

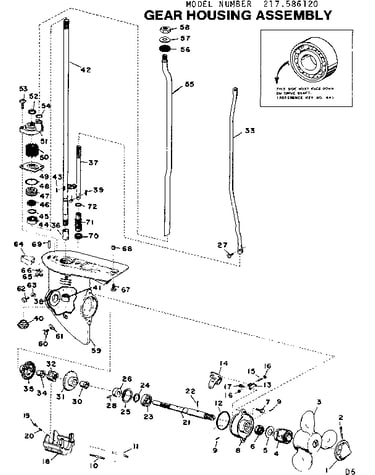

Gear housing assembly diagram
Preway boat motor oil seal
Part #96009
The manufacturer no longer makes this part, and there's no substitute part
#6
Gear housing assembly diagram
Tecumseh boat motor propeller shaft oil seal
Part #96679
The manufacturer no longer makes this part, and there's no substitute part
#30

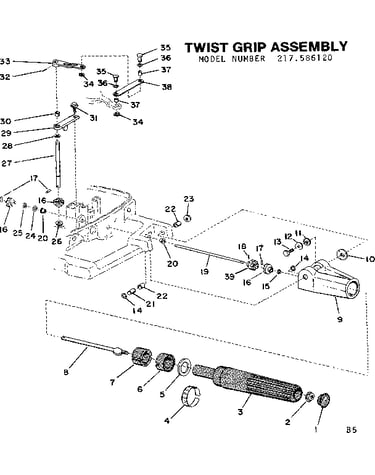

Twist grip assembly diagram
Tecumseh bushing
Part #66072
The manufacturer no longer makes this part, and there's no substitute part
Pin (silver)
Part #6415
The manufacturer no longer makes this part, and there's no substitute part
