Model # UN43MU6290FXZA-AA04 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN43MU6290FXZA-AA04 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Power Cord 3903-001117
Power cord

Part #3903-001117

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Lead Connect BN39-02218A
Home electronics lead connect

Part #BN39-02218A

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Chassis Assembly BN96-38743D
Home electronics chassis assembly

Part #BN96-38743D

The manufacturer no longer makes this part, and there's no substitute part

Pcb BN96-35345B
#8

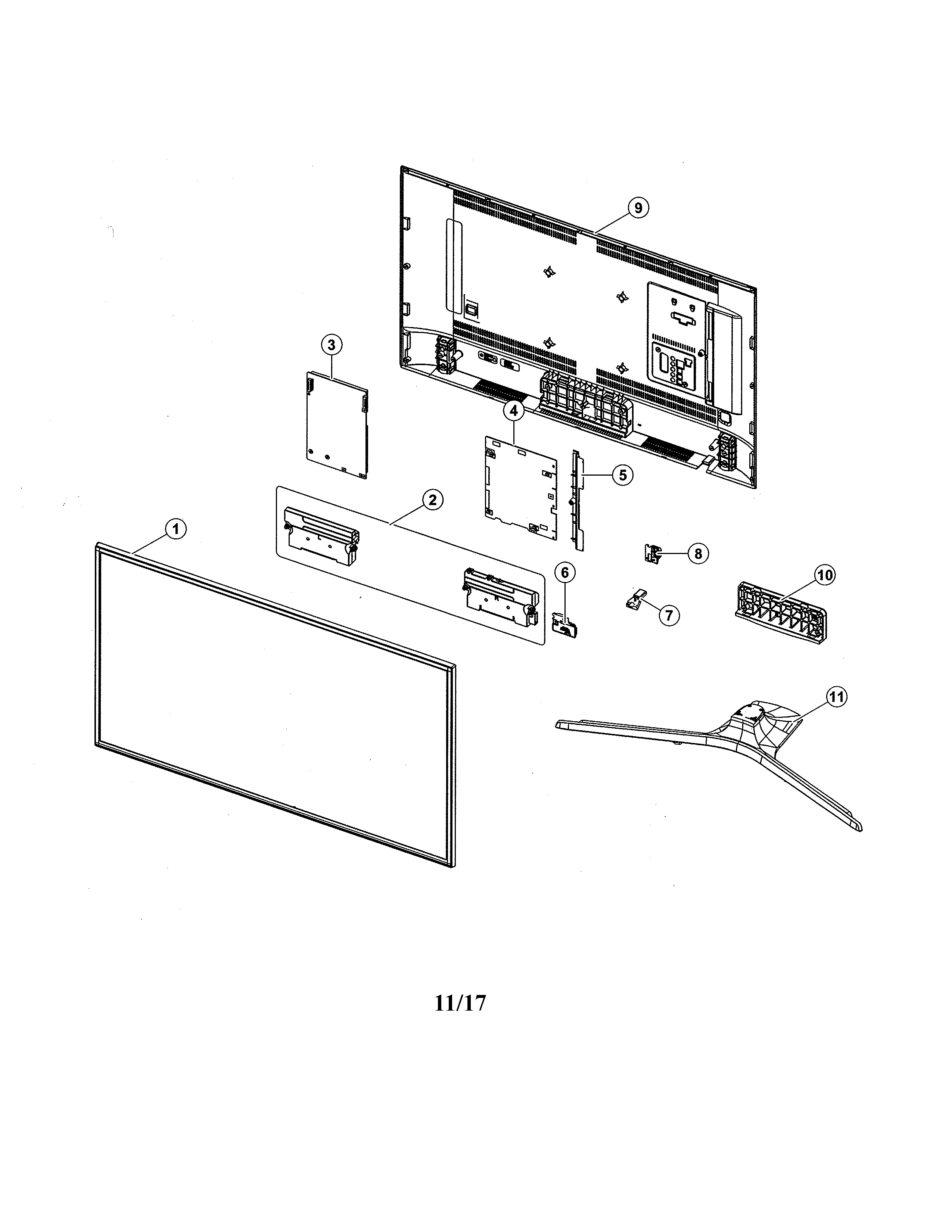

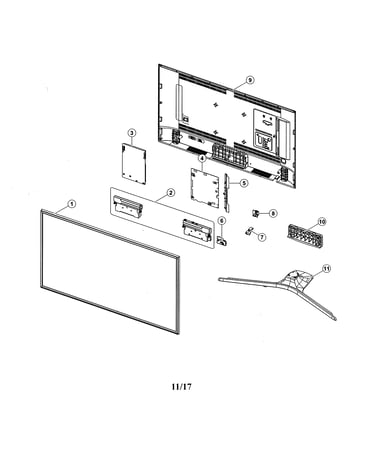

Lcd tv diagram

Pcb

Part #BN96-35345B

The manufacturer no longer makes this part, and there's no substitute part

Pcb-ir Fun BN96-39955A
#7

Lcd tv diagram

Pcb-ir fun

Part #BN96-39955A

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Guide BN96-35223A
#10

Lcd tv diagram

Television stand guide

Part #BN96-35223A

The manufacturer no longer makes this part, and there's no substitute part

Cable 96p/ BN96-39823C
Cable 96p/

Part #BN96-39823C

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker BN96-35007A
#2

Lcd tv diagram

Television speaker

Part #BN96-35007A

The manufacturer no longer makes this part, and there's no substitute part

Wi-fi Module BN59-01174D
#6

Lcd tv diagram

Wi-fi module

Part #BN59-01174D

The manufacturer no longer makes this part, and there's no substitute part

Lead Connector BN39-02217A
Lead connector

Part #BN39-02217A

The manufacturer no longer makes this part, and there's no substitute part
