Kenmore
Gas Range

Model # 10330381 Official Kenmore gas oven

Here are the diagrams and repair parts for Official Kenmore 10330381 gas oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Lamp Bulb 65973
#66A

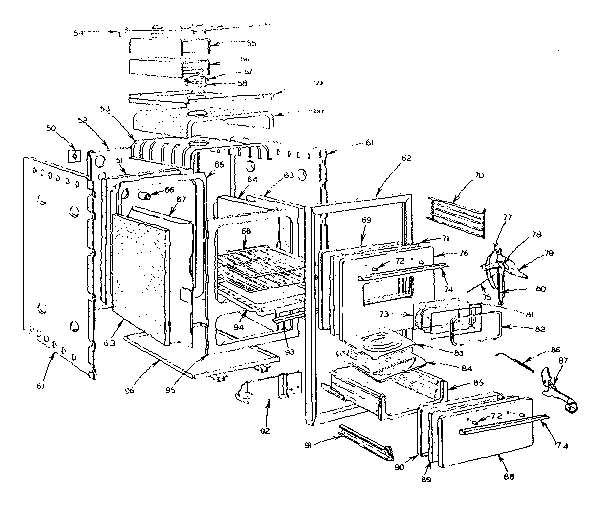

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Door Hinge 68633
#78B

Body section diagram

Door hinge

Part #68633

The manufacturer no longer makes this part, and there's no substitute part

Air Shutter 65119
#41

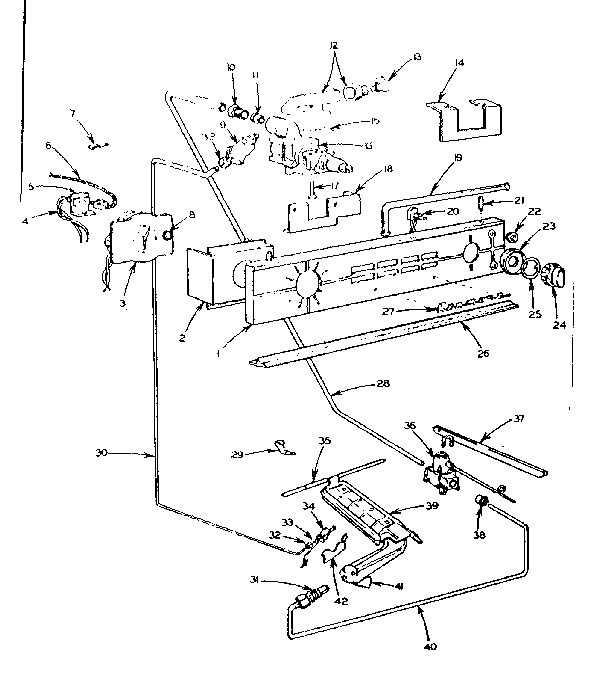

Burner section diagram

Air shutter

Part #65119

The manufacturer no longer makes this part, and there's no substitute part

Retainer 79100

#NI

All parts diagram

Retainer

Part #79100

The manufacturer no longer makes this part, and there's no substitute part

Bracket 73331
#42

Burner section diagram

Bracket

Part #73331

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner 73444
#39

Burner section diagram

Oven burner

Part #73444

The manufacturer no longer makes this part, and there's no substitute part

Broiler Pan 85540
#84

Body section diagram

Broiler pan

Part #85540

The manufacturer no longer makes this part, and there's no substitute part

Hinge Arm 68765
#87B

Body section diagram

Hinge arm

Part #68765

The manufacturer no longer makes this part, and there's no substitute part

Door Panel 89431
#88B

Body section diagram

Door panel

Part #89431

The manufacturer no longer makes this part, and there's no substitute part

Pin 75222
#21

Burner section diagram

Pin

Part #75222

The manufacturer no longer makes this part, and there's no substitute part
