Maytag
Bottom-Mount Refrigerator

Model # MBR1956KES3 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MBR1956KES3 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

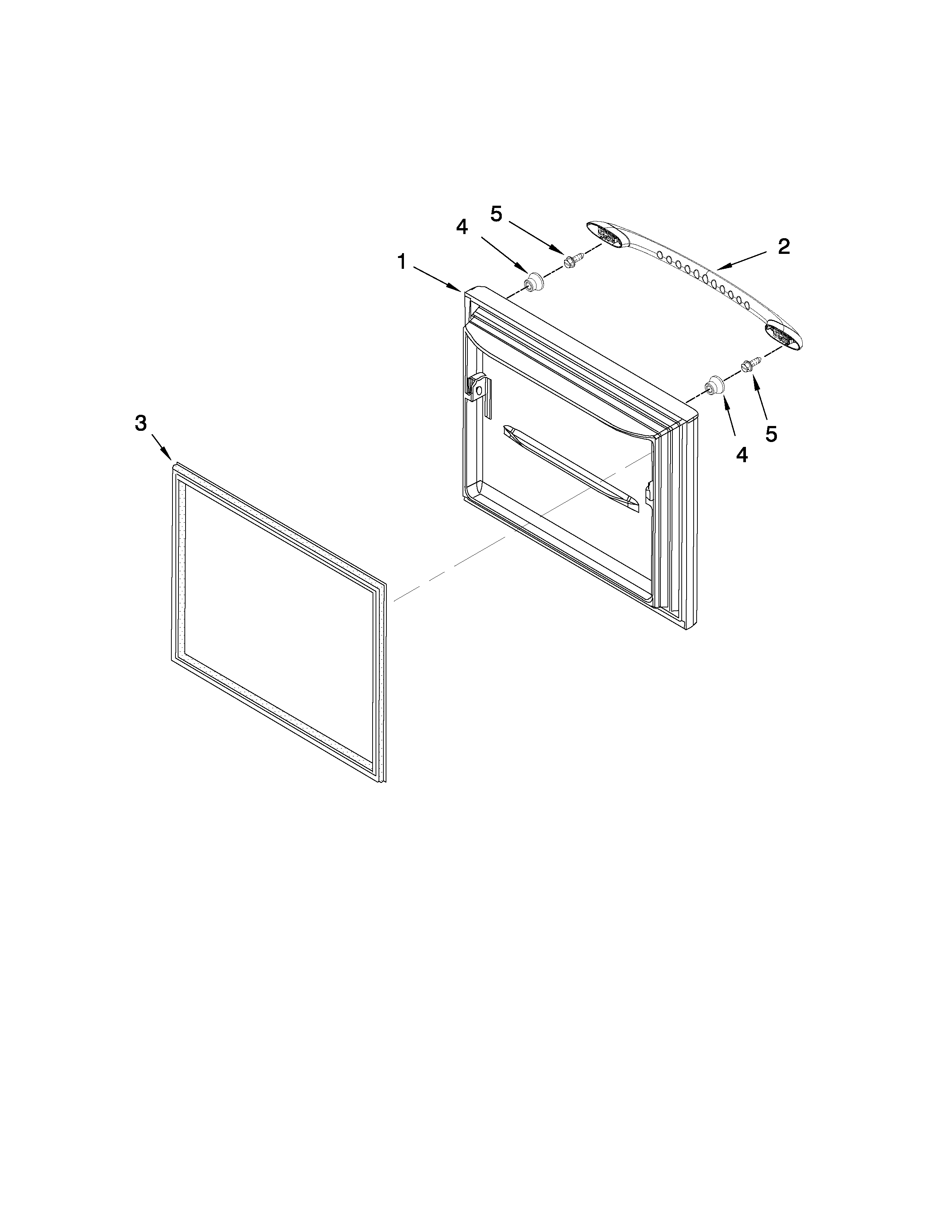

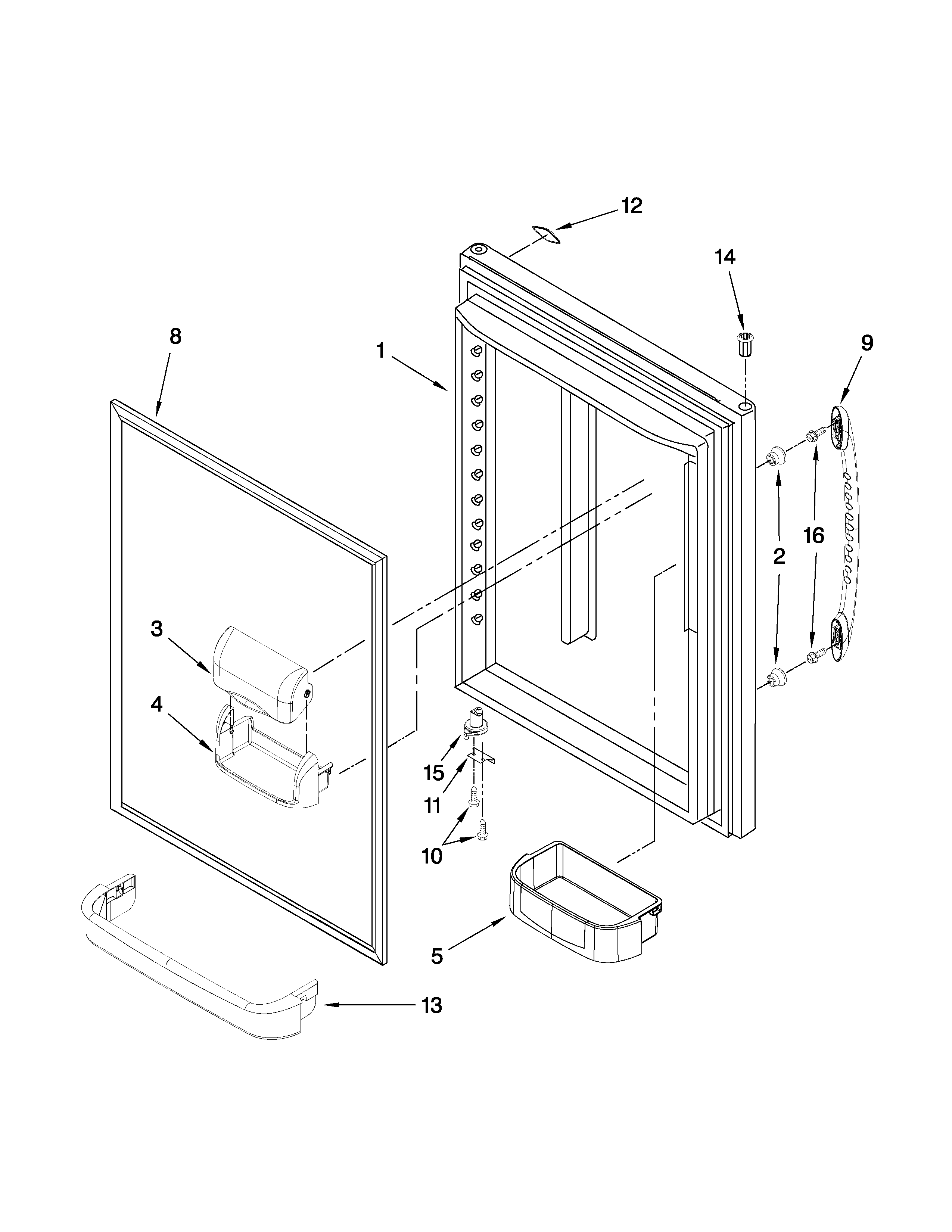

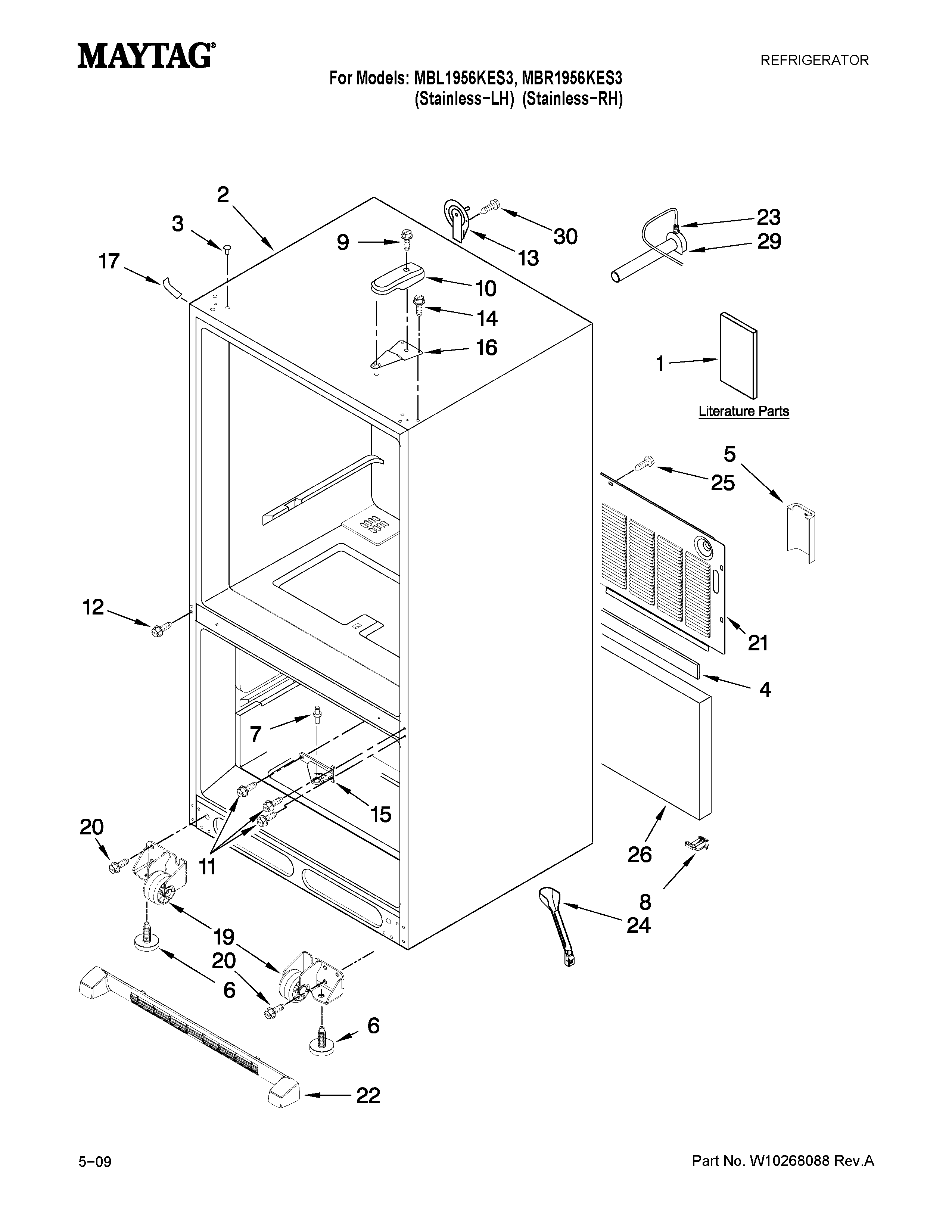

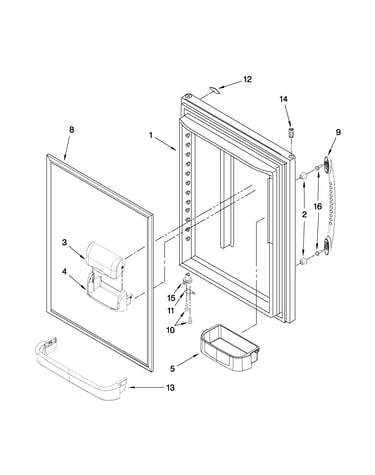

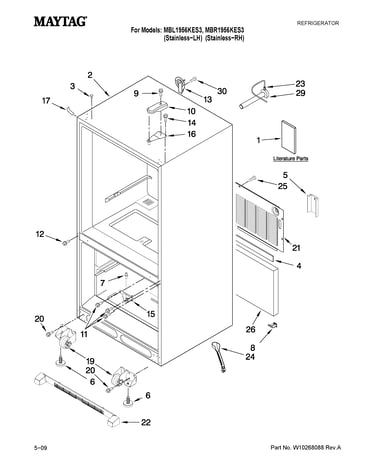

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

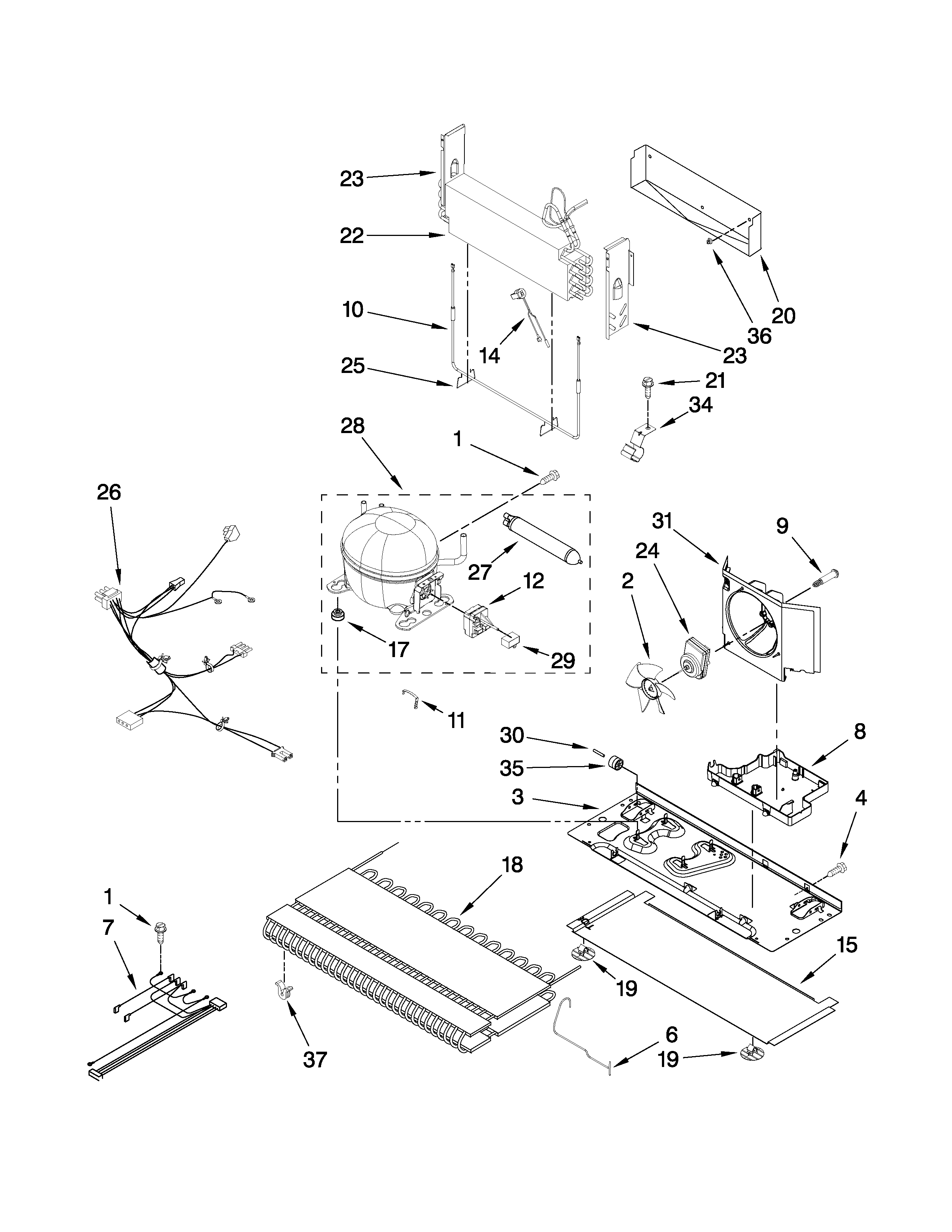

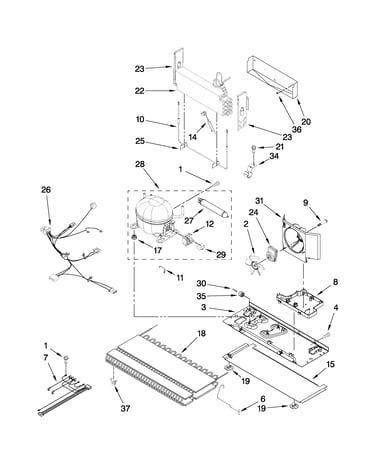

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker W10190978
#100

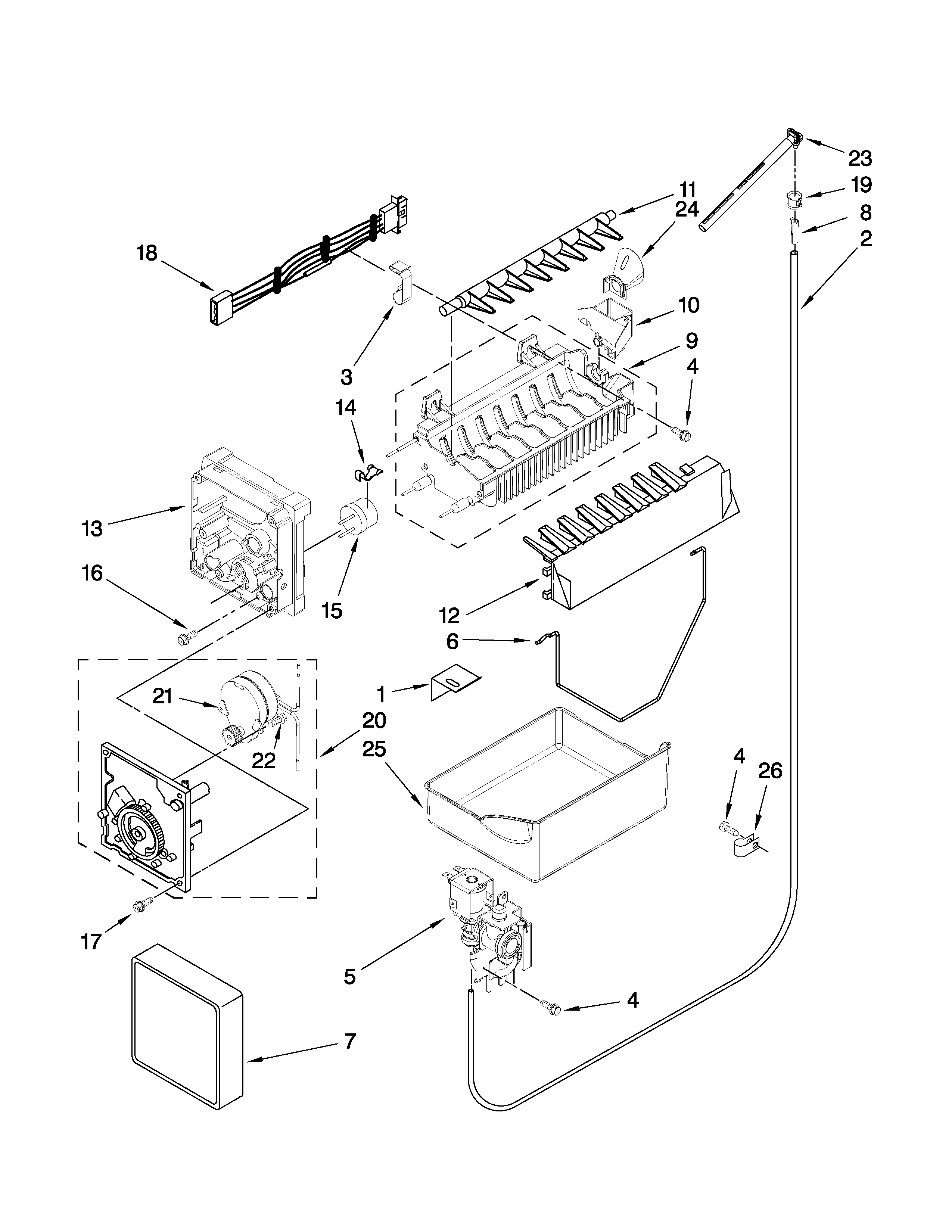

Icemaker parts diagram

Refrigerator ice maker

Part #W10190978

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces W10190978. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Bulb-light W10194422V
Bulb-light

Part #W10194422V

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10194422V. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Switch C3680310V
#6

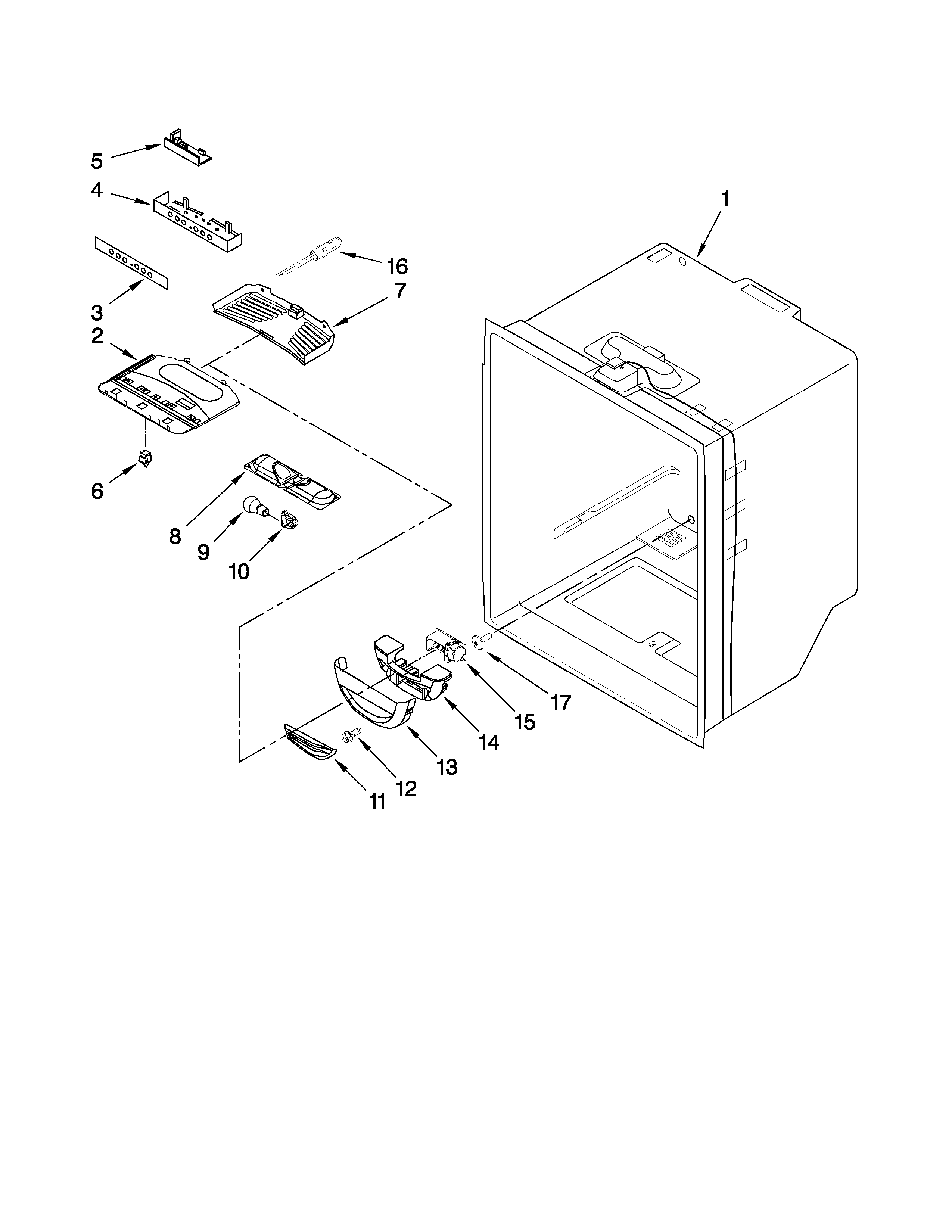

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

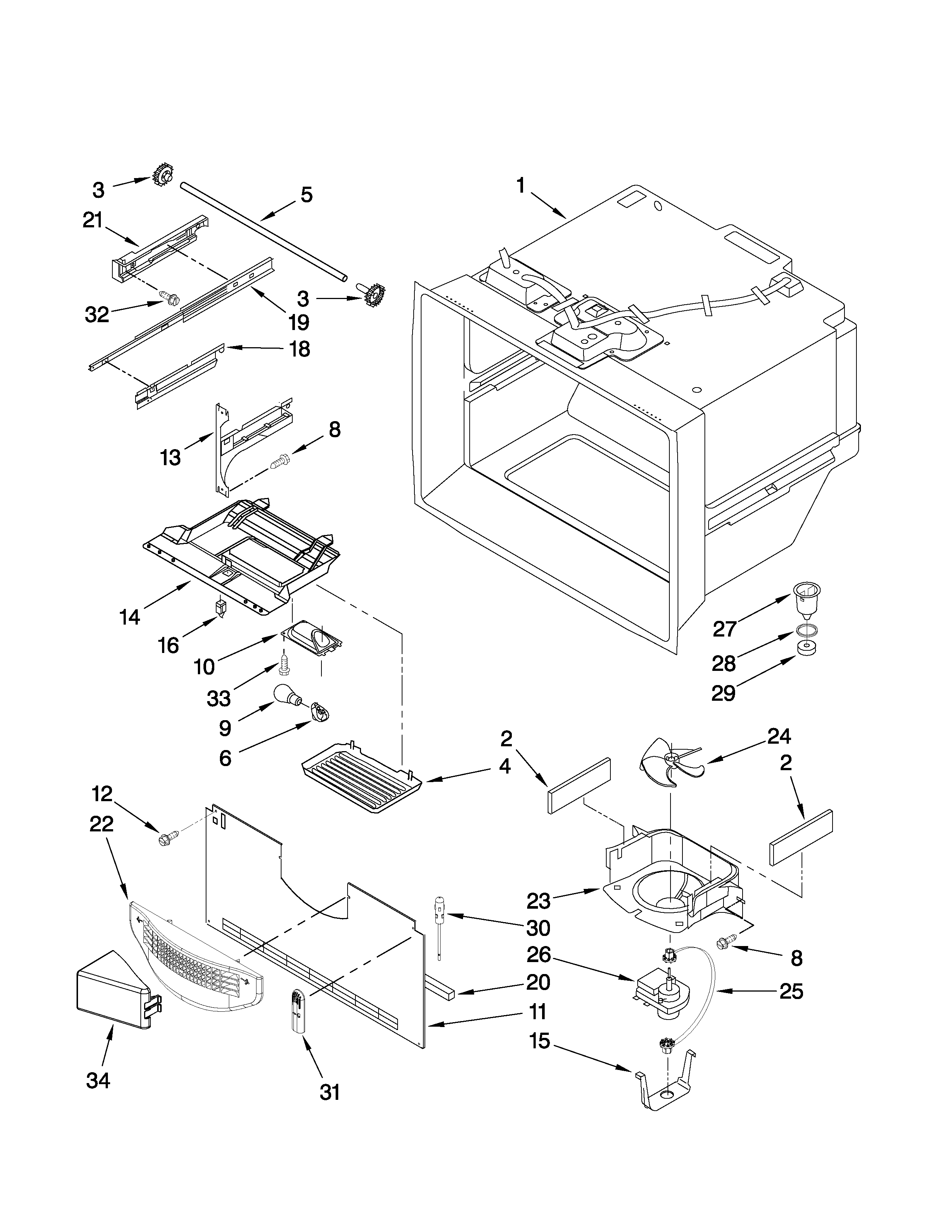

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Rail 12530701
#1

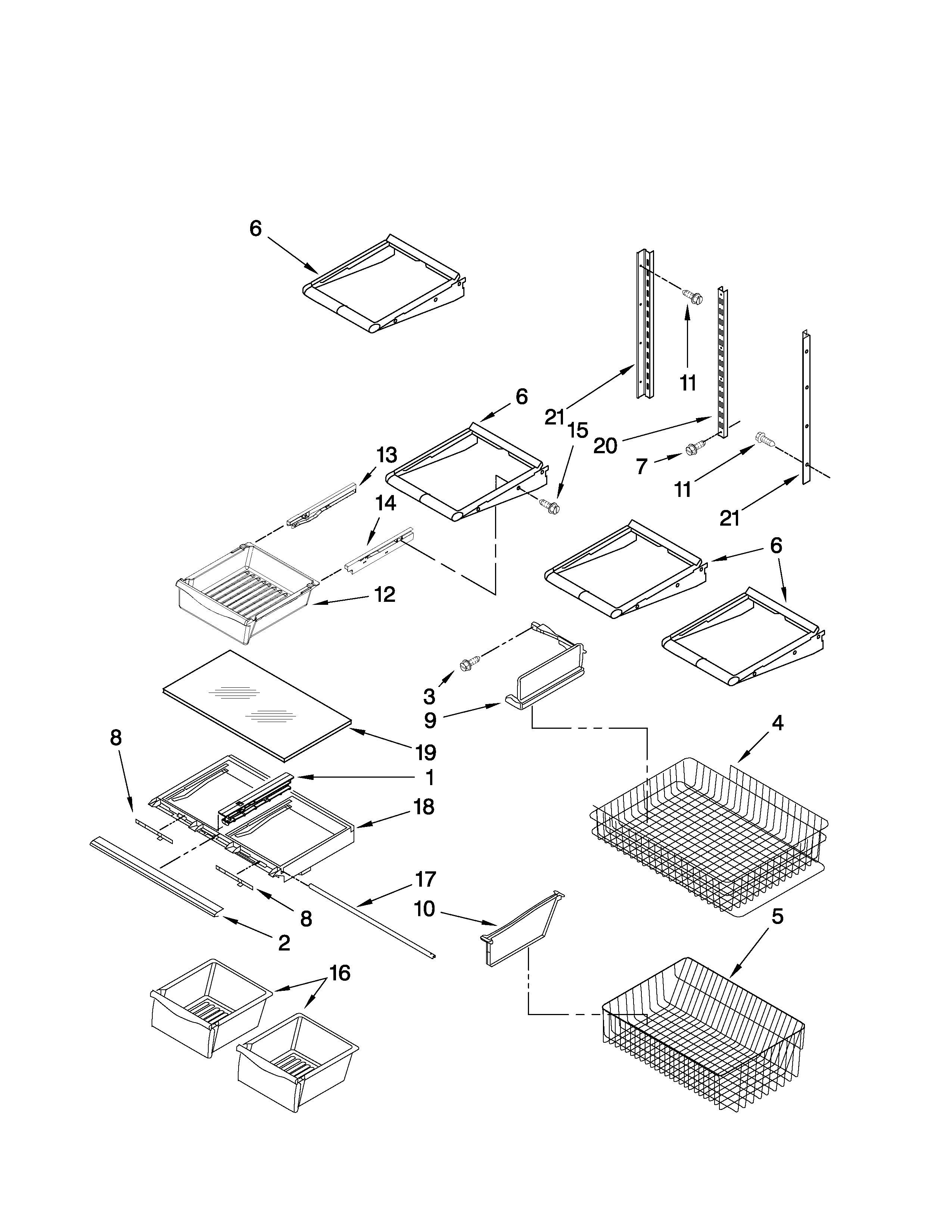

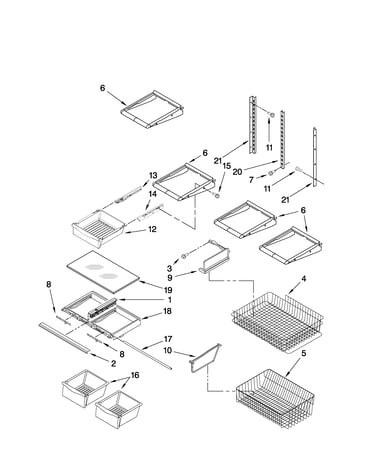

Shelf parts diagram

Refrigerator rail

Part #12530701

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Light Swit 12466105
#16

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Water Inlet Valve Assembly W10219716
#5

Icemaker parts diagram

Refrigerator water inlet valve assembly

Part #W10219716

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces W10219716. Substitute parts can look different from the original.
BEST SELLER
$47.39 |
11% OFF Phone Price : $53.39
In Stock
Refrigerator Freezer Slide Rail W10120018
#19

Freezer liner parts diagram

Refrigerator freezer slide rail

Part #W10120018

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
$112.89 |
10% OFF Phone Price : $124.89
In Stock
Refrigerator Defrost Bi-metal 12639324SP
#14

Unit parts diagram

Refrigerator defrost bi-metal

Part #12639324SP

Replaced by #WPW10165425

?
Manufacturer substitution
This part replaces 12639324SP. Substitute parts can look different from the original.
BEST SELLER
$42.21 |
12% OFF Phone Price : $48.21
In Stock
