Model # FFMS181CQ20 Official Frigidaire split room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFMS181CQ20 split room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

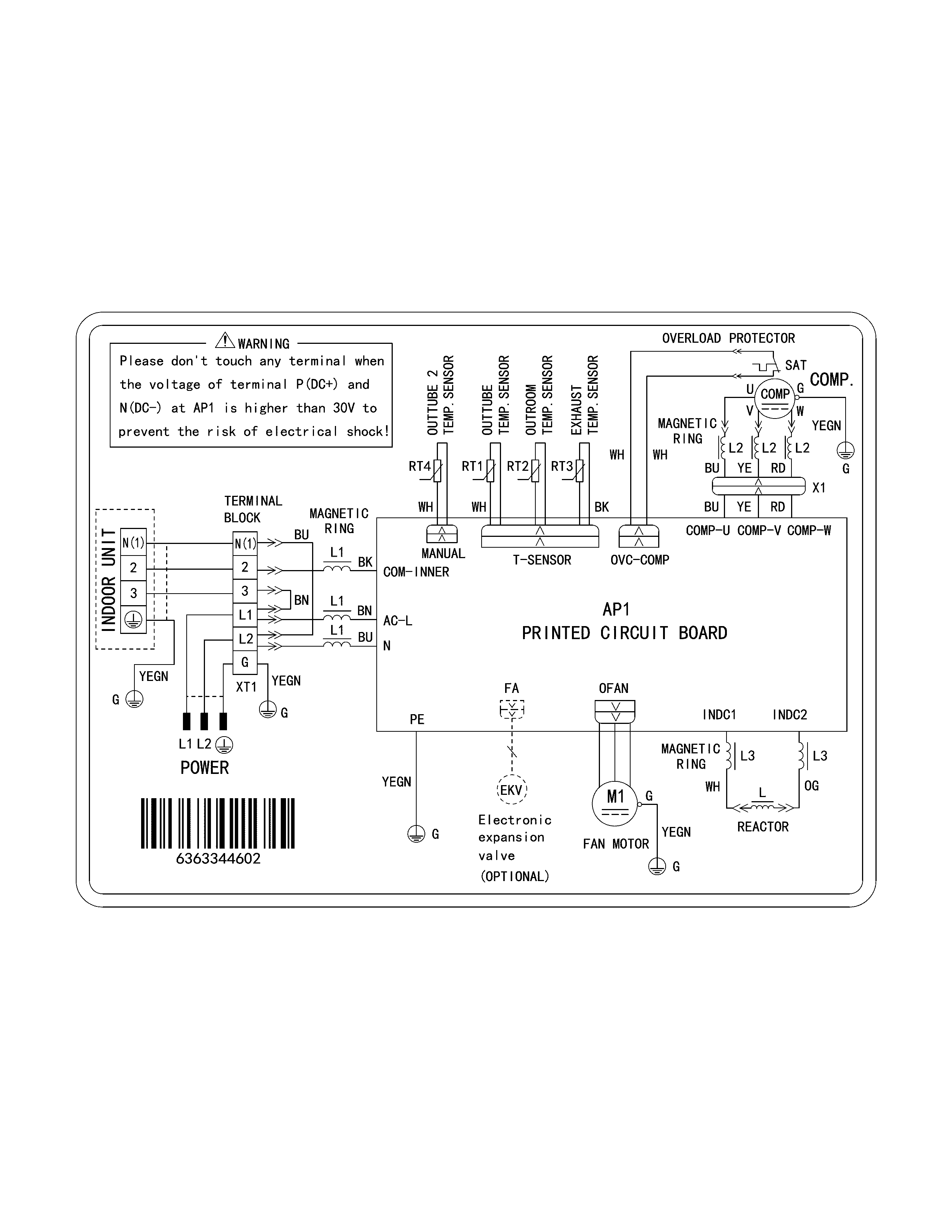

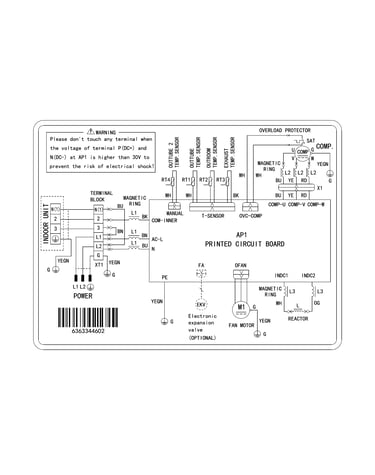

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Valve 5304483768
#12

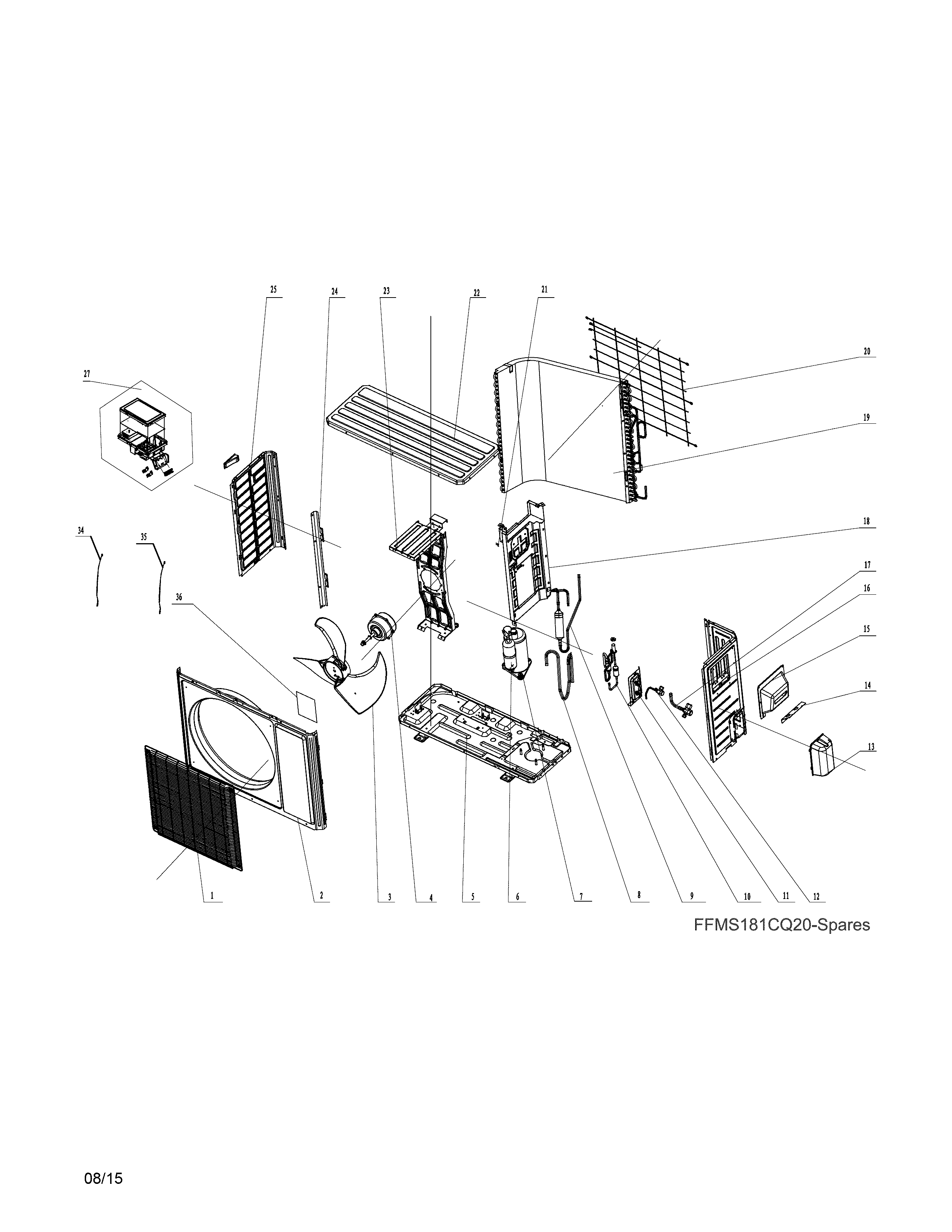

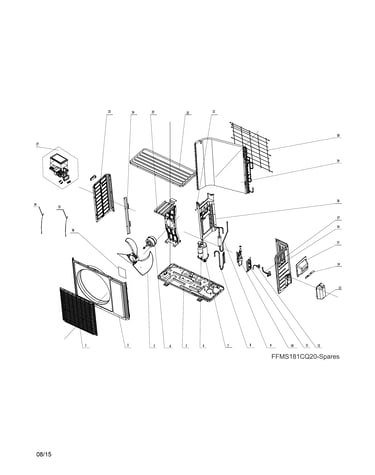

Recommended spare parts diagram

Valve

Part #5304483768

$64.76
In Stock
Frigidaire Tube 5304502330
#9

Recommended spare parts diagram

Frigidaire tube

Part #5304502330

$77.71
In Stock
Motor 5304502325
#4

Recommended spare parts diagram

Motor

Part #5304502325

$240.11
In Stock
Sensor 5304502340
#35

Recommended spare parts diagram

Sensor

Part #5304502340

$39.51
In Stock
Bracket 5304483692
#11

Recommended spare parts diagram

Bracket

Part #5304483692

The manufacturer no longer makes this part, and there's no substitute part

Bulkhead 5304502333
#18

Recommended spare parts diagram

Bulkhead

Part #5304502333

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304488523
#25

Recommended spare parts diagram

Panel

Part #5304488523

The manufacturer no longer makes this part, and there's no substitute part

Clamp 5304483683
#21

Recommended spare parts diagram

Clamp

Part #5304483683

The manufacturer no longer makes this part, and there's no substitute part

Grommet 5304502328
#7

Recommended spare parts diagram

Grommet

Part #5304502328

The manufacturer no longer makes this part, and there's no substitute part

Base 5304502326
#5

Recommended spare parts diagram

Base

Part #5304502326

The manufacturer no longer makes this part, and there's no substitute part
