Model # 2539252210 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 2539252210 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Capacitor 216236300
#55

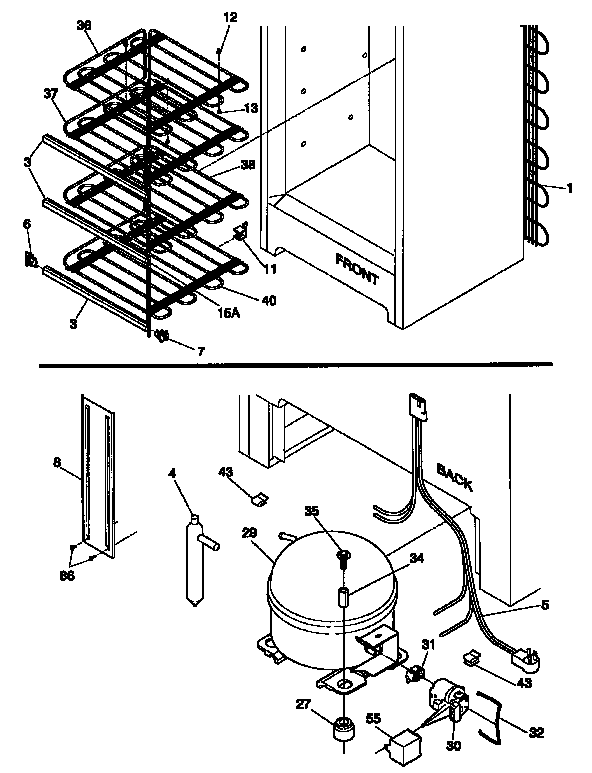

System diagram

Capacitor

Part #216236300

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236300. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Hose 216313500
#29

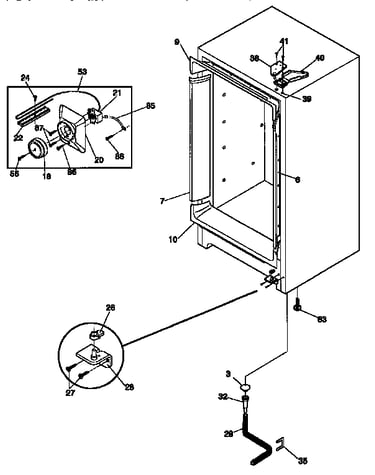

Cabinet/control/shelves diagram

Hose

Part #216313500

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 216313500. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#53

Cabinet/control/shelves diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

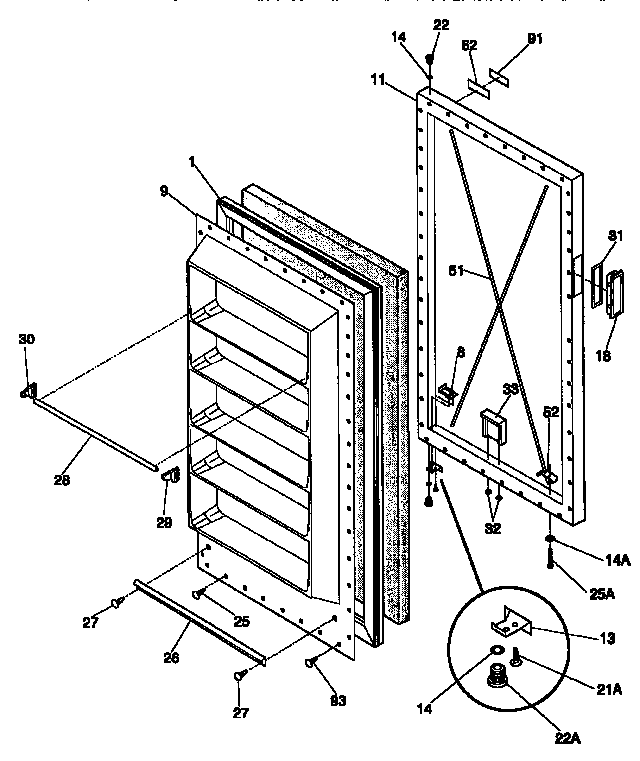

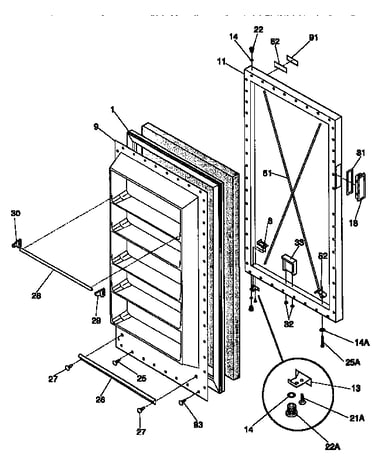

Door diagram
