Model # 502256112 Official Craftsman riding lawn mower
Here are the diagrams and repair parts for Official Craftsman 502256112 riding lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part

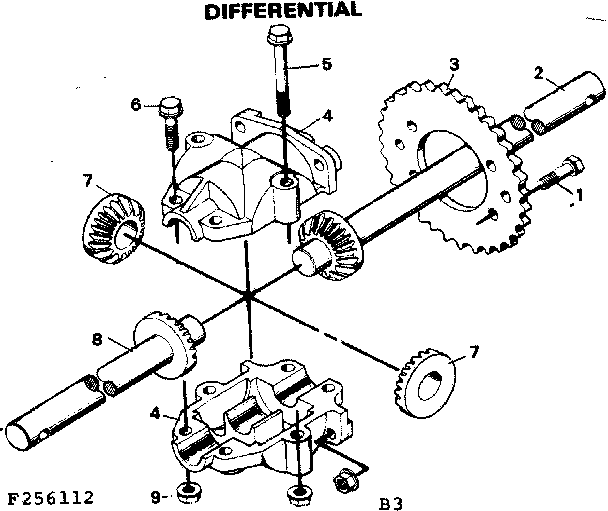

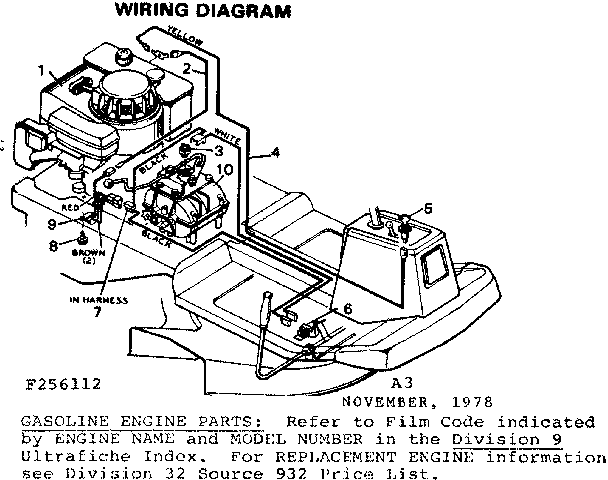

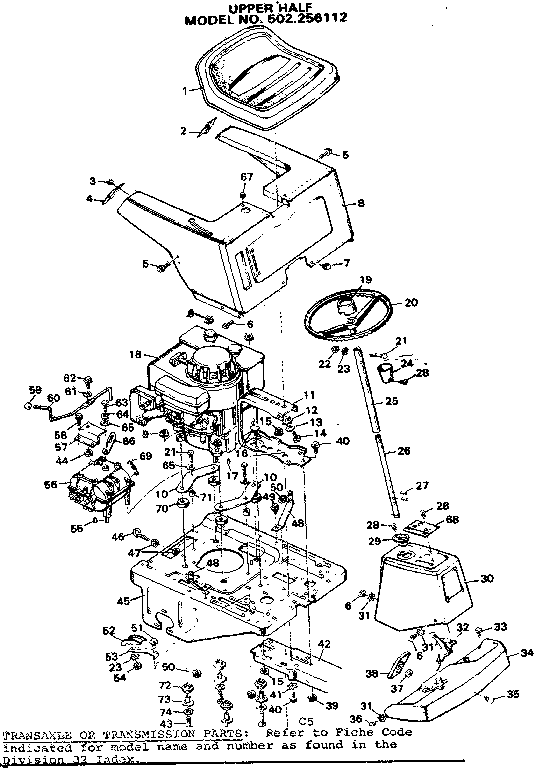

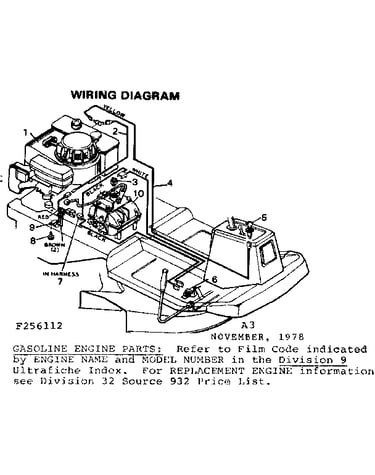

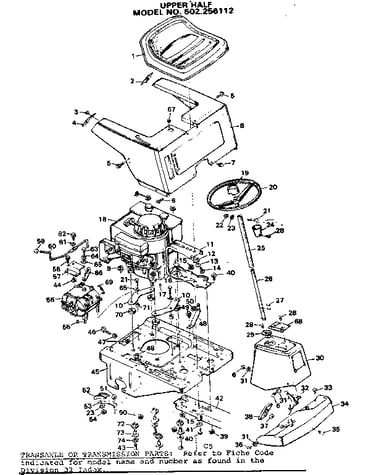

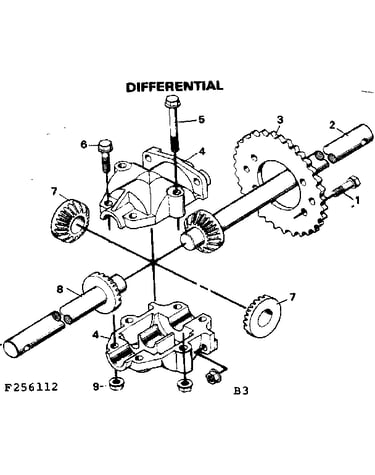

SELECT DIAGRAM
Browse Parts for502256112 Riding Mowers & Tractors
- Idler pulley
Part #20613
Replaced by #420613MA
?Manufacturer substitutionThis part replaces 20613. Substitute parts can look different from the original.This item is not returnable$26.71 |18% OFF Phone Price : $32.71In Stock - #52

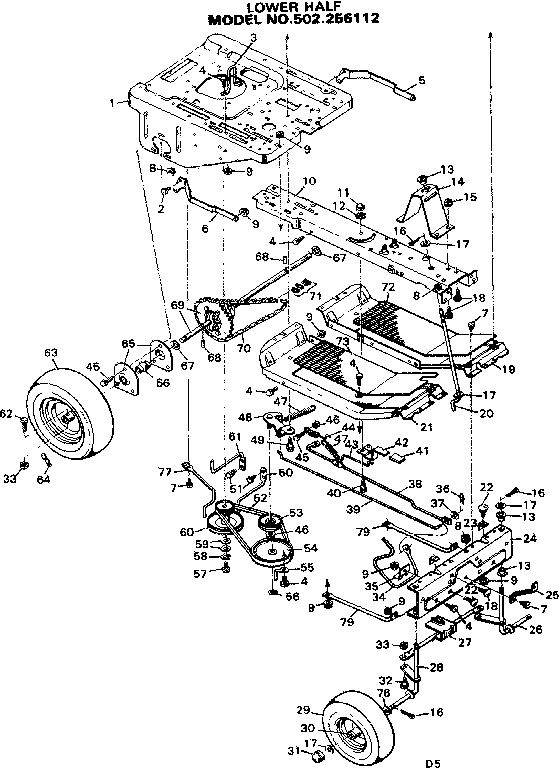

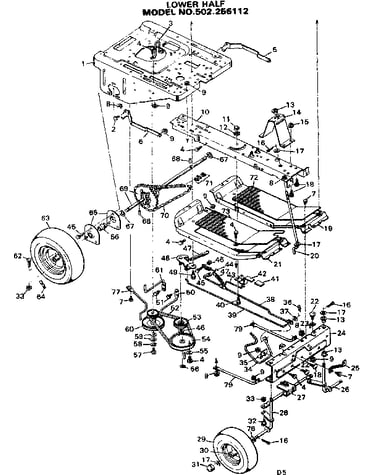

Lower half diagram
BeltPart #20715
Replaced by #37X51MA
?Manufacturer substitutionThis part replaces 20715. Substitute parts can look different from the original.$25.89In Stock - Lock nut
Part #15X85
Replaced by #703333
?Manufacturer substitutionThis part replaces 15X85. Substitute parts can look different from the original.This item is not returnable$8.47 |11% OFF Phone Price : $9.47In Stock - #51

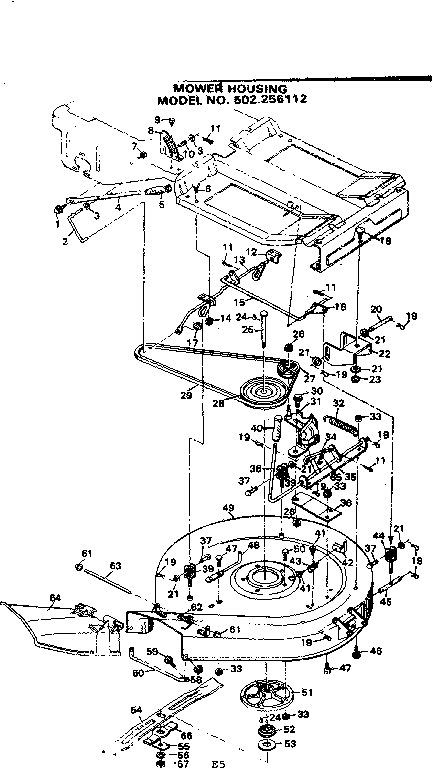

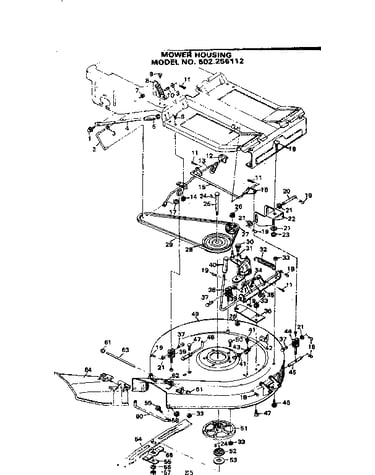

Mower housing diagram
HousingPart #20551
Replaced by #492574MA
?Manufacturer substitutionThis part replaces 20551. Substitute parts can look different from the original.$60.44 |9% OFF Phone Price : $66.44In Stock - #26
Mower housing diagram
Lock nutPart #15X84
Replaced by #703893
?Manufacturer substitutionThis part replaces 15X84. Substitute parts can look different from the original.This item is not returnable$11.79 |15% OFF Phone Price : $13.79In Stock - Bolt
Part #STD533107
The manufacturer no longer makes this part, and there's no substitute part
- #24
Mower housing diagram
Woodruff keyPart #20062
Replaced by #20062MA
?Manufacturer substitutionThis part replaces 20062. Substitute parts can look different from the original.This item is not returnable$6.46In Stock - Flange nut
Part #15X79
Replaced by #703409
?Manufacturer substitutionThis part replaces 15X79. Substitute parts can look different from the original.$9.71 |9% OFF Phone Price : $10.71In Stock - Washer
Part #10851Z
Replaced by #10851ZMA
?Manufacturer substitutionThis part replaces 10851Z. Substitute parts can look different from the original.$9.97In Stock - #20
Lower half diagram
Steer postPart #20864
Replaced by #11X16MA
?Manufacturer substitutionThis part replaces 20864. Substitute parts can look different from the original.This item is not returnable$6.91In Stock
