Jenn-Air
Wall Oven/Microwave Combo

Model # JMW2427DS02 Official Jenn-Air microwave/wall oven combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2427DS02 microwave/wall oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

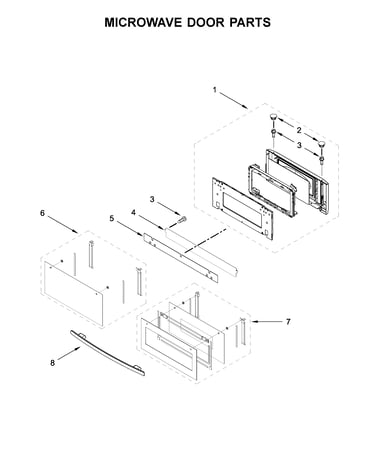

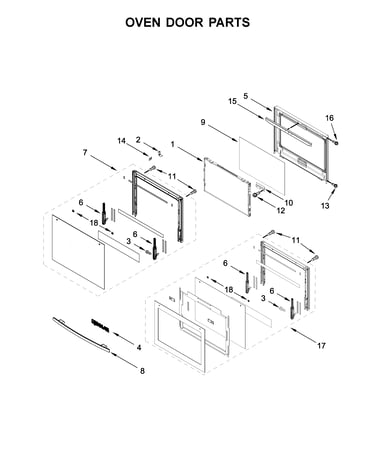

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Wall Oven Microwave Element Clip 461967753871
#12

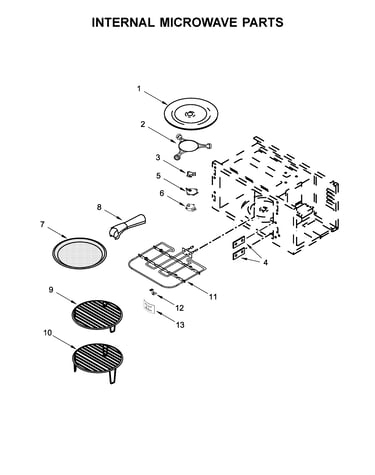

Internal microwave parts diagram

Wall oven microwave element clip

Part #461967753871

BEST SELLER
$11.64
In Stock
Inverter W10468206
#24

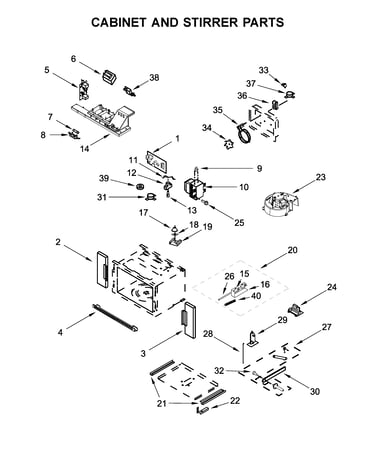

Cabinet and stirrer parts diagram

Inverter

Part #W10468206

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
BEST SELLER
$203.20 |
6% OFF Phone Price : $215.20
In Stock
Control (with Power Supply) W11040195
#3

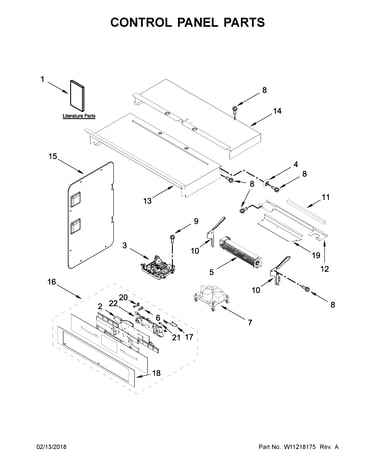

Control panel parts diagram

Control (with power supply)

Part #W11040195

Replaced by #W11179310

?
Manufacturer substitution
This part replaces W11040195. Substitute parts can look different from the original.
BEST SELLER
$272.64 |
$12.00 OFF Phone Price : $284.64
In Stock
Range High-limit Thermostat 4449751
#18

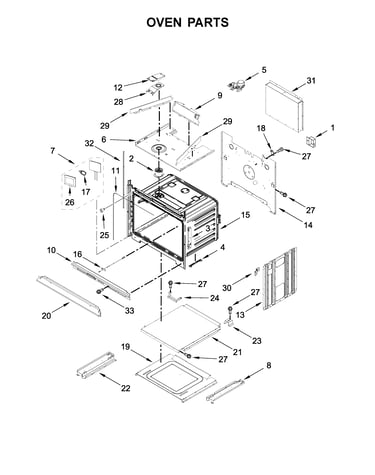

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Range Bake Element W10546517
#7

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Microwave Magnetron 461967847321
#10

Cabinet and stirrer parts diagram

Microwave magnetron

Part #461967847321

BEST SELLER
$155.80 |
7% OFF Phone Price : $167.80
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Dual Speed B W10669823
#5

Control panel parts diagram

Dual speed b

Part #W10669823

Replaced by #W11245567

?
Manufacturer substitution
This part replaces W10669823. Substitute parts can look different from the original.
BEST SELLER
$188.00 |
6% OFF Phone Price : $200.00
In Stock
Convection F W10722667
#9

Internal oven parts diagram

Convection f

Part #W10722667

Replaced by #W10860984

?
Manufacturer substitution
This part replaces W10722667. Substitute parts can look different from the original.
$84.88 |
7% OFF Phone Price : $90.88
In Stock
Door Latch W10618131
#5

Oven parts diagram

Door latch

Part #W10618131

Replaced by #W10883049

?
Manufacturer substitution
This part replaces W10618131. Substitute parts can look different from the original.
$143.75 |
8% OFF Phone Price : $155.75
In Stock
