Model # 1164566190C Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 1164566190C vacuum cleaner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1164566190C Vacuum Cleaners
#10

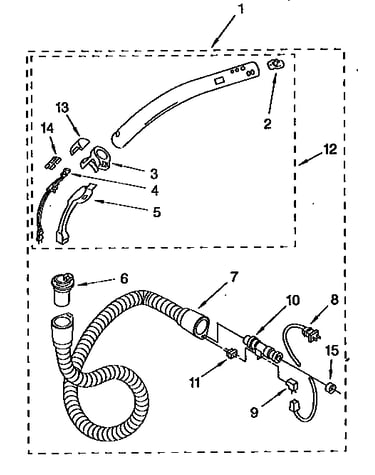

Hose assembly diagram
Terminal
Part #732284
The manufacturer no longer makes this part, and there's no substitute part
#9
Hose assembly diagram
Fused plug
Part #4152541
The manufacturer no longer makes this part, and there's no substitute part
#7
Hose assembly diagram
Hose
Part #4369978
The manufacturer no longer makes this part, and there's no substitute part
#4
Hose assembly diagram
Power cord
Part #4369974
The manufacturer no longer makes this part, and there's no substitute part
#6
Hose assembly diagram
Vacuum adapter
Part #743491
The manufacturer no longer makes this part, and there's no substitute part
#15
Hose assembly diagram
Ring-cntct
Part #4147616
The manufacturer no longer makes this part, and there's no substitute part
#12
Hose assembly diagram
Hose handle
Part #4369972
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Parts list
Part #LIT4369976
The manufacturer no longer makes this part, and there's no substitute part
#8
Hose assembly diagram
Power cord
Part #4369975
The manufacturer no longer makes this part, and there's no substitute part
#3
Hose assembly diagram
Lock
Part #742859
The manufacturer no longer makes this part, and there's no substitute part
