Model # RF377PXXW2 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RF377PXXW2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

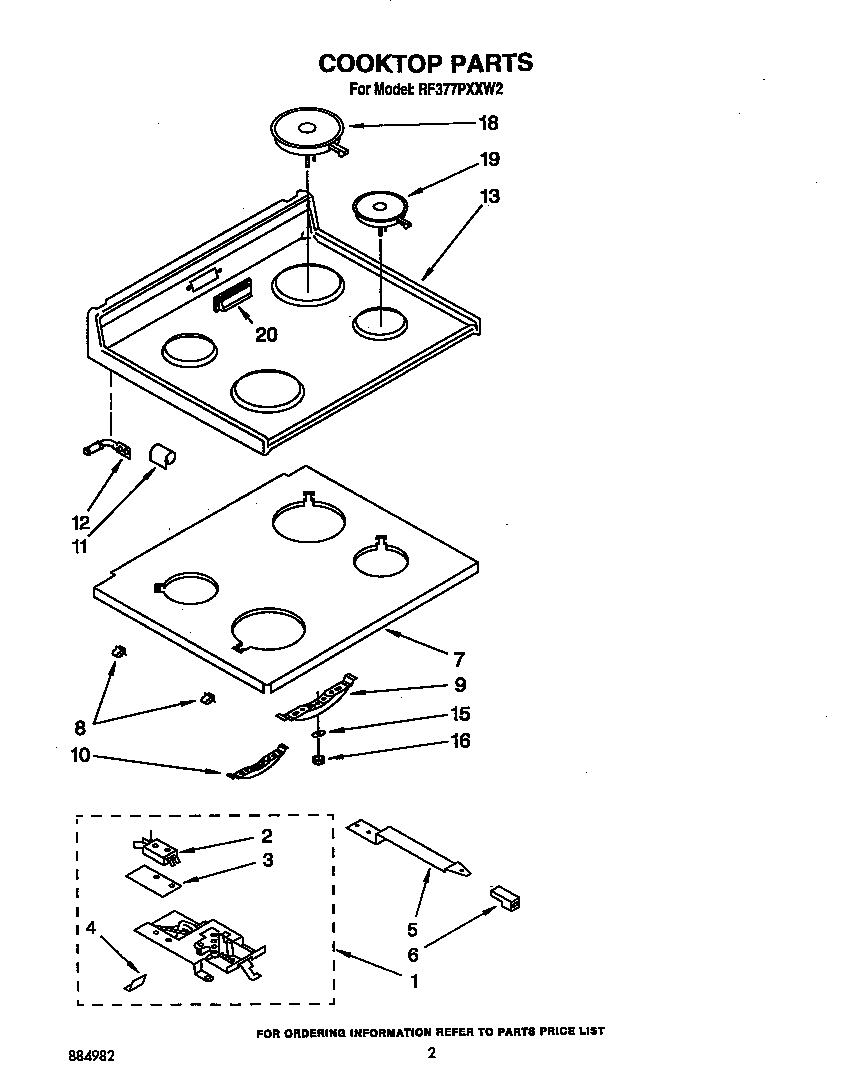

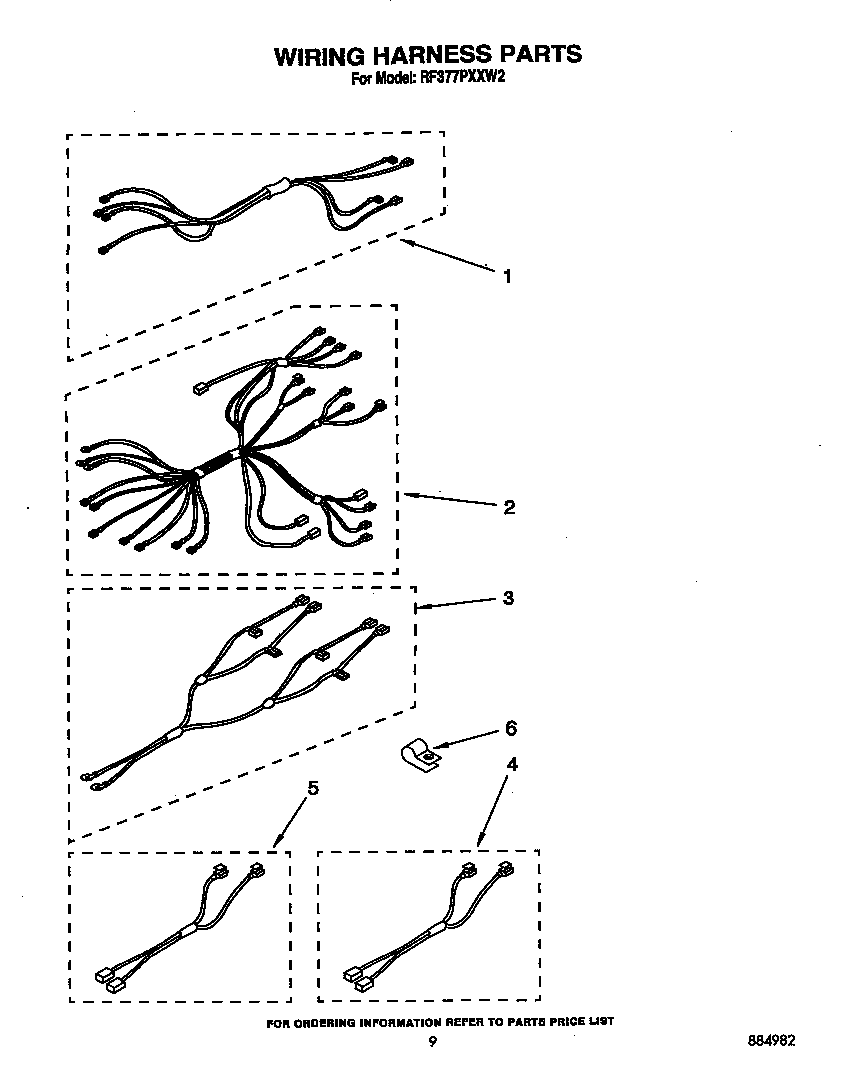

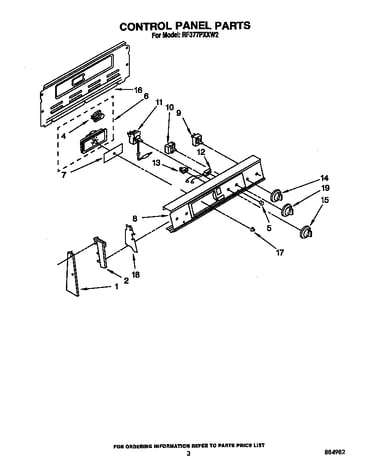

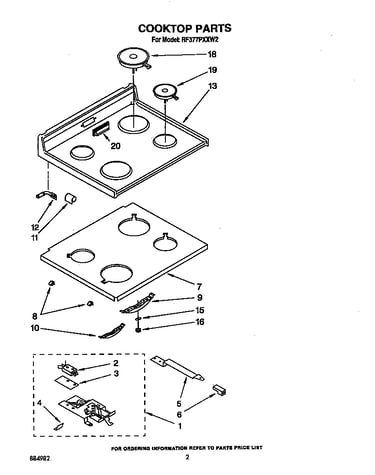

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Light Bulb 311255
#11

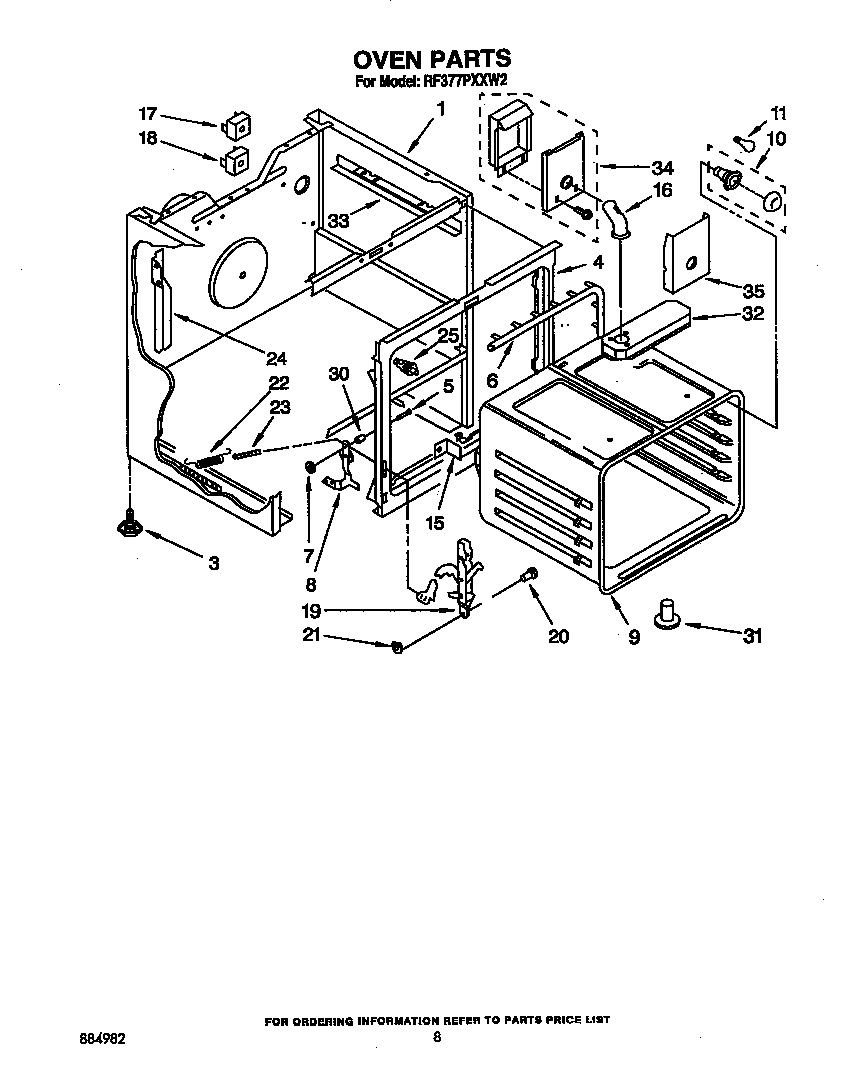

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Bake Element 661170
#4

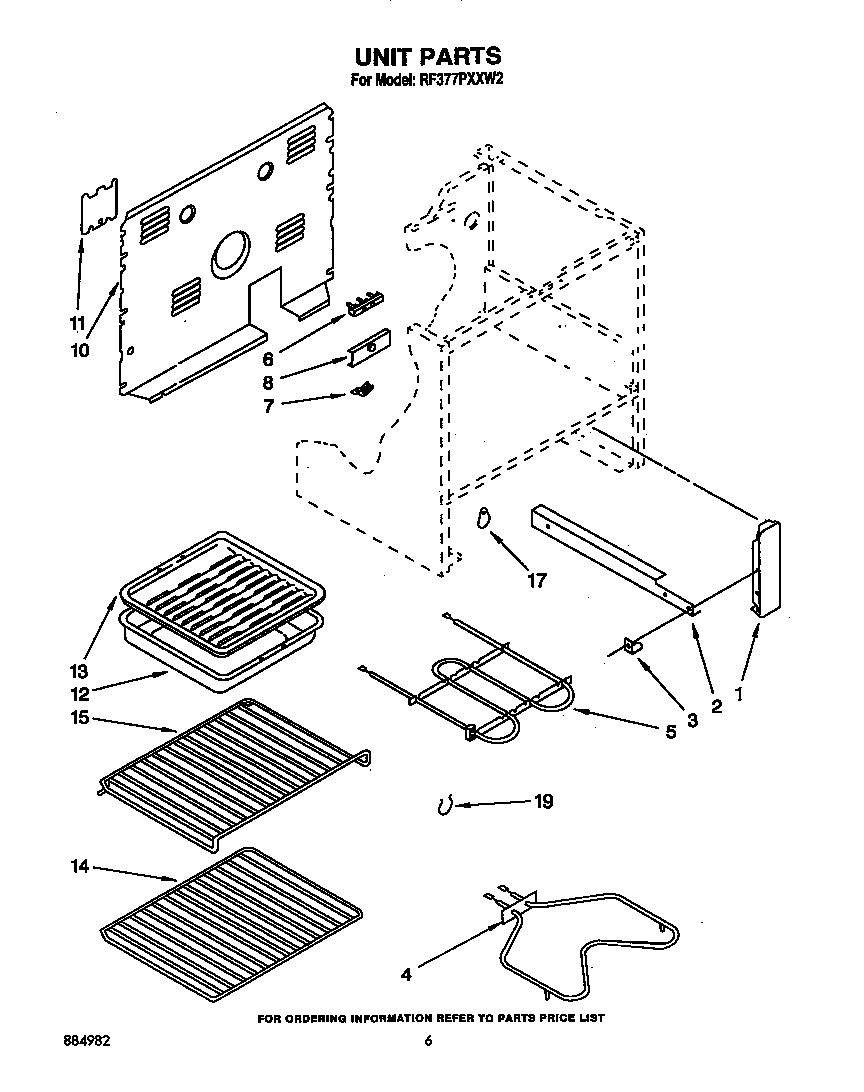

Unit diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$41.44 |
13% OFF Phone Price : $47.44
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Screw 690989
Screw

Part #690989

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 690989. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Broil Element 660579
#5

Unit diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Screw 300128
#22A

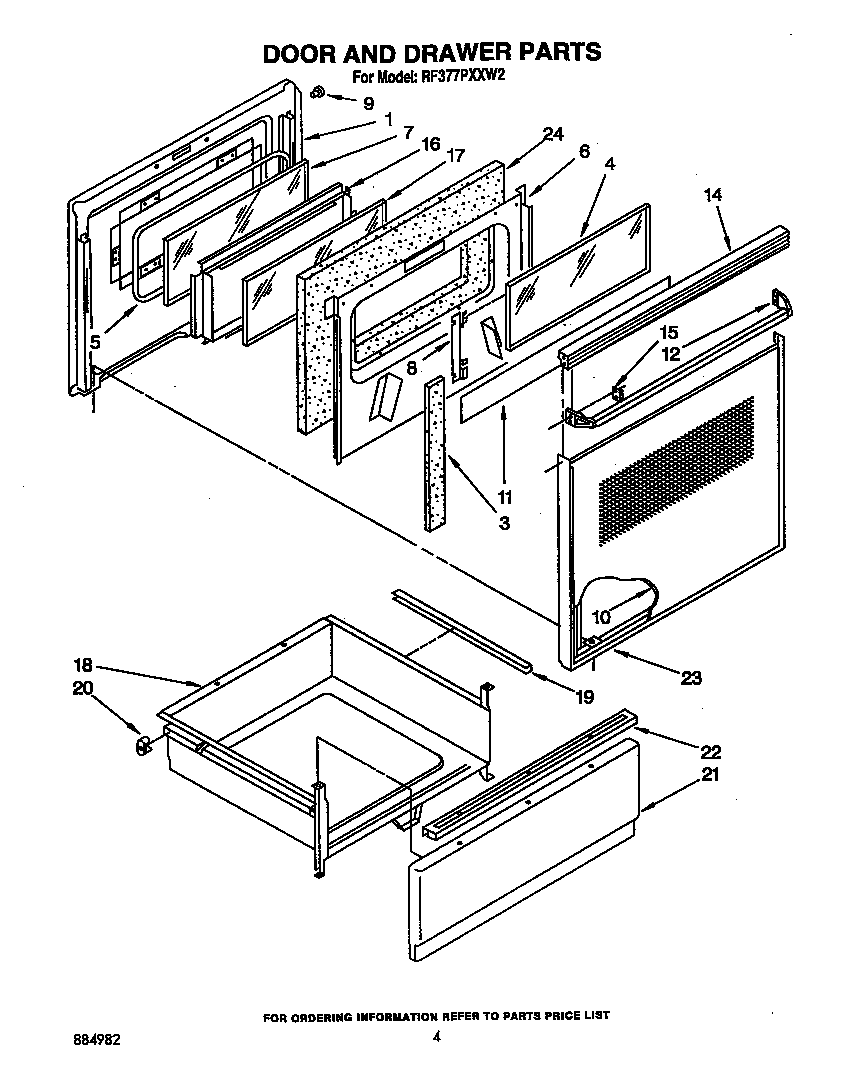

Door and drawer diagram

Screw

Part #300128

Replaced by #WP488627

?
Manufacturer substitution
This part replaces 300128. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Level Foot 3150150
#3

Oven diagram

Level foot

Part #3150150

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 3150150. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Screw 342055
#34A

Oven diagram

Screw

Part #342055

Replaced by #WP488627

?
Manufacturer substitution
This part replaces 342055. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
