GE
Countertop Microwave

Model # JES1133WN05 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1133WN05 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Switch WB24X801
#1445

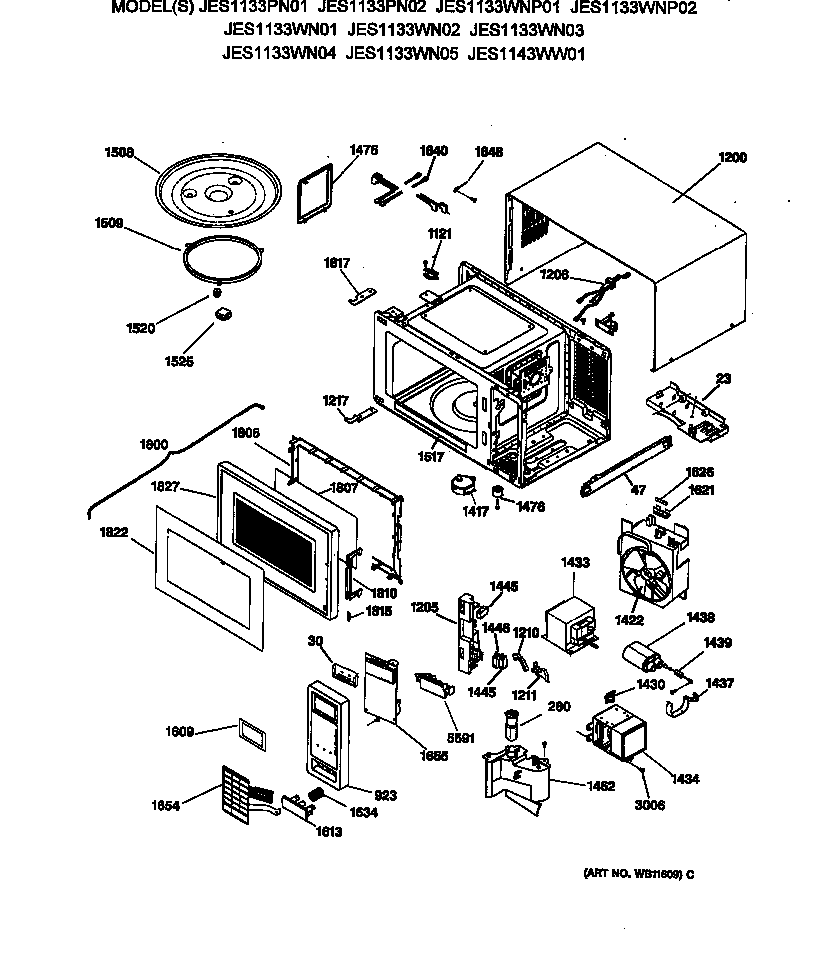

Microwave diagram

Switch

Part #WB24X801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X800
#1446

Microwave diagram

Switch

Part #WB24X800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Diode WB27X944
#1439

Microwave diagram

Diode

Part #WB27X944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X944. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Lamp 125v WB36X904
#280

Microwave diagram

Lamp 125v

Part #WB36X904

Replaced by #WB36X10194

?
Manufacturer substitution
This part replaces WB36X904. Substitute parts can look different from the original.
$36.47 |
14% OFF Phone Price : $42.47
In Stock
Fuse 250v WB27X951
#1626

Microwave diagram

Fuse 250v

Part #WB27X951

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X951. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Microwave Turntable Motor (replaces Wb26x0172) WB26X172
#1417

Microwave diagram

Microwave turntable motor (replaces wb26x0172)

Part #WB26X172

$48.06 |
11% OFF Phone Price : $54.06
In Stock
Jes1143ww 49-8710

#NI

All parts diagram

Jes1143ww

Part #49-8710

$8.49
In Stock
Latch Body WB6X401
#1205

Microwave diagram

Latch body

Part #WB6X401

This item is not returnable
$5.49
In Stock
Magnetron WB27X950
#1434

Microwave diagram

Magnetron

Part #WB27X950

Replaced by #WB27X10585

?
Manufacturer substitution
This part replaces WB27X950. Substitute parts can look different from the original.
$157.75 |
7% OFF Phone Price : $169.75
In Stock
Cooking Tray WB49X682
#1508

Microwave diagram

Cooking tray

Part #WB49X682

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X682. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
