Model # JVB96SA Official GE range hood

Here are the diagrams and repair parts for Official GE JVB96SA range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Jvb34s + Uc/ 49-8904-3
#999

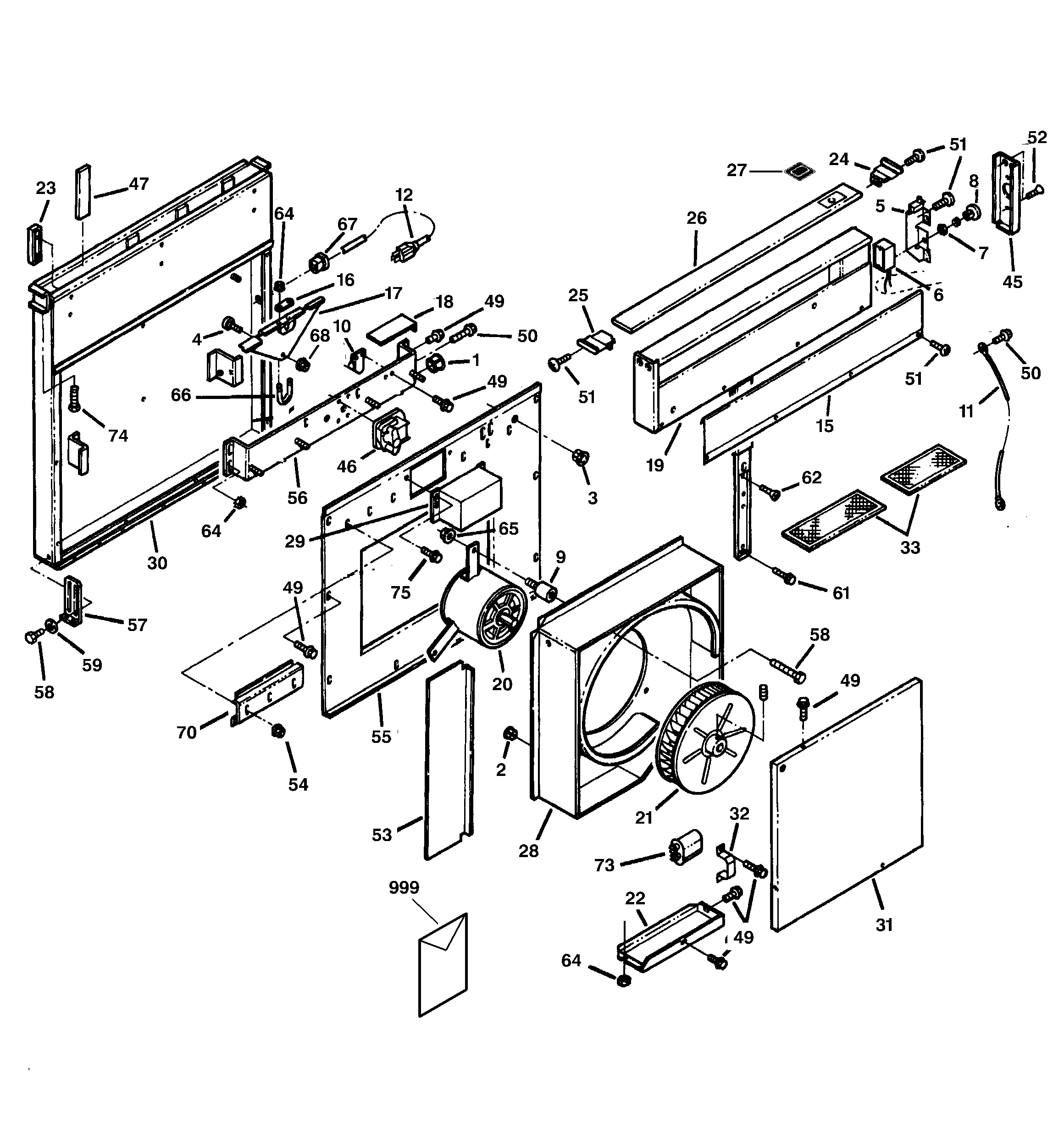

Range hood diagram

Jvb34s + uc/

Part #49-8904-3

Replaced by #49-8904-1

?
Manufacturer substitution
This part replaces 49-8904-3. Substitute parts can look different from the original.
$8.49
In Stock
Hex Keps Nut WC01X5148
#64

Range hood diagram

Hex keps nut

Part #WC01X5148

The manufacturer no longer makes this part, and there's no substitute part

Range Downdraft Vent Speed Control Switch WB18X5124
#6

Range hood diagram

Range downdraft vent speed control switch

Part #WB18X5124

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit WB02X8344
#33

Range hood diagram

Filter kit

Part #WB02X8344

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-24 WB01X10188
#62

Range hood diagram

Screw #10-24

Part #WB01X10188

The manufacturer no longer makes this part, and there's no substitute part

Roller WC02X5144
#4

Range hood diagram

Roller

Part #WC02X5144

The manufacturer no longer makes this part, and there's no substitute part

Chimney WB02X8334
#19

Range hood diagram

Chimney

Part #WB02X8334

The manufacturer no longer makes this part, and there's no substitute part

Trim Panel 3 WB07X10204
#15

Range hood diagram

Trim panel 3

Part #WB07X10204

The manufacturer no longer makes this part, and there's no substitute part

Screw 1/4-20 WB01X10185
#58

Range hood diagram

Screw 1/4-20

Part #WB01X10185

The manufacturer no longer makes this part, and there's no substitute part

Trim Panel 3 WB07X10206
#15

Range hood diagram

Trim panel 3

Part #WB07X10206

The manufacturer no longer makes this part, and there's no substitute part
