Craftsman
Gas Grill

Model # 2581551210 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581551210 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Container Panel 10550-129
#36

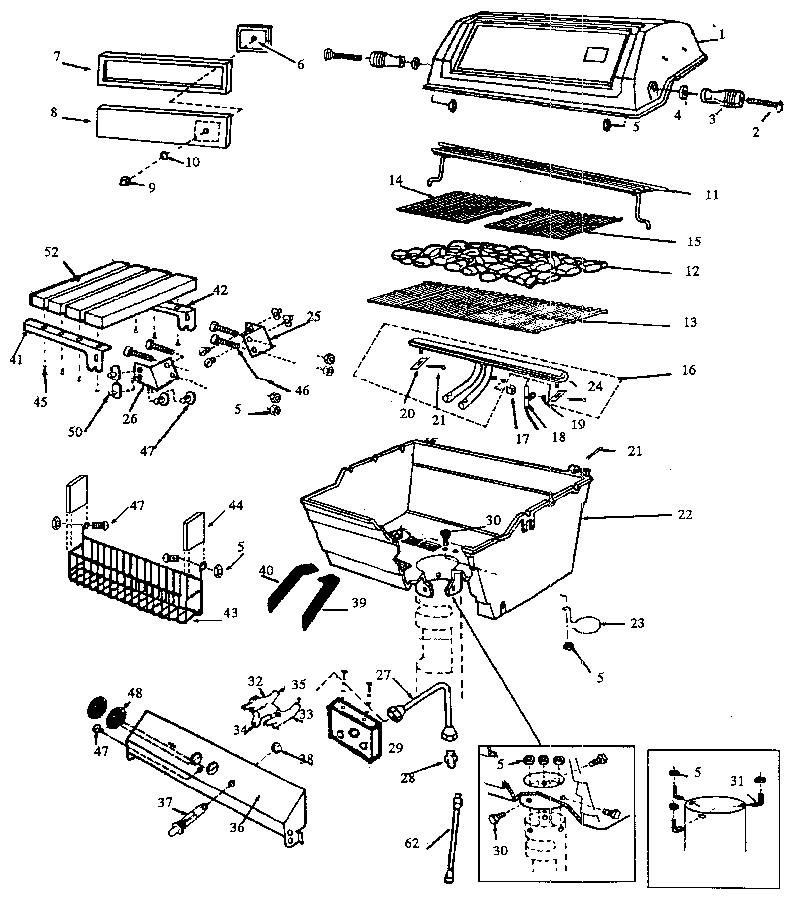

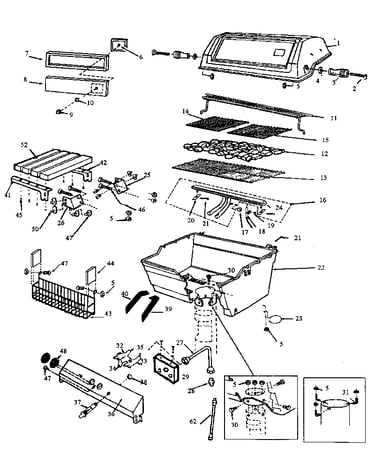

Grill and burner diagram

Container panel

Part #10550-129

The manufacturer no longer makes this part, and there's no substitute part

Control Cover Bracket R.h. 10161-197-1
#39

Grill and burner diagram

Control cover bracket r.h.

Part #10161-197-1

The manufacturer no longer makes this part, and there's no substitute part

Switch 10342-21
#37

Grill and burner diagram

Switch

Part #10342-21

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield 10156-47
#29

Grill and burner diagram

Heat shield

Part #10156-47

The manufacturer no longer makes this part, and there's no substitute part

Retainer 10401-28-1
#7

Grill and burner diagram

Retainer

Part #10401-28-1

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut STD541806
#9

Grill and burner diagram

Cap nut

Part #STD541806

The manufacturer no longer makes this part, and there's no substitute part

Washer 10239-6
#20

Grill and burner diagram

Washer

Part #10239-6

The manufacturer no longer makes this part, and there's no substitute part

Handle 10338-160-5
#3

Grill and burner diagram

Handle

Part #10338-160-5

The manufacturer no longer makes this part, and there's no substitute part

Tube Union Y-11641
#28

Grill and burner diagram

Tube union

Part #Y-11641

The manufacturer no longer makes this part, and there's no substitute part

Shelf Bracket 10164-165-1
#25

Grill and burner diagram

Shelf bracket

Part #10164-165-1

The manufacturer no longer makes this part, and there's no substitute part
