Jenn-Air
Gas Cooktop

Model # JGC9430BDR13 Official Jenn-Air 36" gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air JGC9430BDR13 36" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Igniter 7432P121-60
#10

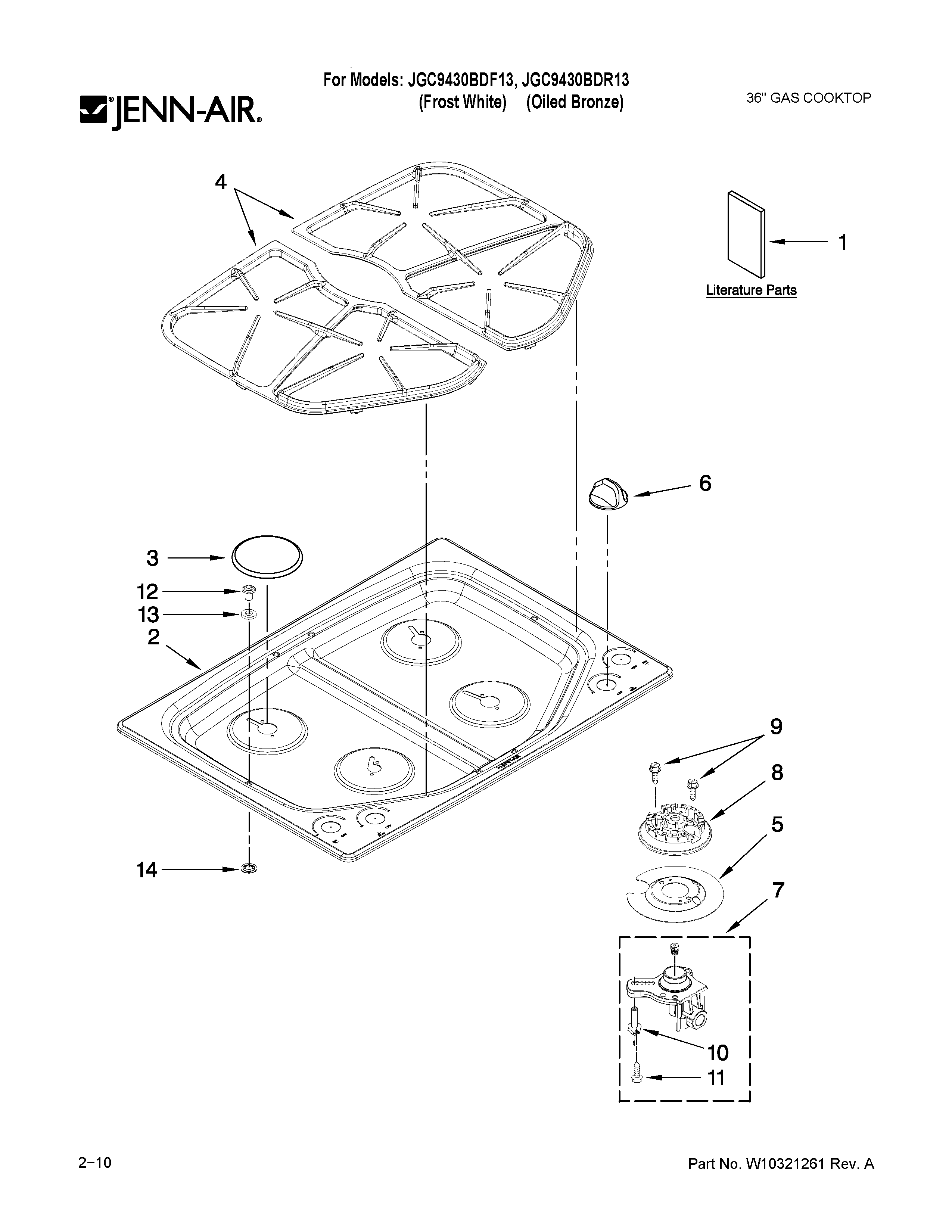

Cooktop, burner and grate parts diagram

Igniter

Part #7432P121-60

Replaced by #WP74009336

?
Manufacturer substitution
This part replaces 7432P121-60. Substitute parts can look different from the original.
BEST SELLER
$23.64 |
20% OFF Phone Price : $29.64
In Stock
Screw 7101P606-60
#11

Cooktop, burner and grate parts diagram

Screw

Part #7101P606-60

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 7101P606-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Burner Assembly 7505P306-60
#8B

Cooktop, burner and grate parts diagram

Burner assembly

Part #7505P306-60

Replaced by #74007736

?
Manufacturer substitution
This part replaces 7505P306-60. Substitute parts can look different from the original.
BEST SELLER
$76.30 |
7% OFF Phone Price : $82.30
In Stock
Module- Sp 7431P038-60
#3

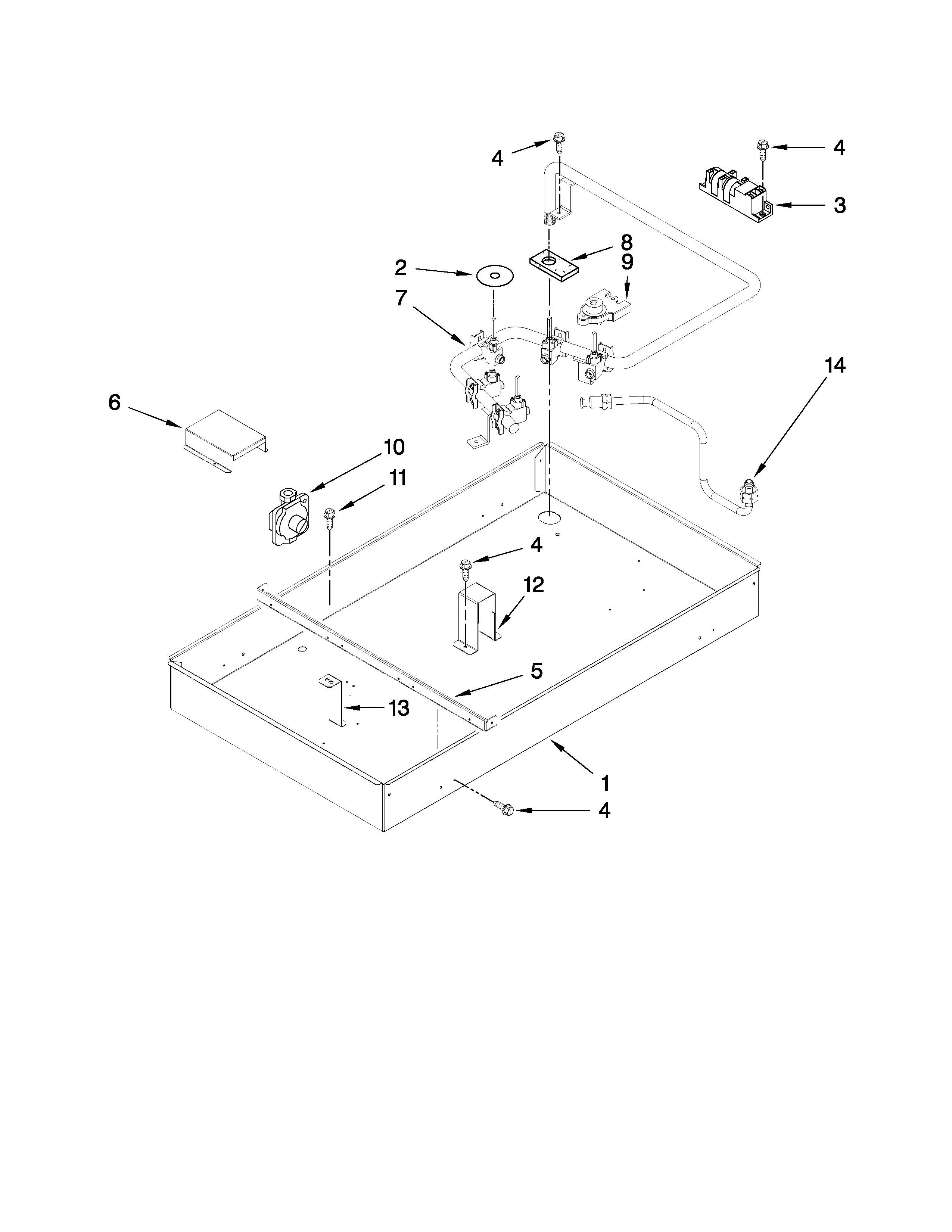

Burner box, gas valves, and switches diagram

Module- sp

Part #7431P038-60

Replaced by #WPW10475147

?
Manufacturer substitution
This part replaces 7431P038-60. Substitute parts can look different from the original.
BEST SELLER
$185.65 |
6% OFF Phone Price : $197.65
In Stock
Burner Assembly 7505P305-60
#8A

Cooktop, burner and grate parts diagram

Burner assembly

Part #7505P305-60

Replaced by #74007735

?
Manufacturer substitution
This part replaces 7505P305-60. Substitute parts can look different from the original.
BEST SELLER
$67.17 |
8% OFF Phone Price : $73.17
In Stock
Regulator 7510P093-60
#10

Burner box, gas valves, and switches diagram

Regulator

Part #7510P093-60

Replaced by #W11087445

?
Manufacturer substitution
This part replaces 7510P093-60. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
Switch- Bu 7403P820-60
#9A

Burner box, gas valves, and switches diagram

Switch- bu

Part #7403P820-60

Replaced by #WP74007774

?
Manufacturer substitution
This part replaces 7403P820-60. Substitute parts can look different from the original.
$53.29 |
10% OFF Phone Price : $59.29
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1C

Cooktop, burner and grate parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Cooktop Wire Harness W10173478
#NI

Optional parts (not included) diagram

Cooktop wire harness

Part #W10173478

$90.33
In Stock
Cooktop Burner Knob W10168628
#6

Cooktop, burner and grate parts diagram

Cooktop burner knob

Part #W10168628

Replaced by #WPW10168628

?
Manufacturer substitution
This part replaces W10168628. Substitute parts can look different from the original.
$50.71
In Stock
