Kenmore
Range Hood

Model # 2335137810 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335137810 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

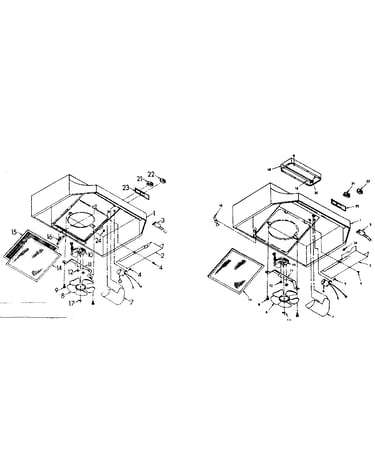

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Range Hood Light Lens 99110437
#7

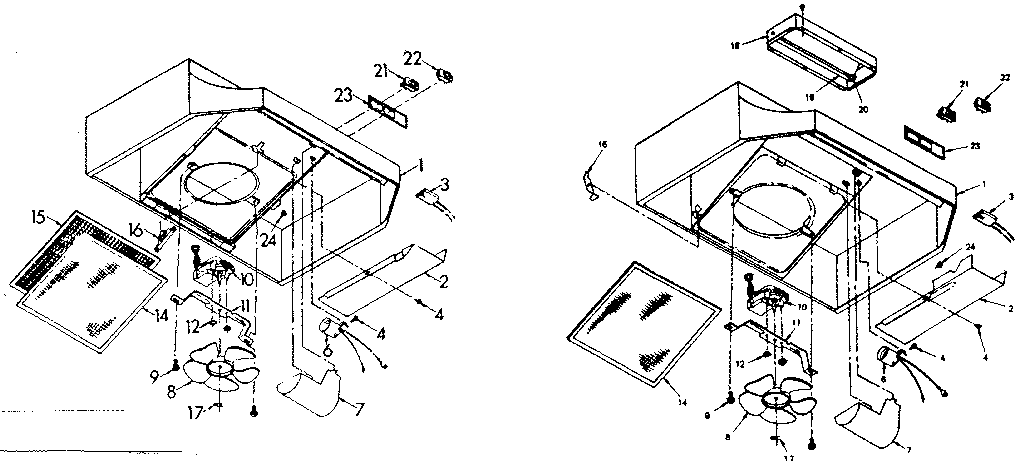

Range hood diagram

Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Blower Motor Wire Harness 97005678
#3

Range hood diagram

Range hood blower motor wire harness

Part #97005678

Replaced by #S97005678

?
Manufacturer substitution
This part replaces 97005678. Substitute parts can look different from the original.
This item is not returnable
$5.63
In Stock
Damper Flap 96005221
#19

Range hood diagram

Damper flap

Part #96005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 96005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Fan Blade 99020120
#8A

Range hood diagram

Fan blade

Part #99020120

Replaced by #06112-00

?
Manufacturer substitution
This part replaces 99020120. Substitute parts can look different from the original.
This item is not returnable
$6.92
In Stock
Blade 99020123
#8B

Range hood diagram

Blade

Part #99020123

Replaced by #06112-00

?
Manufacturer substitution
This part replaces 99020123. Substitute parts can look different from the original.
This item is not returnable
$6.92
In Stock
Retainer Clip (silver) 99140135
#16B

Range hood diagram

Retainer clip (silver)

Part #99140135

Replaced by #S99140135

?
Manufacturer substitution
This part replaces 99140135. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Bracket 98004706
#11

Range hood diagram

Bracket

Part #98004706

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98004706. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Retainer Clip 99420040
#17

Range hood diagram

Retainer clip

Part #99420040

Replaced by #S99420040

?
Manufacturer substitution
This part replaces 99420040. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Lock Nut 99260466
#12

Range hood diagram

Lock nut

Part #99260466

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260466. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Range Hood Grounding Screw (green) 99150471
#24

Range hood diagram

Range hood grounding screw (green)

Part #99150471

Replaced by #S99150471

?
Manufacturer substitution
This part replaces 99150471. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
