Model # 358797180-1990MDL Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 358797180-1990MDL line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Line Kit 530-069247
#9

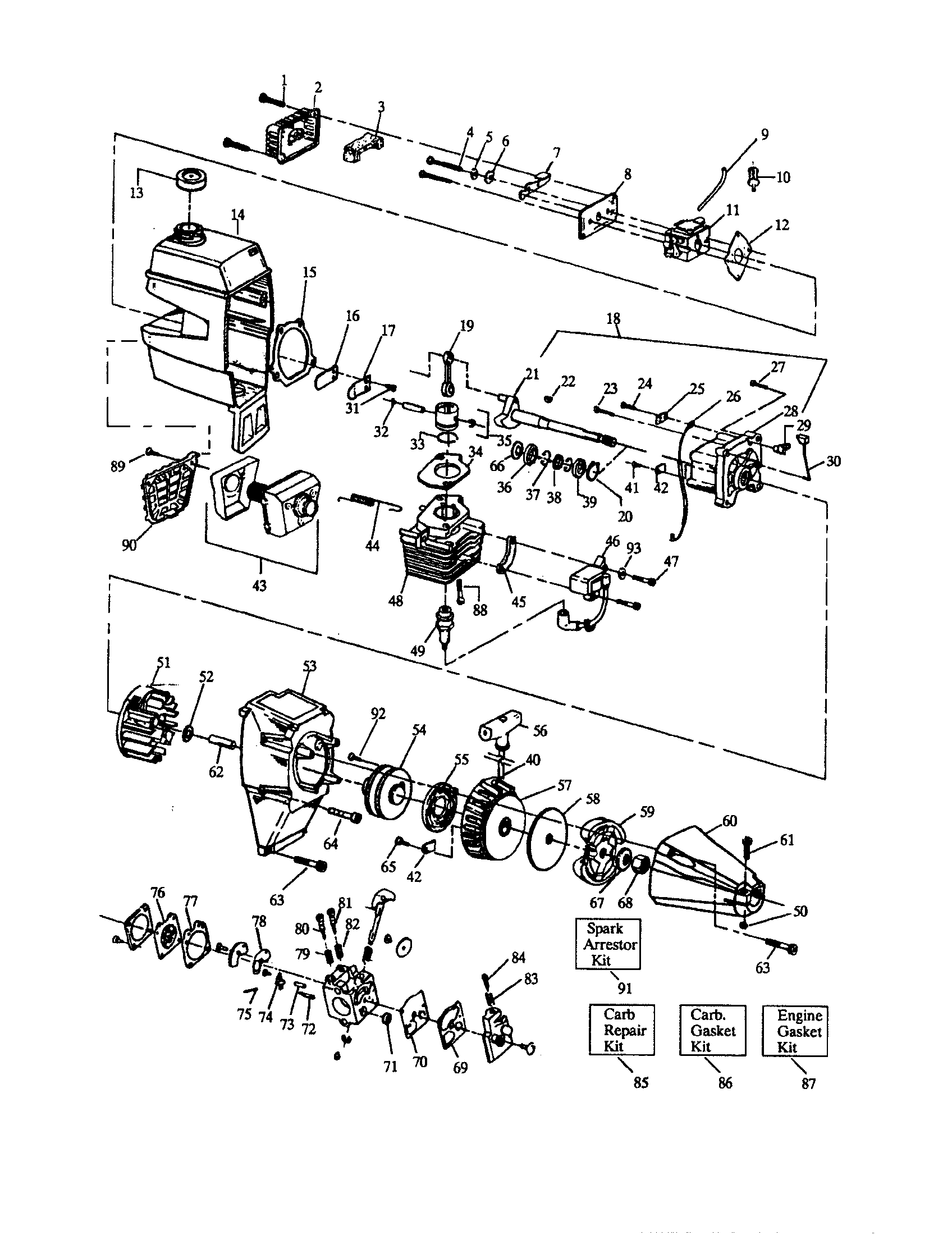

Cylinder/crankshaft/muffler diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Rope Kit 530-069232
#40

Cylinder/crankshaft/muffler diagram

Rope kit

Part #530-069232

Replaced by #530069232

?
Manufacturer substitution
This part replaces 530-069232. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Screw 530-015823
#92

Cylinder/crankshaft/muffler diagram

Screw

Part #530-015823

Replaced by #530016080

?
Manufacturer substitution
This part replaces 530-015823. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Diaphragm 530-035166
#70

Cylinder/crankshaft/muffler diagram

Diaphragm

Part #530-035166

Replaced by #504130807

?
Manufacturer substitution
This part replaces 530-035166. Substitute parts can look different from the original.
This item is not returnable
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Carburetor Gasket 530-019156
#12

Cylinder/crankshaft/muffler diagram

Carburetor gasket

Part #530-019156

Replaced by #530019156

?
Manufacturer substitution
This part replaces 530-019156. Substitute parts can look different from the original.
This item is not returnable
$9.26
In Stock
Screw 530-015766
#4

Cylinder/crankshaft/muffler diagram

Screw

Part #530-015766

Replaced by #530015849

?
Manufacturer substitution
This part replaces 530-015766. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Screw 530-015773
#1

Cylinder/crankshaft/muffler diagram

Screw

Part #530-015773

Replaced by #530015773

?
Manufacturer substitution
This part replaces 530-015773. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Screw 530-015774
#23

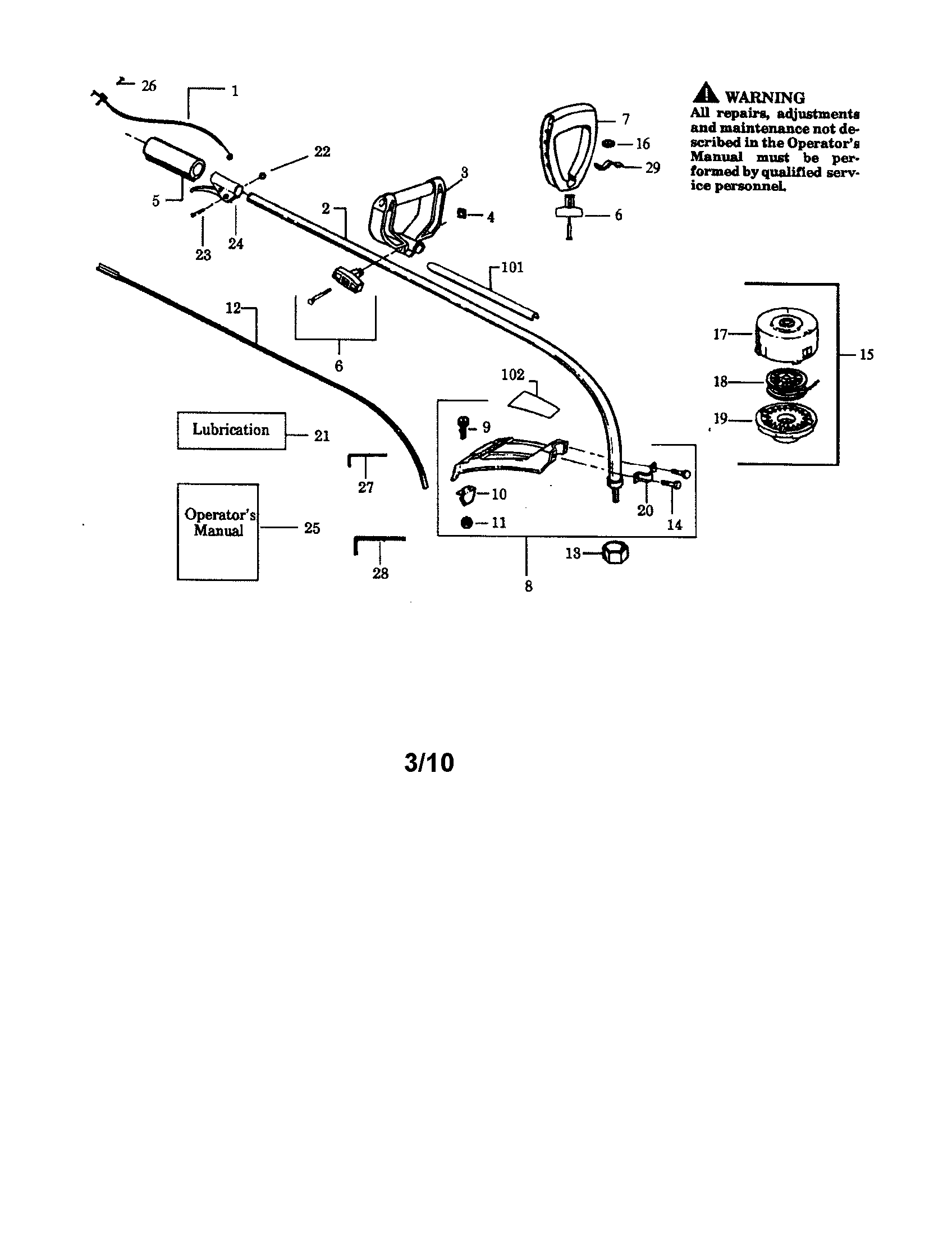

Handle/drive shaft/shield diagram

Screw

Part #530-015774

Replaced by #530015774

?
Manufacturer substitution
This part replaces 530-015774. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Nut 530-015768
Nut

Part #530-015768

Replaced by #530015768

?
Manufacturer substitution
This part replaces 530-015768. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Screw 530-015496
#65

Cylinder/crankshaft/muffler diagram

Screw

Part #530-015496

Replaced by #530015805

?
Manufacturer substitution
This part replaces 530-015496. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
