Model # YMMV4205FW3 Official Maytag microwave/hood combo
Here are the diagrams and repair parts for Official Maytag YMMV4205FW3 microwave/hood combo, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

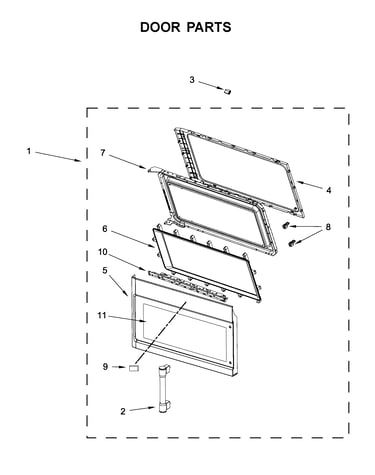

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 104 parts |
#13

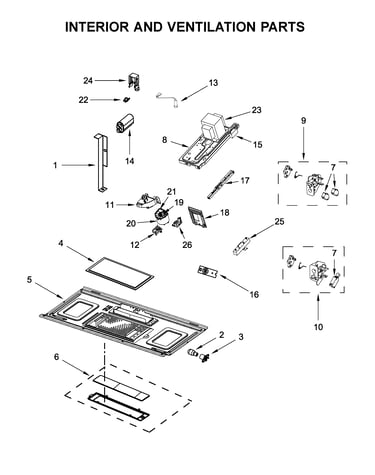

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#3

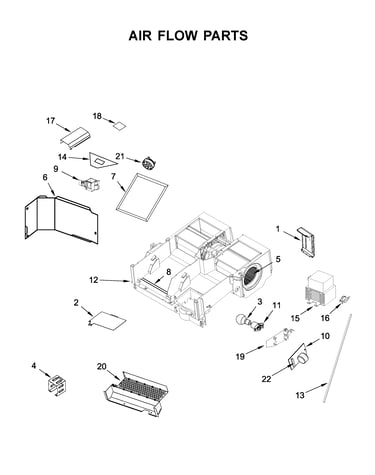

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.38 |
11% OFF Phone Price : $9.38
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.38 |
11% OFF Phone Price : $9.38
In Stock
#22
Air flow parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#15
Air flow parts diagram
Magnetron
Part #W10754514
The manufacturer no longer makes this part, and there's no substitute part
#4
Interior and ventilation parts diagram
Filter
Part #W10208631
Replaced by #W10208631A
?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
$25.58 |
19% OFF Phone Price : $31.58
In Stock
#7
Air flow parts diagram
Filter
Part #8206230
Replaced by #8206230A
?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
$11.14 |
15% OFF Phone Price : $13.14
In Stock
#5

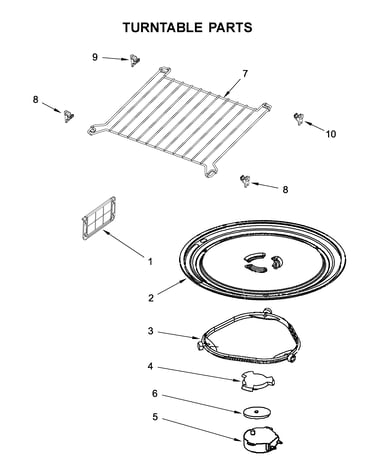

Turntable parts diagram
Microwave turntable motor (replaces 8183954)
Part #W10642989
$69.48 |
8% OFF Phone Price : $75.48
In Stock
#4
Turntable parts diagram
Microwave turntable motor coupler
Part #W10337248
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
#6A

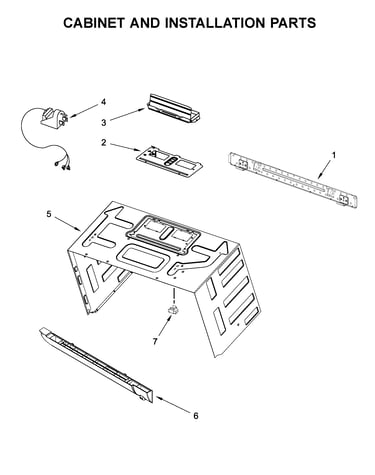

Cabinet and installation parts diagram
Microwave vent grille (black) (replaces w10533491)
Part #W10701697
$39.79 |
13% OFF Phone Price : $45.79
In Stock
