Model # 1555436741 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 1555436741 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Glass K13217
#29B

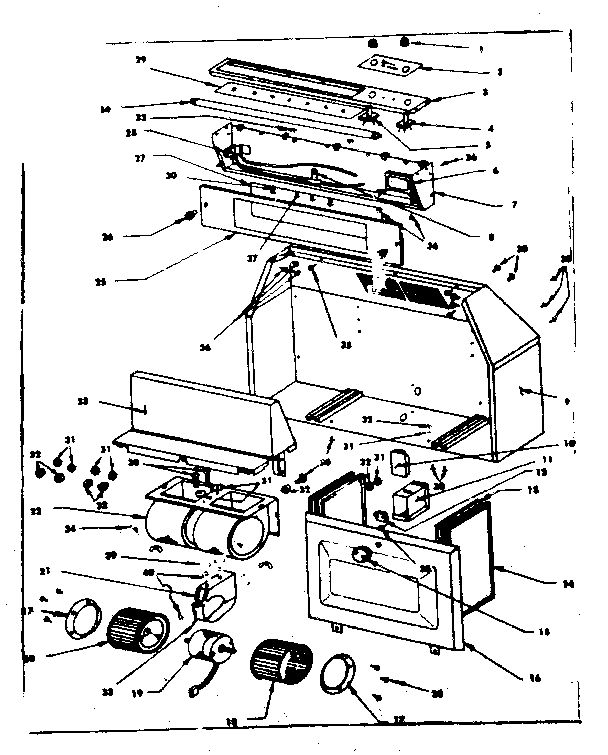

Range hood assembly diagram

Glass

Part #K13217

The manufacturer no longer makes this part, and there's no substitute part

Conduit Box Y12065
#11

Range hood assembly diagram

Conduit box

Part #Y12065

The manufacturer no longer makes this part, and there's no substitute part

Cover Y11484
#10

Range hood assembly diagram

Cover

Part #Y11484

The manufacturer no longer makes this part, and there's no substitute part

Bulb K13428
#24B

Range hood assembly diagram

Bulb

Part #K13428

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover Y11458
#7C

Range hood assembly diagram

Lamp cover

Part #Y11458

The manufacturer no longer makes this part, and there's no substitute part

Housing Y12062
#22

Range hood assembly diagram

Housing

Part #Y12062

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover Y11456
#7A

Range hood assembly diagram

Lamp cover

Part #Y11456

The manufacturer no longer makes this part, and there's no substitute part

Nut GM120619
#32

Range hood assembly diagram

Nut

Part #GM120619

The manufacturer no longer makes this part, and there's no substitute part

T. H. Bolt K12247
#33

Range hood assembly diagram

T. h. bolt

Part #K12247

The manufacturer no longer makes this part, and there's no substitute part

Emblem K13268
#2

Range hood assembly diagram

Emblem

Part #K13268

The manufacturer no longer makes this part, and there's no substitute part
