Garbage Disposal

Model # GFB1050G03 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFB1050G03 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

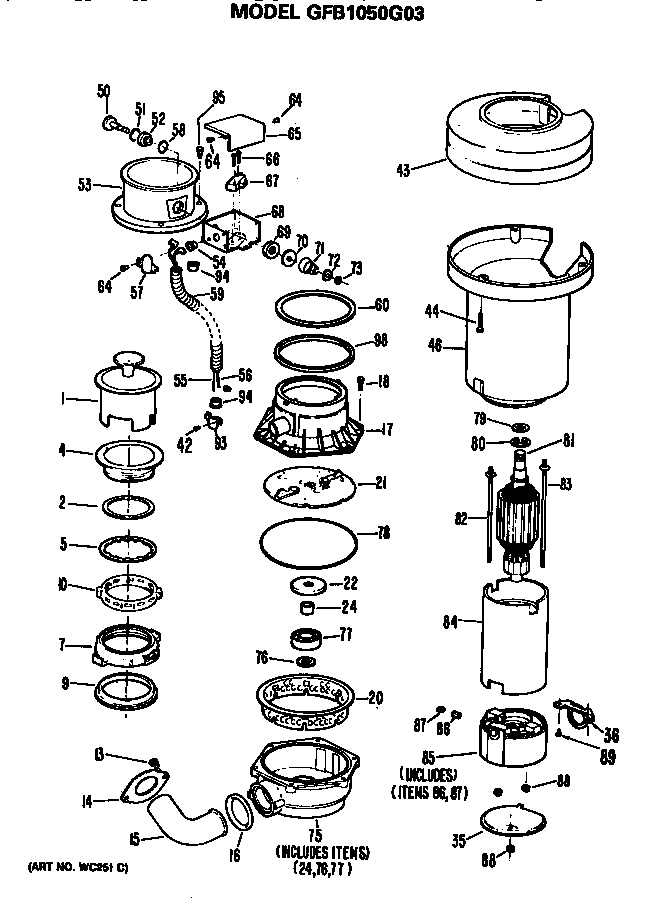

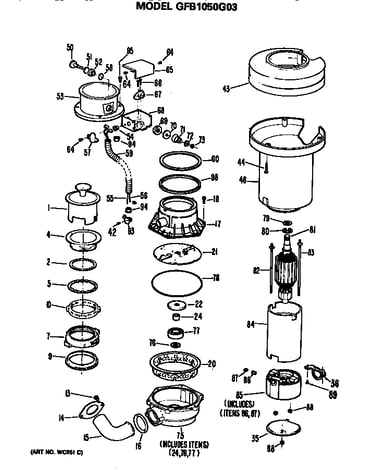

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Mounting Plate WC2X354

#14

All parts diagram

Mounting plate

Part #WC2X354

This item is not returnable
In Stock
Support Ring WC5X103

#10

All parts diagram

Support ring

Part #WC5X103

Replaced by #WC05X10002

?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.68
15% OFF Phone Price : $13.68
In Stock
Mounting Ring WC5X104

#7

All parts diagram

Mounting ring

Part #WC5X104

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75
11% OFF Phone Price : $56.75
In Stock
Washer WC1X228

#72

All parts diagram

Washer

Part #WC1X228

The manufacturer no longer makes this part, and there's no substitute part

Stud Motor 8-32 X 6.6 WC1X281

#83

All parts diagram

Stud motor 8-32 x 6.6

Part #WC1X281

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring WC1X240

#80

All parts diagram

Retaining ring

Part #WC1X240

The manufacturer no longer makes this part, and there's no substitute part

Housing Drain Asm WC24X199

#75

All parts diagram

Housing drain asm

Part #WC24X199

The manufacturer no longer makes this part, and there's no substitute part

O-ring WC3X107

#51

All parts diagram

O-ring

Part #WC3X107

The manufacturer no longer makes this part, and there's no substitute part

Hopper Screw WC1X212

#18

All parts diagram

Hopper screw

Part #WC1X212

The manufacturer no longer makes this part, and there's no substitute part

Adapter Collar WC2X366

#98

All parts diagram

Adapter collar

Part #WC2X366

The manufacturer no longer makes this part, and there's no substitute part
