Craftsman
Impact Wrench

Model # 75618880-1 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 75618880-1 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Cth Dog Cam 203130307
#23

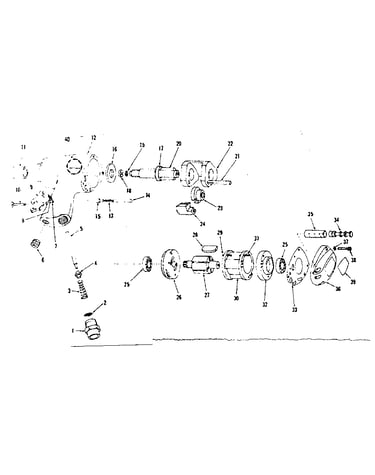

Unit parts diagram

Cth dog cam

Part #203130307

The manufacturer no longer makes this part, and there's no substitute part

Screw 203124492
#10

Unit parts diagram

Screw

Part #203124492

The manufacturer no longer makes this part, and there's no substitute part

Cth Dog Pin 203130353
#21

Unit parts diagram

Cth dog pin

Part #203130353

The manufacturer no longer makes this part, and there's no substitute part

Skt Hd Screw 206018893
#38

Unit parts diagram

Skt hd screw

Part #206018893

The manufacturer no longer makes this part, and there's no substitute part

Rotor 10t 203130357
#27

Unit parts diagram

Rotor 10t

Part #203130357

The manufacturer no longer makes this part, and there's no substitute part

Sprocket Ret 203129096
#18

Unit parts diagram

Sprocket ret

Part #203129096

The manufacturer no longer makes this part, and there's no substitute part

Cth Dog 203130308
#24

Unit parts diagram

Cth dog

Part #203130308

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 206059034
#8

Unit parts diagram

Roll pin

Part #206059034

The manufacturer no longer makes this part, and there's no substitute part

Air Strainer 203130337
#2

Unit parts diagram

Air strainer

Part #203130337

The manufacturer no longer makes this part, and there's no substitute part

Pin 203129040
#7

Unit parts diagram

Pin

Part #203129040

The manufacturer no longer makes this part, and there's no substitute part
