Model # 143626012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143626012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

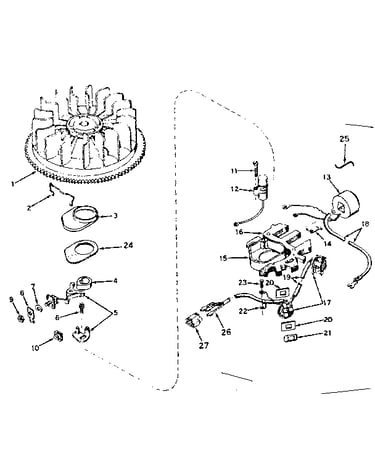

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Lawn Mower O-ring 631028
#16

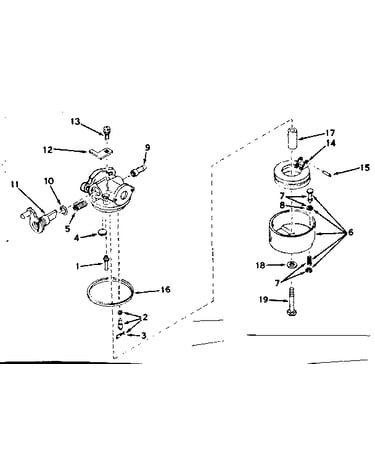

Carburetor no. 631655 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Starter Rope 590386
#9

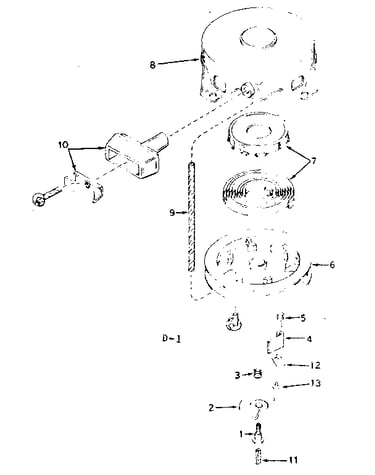

Rewind starter no. 590473 diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#158

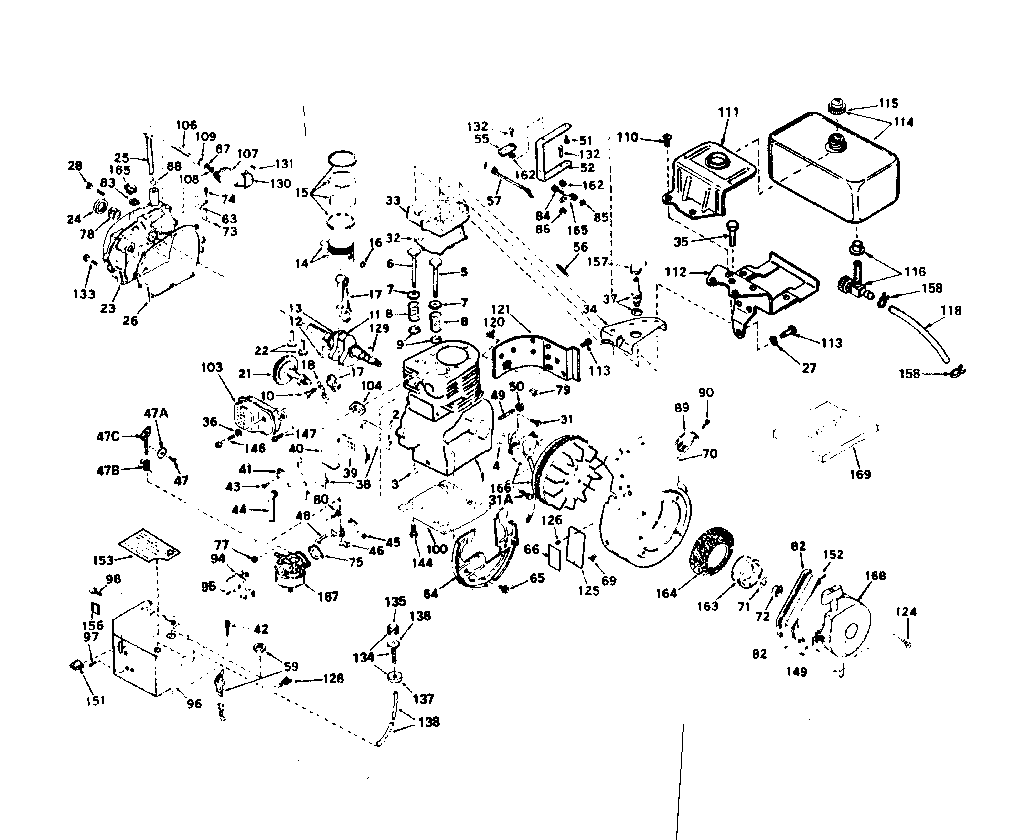

Engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Primer Line 32180A
#138

Engine diagram

Primer line

Part #32180A

Replaced by #32180C

?
Manufacturer substitution
This part replaces 32180A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049

#NI

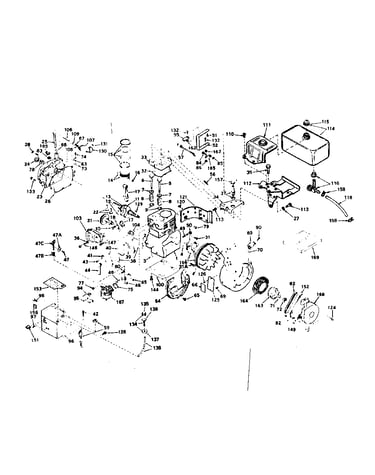

All parts diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19 |
14% OFF Phone Price : $14.19
In Stock
Lawn & Garden Equipment Torx Screw 30063
#30

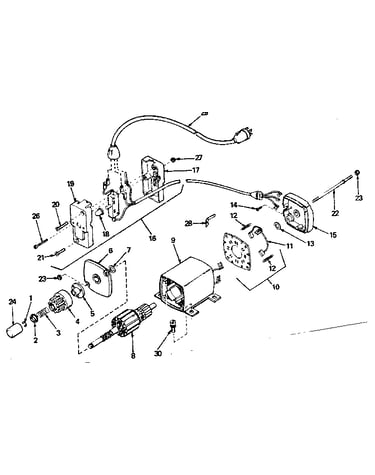

Craftsman 120 volt electric starter kit no. 9-8890 diagram

Lawn & garden equipment torx screw

Part #30063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Generac Lawn & Garden Equipment Engine Nut 29752
#77

Engine diagram

Generac lawn & garden equipment engine nut

Part #29752

This item is not returnable
$2.16
In Stock
Carburetor Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#7

Carburetor no. 631655 diagram

Carburetor lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Gasket 27930
#104

Engine diagram

Gasket

Part #27930

Replaced by #35865

?
Manufacturer substitution
This part replaces 27930. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Screw 28820
#95

Engine diagram

Screw

Part #28820

Replaced by #651081

?
Manufacturer substitution
This part replaces 28820. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
