Dishwasher

Model # DP3000XRN6 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool DP3000XRN6 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

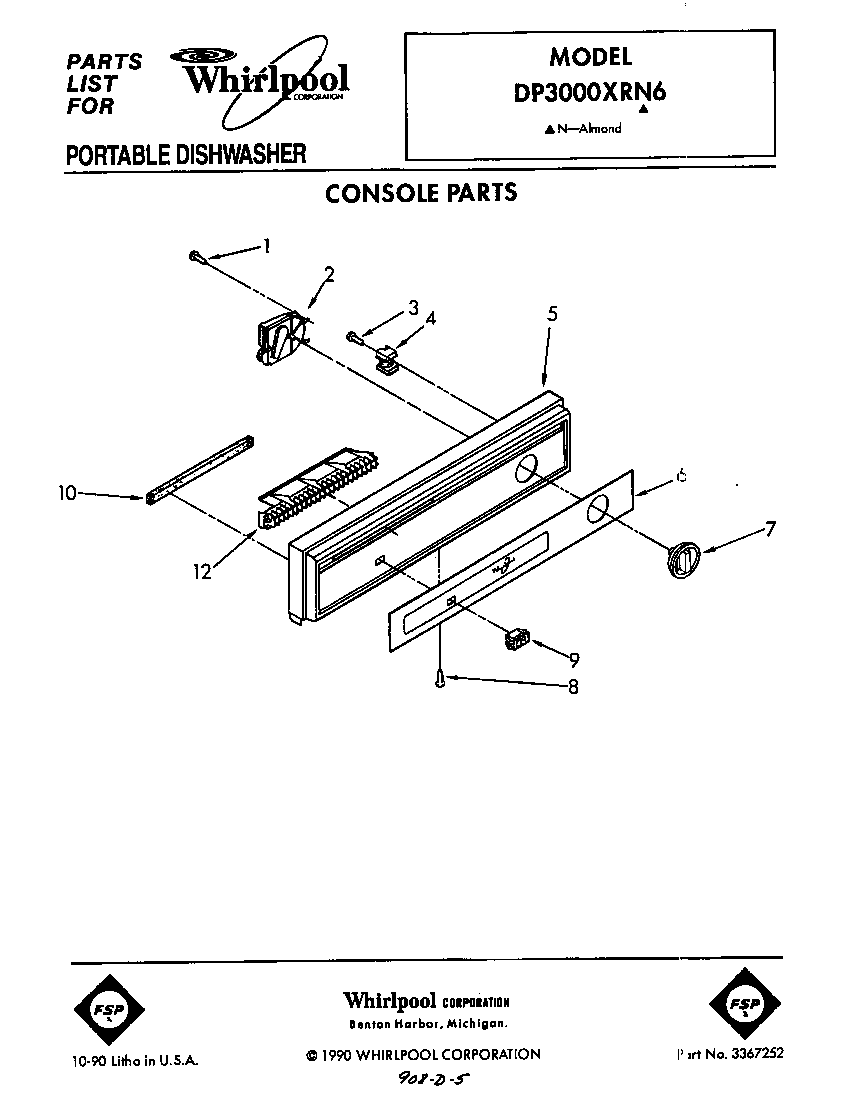

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DP3000XRN6 Dishwasher
Clamp 301958
#6

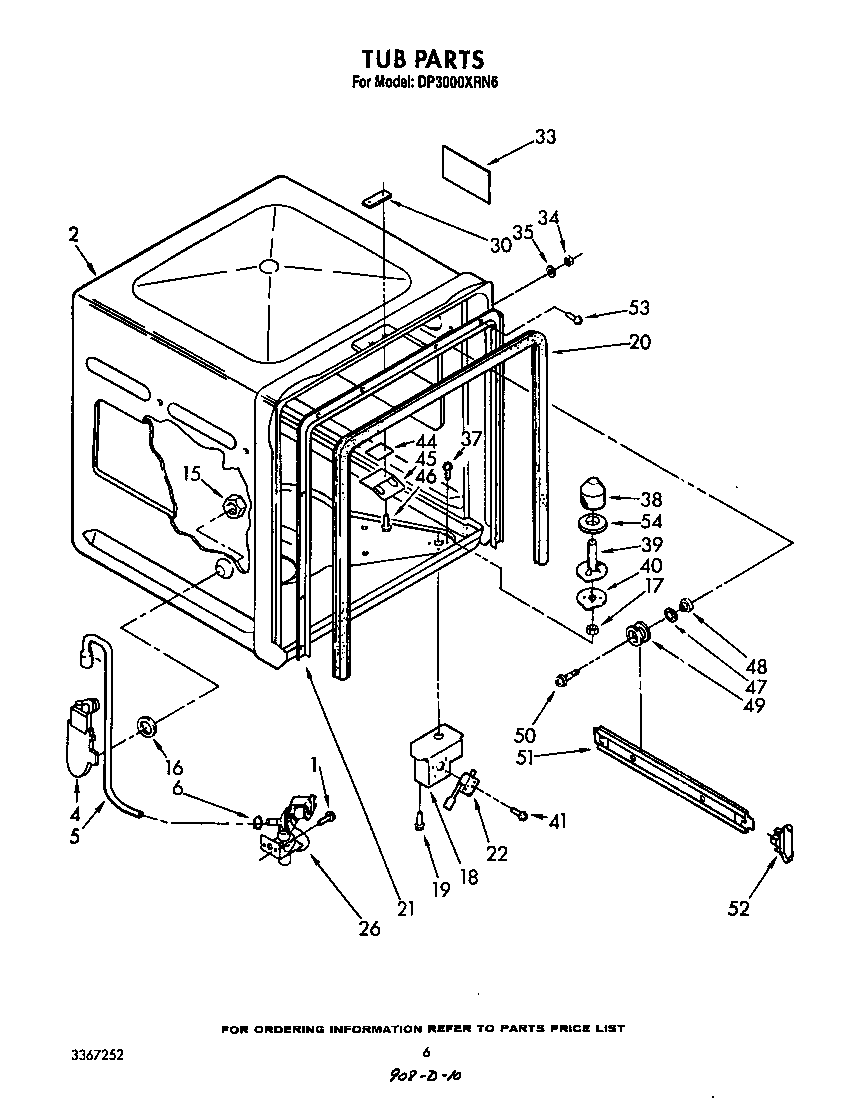

Tub diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Dishrack 661521
#3

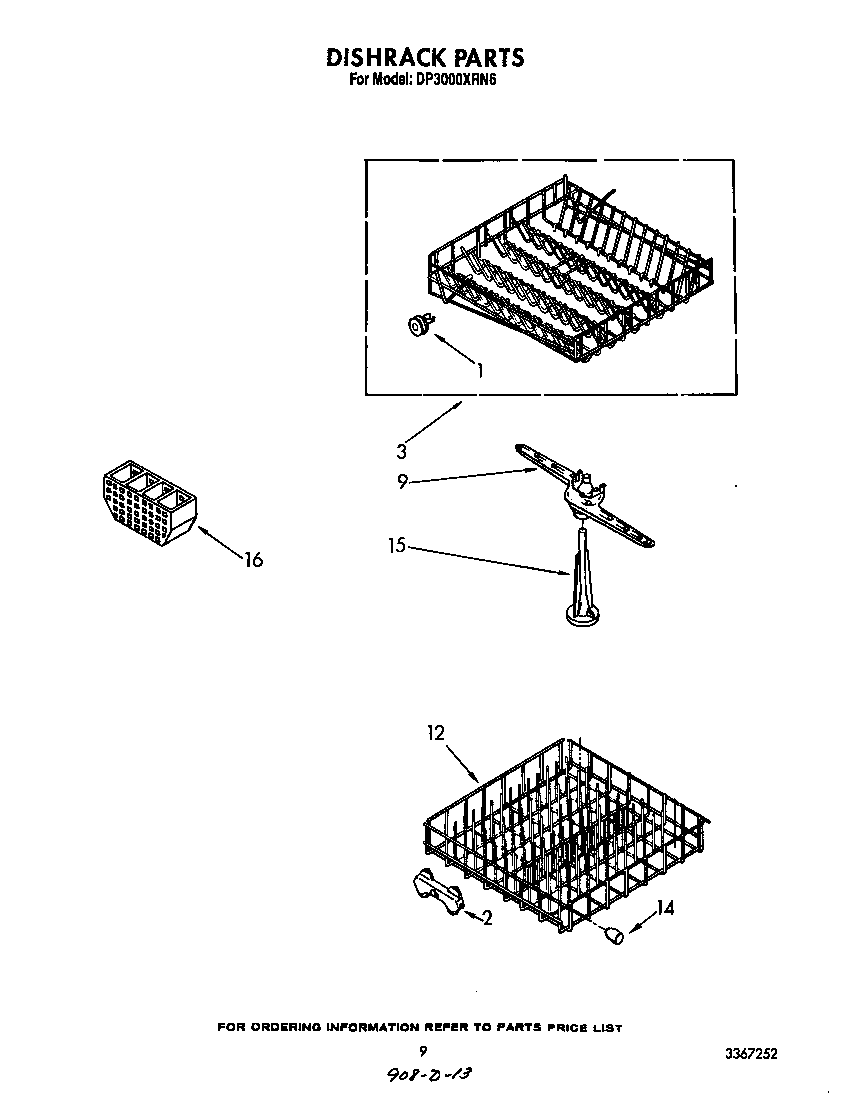

Dish rack diagram

Dishrack

Part #661521

Replaced by #W11169039

?
Manufacturer substitution
This part replaces 661521. Substitute parts can look different from the original.
BEST SELLER
$121.16
9% OFF Phone Price : $133.16
In Stock
Fauc Adapter 713750
#48

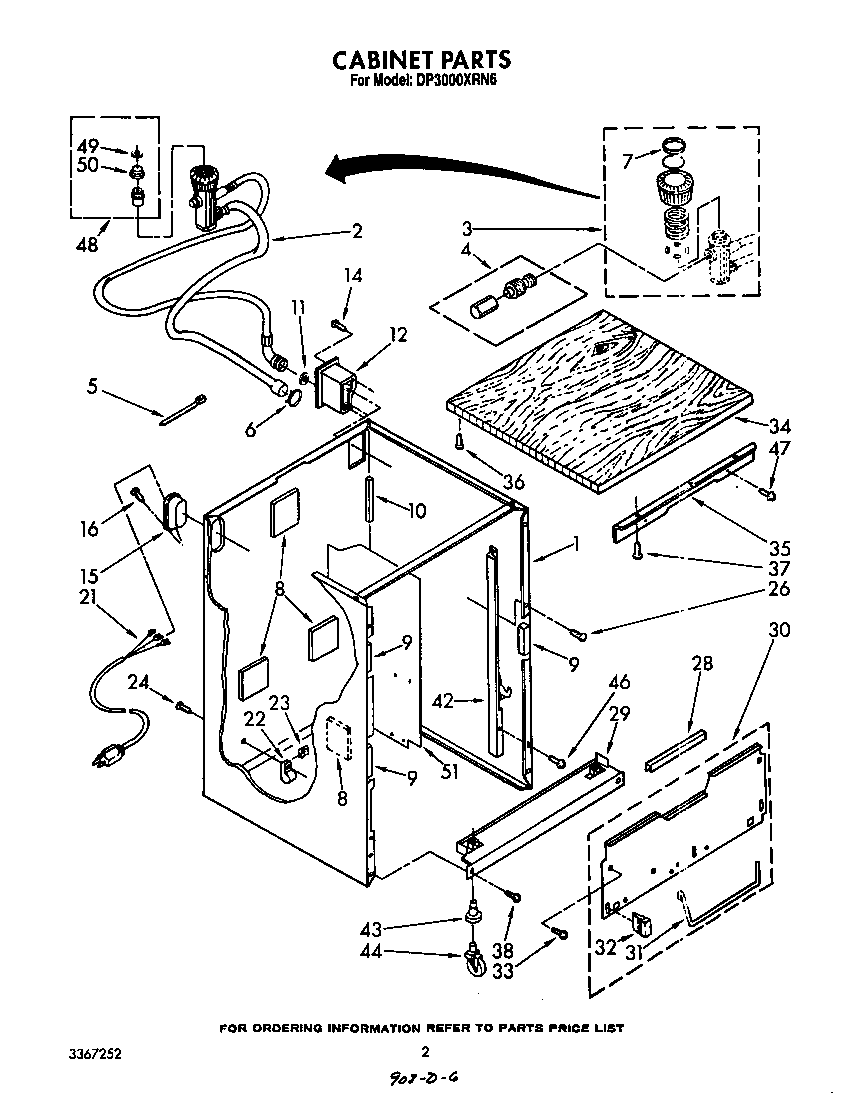

Cabinet diagram

Fauc adapter

Part #713750

Replaced by #WPW10254672

?
Manufacturer substitution
This part replaces 713750. Substitute parts can look different from the original.
BEST SELLER
$35.87
14% OFF Phone Price : $41.87
In Stock
Screw 3148107
#33

Cabinet diagram

Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Spring 300106
#27

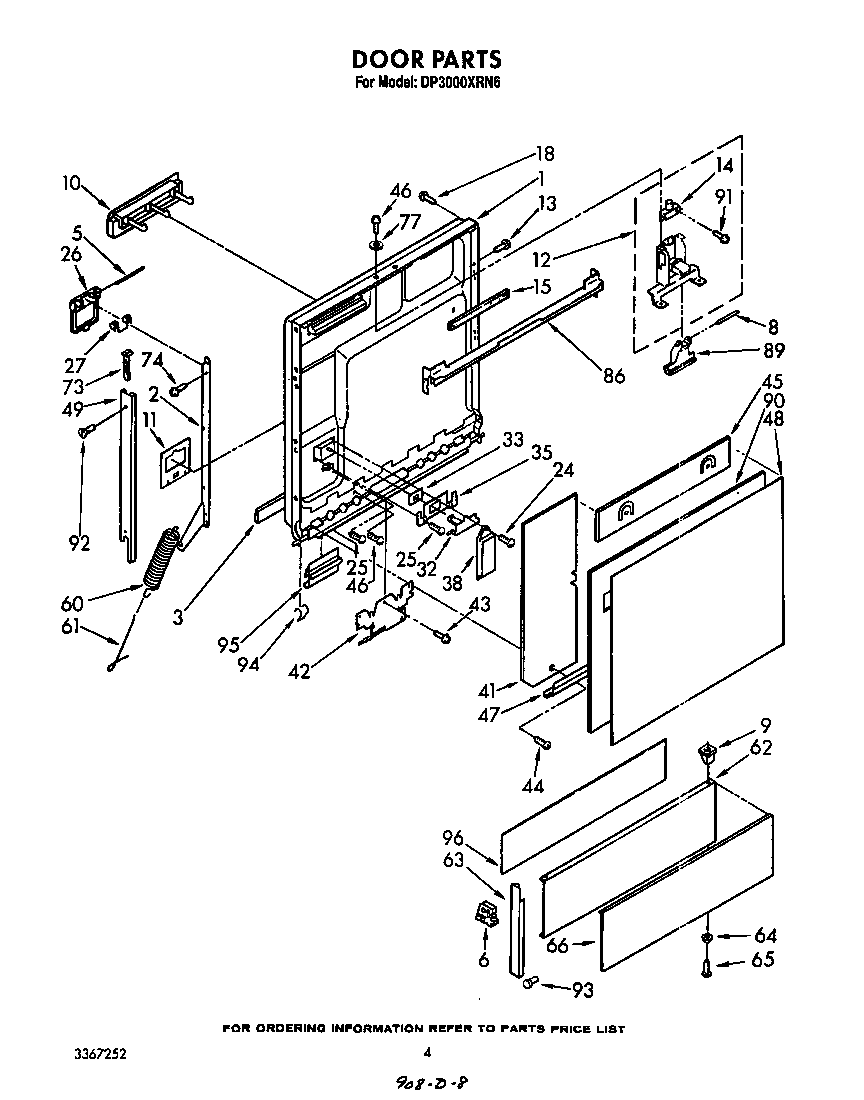

Door diagram

Spring

Part #300106

Replaced by #WP8066018

?
Manufacturer substitution
This part replaces 300106. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46
18% OFF Phone Price : $5.46
In Stock
Screw 3367670
Screw

Part #3367670

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 3367670. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.42
18% OFF Phone Price : $5.42
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Dishwasher Check Valve (replaces 300800, 3369482, 3371226, 719927, 719930, 719950) 675238
#22

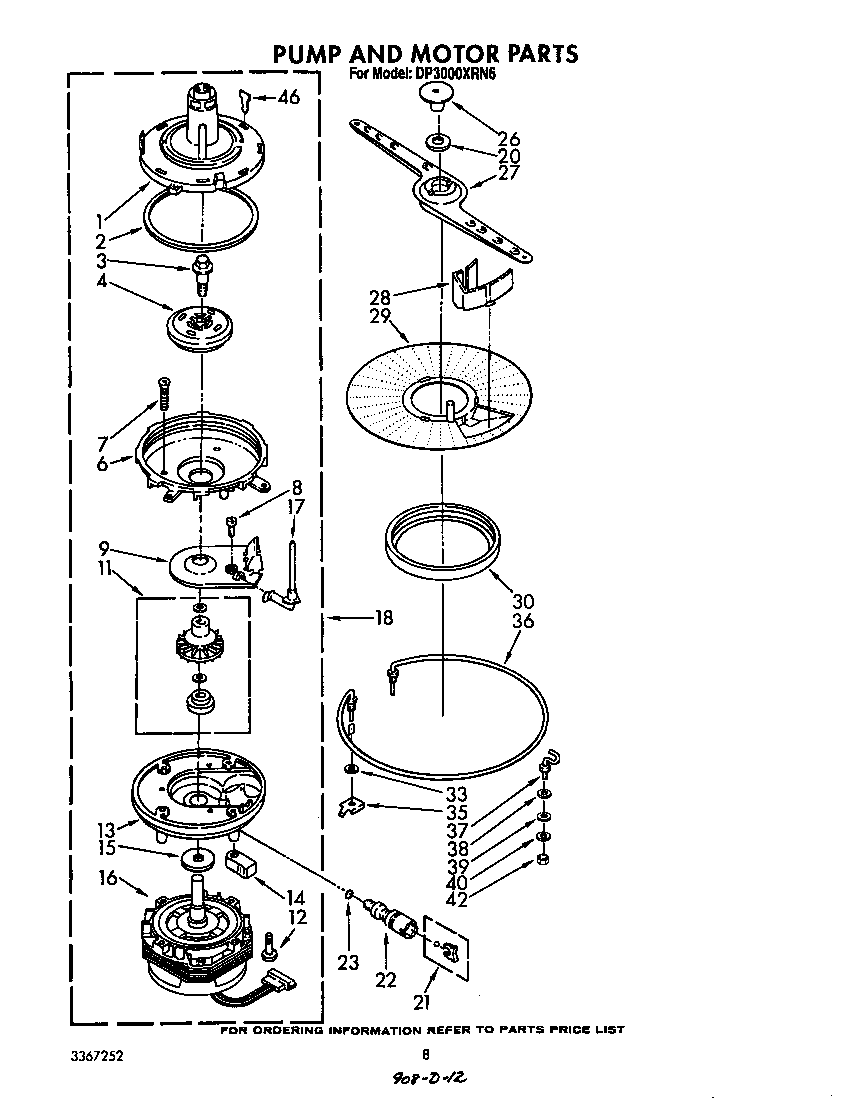

Pump and motor diagram

Dishwasher check valve (replaces 300800, 3369482, 3371226, 719927, 719930, 719950)

Part #675238

$32.85
15% OFF Phone Price : $38.85
In Stock
Dishrack 3368598
#12

Dish rack diagram

Dishrack

Part #3368598

Replaced by #W10311986

?
Manufacturer substitution
This part replaces 3368598. Substitute parts can look different from the original.
$176.78
8% OFF Was : $193.20
In Stock
Appliance Screw 304392
#13

Door diagram

Appliance screw

Part #304392

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 304392. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
