Electrolux
Canister Vacuum

Model # EL7055A Official Electrolux vacuum

Here are the diagrams and repair parts for Official Electrolux EL7055A vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Hose Handle 61054-3
#1

Accessories diagram

Hose handle

Part #61054-3

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Soleplate 61746-4
#24

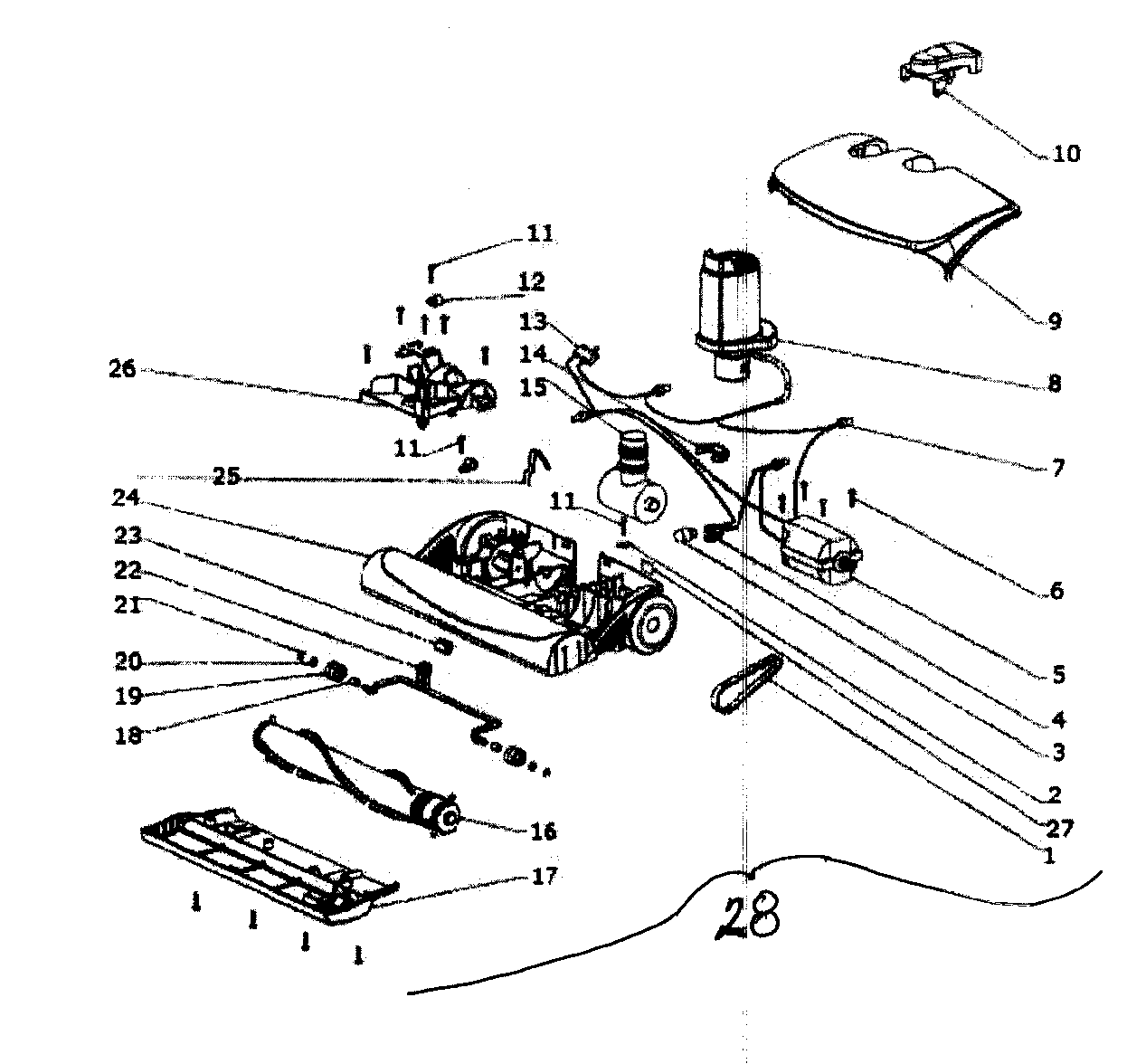

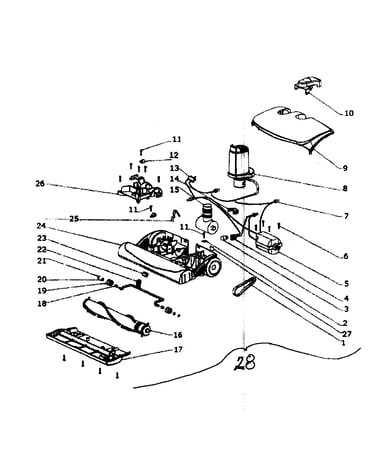

Power head diagram

Electrolux soleplate

Part #61746-4

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Rear Lid 1180006-01
#39

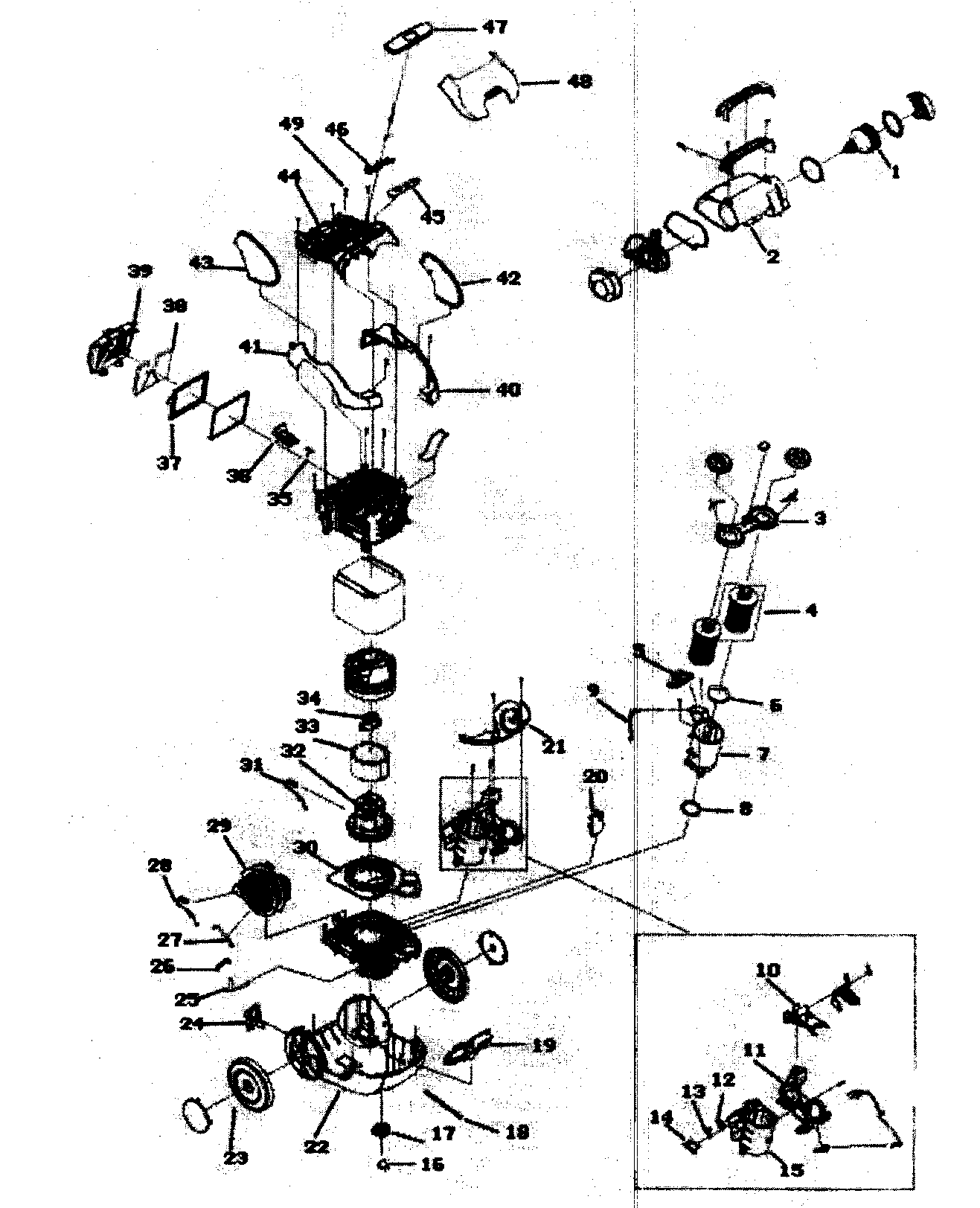

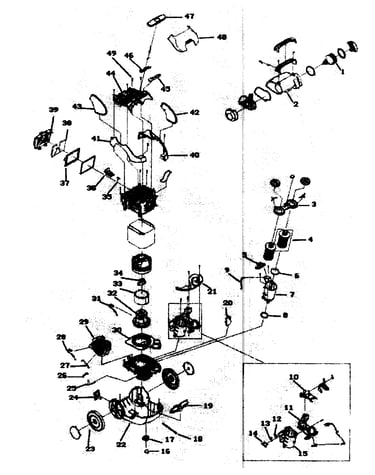

Canister diagram

Electrolux rear lid

Part #1180006-01

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire 1180162-01
#28

Canister diagram

Electrolux wire

Part #1180162-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 61682
#3

Power head diagram

Vacuum light bulb

Part #61682

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Filter, 2-pack 900196701/8
#4

Canister diagram

Electrolux vacuum filter, 2-pack

Part #900196701/8

The manufacturer no longer makes this part, and there's no substitute part

Vacuum C-clamp 63154
#14

Power head diagram

Vacuum c-clamp

Part #63154

The manufacturer no longer makes this part, and there's no substitute part

Insert 76136
#18

Power head diagram

Insert

Part #76136

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Dsply Btm 1180007-02
#44

Canister diagram

Electrolux dsply btm

Part #1180007-02

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Cover 1180039-02
#42

Canister diagram

Electrolux cover

Part #1180039-02

The manufacturer no longer makes this part, and there's no substitute part
