Model # 143632241 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143632241 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

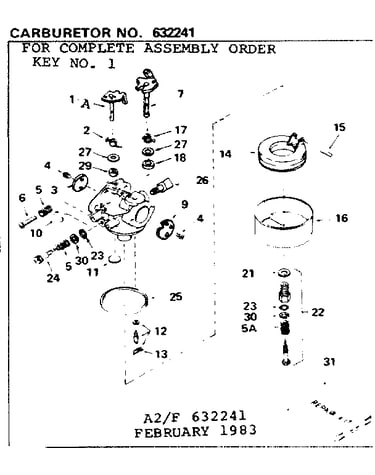

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Lawn Mower O-ring 631028
#25

Replacement parts diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#12

Replacement parts diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Float 632019
#14

Replacement parts diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Rebuild Kit 632347
#31

Replacement parts diagram

Lauson lawn & garden equipment engine carburetor rebuild kit

Part #632347

This item is not returnable
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#16

Replacement parts diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Engine Throttle Shaft Seal 631183
#18

Replacement parts diagram

Lawn & garden equipment engine throttle shaft seal

Part #631183

This item is not returnable
$2.16
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug (replaces 53-005) 631027
#11

Replacement parts diagram

Troybilt lawn & garden equipment engine welch plug (replaces 53-005)

Part #631027

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 630739
#30

Replacement parts diagram

Lawn & garden equipment washer

Part #630739

This item is not returnable
$2.16
In Stock
Lauson Lawn & Garden Equipment Engine Main Adjustment Screw 632239
#22

Replacement parts diagram

Lauson lawn & garden equipment engine main adjustment screw

Part #632239

This item is not returnable
$16.37
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#13

Replacement parts diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
