Model # WED6200SW0 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool WED6200SW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

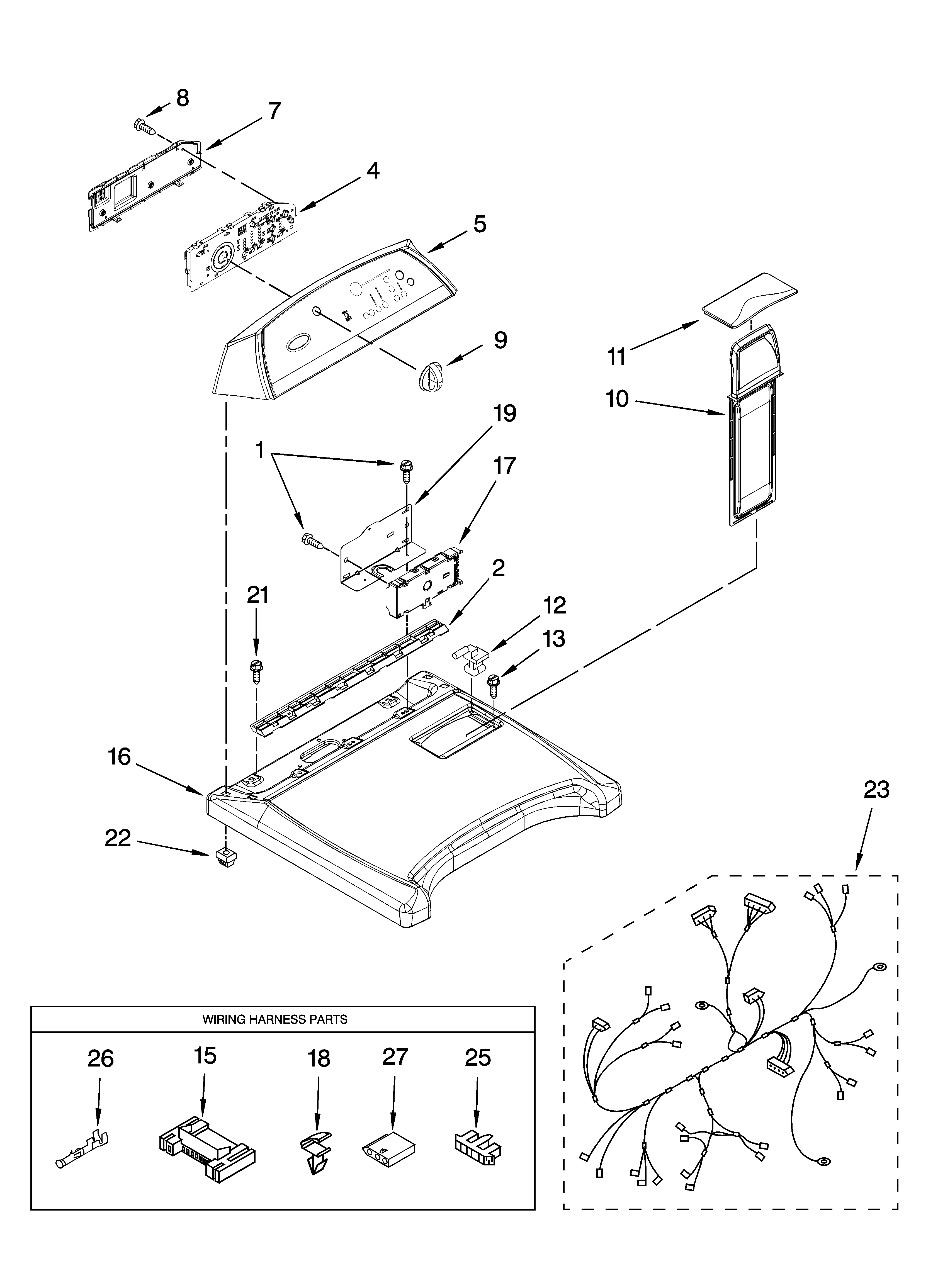

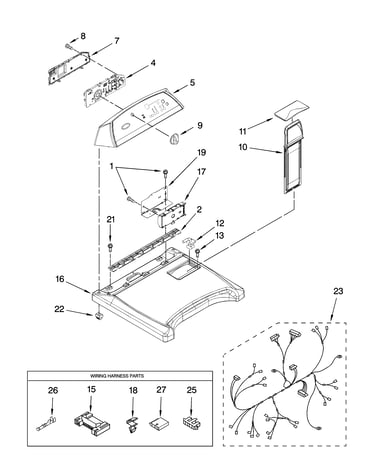

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Dryer Element 8565582
#17

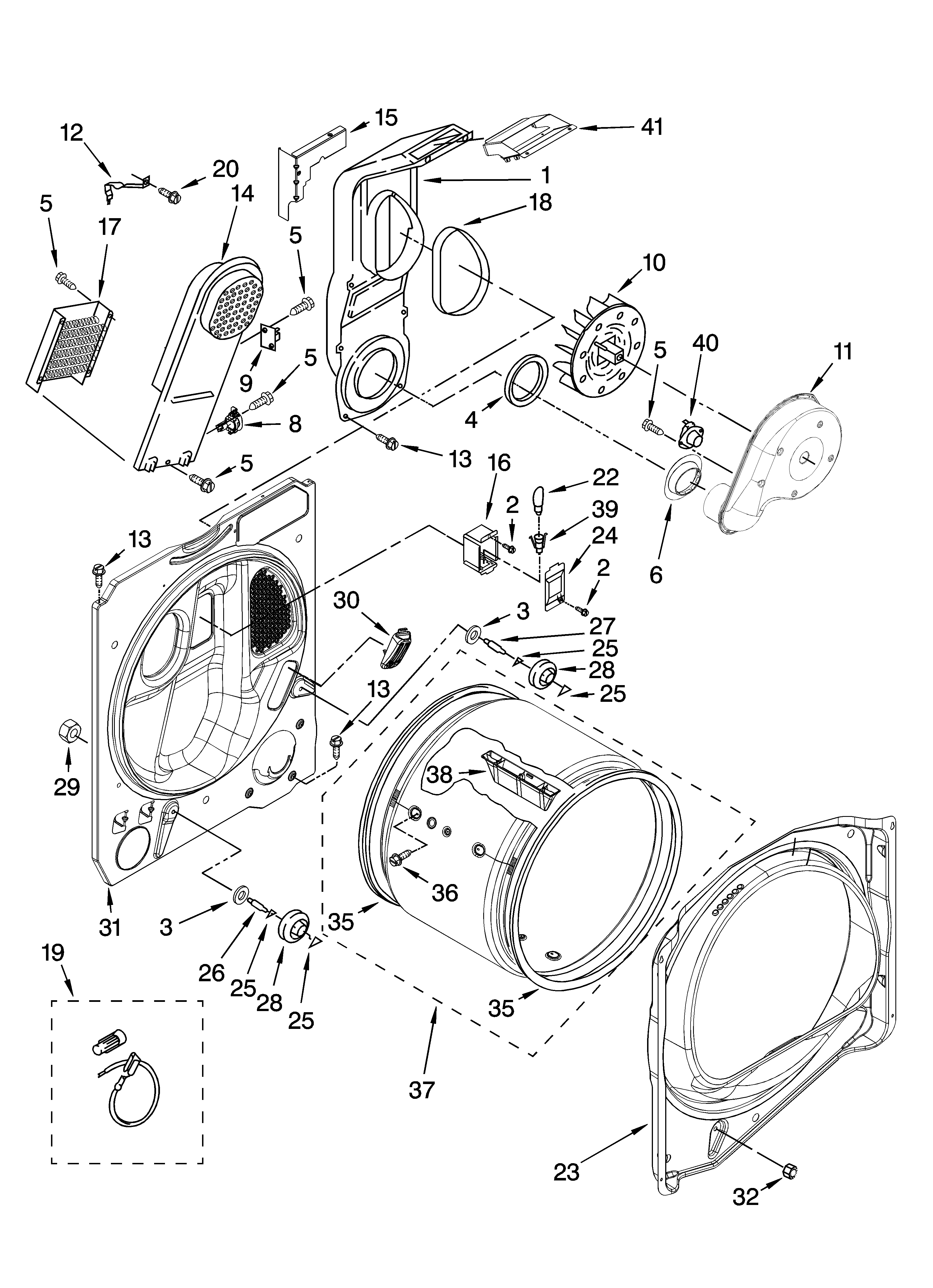

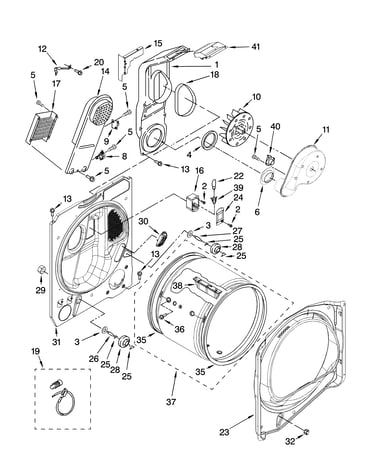

Bulkhead parts, optional parts (not included) diagram

Dryer element

Part #8565582

Replaced by #279838

?
Manufacturer substitution
This part replaces 8565582. Substitute parts can look different from the original.
BEST SELLER
$51.10 |
11% OFF Phone Price : $57.10
In Stock
Support 8536973
#28

Bulkhead parts, optional parts (not included) diagram

Support

Part #8536973

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 8536973. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Thermal Cut-off Fuse Kit 3977393
#9

Bulkhead parts, optional parts (not included) diagram

Dryer thermal cut-off fuse kit

Part #3977393

Replaced by #279816

?
Manufacturer substitution
This part replaces 3977393. Substitute parts can look different from the original.
BEST SELLER
$40.59 |
13% OFF Phone Price : $46.59
In Stock
Dryer Repair Kit 279948
#NI

Bulkhead parts, optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.75 |
17% OFF Phone Price : $35.75
In Stock
Dryer Thermistor 8577274
#40

Bulkhead parts, optional parts (not included) diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$31.84 |
16% OFF Phone Price : $37.84
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts, optional parts (not included) diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Dryer Motor Pulley 8578565
#46

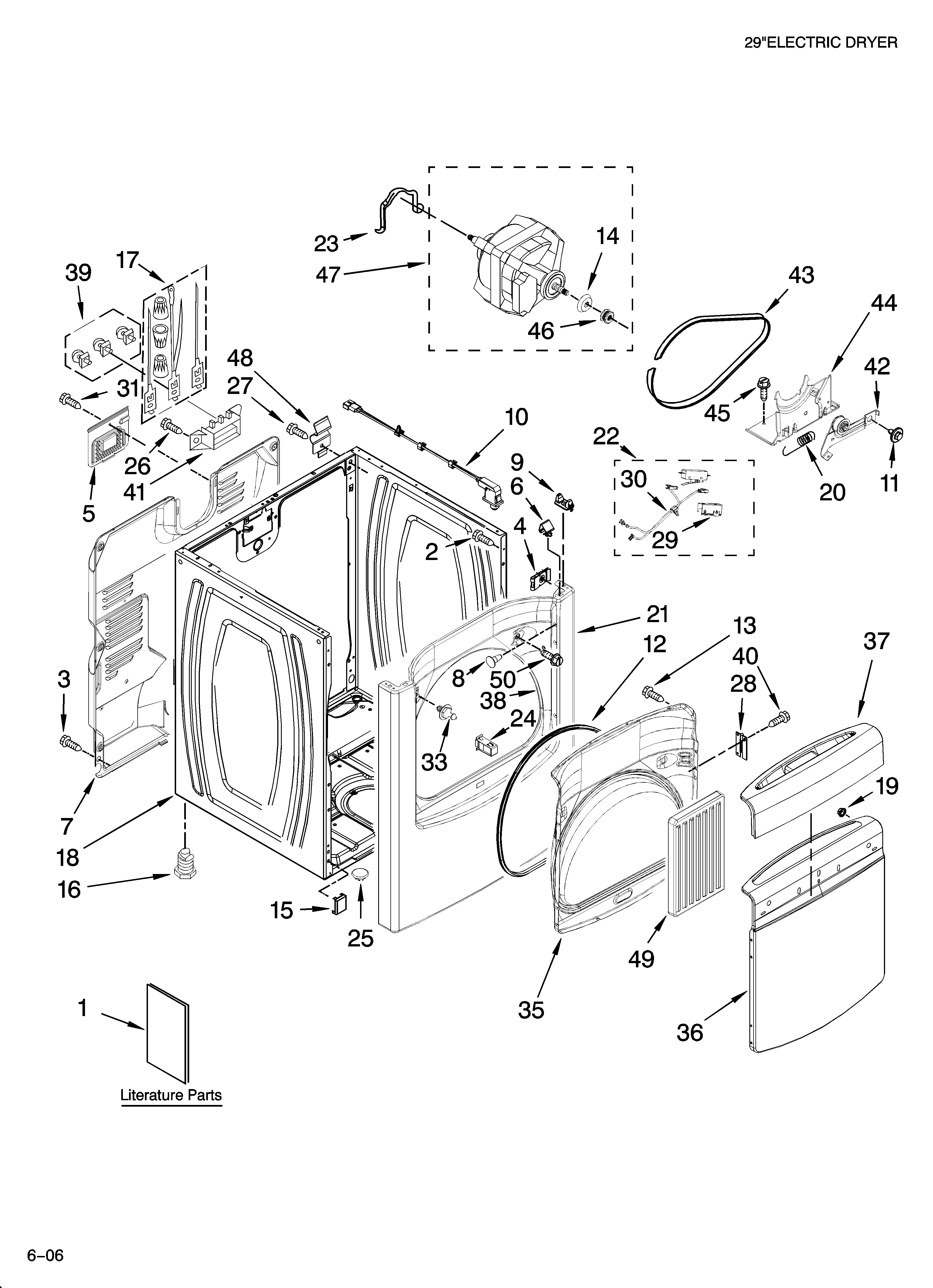

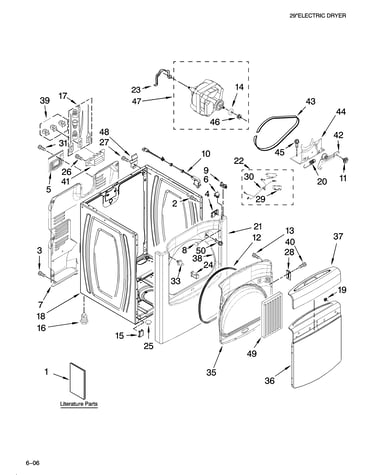

Cabinet parts diagram

Dryer motor pulley

Part #8578565

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 8578565. Substitute parts can look different from the original.
BEST SELLER
$33.26 |
15% OFF Phone Price : $39.26
In Stock
Dryer Tri-ring Retainer 690997
#25

Bulkhead parts, optional parts (not included) diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Catch 8572982
#24

Cabinet parts diagram

Catch

Part #8572982

Replaced by #WPW10111905

?
Manufacturer substitution
This part replaces 8572982. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Shaft 8575325
#26

Bulkhead parts, optional parts (not included) diagram

Shaft

Part #8575325

Replaced by #WPW10359272

?
Manufacturer substitution
This part replaces 8575325. Substitute parts can look different from the original.
BEST SELLER
$34.73 |
15% OFF Phone Price : $40.73
In Stock
