Model # UFS157DN2W Official Kelvinator upright freezer - lk30887040

Here are the diagrams and repair parts for Official Kelvinator UFS157DN2W upright freezer - lk30887040, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Filter Drier F114259
#26

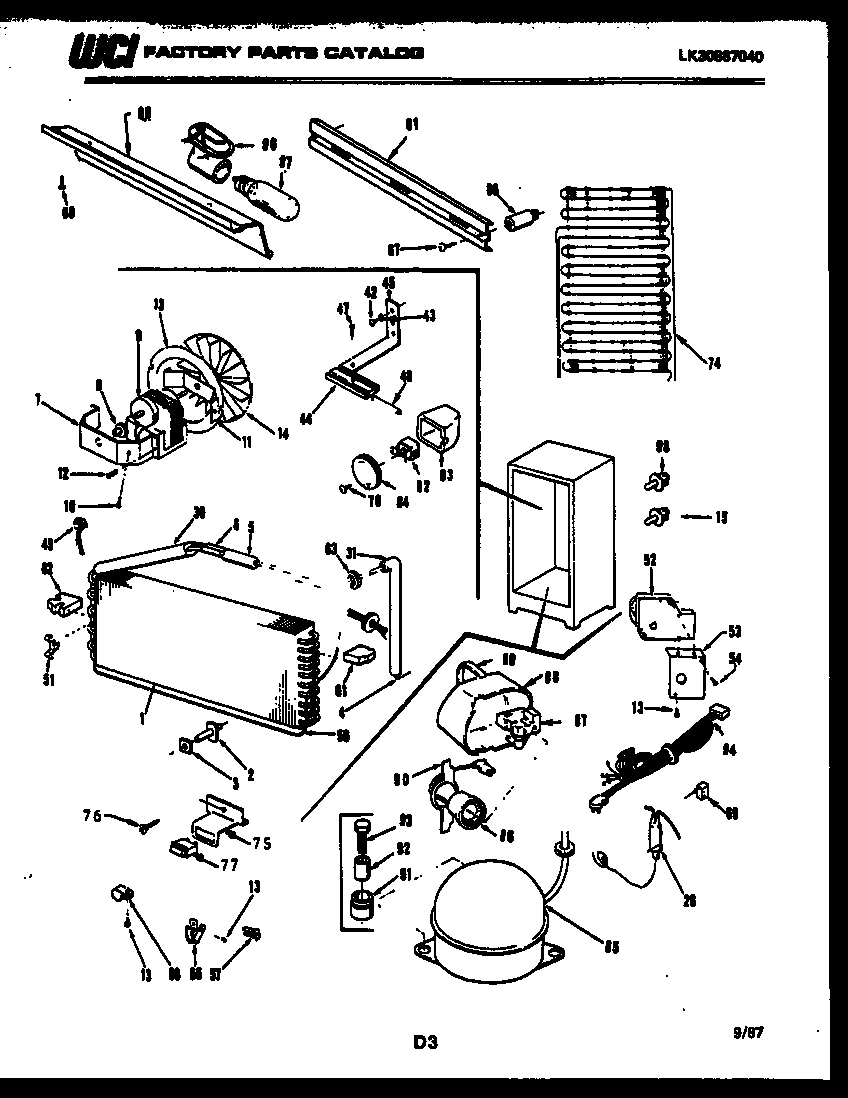

System parts diagram

Filter drier

Part #F114259

Replaced by #5303305677

?
Manufacturer substitution
This part replaces F114259. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key F115646
#47

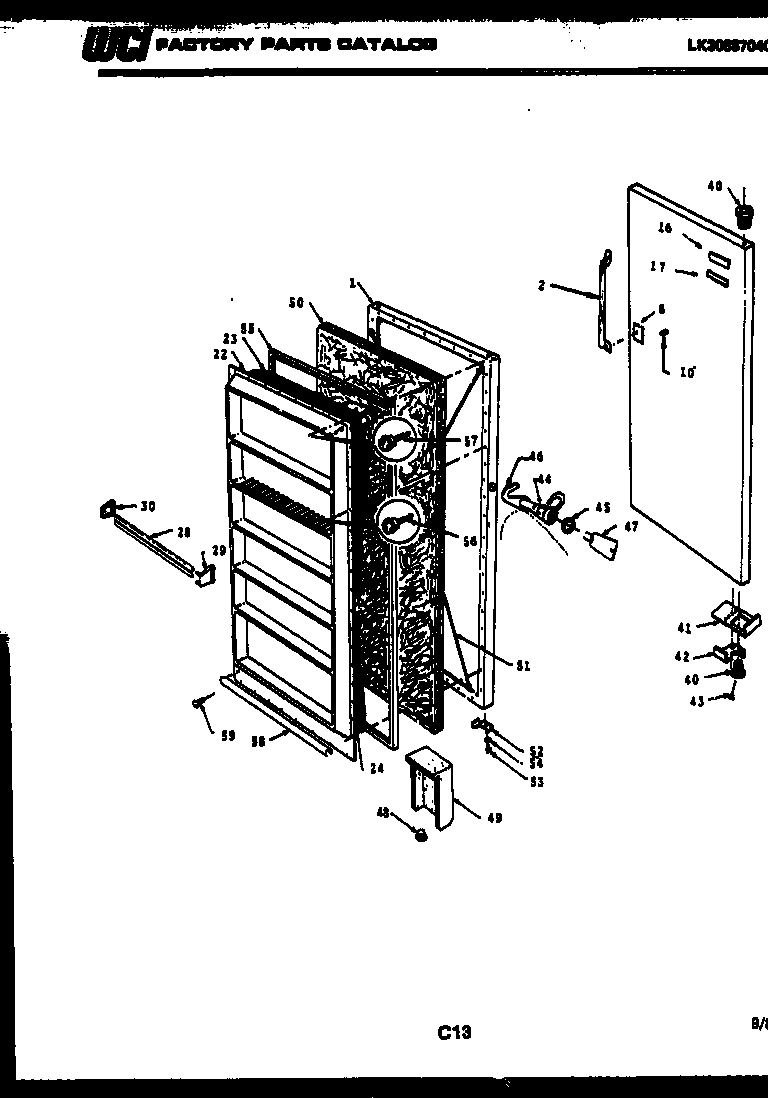

Door parts diagram

Key

Part #F115646

Replaced by #297147700

?
Manufacturer substitution
This part replaces F115646. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Timer F127233
#52

System parts diagram

Timer

Part #F127233

Replaced by #5304518034

?
Manufacturer substitution
This part replaces F127233. Substitute parts can look different from the original.
BEST SELLER
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Fkl Clip F114681
#59

Door parts diagram

Fkl clip

Part #F114681

Replaced by #5304406520

?
Manufacturer substitution
This part replaces F114681. Substitute parts can look different from the original.
BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Bearing F126303
#37

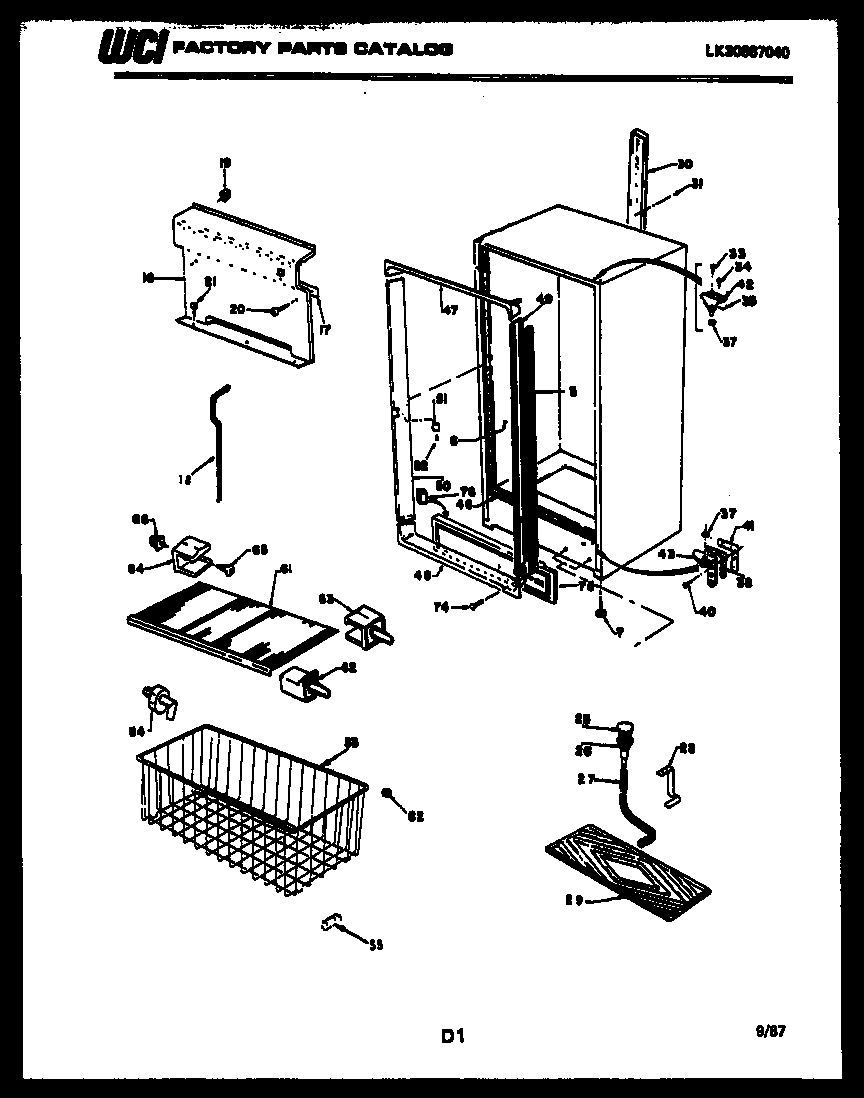

Cabinet parts diagram

Bearing

Part #F126303

Replaced by #297006800

?
Manufacturer substitution
This part replaces F126303. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Drain F121290
#26

Cabinet parts diagram

Drain

Part #F121290

Replaced by #5304511843

?
Manufacturer substitution
This part replaces F121290. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
End Cap Set F112629
#30

Door parts diagram

End cap set

Part #F112629

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F112629. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
End Cap Set F112628
#29

Door parts diagram

End cap set

Part #F112628

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F112628. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Drain Screen F111814
#25

Cabinet parts diagram

Drain screen

Part #F111814

Replaced by #216503100

?
Manufacturer substitution
This part replaces F111814. Substitute parts can look different from the original.
$49.59 |
11% OFF Phone Price : $55.59
In Stock
Light Switch F111270
#15

System parts diagram

Light switch

Part #F111270

Replaced by #5303289051

?
Manufacturer substitution
This part replaces F111270. Substitute parts can look different from the original.
$25.91
In Stock
