Model # SX23VW-P1315401WW Official Amana side-by-side refrigerator
Here are the diagrams and repair parts for Official Amana SX23VW-P1315401WW side-by-side refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

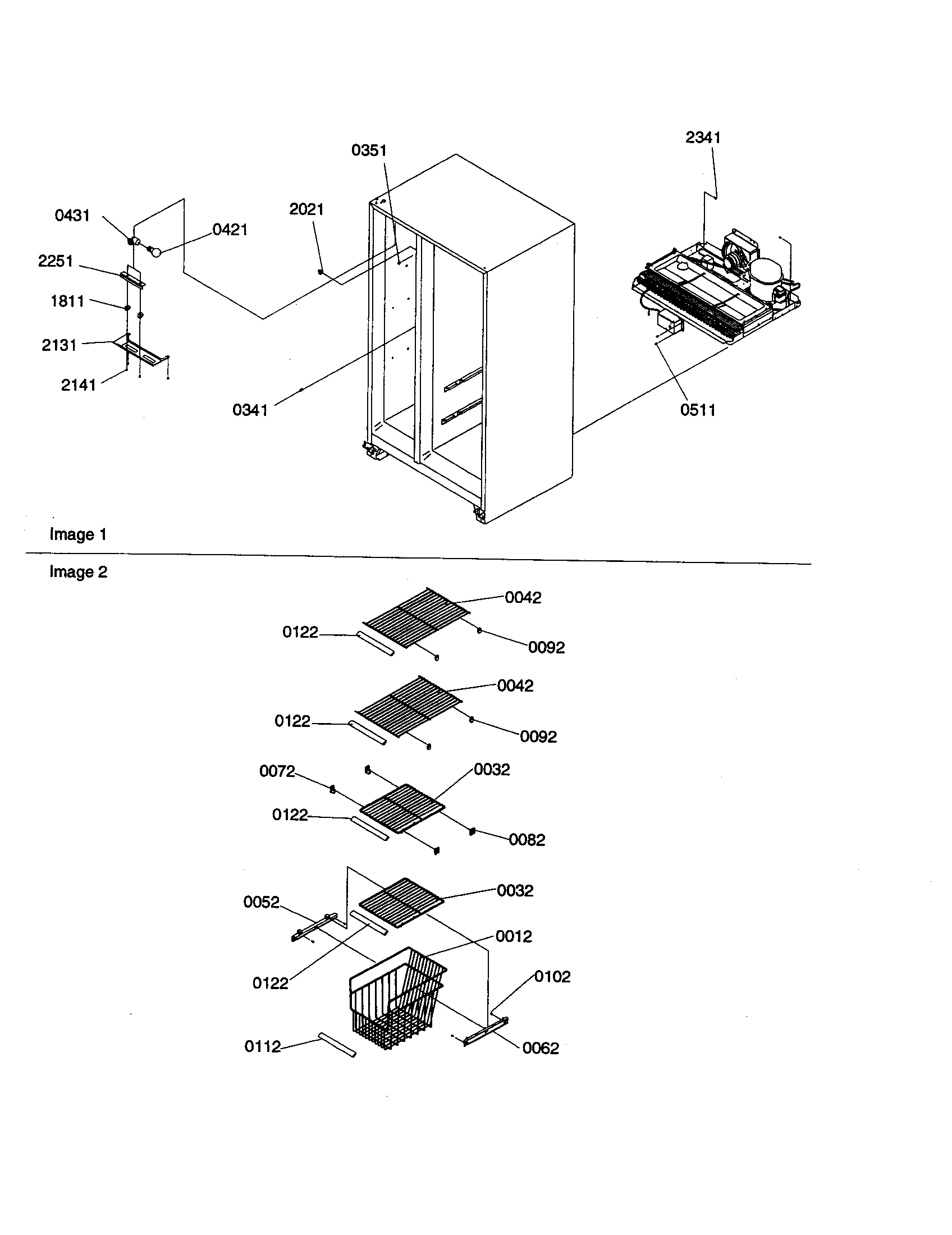

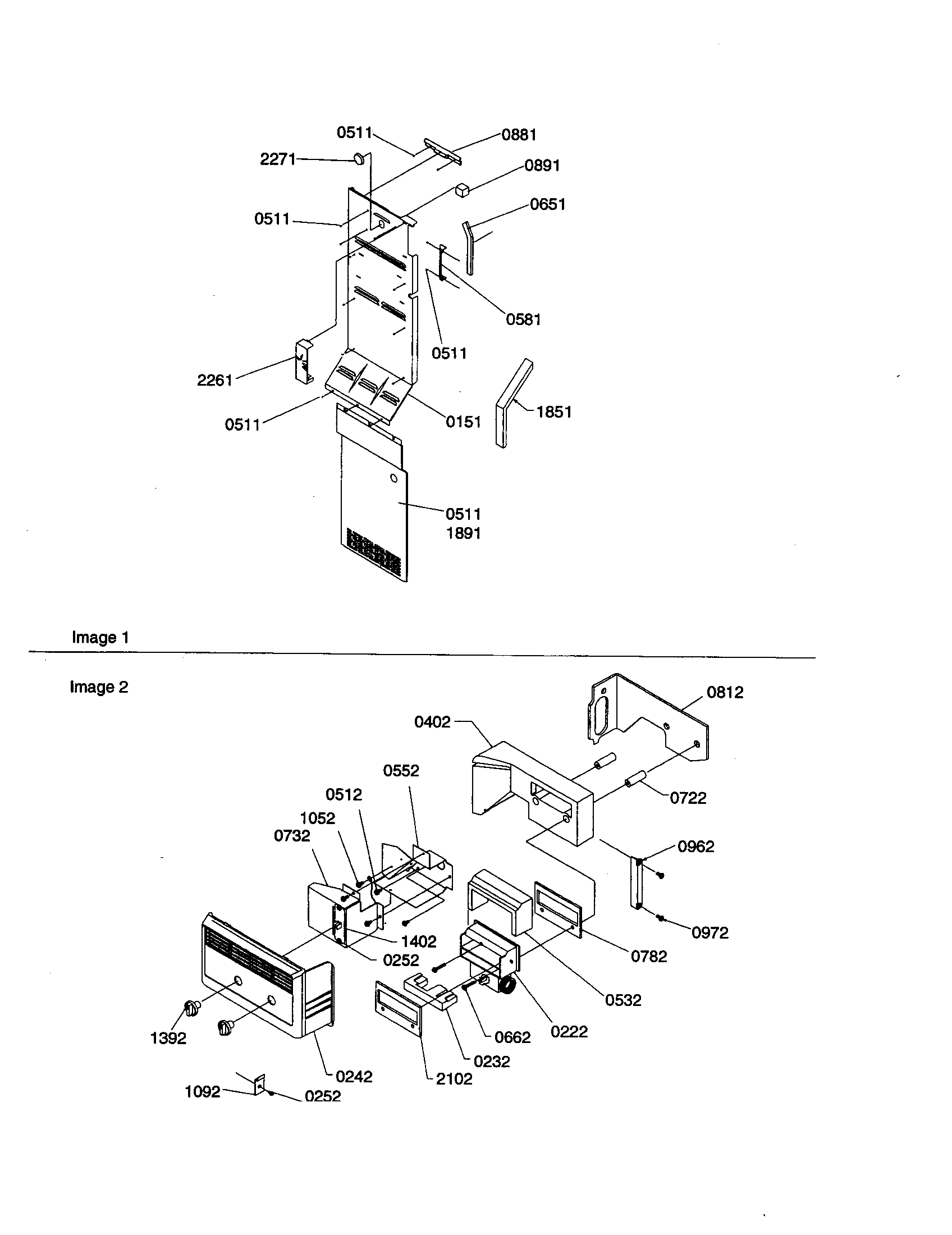

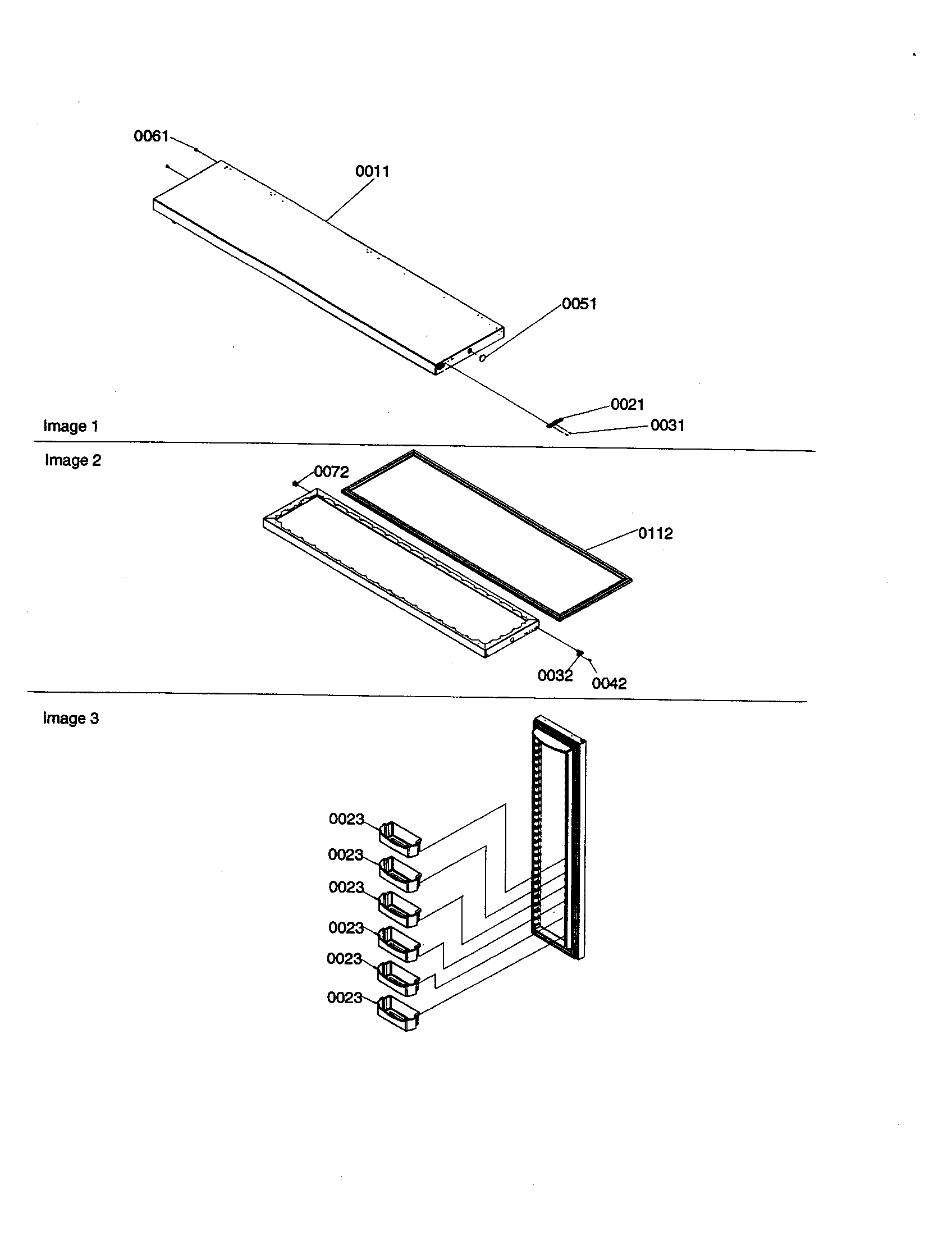

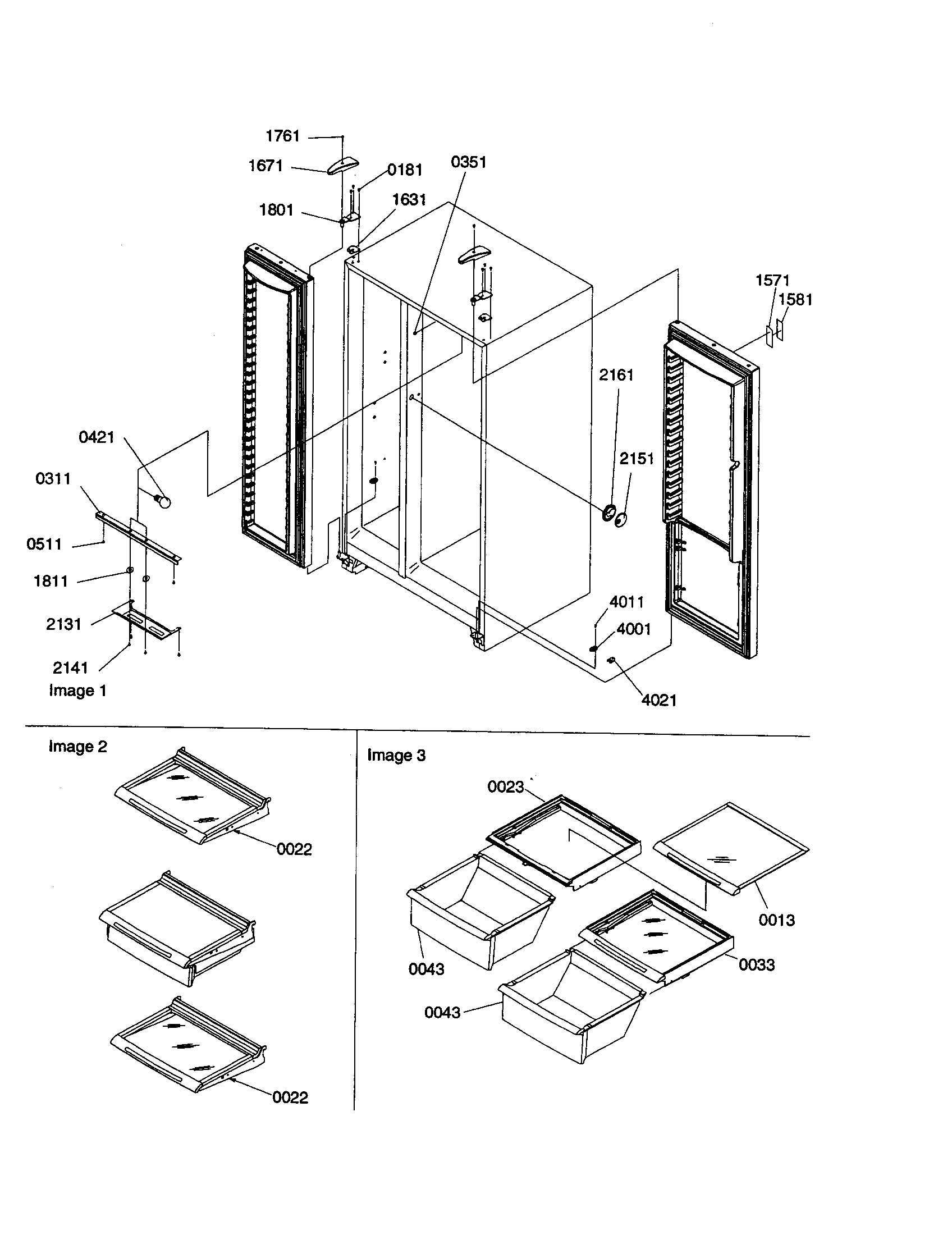

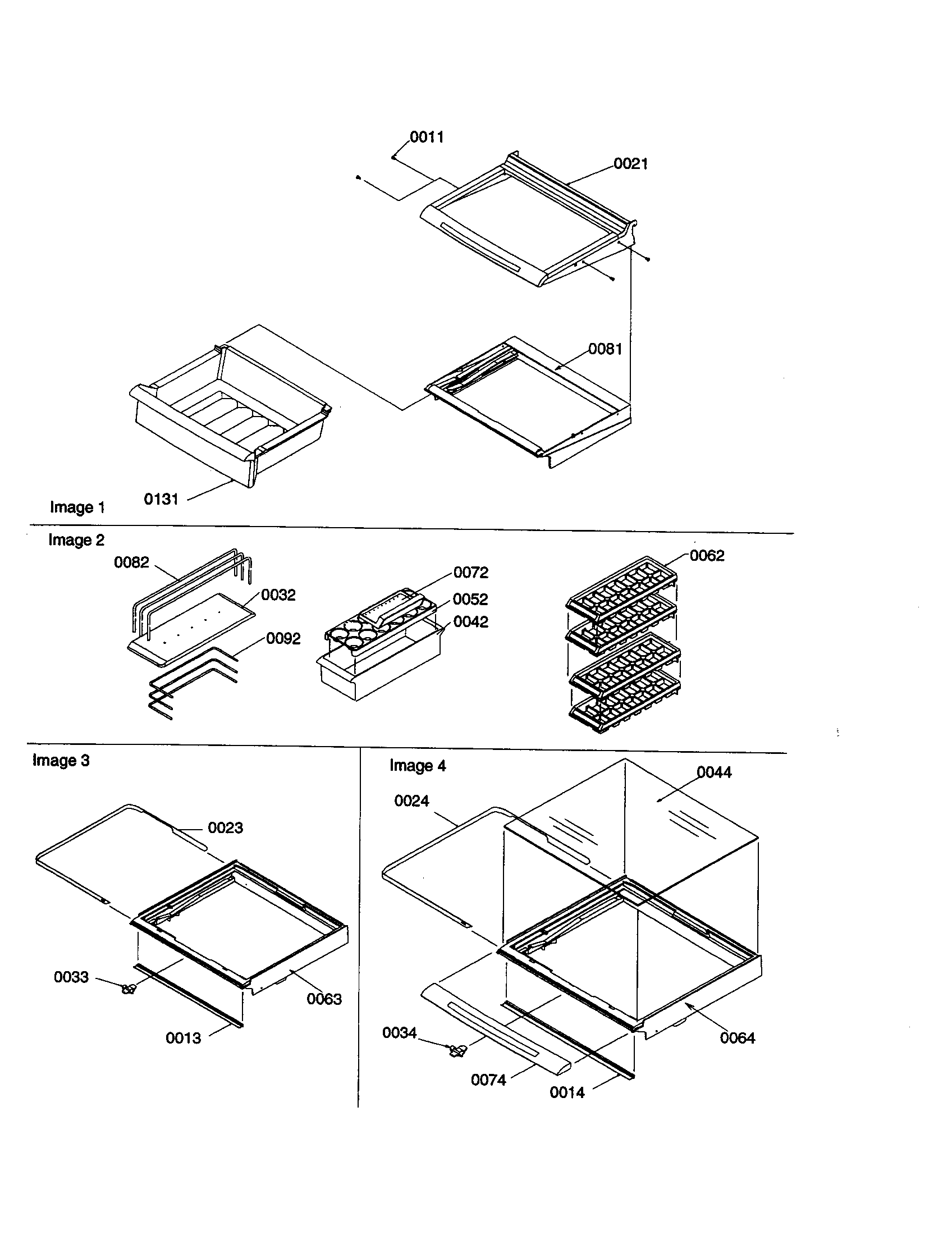

SELECT DIAGRAM
Browse Parts forSX23VW-P1315401WW Refrigerators
- #252

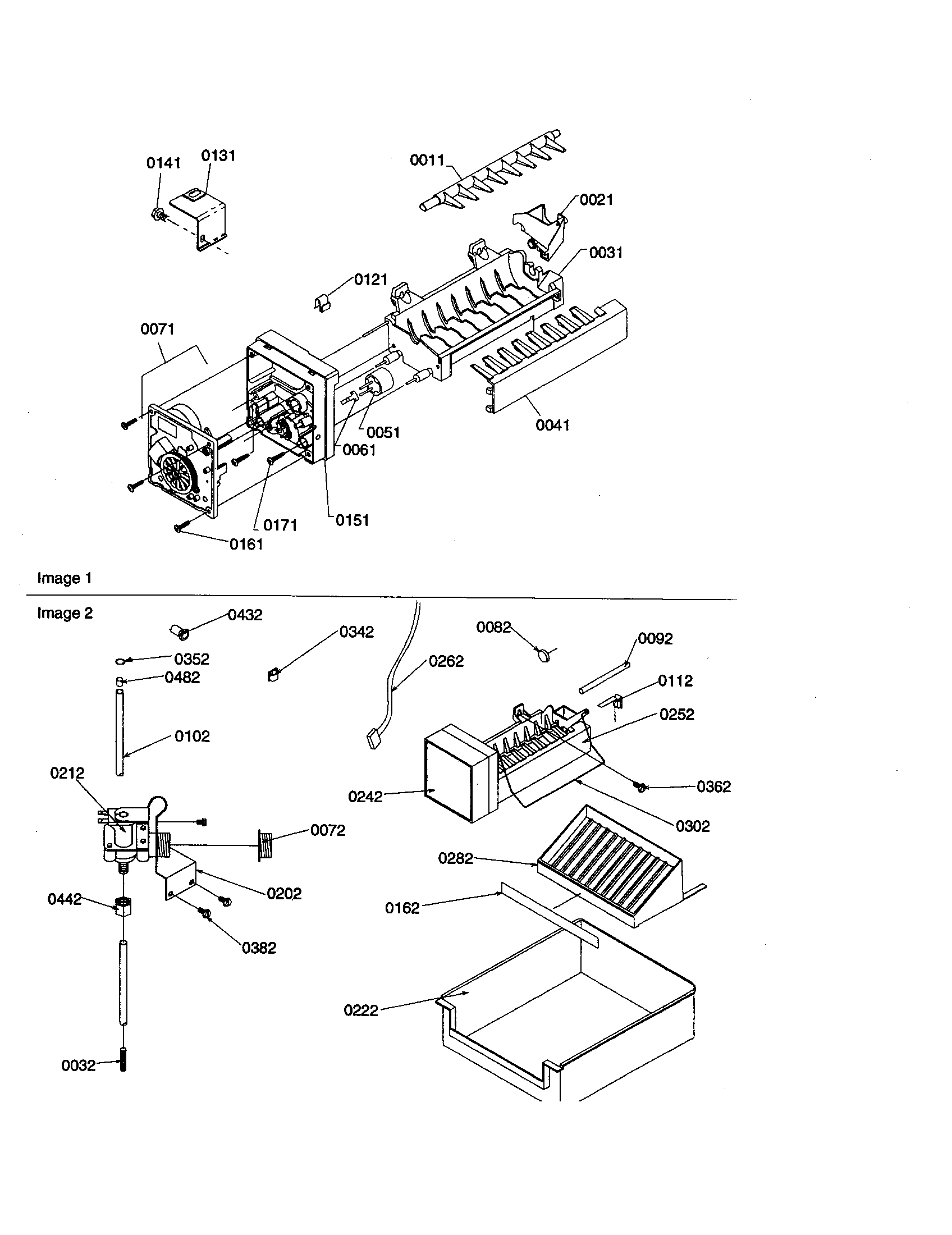

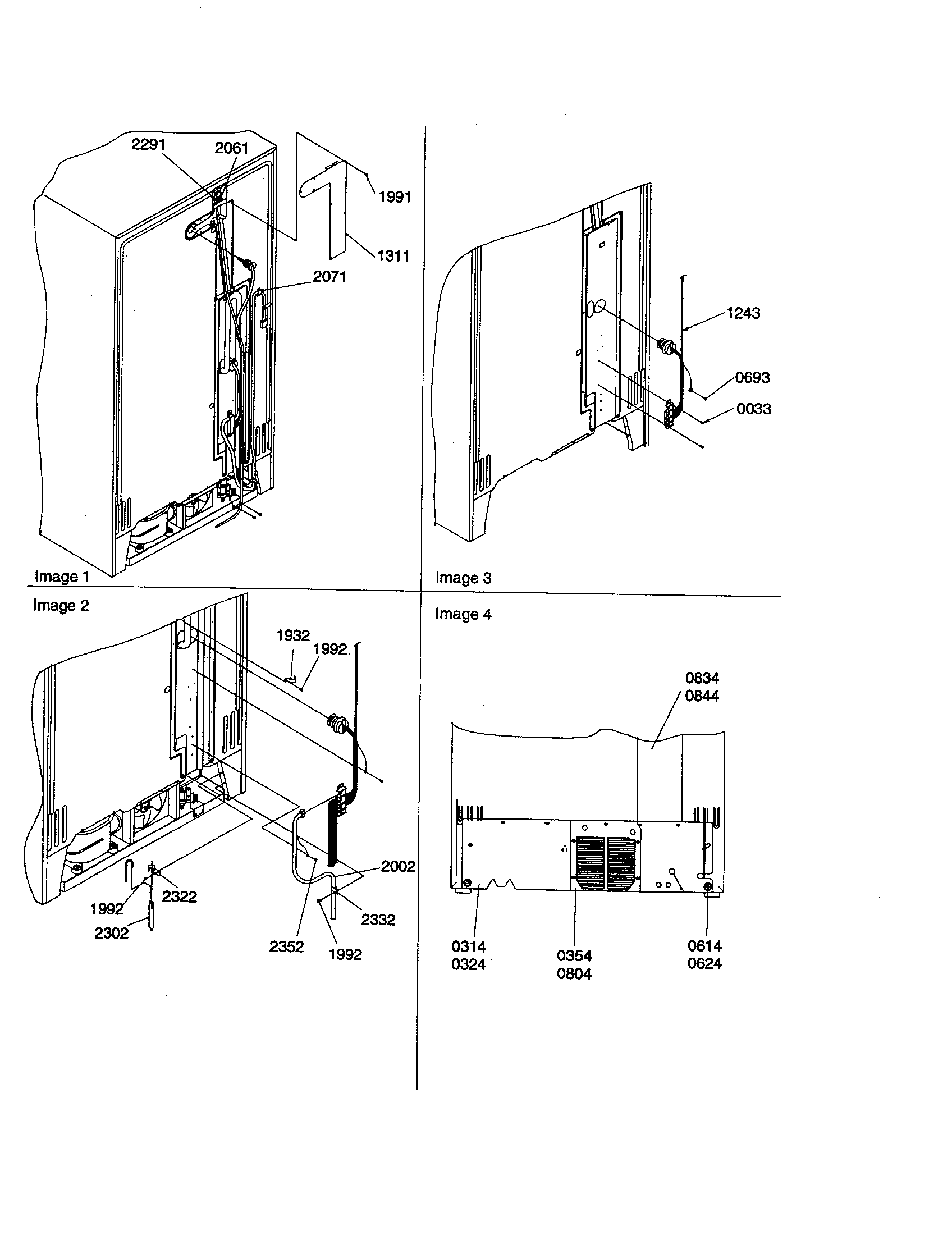

Ice maker/add on ice maker kit diagram
Refrigerator ice makerPart #D7824705
Replaced by #D7824706Q
?Manufacturer substitutionThis part replaces D7824705. Substitute parts can look different from the original.$84.20 |7% OFF Phone Price : $90.20In Stock - #491A

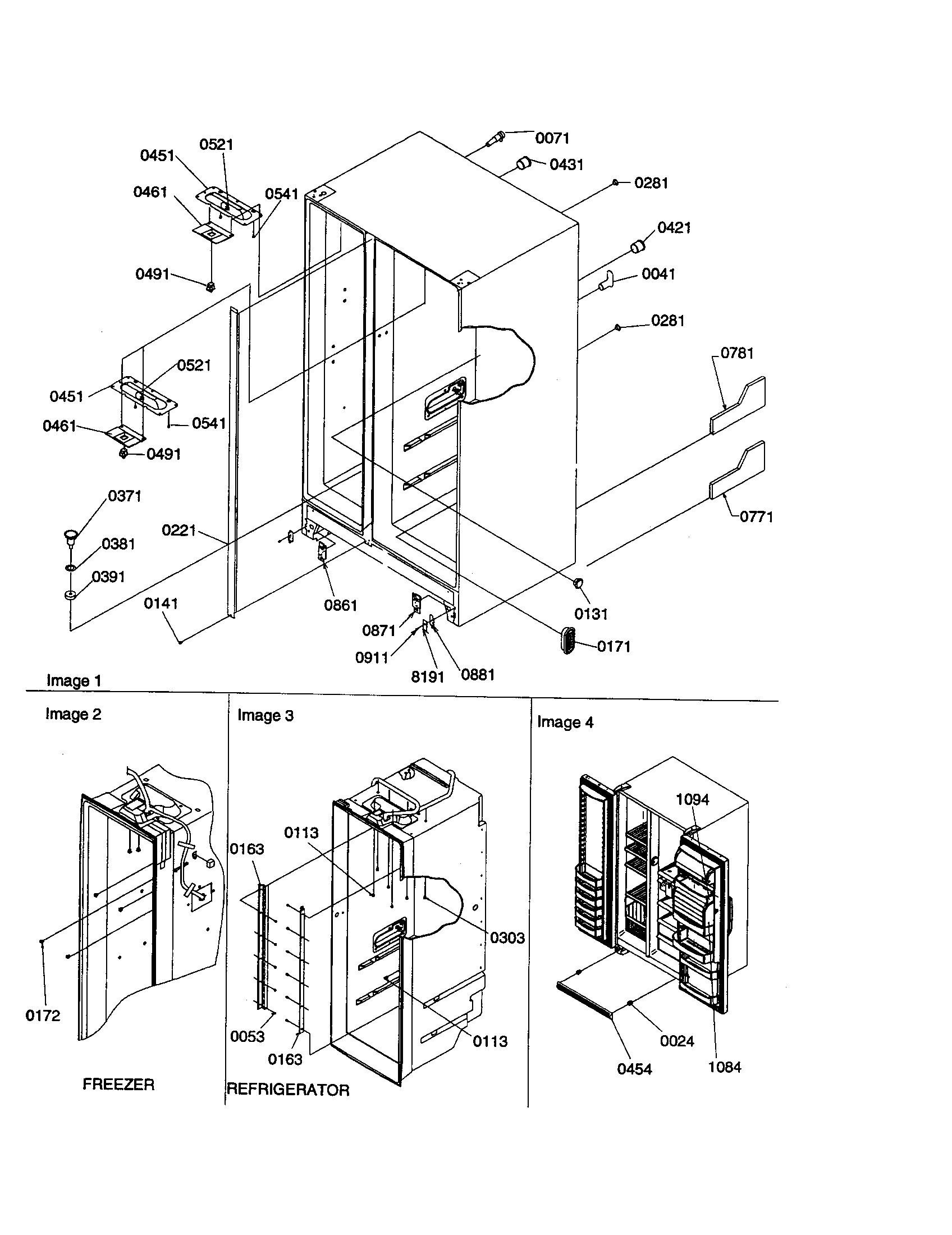

Cabinet parts/toe grille diagram
Refrigerator switchPart #C3680308
Replaced by #W11384469
?Manufacturer substitutionThis part replaces C3680308. Substitute parts can look different from the original.$20.16 |23% OFF Phone Price : $26.16In Stock - Refrigerator compressor
Part #12049711
The manufacturer no longer makes this part, and there's no substitute part
- Refrigerator compressor
Part #12049708
Replaced by #W10160407
?Manufacturer substitutionThis part replaces 12049708. Substitute parts can look different from the original.$426.03 |$12.00 OFF Phone Price : $438.03In Stock - #331

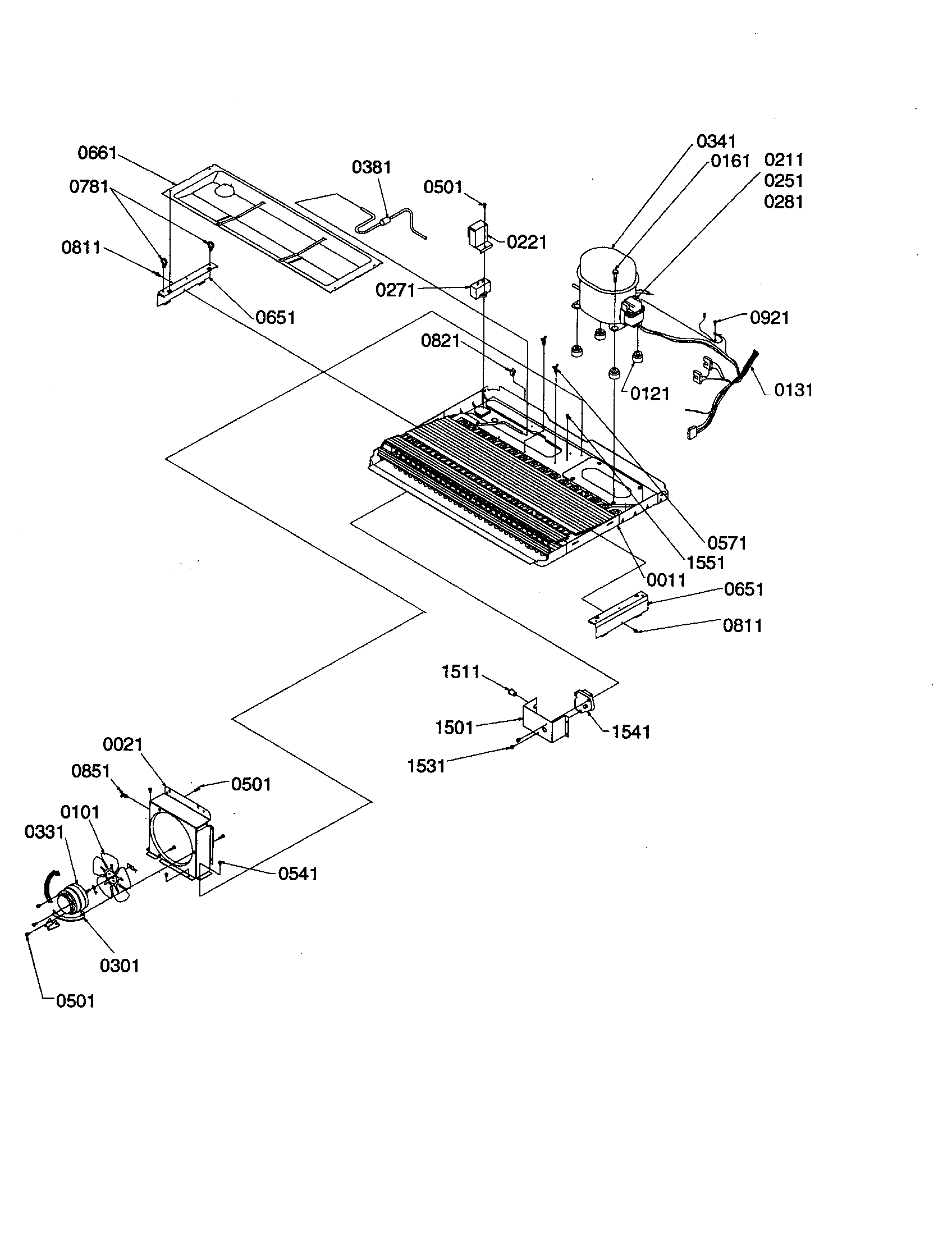

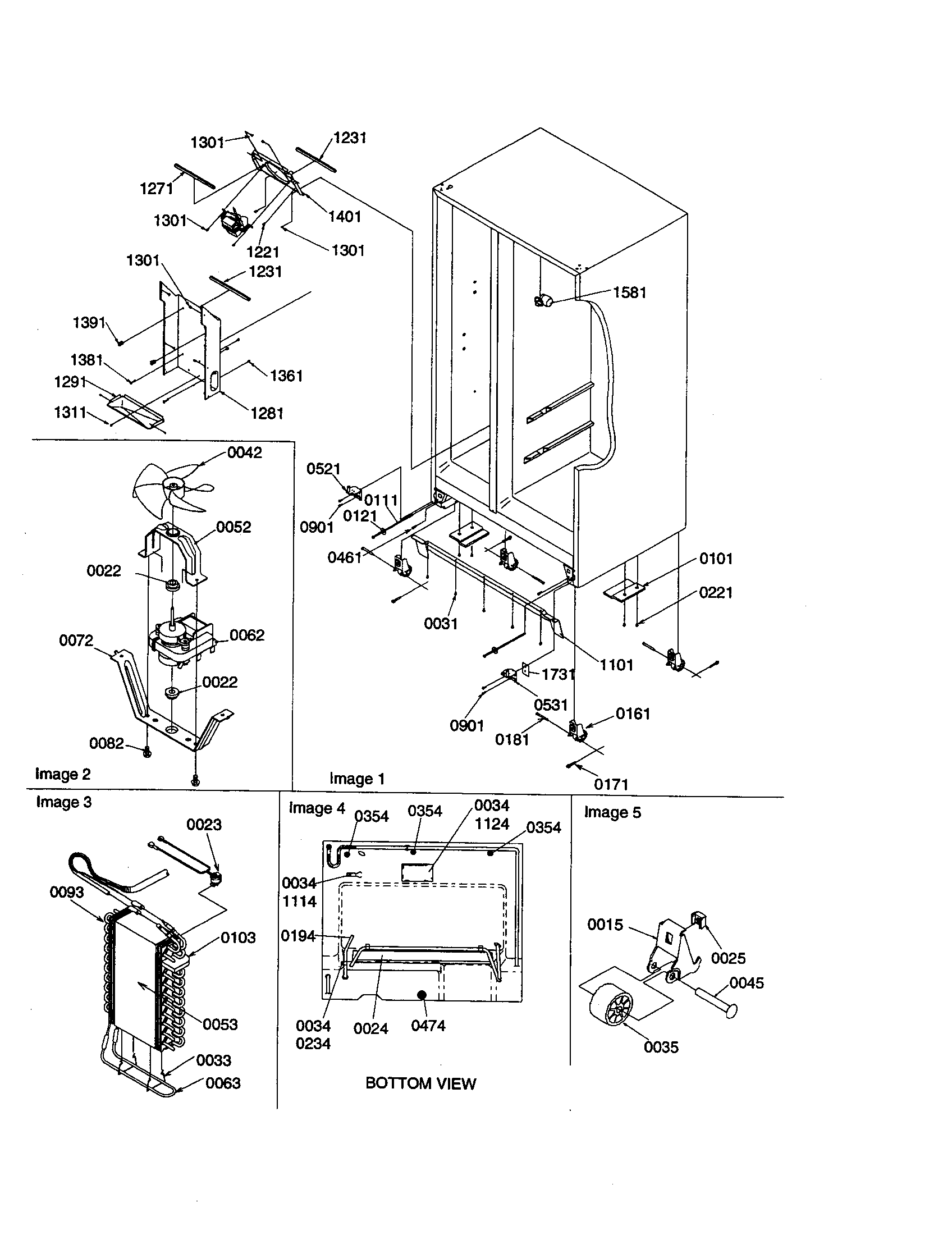

Machine compartment/muffler assy. diagram
Refrigerator condenser motorPart #10884501
The manufacturer no longer makes this part, and there's no substitute part
- Drier
Part #B2150504
Replaced by #WPB2150504
?Manufacturer substitutionThis part replaces B2150504. Substitute parts can look different from the original.$82.49 |7% OFF Phone Price : $88.49In Stock - Refrigerator capacitor
Part #C8931604
The manufacturer no longer makes this part, and there's no substitute part
- Refrigerator capacitor
Part #C8931608
Replaced by #WP65889-4
?Manufacturer substitutionThis part replaces C8931608. Substitute parts can look different from the original.$53.19 |10% OFF Phone Price : $59.19In Stock - Refrigerator screw
Part #M0220617
Replaced by #WP489069
?Manufacturer substitutionThis part replaces M0220617. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - Refrigerator lamp, 40-watt, 115 to 125-volt
Part #A0282803
The manufacturer no longer makes this part, and there's no substitute part
