Model # IR244A Official Ingersoll Rand wrench

Here are the diagrams and repair parts for Official Ingersoll Rand IR244A wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 48 parts |

#39

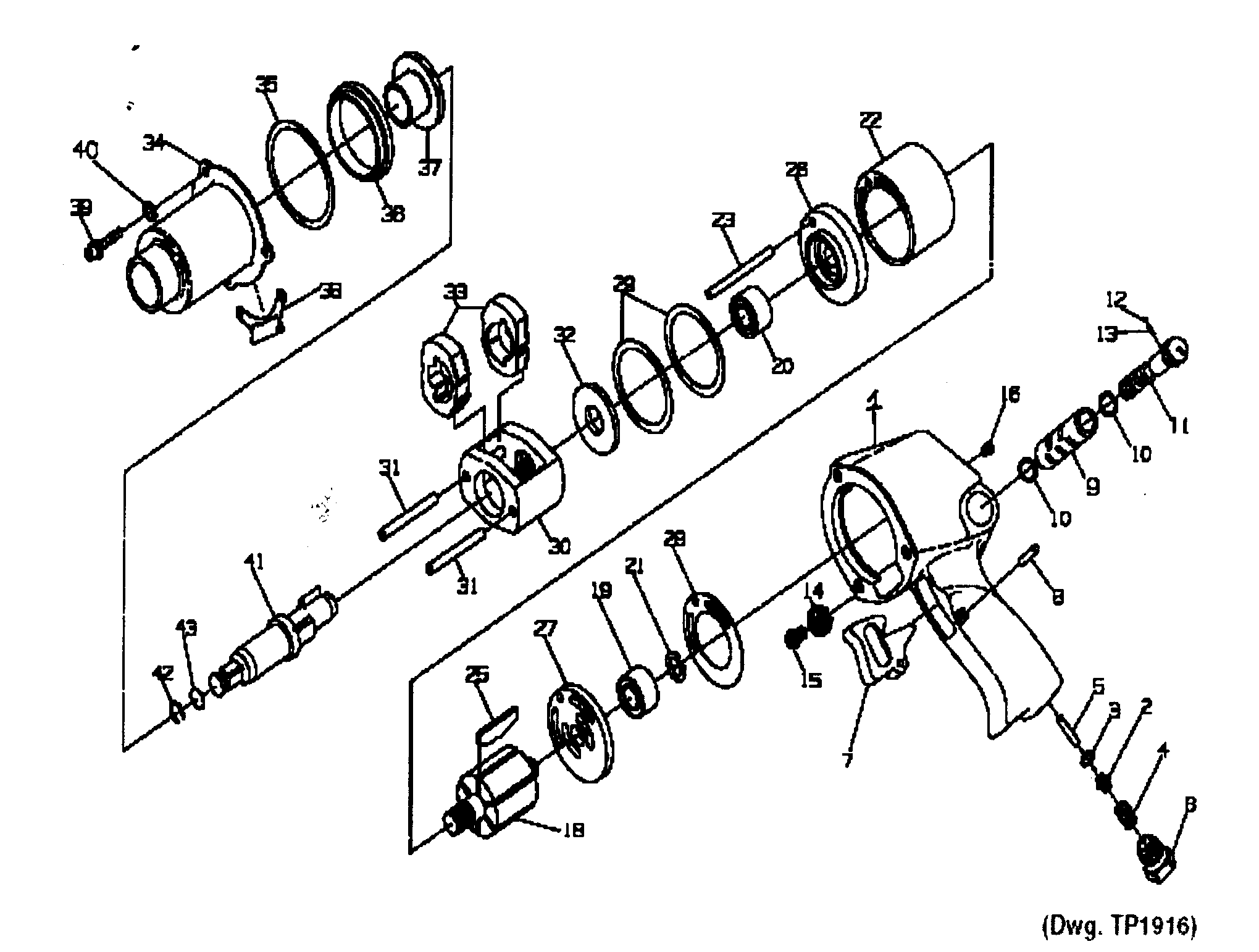

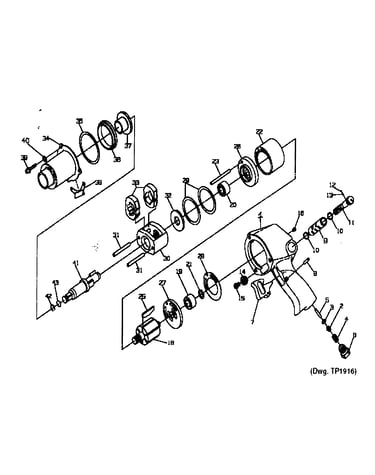

Wrench diagram

Cap screw

Part #131-638

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench diagram

Hammer kit

Part #231B-THK1

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench diagram

Ingersoll rand nameplate

Part #244A-301

The manufacturer no longer makes this part, and there's no substitute part

#12

Wrench diagram

Pneumatic wrench detent ball

Part #AV1-255

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Rotor Bearing Retainer 402-118

#21

Wrench diagram

Pneumatic wrench rotor bearing retainer

Part #402-118

The manufacturer no longer makes this part, and there's no substitute part

#11

Wrench diagram

Valve

Part #231-329A

The manufacturer no longer makes this part, and there's no substitute part

#19

Wrench diagram

Bearing

Part #402-22

The manufacturer no longer makes this part, and there's no substitute part

#25

Wrench diagram

Vene packet

Part #2906P-42-6

The manufacturer no longer makes this part, and there's no substitute part

#38

Wrench diagram

Ingersoll rand deflector

Part #244LG-23

The manufacturer no longer makes this part, and there's no substitute part

#32

Wrench diagram

Washer

Part #231-706

The manufacturer no longer makes this part, and there's no substitute part
