Caloric
Electric Range

Model # EHB112 Official Caloric electric range

Here are the diagrams and repair parts for Official Caloric EHB112 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

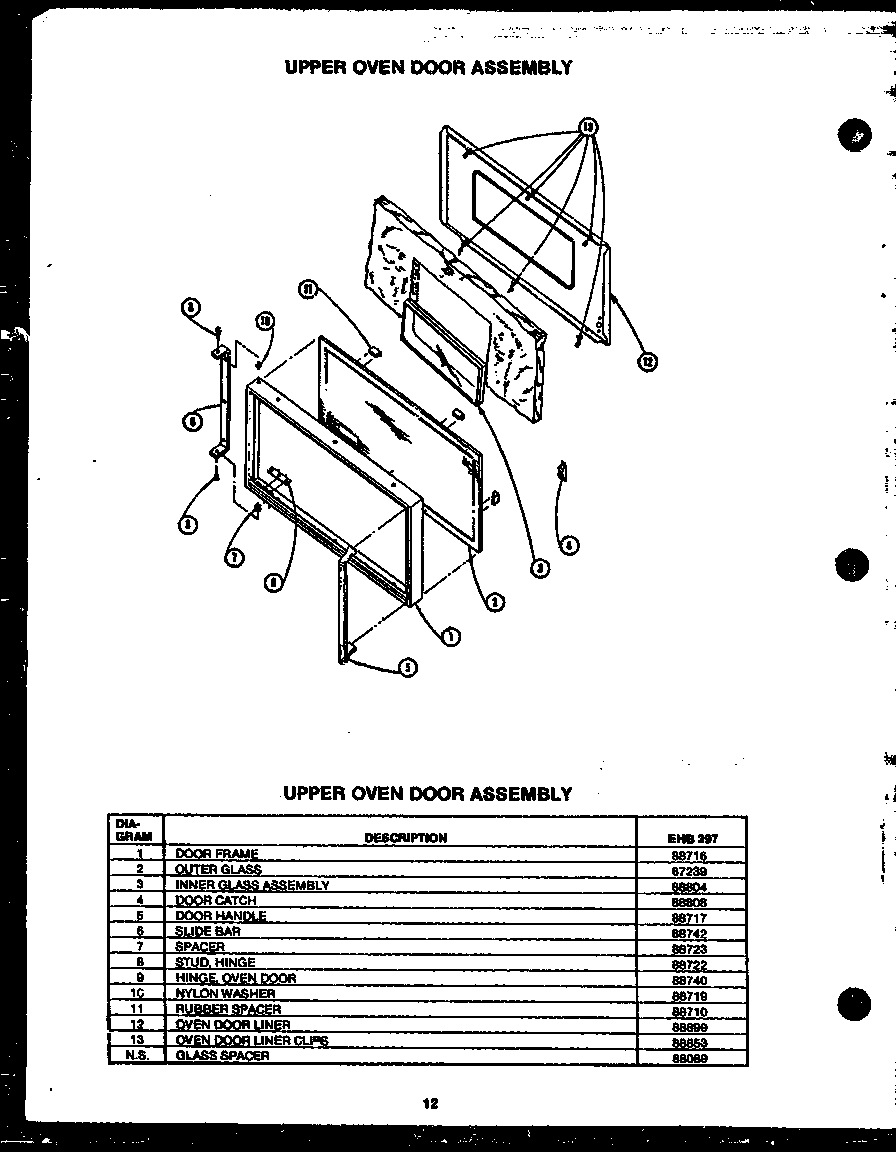

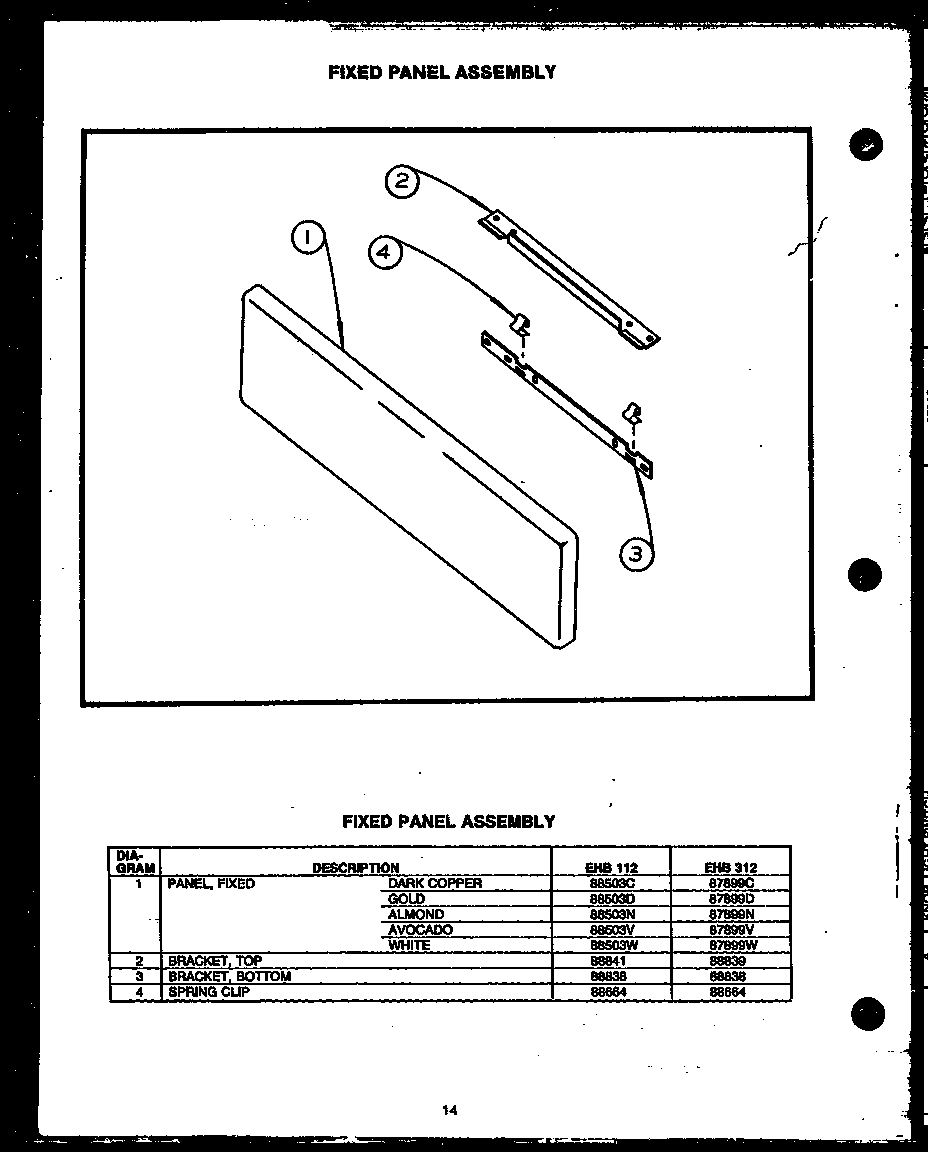

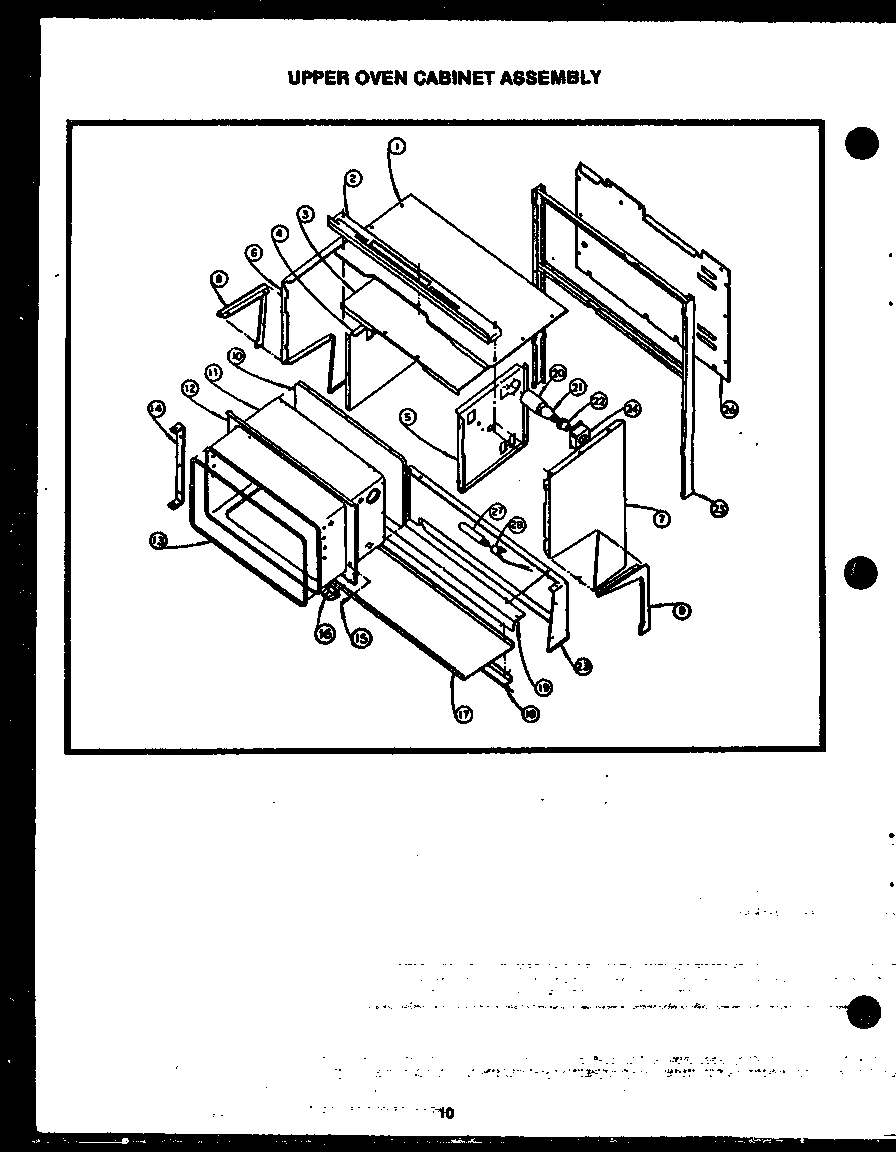

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Oven Rack 88700
#4

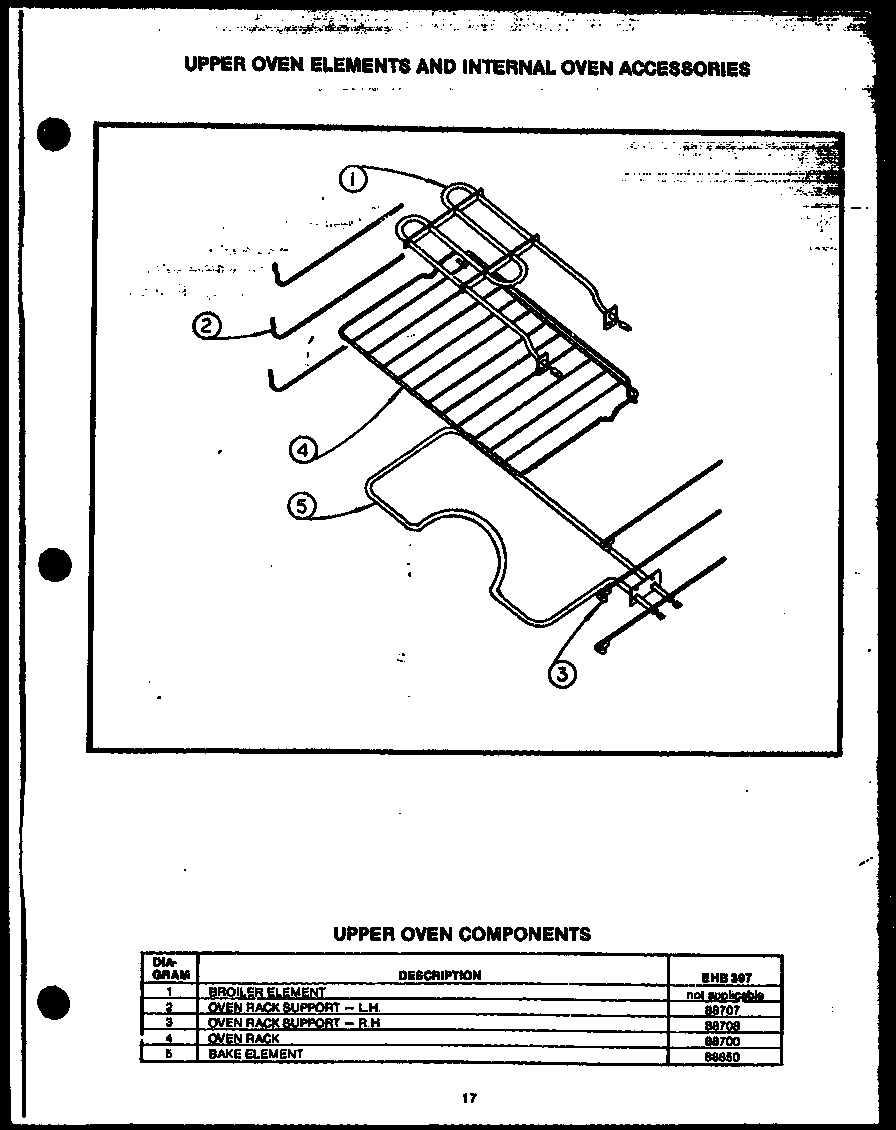

Upper oven elements and internal oven accessories (ehb397) diagram

Oven rack

Part #88700

The manufacturer no longer makes this part, and there's no substitute part

Main Top (almond) 88760N
#1I

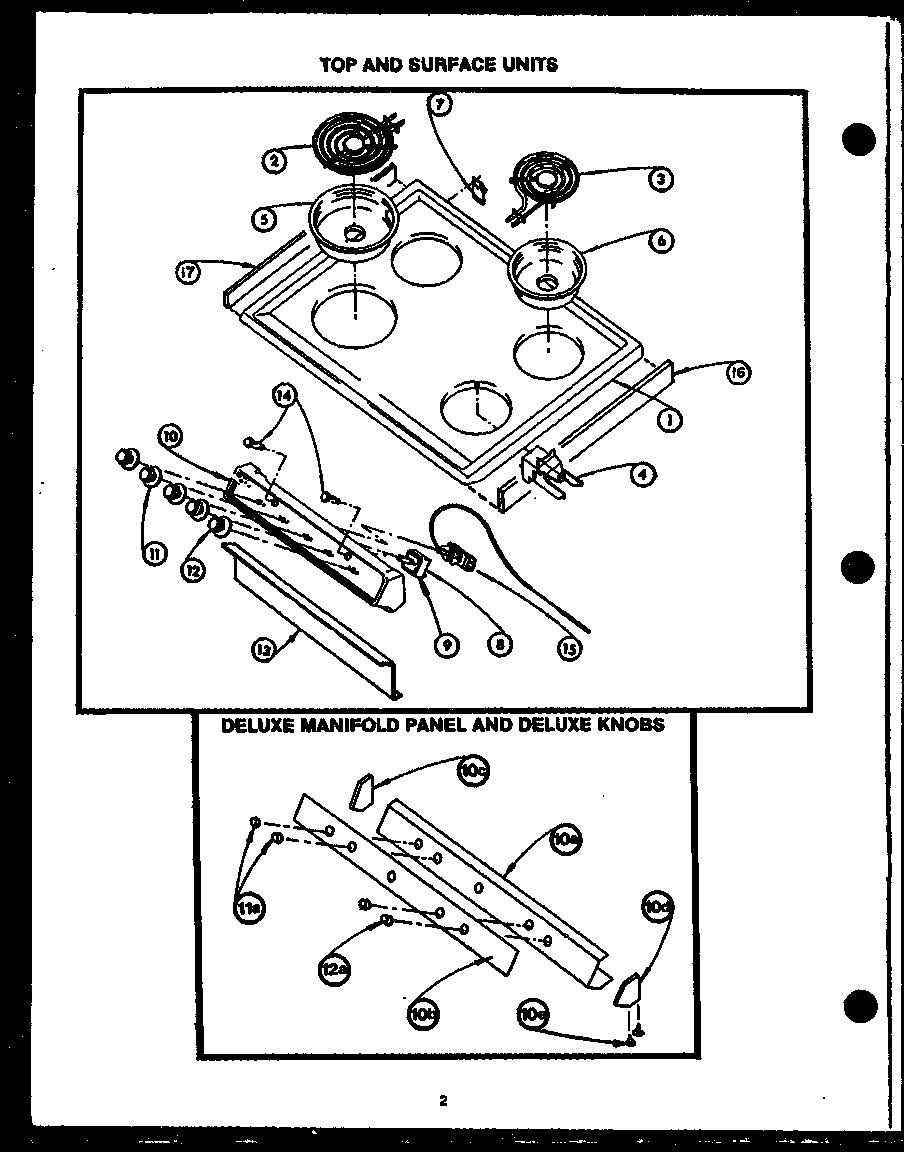

Cooktop/panel/knobs diagram

Main top (almond)

Part #88760N

The manufacturer no longer makes this part, and there's no substitute part

Hinge Body 88553
#9

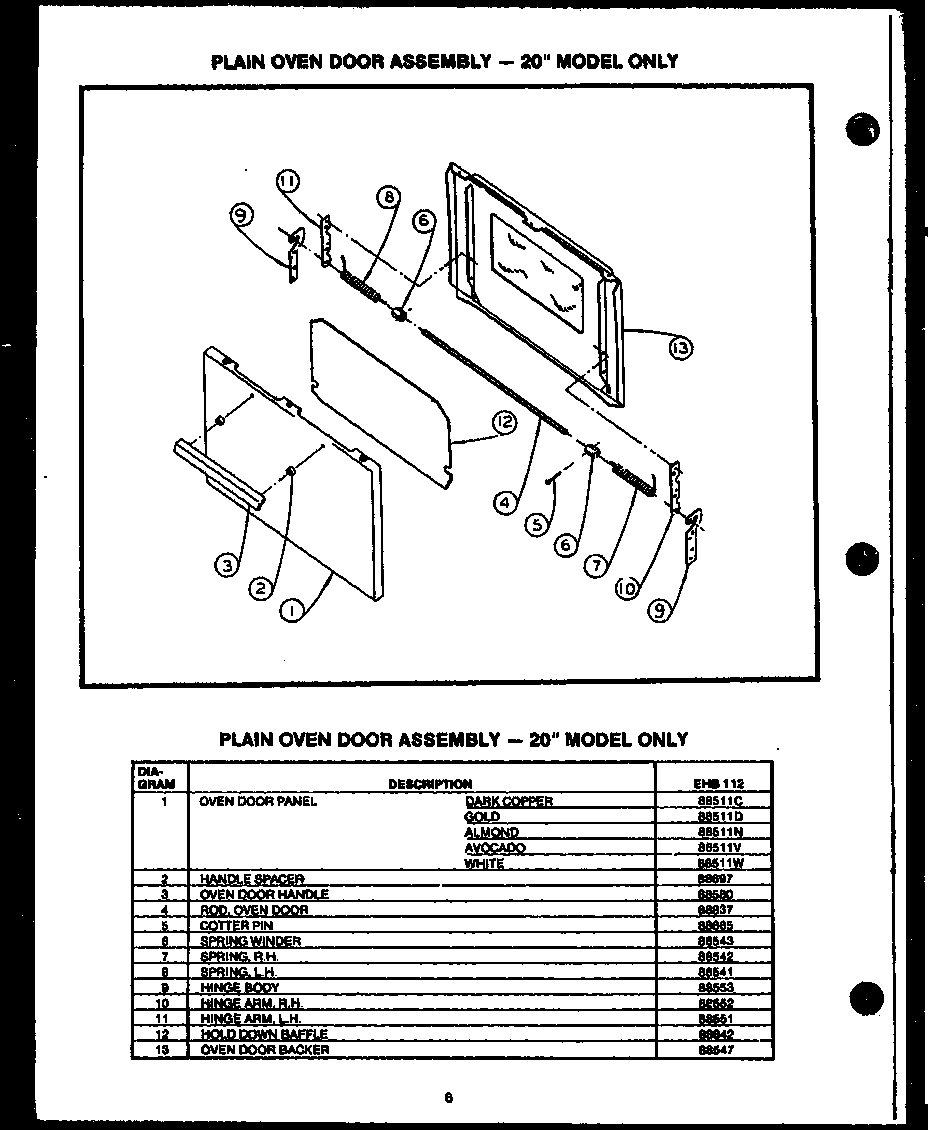

Plain oven door assembly - 20" model only (ehb112) diagram

Hinge body

Part #88553

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Panel White 88681W
#1E

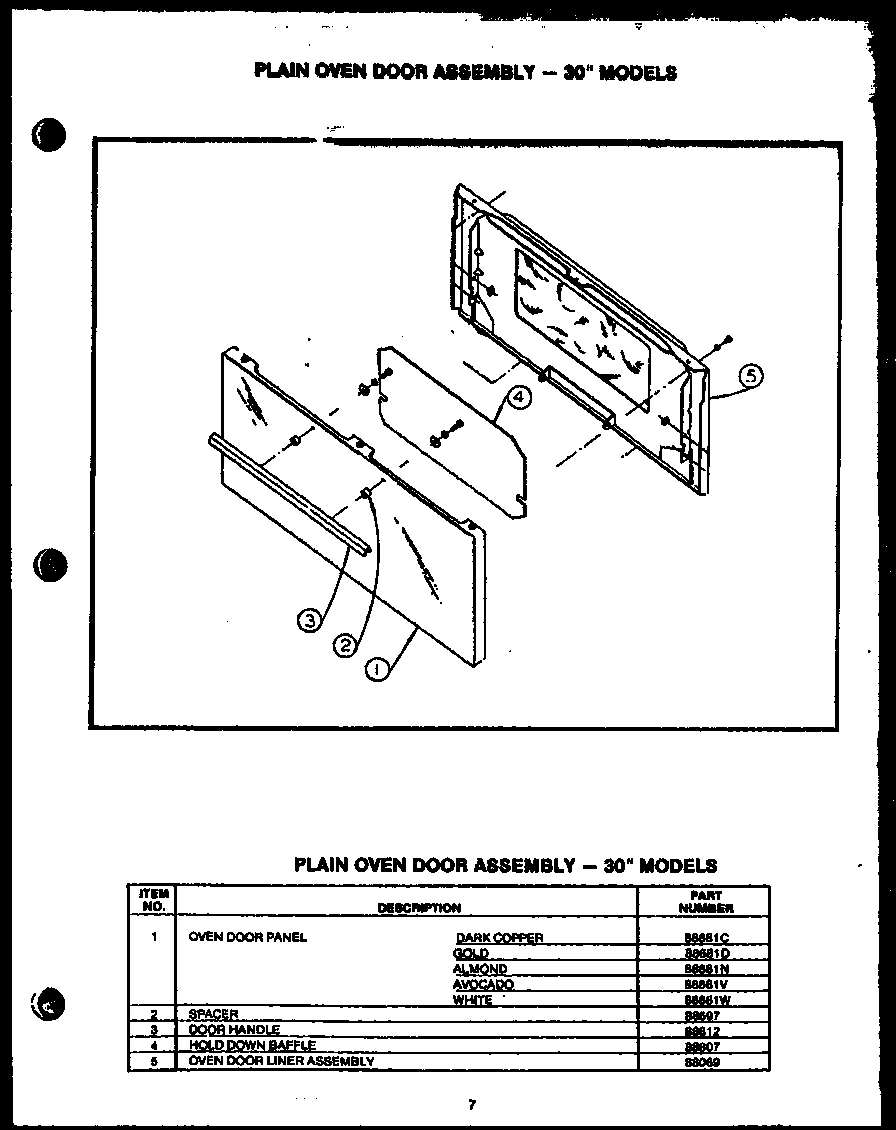

Plain oven door assembly - 30" models diagram

Oven door panel white

Part #88681W

The manufacturer no longer makes this part, and there's no substitute part

1/4" Nut 88650
#8

Storage drawer assembly (ehb340) (ehb352) (ehb397) diagram

1/4" nut

Part #88650

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Hinge 88844
#30A

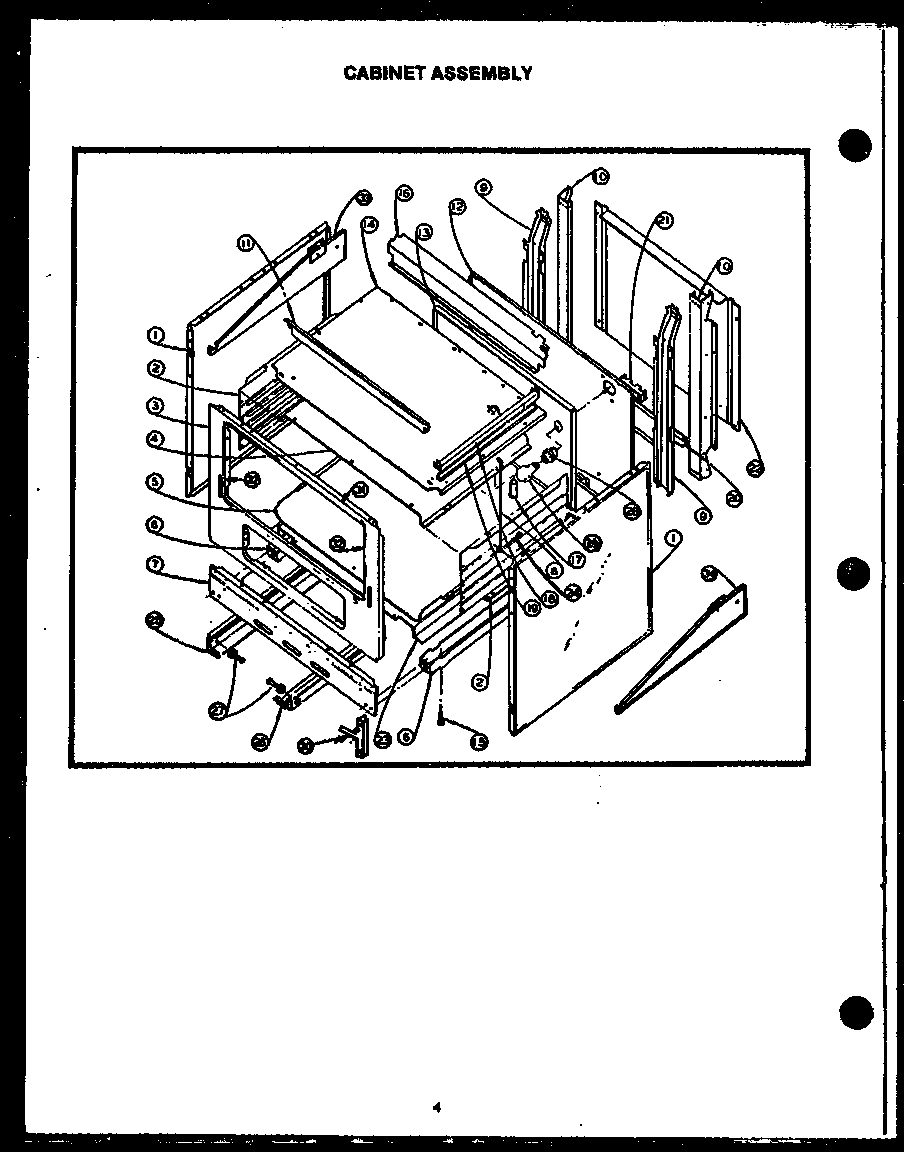

Cabinet assembly diagram

Oven door hinge

Part #88844

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 88876
#2

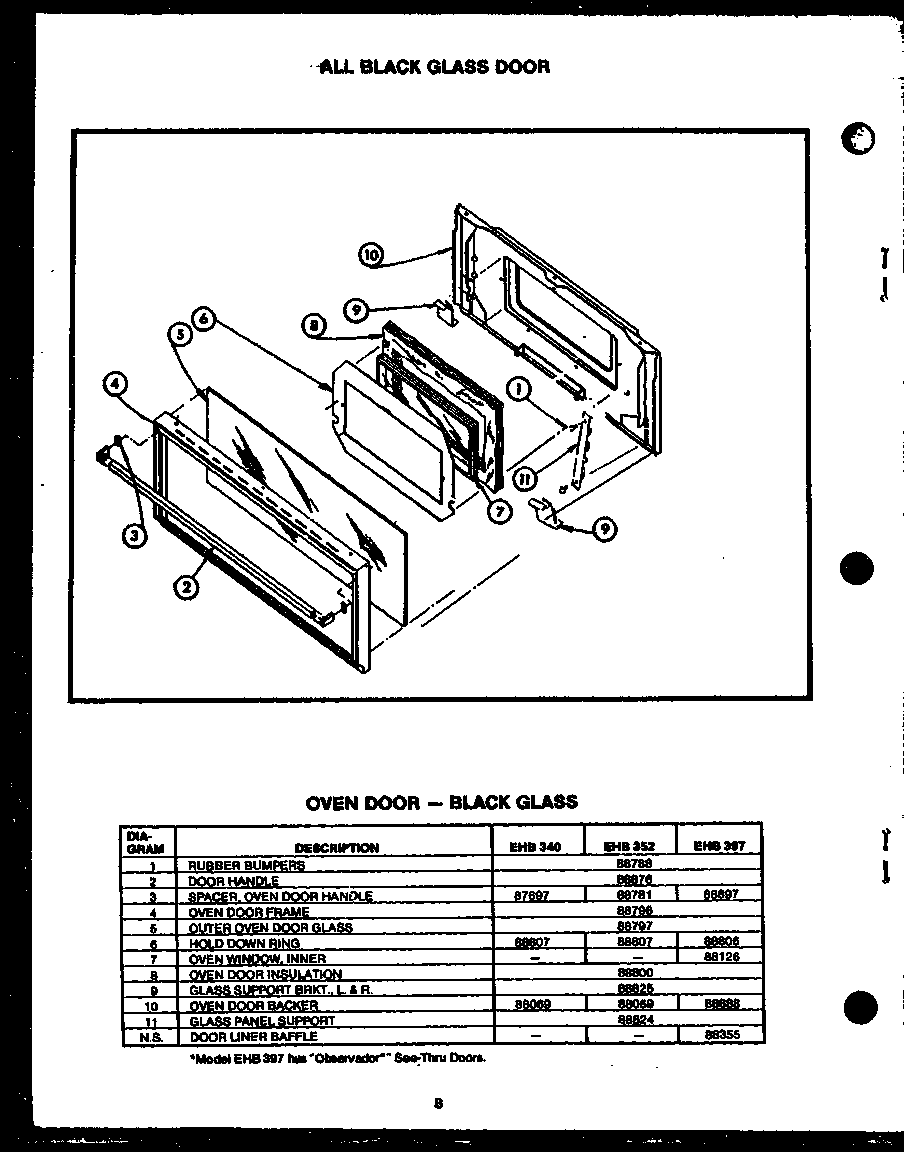

All black glass door (ehb340) (ehb352) (ehb397) diagram

Door handle

Part #88876

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 87732
#10A

Cooktop/panel/knobs diagram

Control panel

Part #87732

The manufacturer no longer makes this part, and there's no substitute part

Panel Backguard, White 88538W
#2O

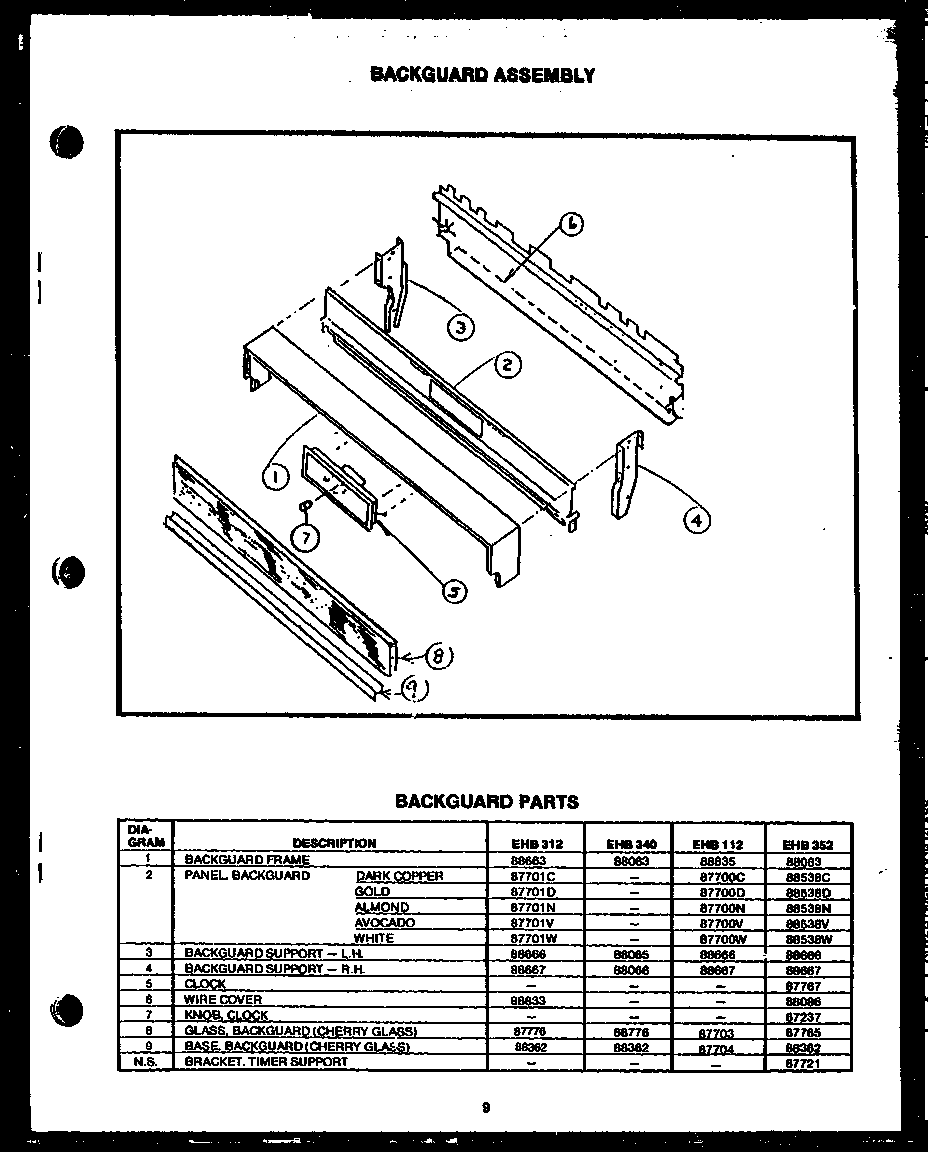

Backguard assembly (ehb112) (ehb312) (ehb340) (ehb352) diagram

Panel backguard, white

Part #88538W

The manufacturer no longer makes this part, and there's no substitute part

Door Liner Baffle 88355

#NI

All parts diagram

Door liner baffle

Part #88355

The manufacturer no longer makes this part, and there's no substitute part
