Model # IR231XP-2 Official Ingersoll Rand wrench

Here are the diagrams and repair parts for Official Ingersoll Rand IR231XP-2 wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Housing 231XP-A40
#1A

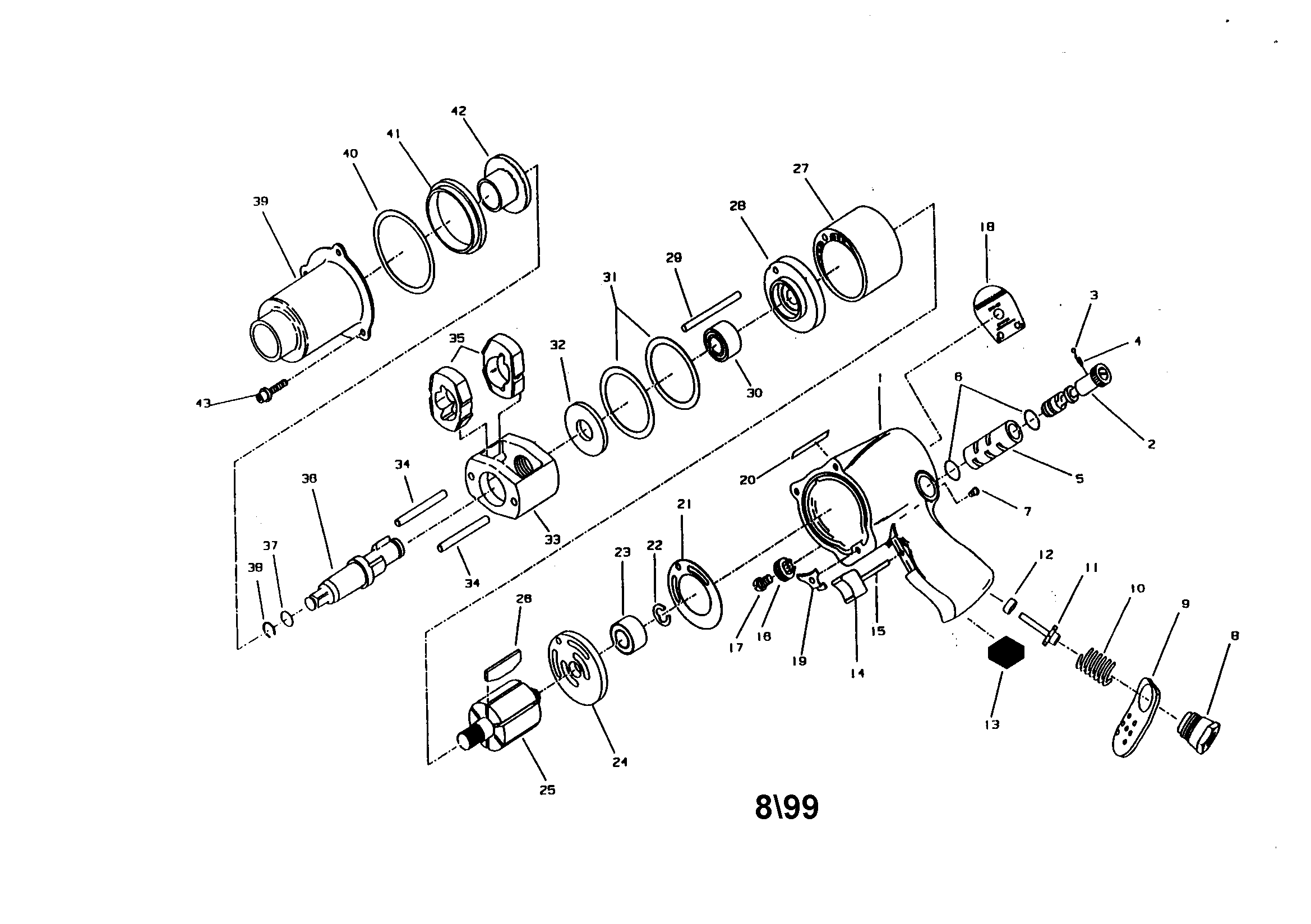

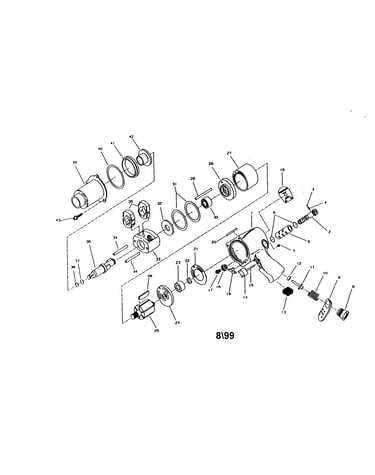

Wrench diagram

Housing

Part #231XP-A40

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Detent Ball AV1-255
#3

Wrench diagram

Pneumatic wrench detent ball

Part #AV1-255

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Rotor Bearing Retainer 402-118
#22

Wrench diagram

Pneumatic wrench rotor bearing retainer

Part #402-118

The manufacturer no longer makes this part, and there's no substitute part

Valve 231-329A
#2

Wrench diagram

Valve

Part #231-329A

The manufacturer no longer makes this part, and there's no substitute part

Bearing 402-22
#23

Wrench diagram

Bearing

Part #402-22

The manufacturer no longer makes this part, and there's no substitute part

Washer 231-706
#32

Wrench diagram

Washer

Part #231-706

The manufacturer no longer makes this part, and there's no substitute part

Pin 231-704
#34

Wrench diagram

Pin

Part #231-704

The manufacturer no longer makes this part, and there's no substitute part

Pushing 705-941
#42

Wrench diagram

Pushing

Part #705-941

The manufacturer no longer makes this part, and there's no substitute part

Retainer 231H-656
#19

Wrench diagram

Retainer

Part #231H-656

The manufacturer no longer makes this part, and there's no substitute part

Fitting 130SR-188
#7

Wrench diagram

Fitting

Part #130SR-188

The manufacturer no longer makes this part, and there's no substitute part
