Model # JUR24FRACX00 Official Jenn-Air refrigerator
Here are the diagrams and repair parts for Official Jenn-Air JUR24FRACX00 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

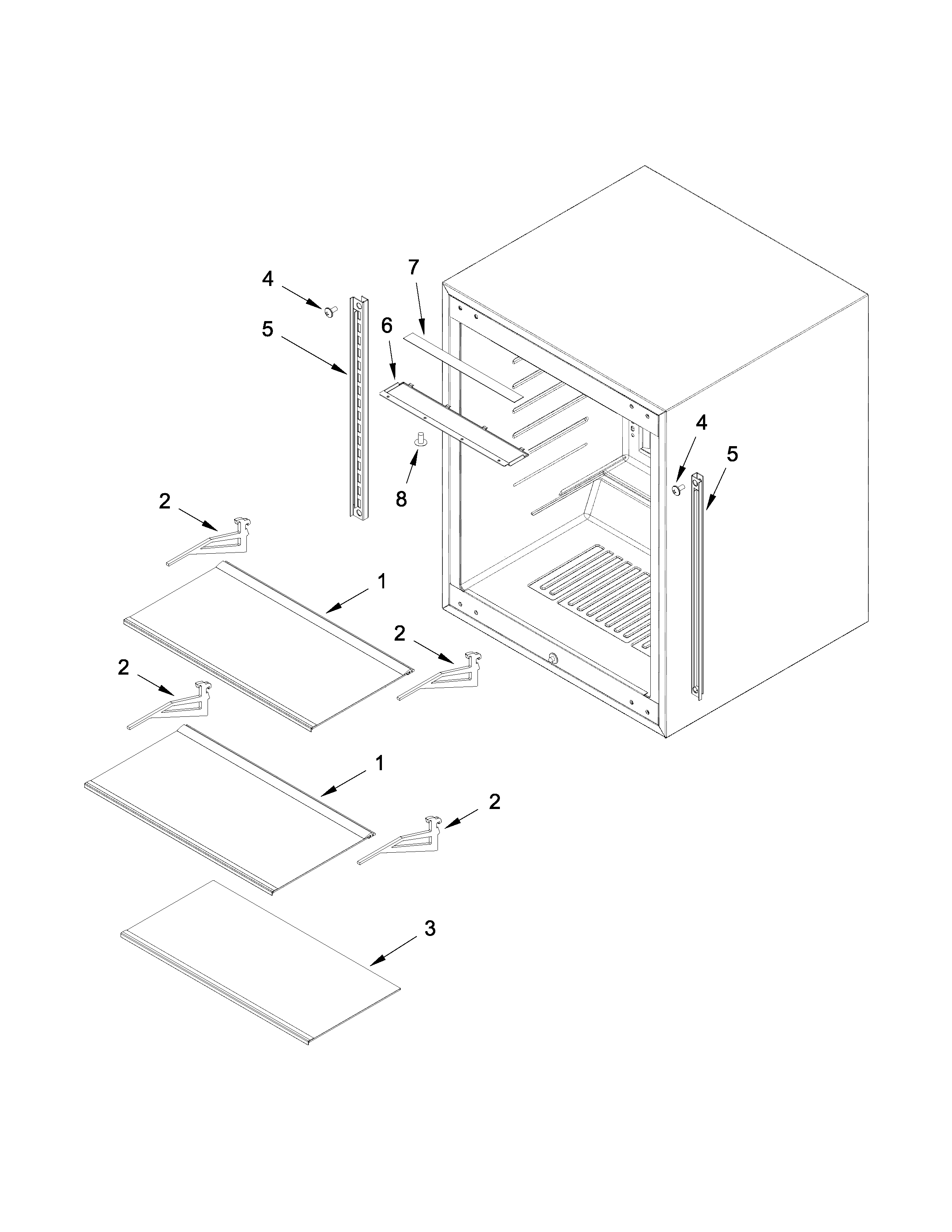

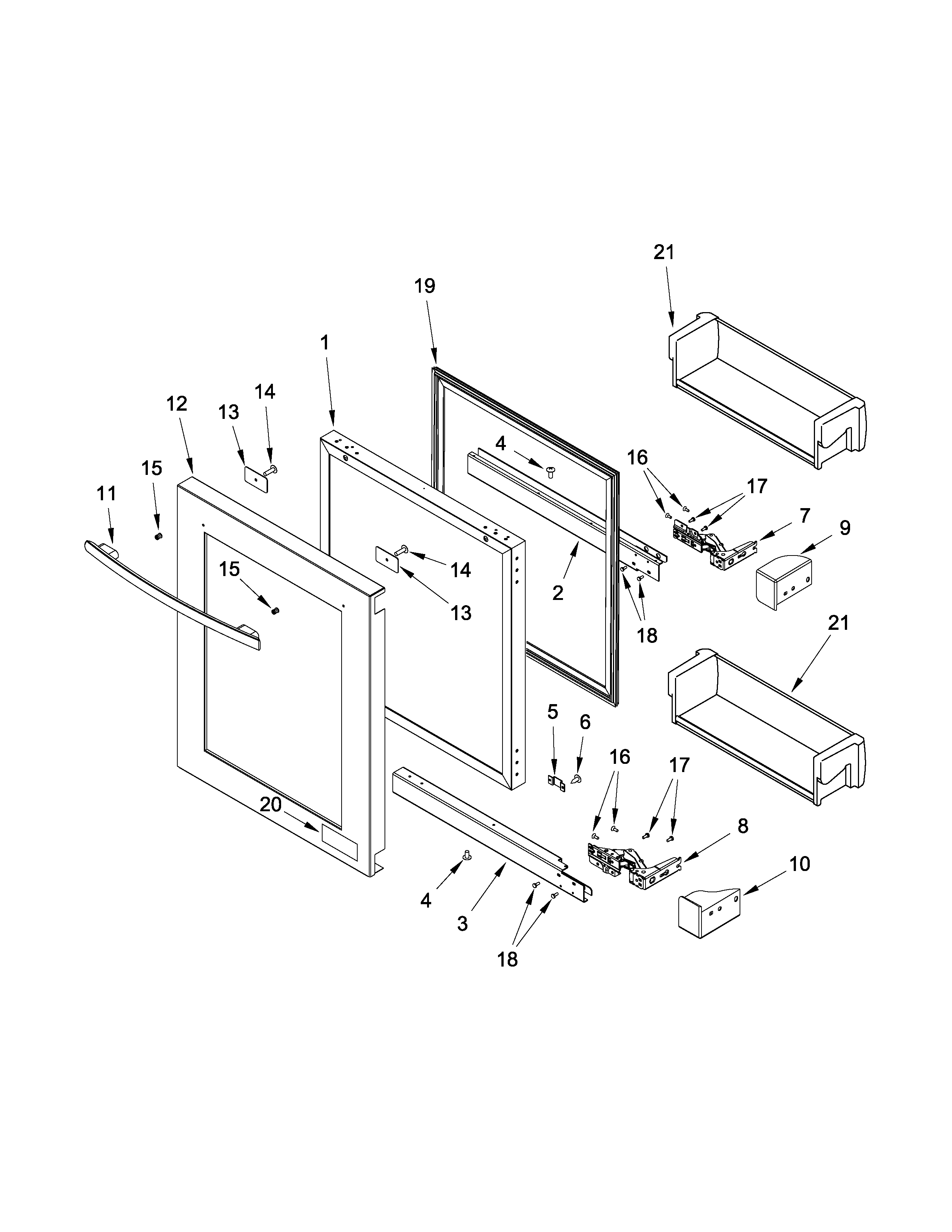

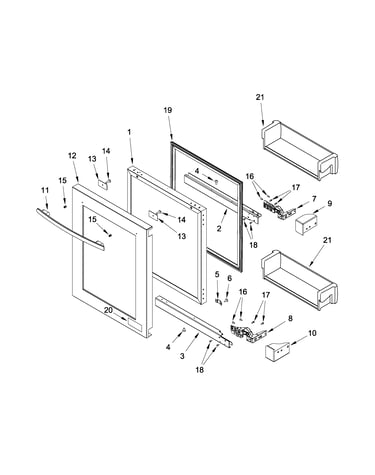

Browse Parts for
JUR24FRACX00 Refrigerators
#28

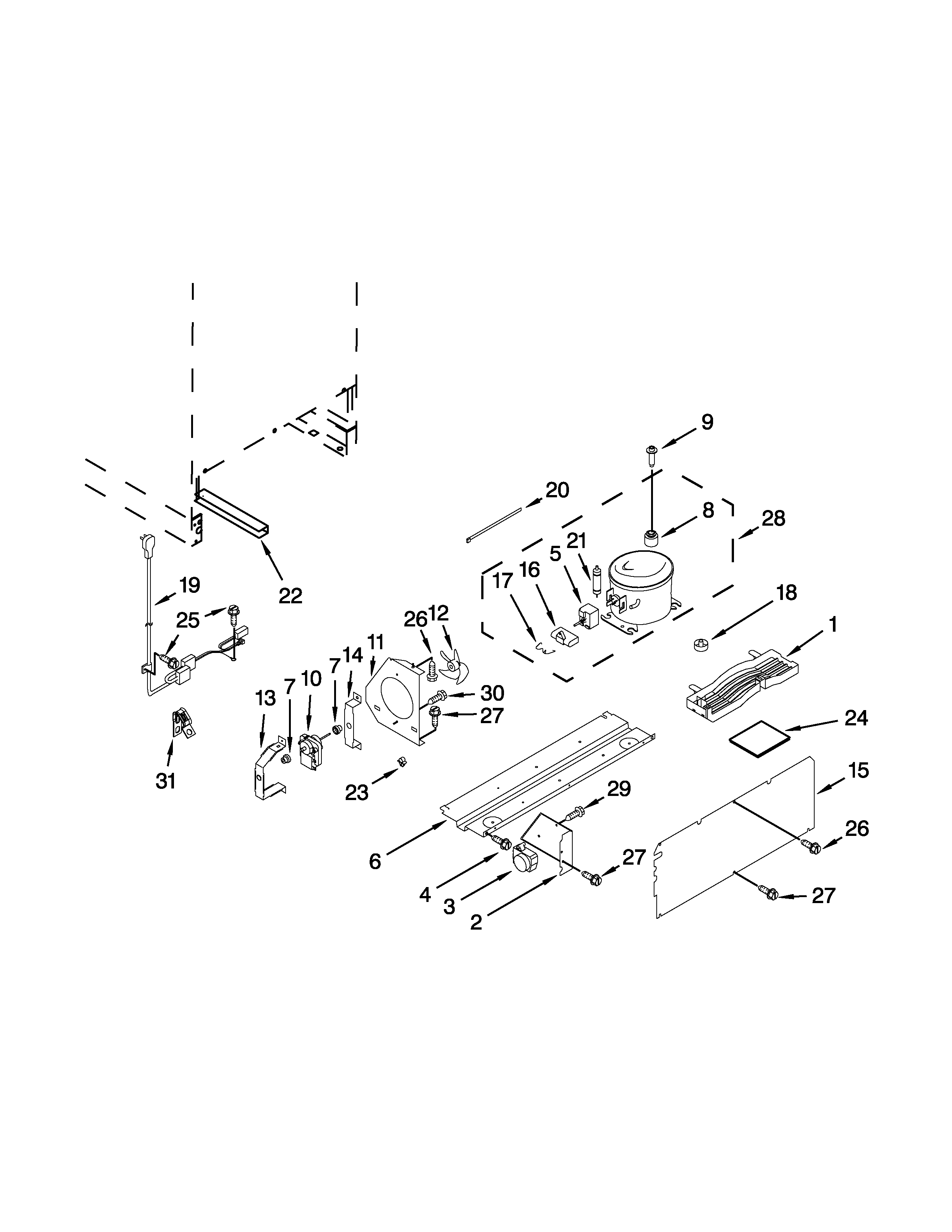

Unit parts diagram
Compressor
Part #4344775
Replaced by #8201787
?
Manufacturer substitution
This part replaces 4344775. Substitute parts can look different from the original.
$405.15 |
$12.00 OFF Phone Price : $417.15
In Stock
#10
Unit parts diagram
Condenser motor
Part #W10299090
Replaced by #WPW10299090
?
Manufacturer substitution
This part replaces W10299090. Substitute parts can look different from the original.
$129.28 |
8% OFF Phone Price : $141.28
In Stock
#5
Unit parts diagram
Start device
Part #4344776
Replaced by #WP4344776
?
Manufacturer substitution
This part replaces 4344776. Substitute parts can look different from the original.
$75.93 |
7% OFF Phone Price : $81.93
In Stock
#16

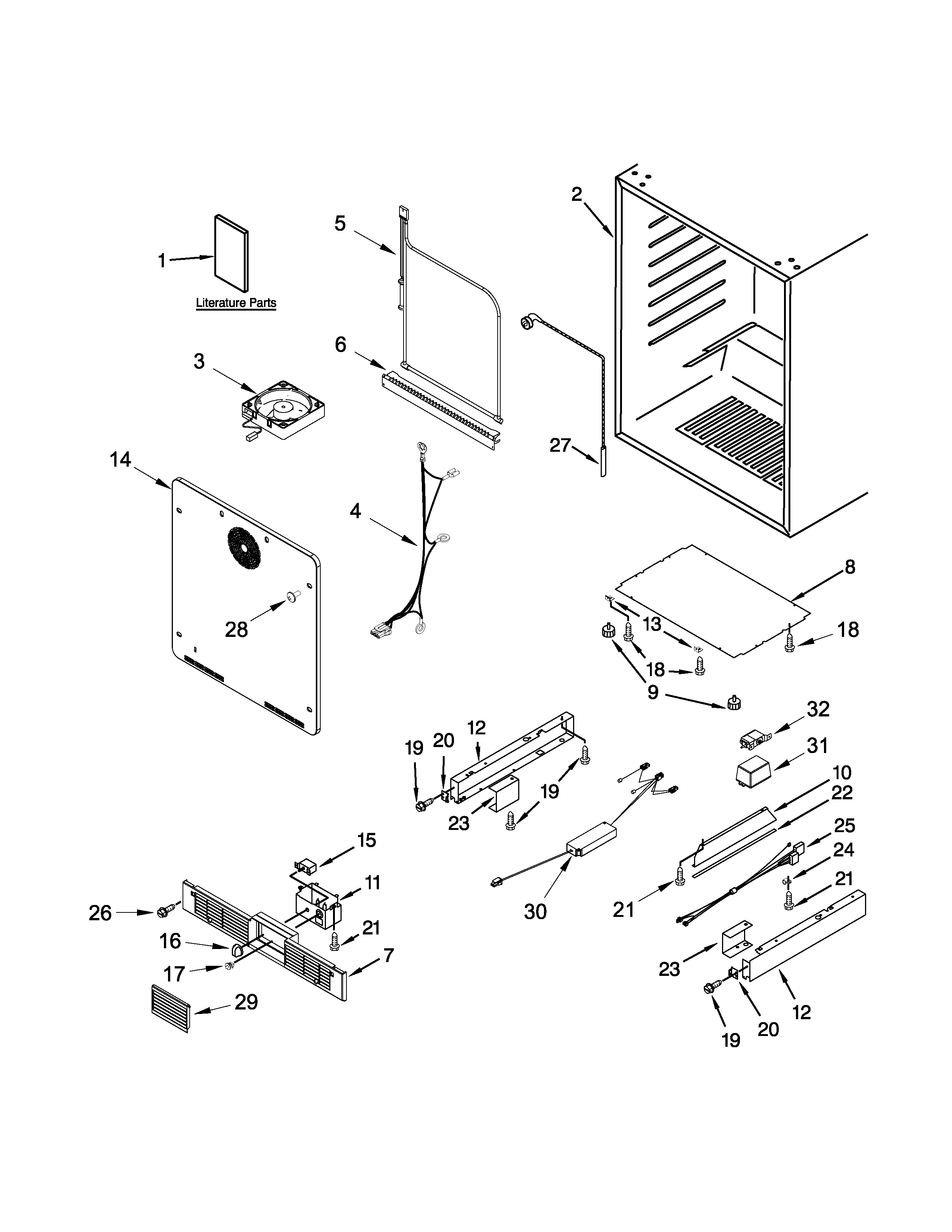

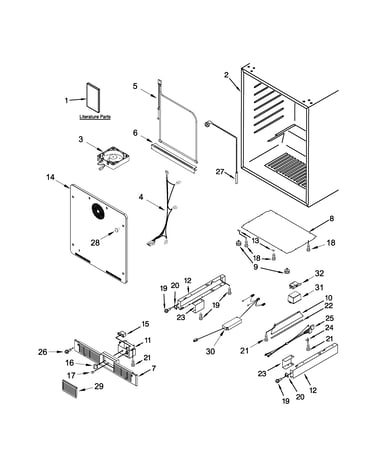

Cabinet parts diagram
Thermostat knob
Part #4344768
Replaced by #WP3402573
?
Manufacturer substitution
This part replaces 4344768. Substitute parts can look different from the original.
$89.51
In Stock
#16
Unit parts diagram
Capacitor
Part #4344837
Replaced by #WP1188476
?
Manufacturer substitution
This part replaces 4344837. Substitute parts can look different from the original.
$69.30 |
8% OFF Phone Price : $75.30
In Stock
#15
Cabinet parts diagram
Refrigerator thermostat
Part #W10622789
$43.69
In Stock
#21
Unit parts diagram
Drier tube
Part #W10163273
$63.83
In Stock
#17
Cabinet parts diagram
Wine cooler light switch
Part #4344767
Replaced by #WP4344767
?
Manufacturer substitution
This part replaces 4344767. Substitute parts can look different from the original.
This item is not returnable
$21.53 |
22% OFF Phone Price : $27.53
In Stock
#20
Cabinet parts diagram
Grille clip
Part #W10622791
$15.69
In Stock
#24
Unit parts diagram
Whirlpool pad
Part #W10163274
$45.78
In Stock
