Model # 5232A807 Official Coleman portable electric cooler
Here are the diagrams and repair parts for Official Coleman 5232A807 portable electric cooler, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
5232A807 Portable Electric Cooler
#8

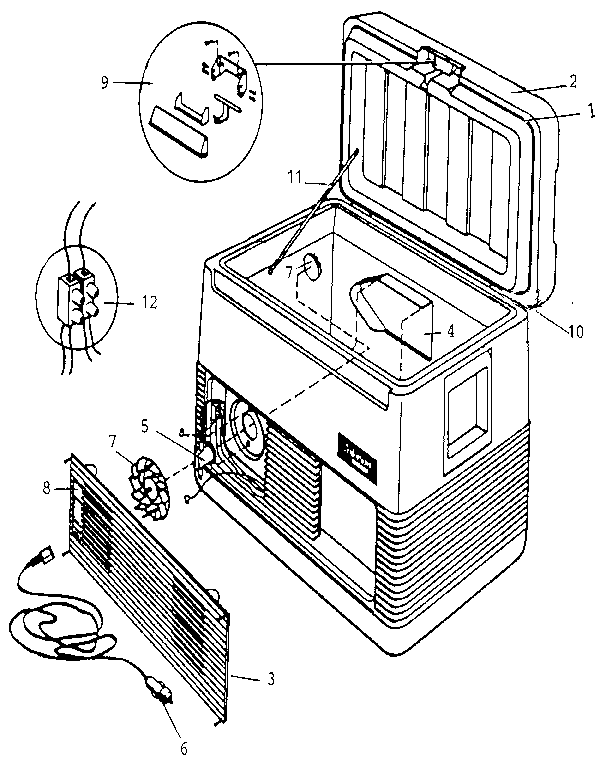

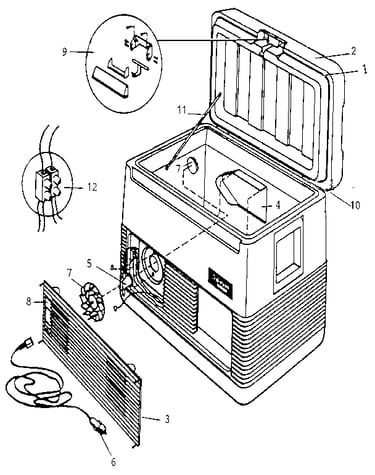

Unit parts diagram
Decal
Part #5232A4671
The manufacturer no longer makes this part, and there's no substitute part
#1
Unit parts diagram
Lid gasket
Part #5232-0181
The manufacturer no longer makes this part, and there's no substitute part
#3
Unit parts diagram
Front panel
Part #5232-5571
The manufacturer no longer makes this part, and there's no substitute part
#10
Unit parts diagram
Lid hinge
Part #5270-2181
The manufacturer no longer makes this part, and there's no substitute part
#9
Unit parts diagram
Lid latch
Part #5286-5401
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Own.manaul
Part #5200C063
The manufacturer no longer makes this part, and there's no substitute part
#2
Unit parts diagram
Lid
Part #5232-5071
The manufacturer no longer makes this part, and there's no substitute part
#5
Unit parts diagram
Motor
Part #5232-6651
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Battery
Part #2239-7701
The manufacturer no longer makes this part, and there's no substitute part
#11
Unit parts diagram
Lis strap
Part #5287B1101
The manufacturer no longer makes this part, and there's no substitute part
