Model # 106635281 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106635281 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Drier 43465
#41

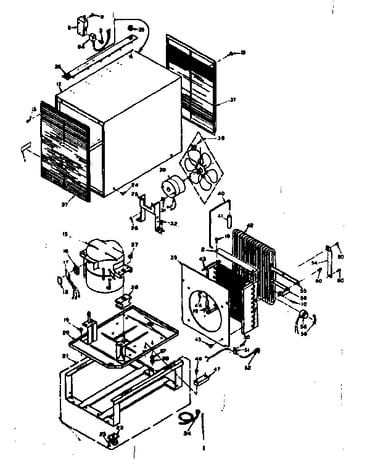

Dehumidifier parts diagram

Drier

Part #43465

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 43465. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Screw, 8 X 1 488480
#10

Dehumidifier parts diagram

Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 488234
#9

Dehumidifier parts diagram

Screw

Part #488234

Replaced by #WP488234

?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Bend 471570
#44

Dehumidifier parts diagram

Bend

Part #471570

Replaced by #WP855199

?
Manufacturer substitution
This part replaces 471570. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 488073
#32

Dehumidifier parts diagram

Screw

Part #488073

The manufacturer no longer makes this part, and there's no substitute part

Cable 474138
#52

Dehumidifier parts diagram

Cable

Part #474138

The manufacturer no longer makes this part, and there's no substitute part

Washer 486855
#31

Dehumidifier parts diagram

Washer

Part #486855

The manufacturer no longer makes this part, and there's no substitute part

Screw, 8-32 X 3/8 488373
#24

Dehumidifier parts diagram

Screw, 8-32 x 3/8

Part #488373

The manufacturer no longer makes this part, and there's no substitute part

Nut 486529
#26

Dehumidifier parts diagram

Nut

Part #486529

The manufacturer no longer makes this part, and there's no substitute part

Insulator 468539
#55

Dehumidifier parts diagram

Insulator

Part #468539

The manufacturer no longer makes this part, and there's no substitute part
