Model # GFP1528PNRS Official GE laundry accessory

Here are the diagrams and repair parts for Official GE GFP1528PNRS laundry accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Leg Assembly WH01X10585
#16

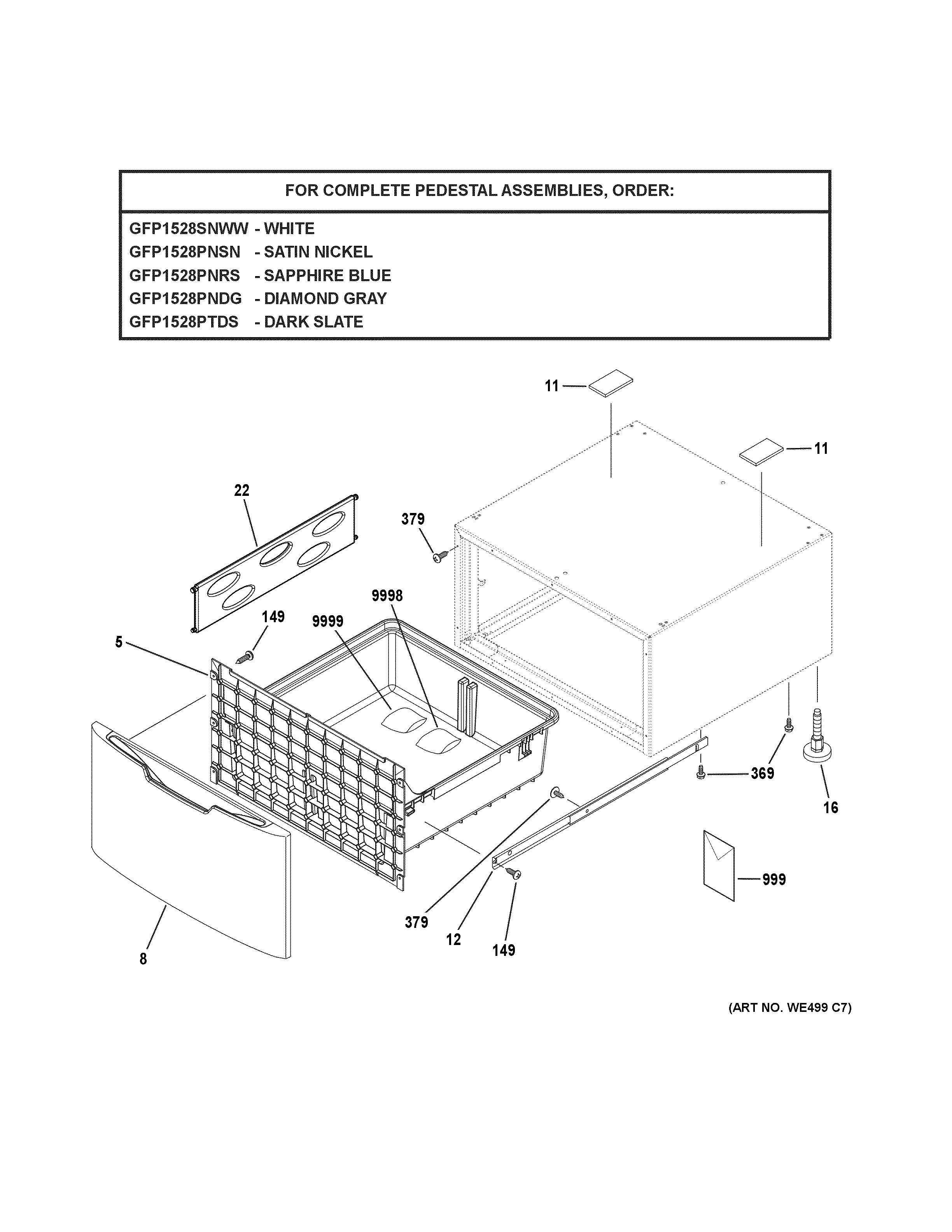

Pedestal diagram

Leg assembly

Part #WH01X10585

This item is not returnable
$8.32 |
11% OFF Phone Price : $9.32
In Stock
Scr 8-18 Hi/ WR01X10196
#149

Pedestal diagram

Scr 8-18 hi/

Part #WR01X10196

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Laundry Appliance Pedestal Installation Bracket Kit (replaces Wh01x30240) WH02X30977
#9999

Pedestal diagram

Laundry appliance pedestal installation bracket kit (replaces wh01x30240)

Part #WH02X30977

$63.54 |
9% OFF Phone Price : $69.54
In Stock
Pedestal Hardware Pack WH01X30240
#9998

Pedestal diagram

Pedestal hardware pack

Part #WH01X30240

Replaced by #WH02X30977

?
Manufacturer substitution
This part replaces WH01X30240. Substitute parts can look different from the original.
$63.54 |
9% OFF Phone Price : $69.54
In Stock
Ge Pedestal Front Panel Royal Sapphire WH13X30242
#8

Pedestal diagram

Ge pedestal front panel royal sapphire

Part #WH13X30242

$92.04
In Stock
Laundry Center Screw WH2X1217
#369

Pedestal diagram

Laundry center screw

Part #WH2X1217

$7.09 |
12% OFF Phone Price : $8.09
In Stock
Foam Pad WH01X30260
#11

Pedestal diagram

Foam pad

Part #WH01X30260

$11.40
In Stock
Scr 8-18 Ab WE02X20373
#379

Pedestal diagram

Scr 8-18 ab

Part #WE02X20373

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Laundry Appliance Pedestal Drawer Slide Rail WH16X10099
#12

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #WH16X10099

$18.49
In Stock
Pedestal Drawer Divider WH01X30237
#22

Pedestal diagram

Pedestal drawer divider

Part #WH01X30237

This item is not returnable
$26.02 |
19% OFF Phone Price : $32.02
In Stock
