Kenmore
Dehumidifier

Model # 106644150 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106644150 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Drier 43465
#21

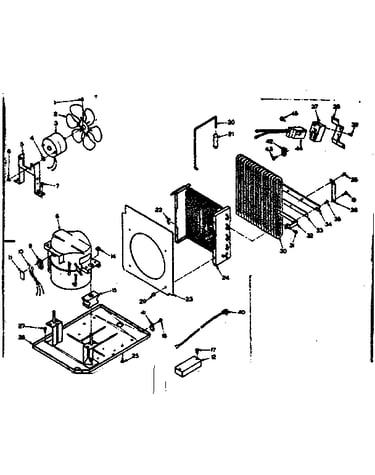

Unit parts diagram

Drier

Part #43465

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 43465. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Screw 487869
Screw

Part #487869

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 487869. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Screw 488234
#39

Unit parts diagram

Screw

Part #488234

Replaced by #WP488234

?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Bend 43520
#22

Unit parts diagram

Bend

Part #43520

Replaced by #WP855199

?
Manufacturer substitution
This part replaces 43520. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Compressor 463441
#8

Unit parts diagram

Compressor

Part #463441

The manufacturer no longer makes this part, and there's no substitute part

Screw 488352
#25

Unit parts diagram

Screw

Part #488352

The manufacturer no longer makes this part, and there's no substitute part

Extension 485622
#8C

Unit parts diagram

Extension

Part #485622

The manufacturer no longer makes this part, and there's no substitute part

Plate, Orifice 472420
#23

Unit parts diagram

Plate, orifice

Part #472420

The manufacturer no longer makes this part, and there's no substitute part

Caster 43177
#7

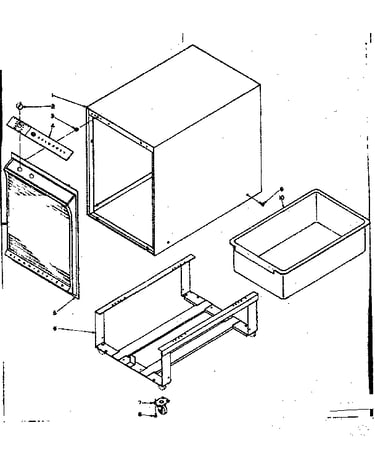

Cabinet parts diagram

Caster

Part #43177

The manufacturer no longer makes this part, and there's no substitute part

Insulator 468539
#33

Unit parts diagram

Insulator

Part #468539

The manufacturer no longer makes this part, and there's no substitute part
