Model # GC2227HEKB Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GC2227HEKB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

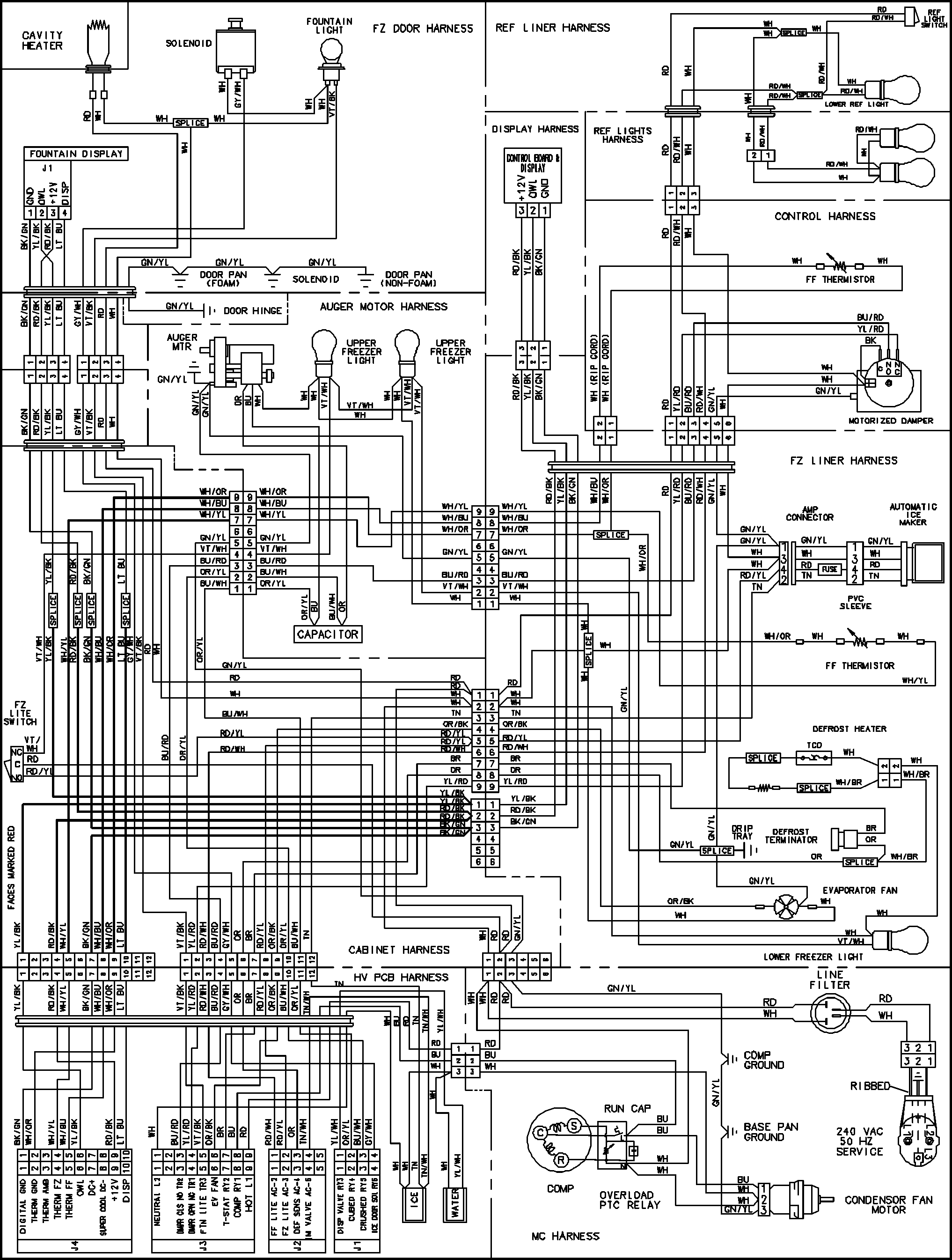

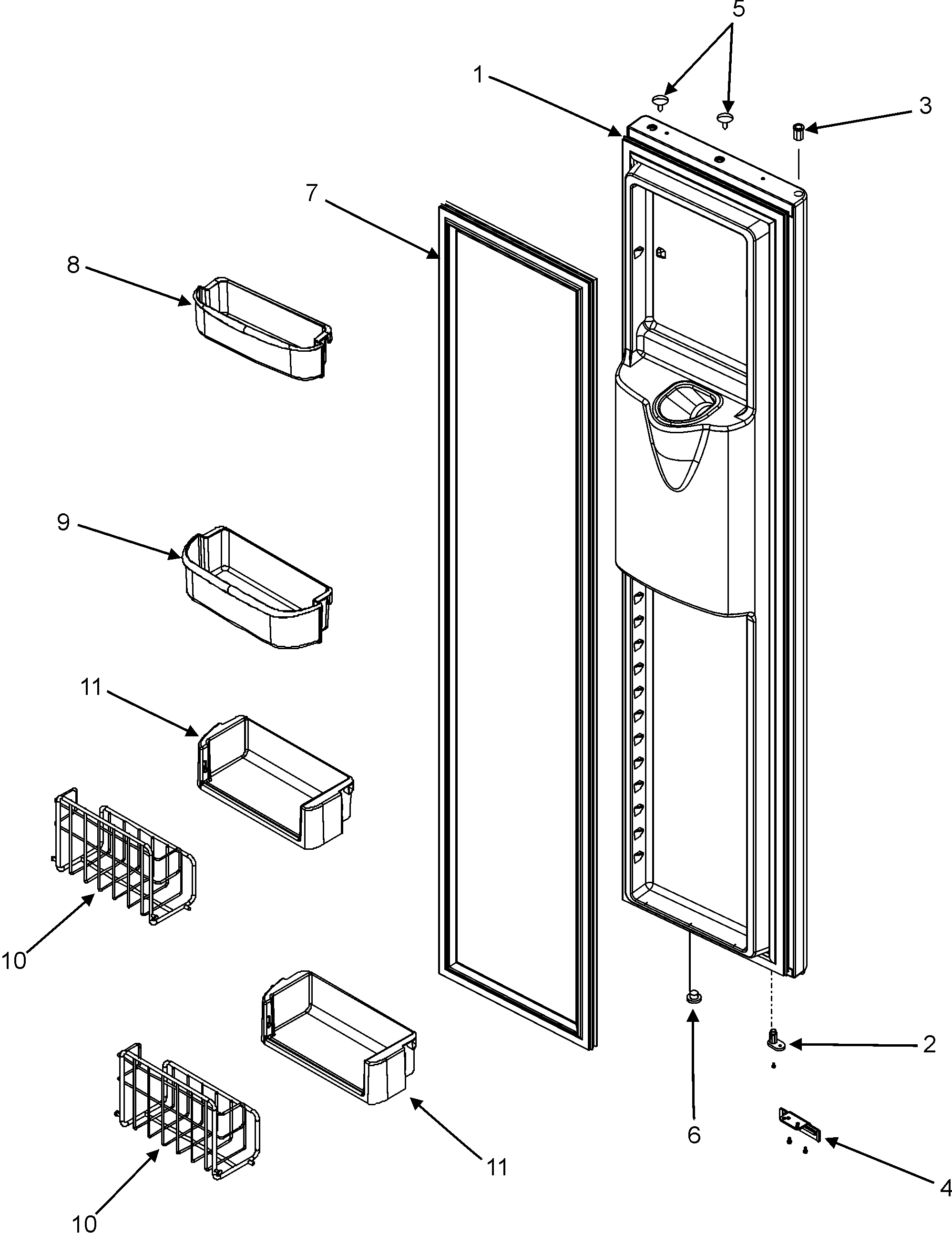

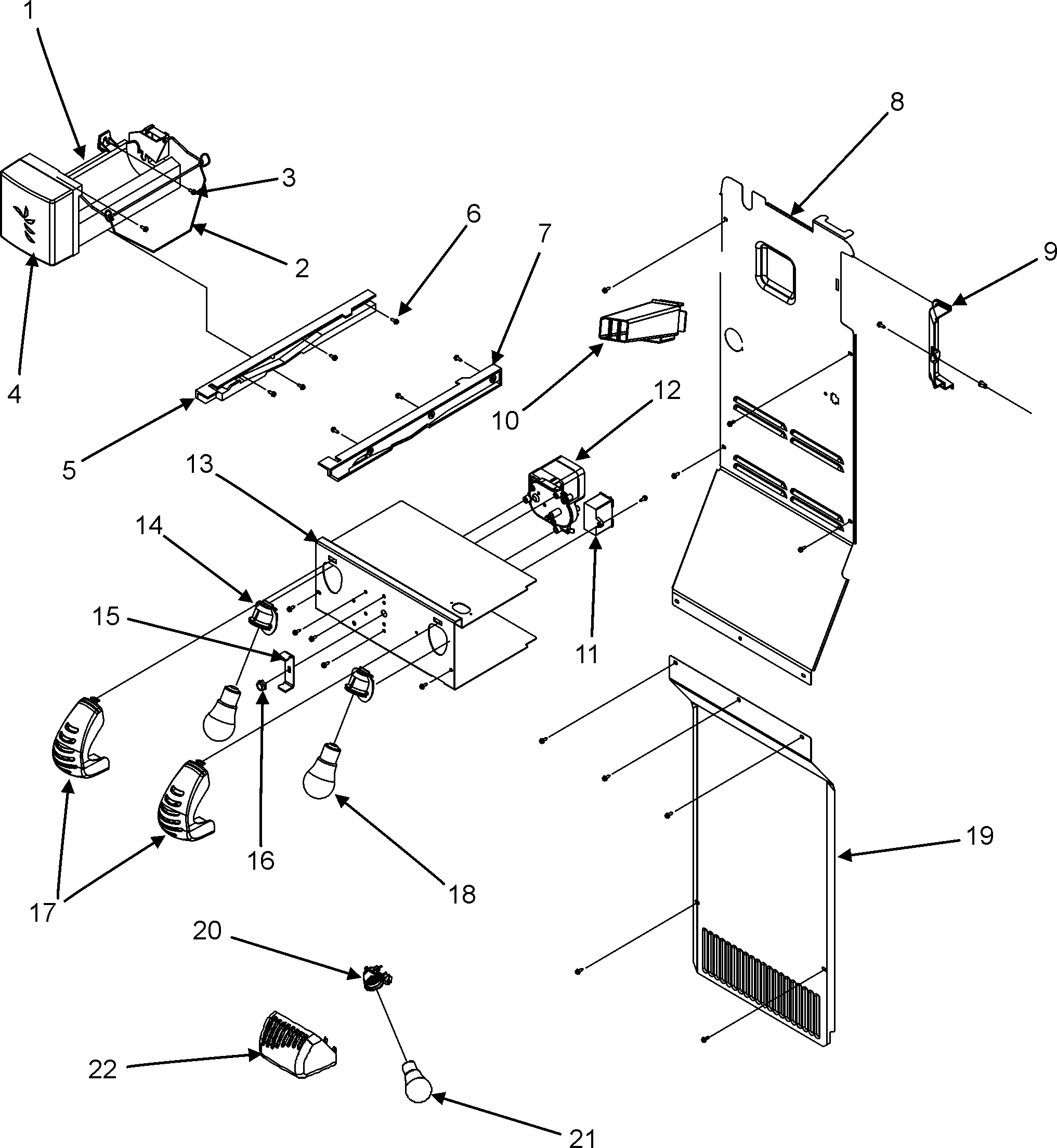

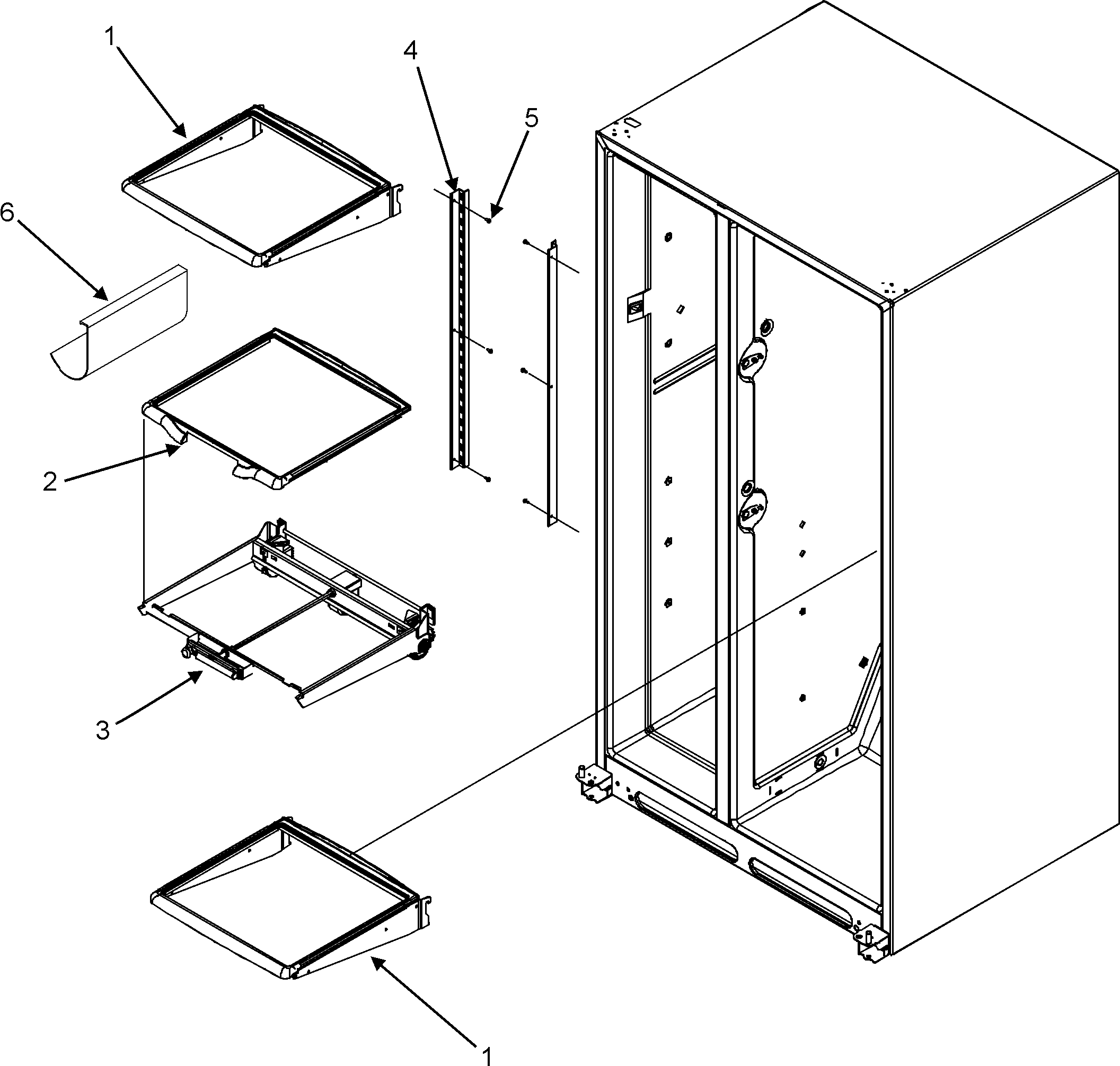

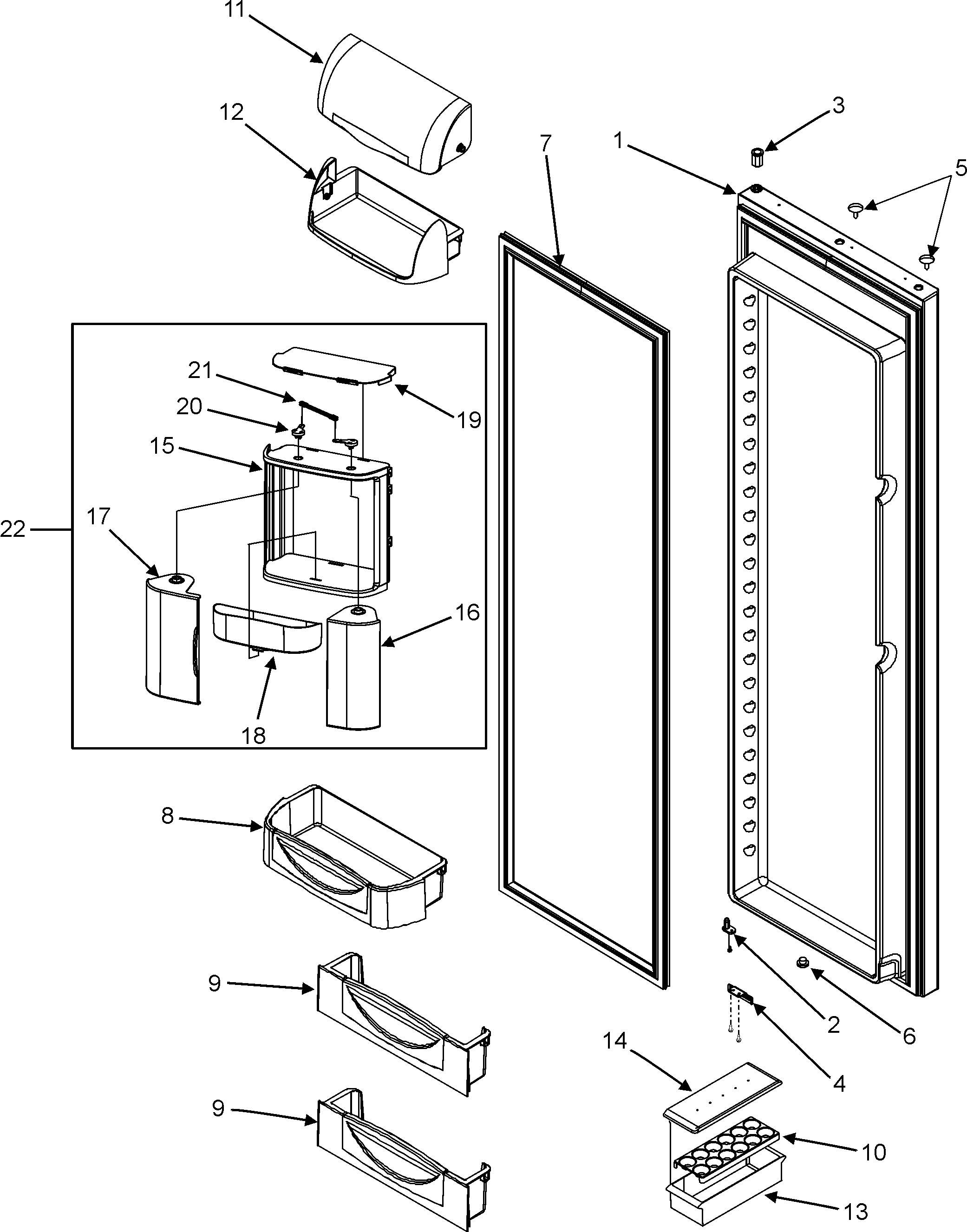

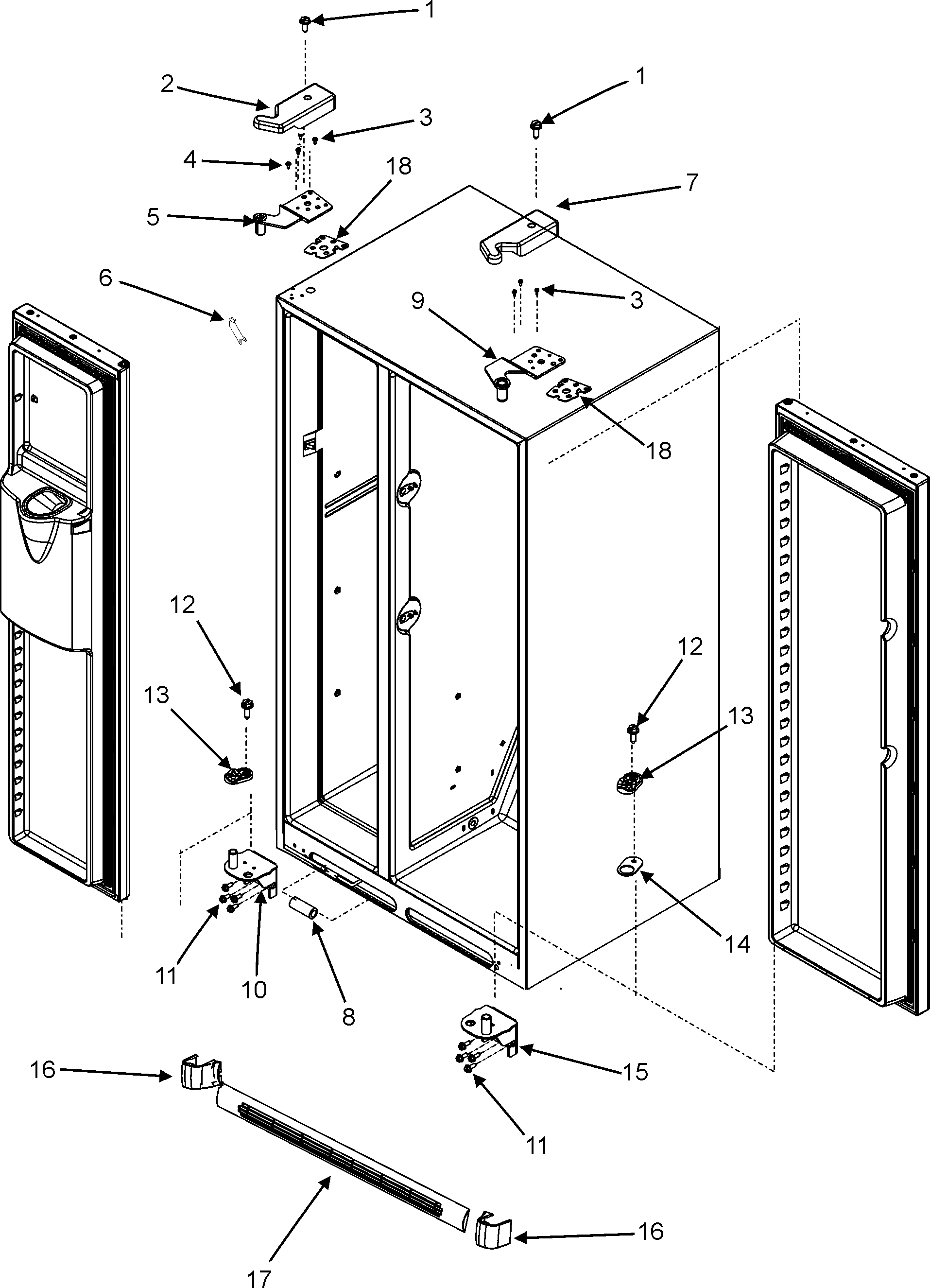

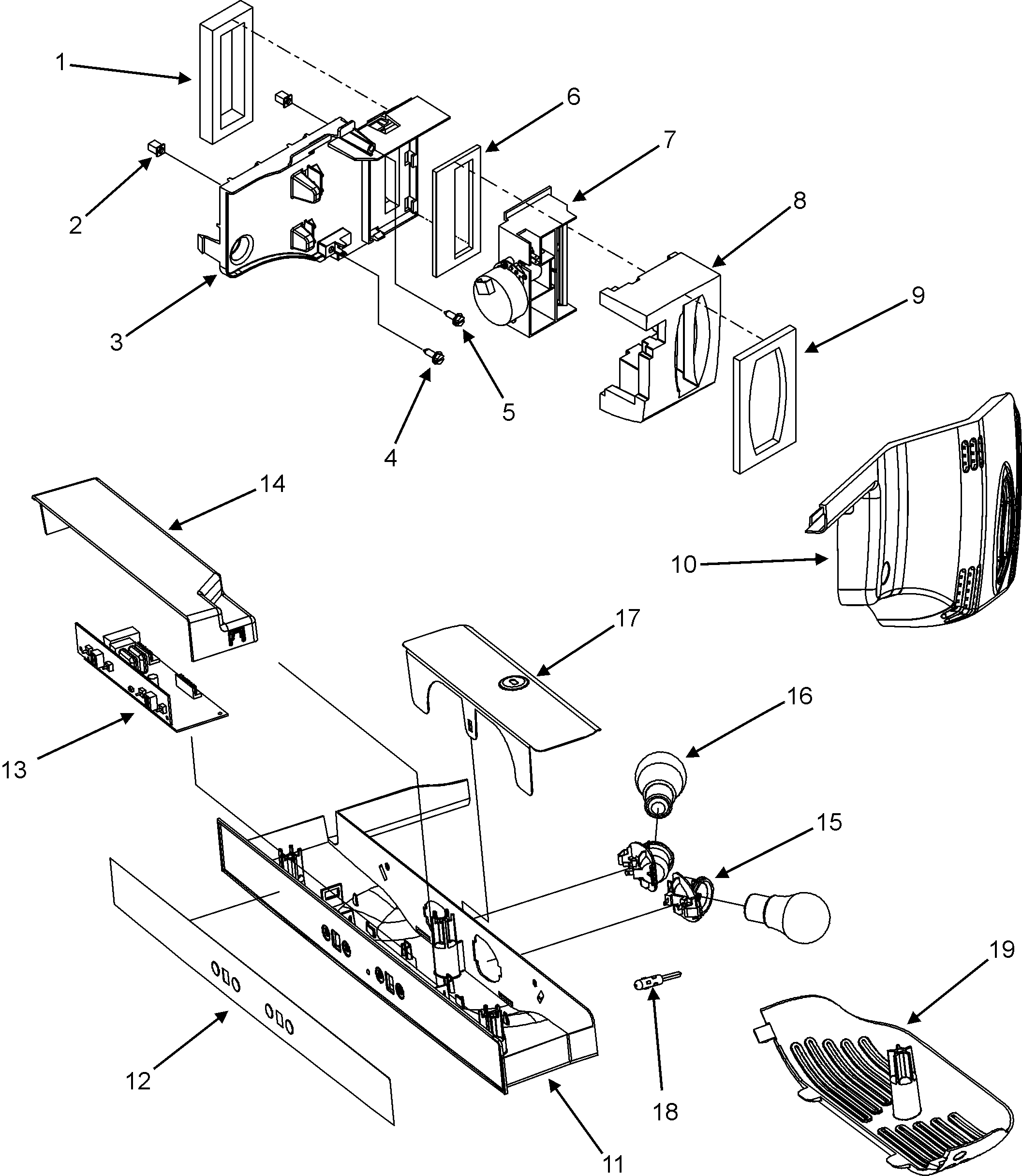

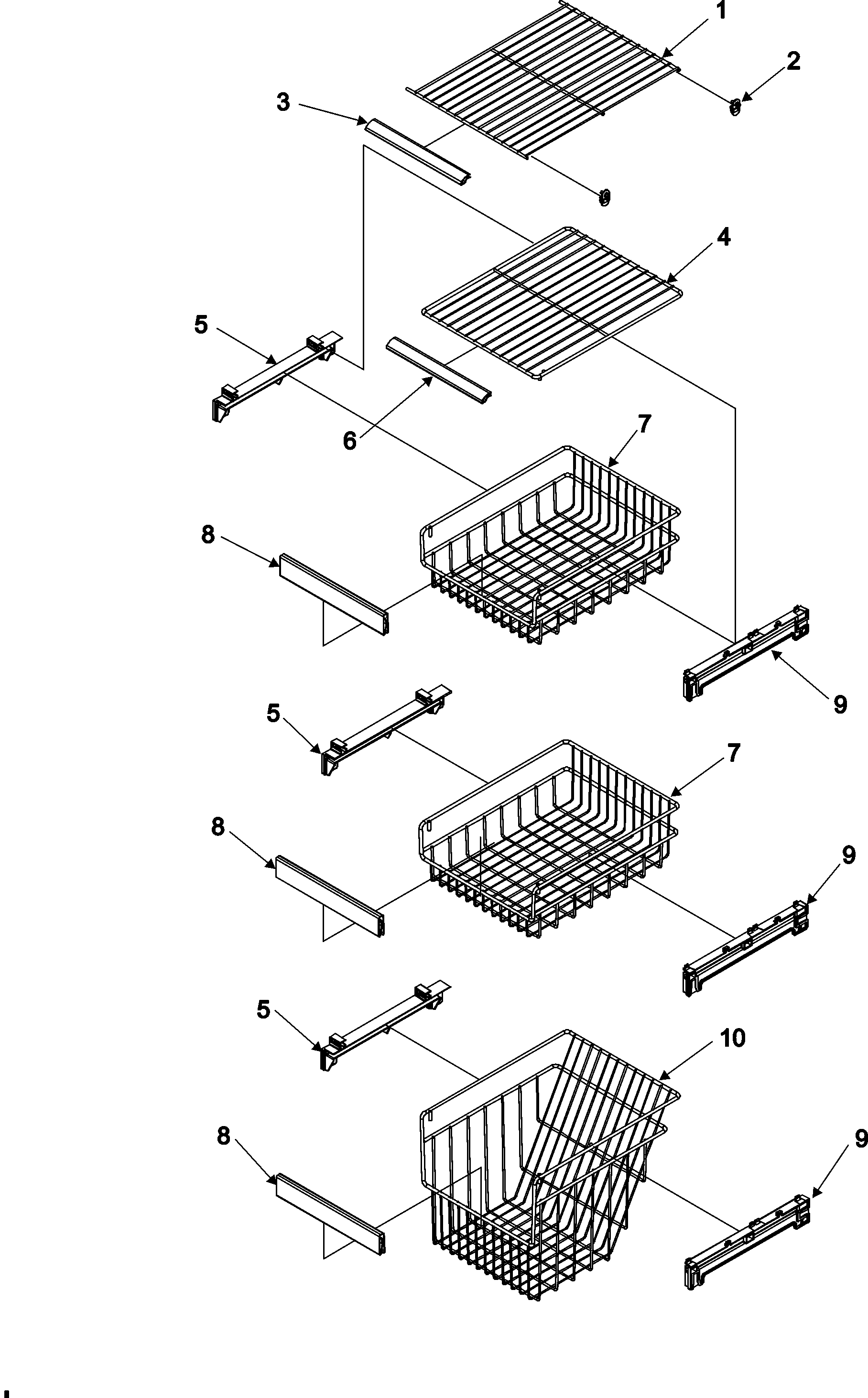

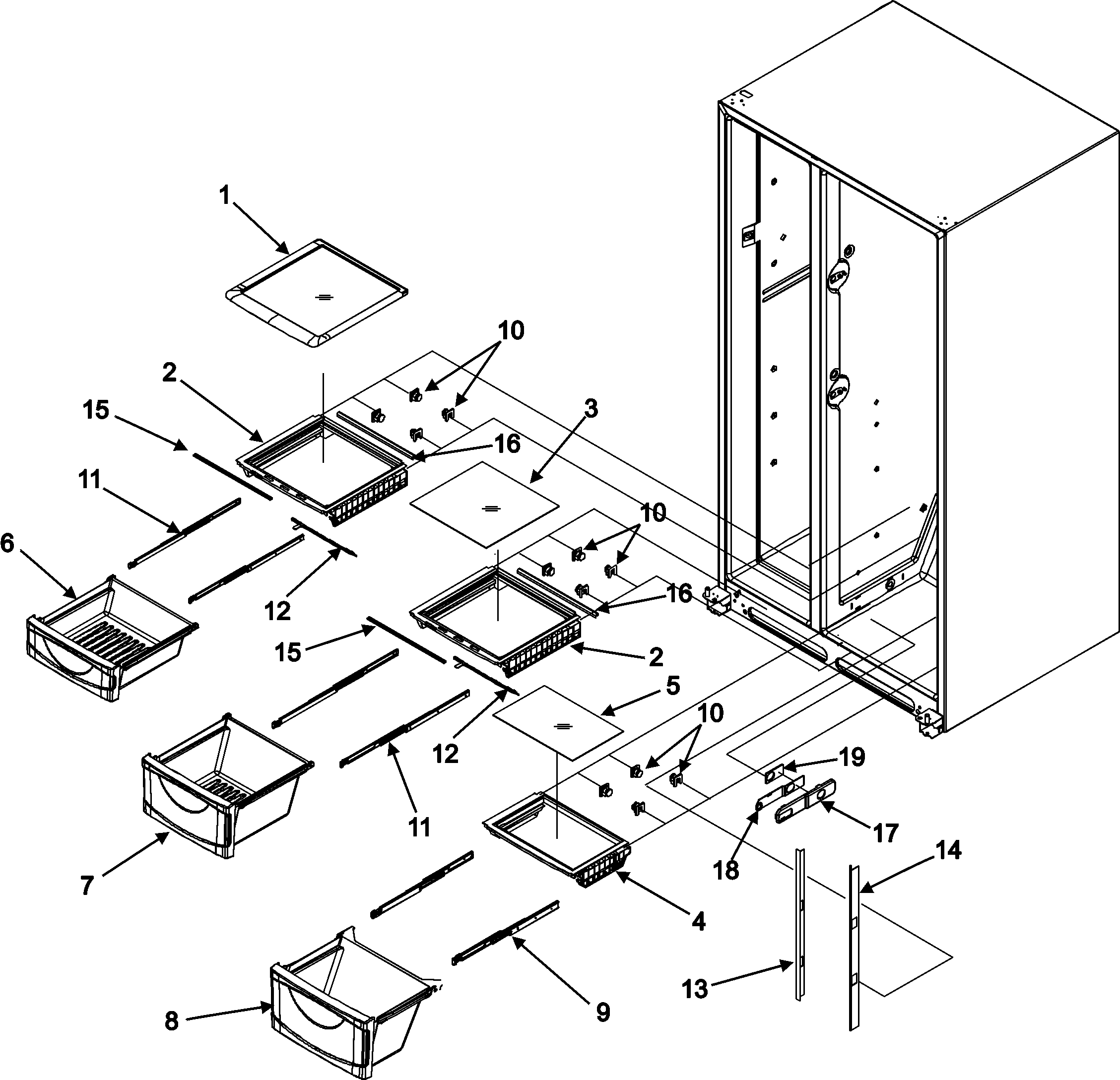

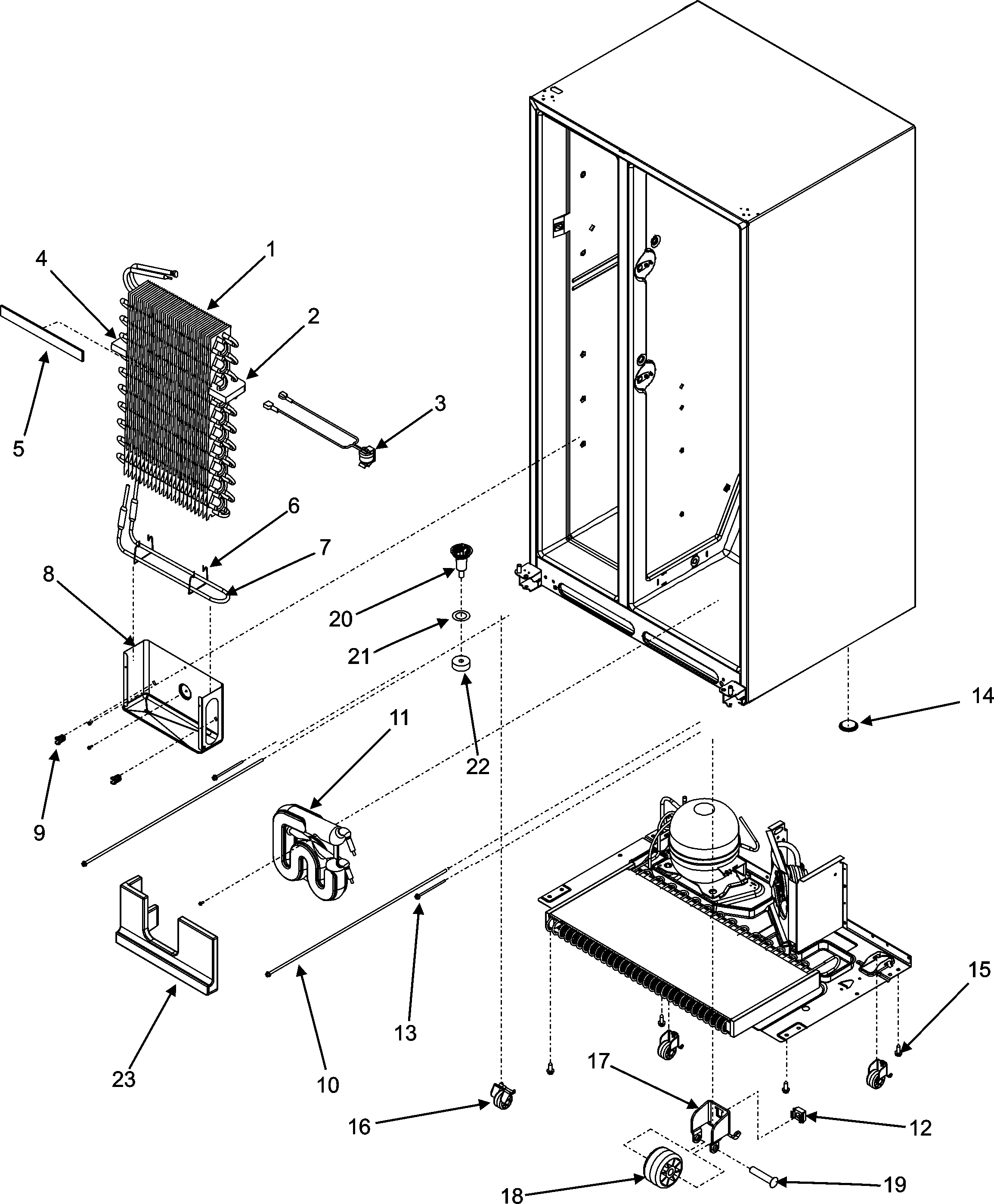

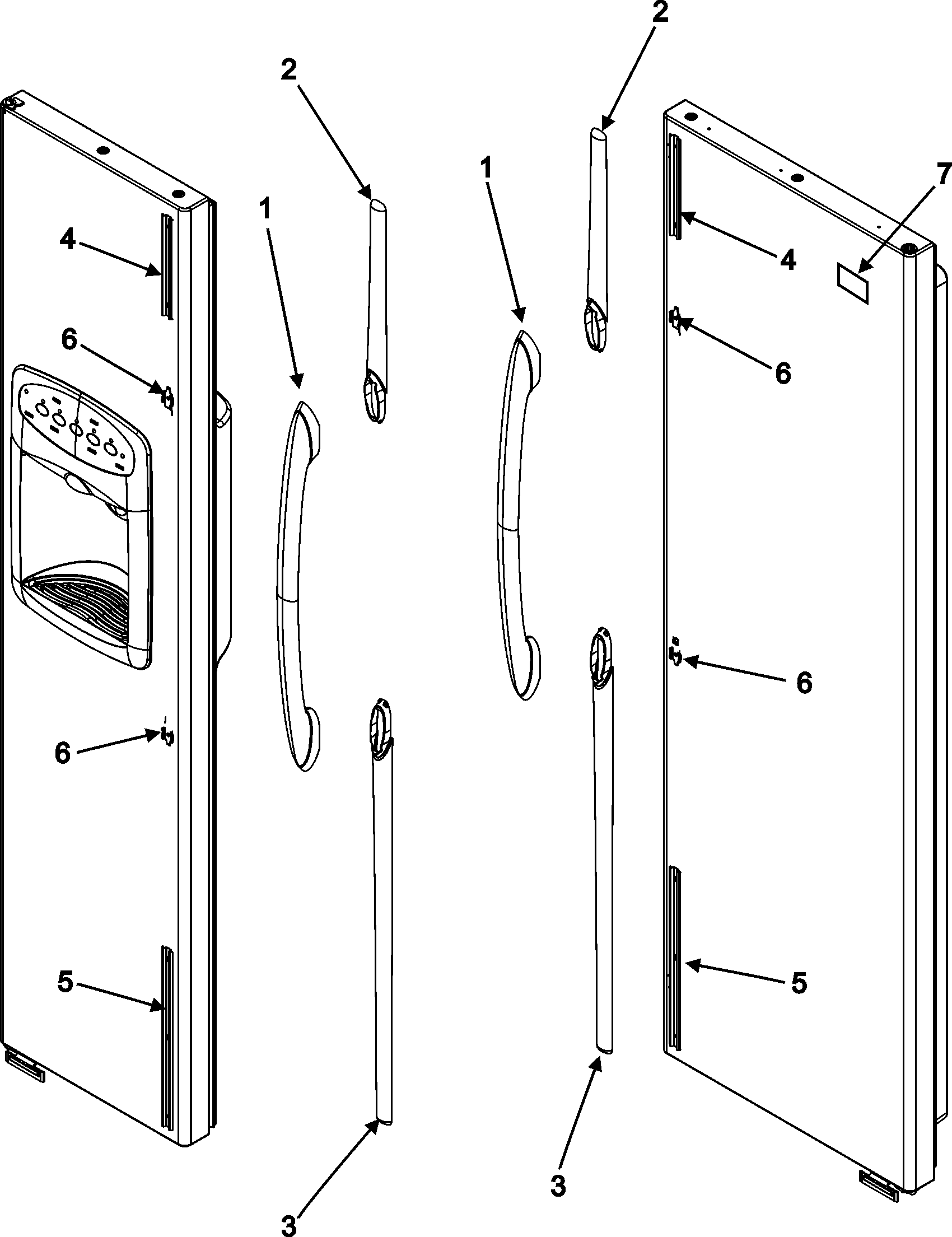

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 337 parts  |
Refrigerator Water Filter 67003640
#15

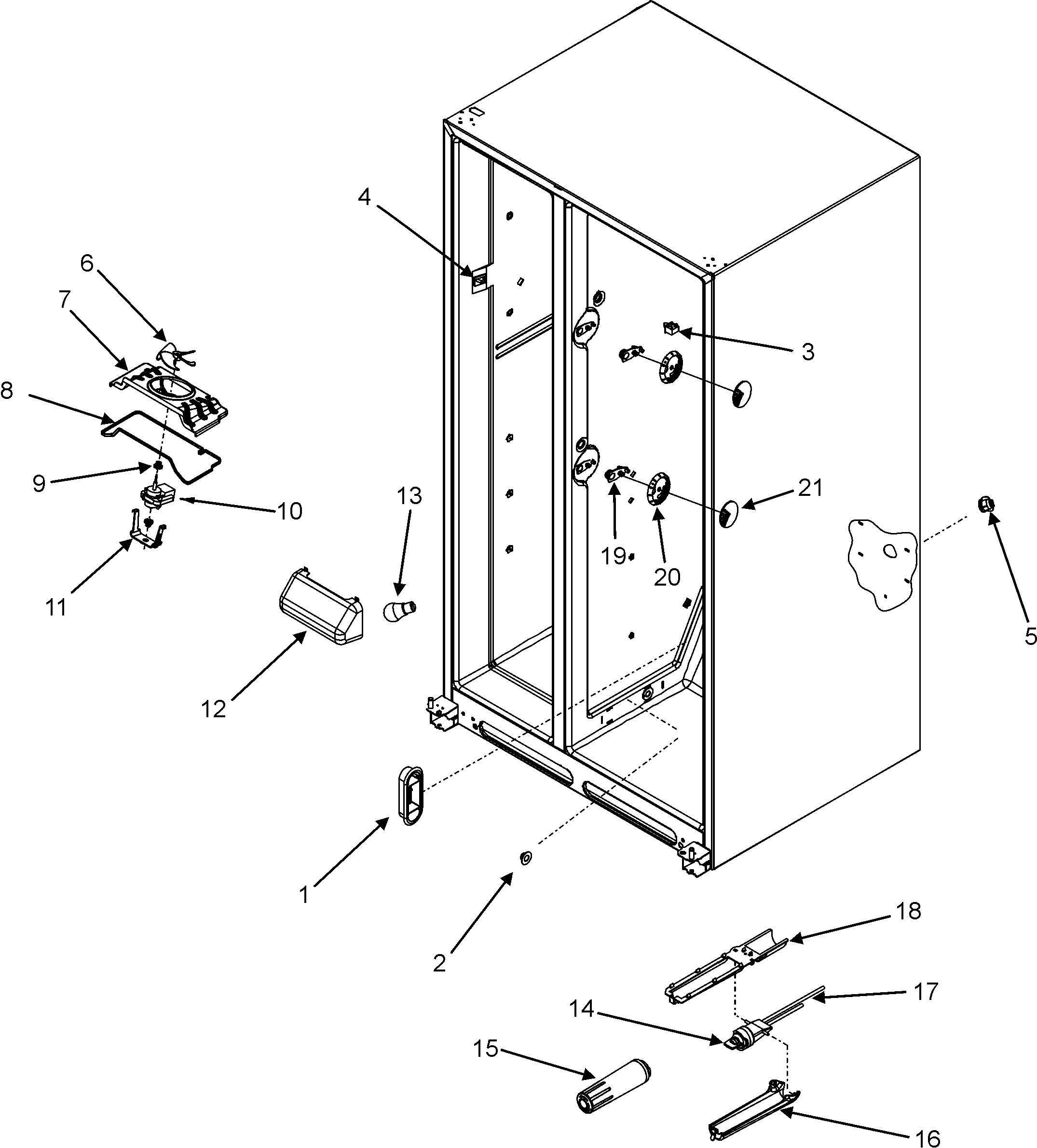

Evap fan/cris lt/filter (gc2227hekb/s/w) diagram

Refrigerator water filter

Part #67003640

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces 67003640. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Light Switch 12466103
#4

Evap fan/cris lt/filter (gc2227hekb/s/w) diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Drier B2150504
#16

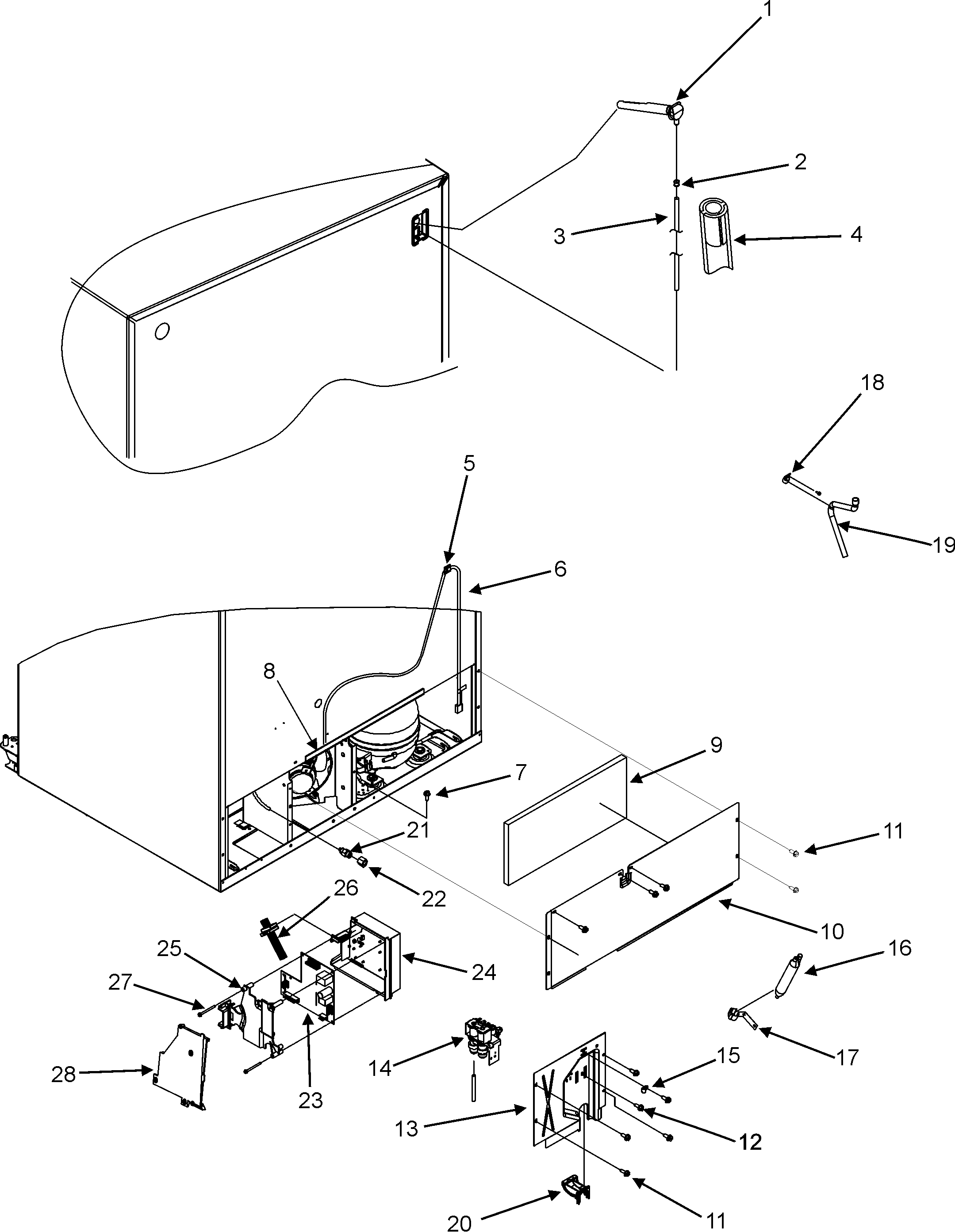

Cabinet back (gc2227hekb/s/w) diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Discharge Tube 67004700
#15

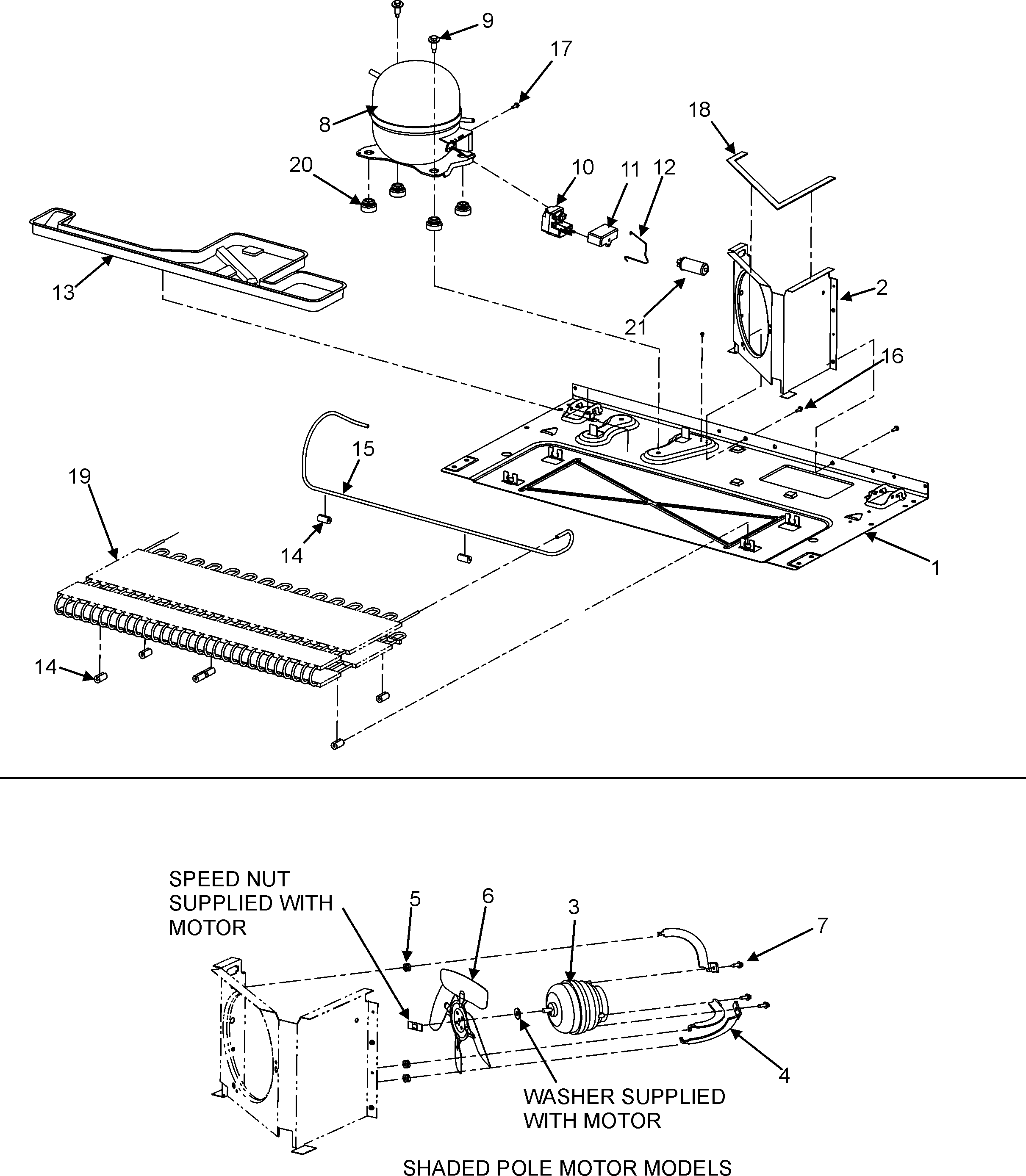

Compressor (gc2227hekb/s/w) diagram

Refrigerator discharge tube

Part #67004700

Replaced by #WP12866903

?
Manufacturer substitution
This part replaces 67004700. Substitute parts can look different from the original.
BEST SELLER
$82.79 |
7% OFF Phone Price : $88.79
In Stock
Refrigerator Tube 67003360
#3

Cabinet back (gc2227hekb/s/w) diagram

Refrigerator tube

Part #67003360

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 67003360. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Door Chute 12562701
#6

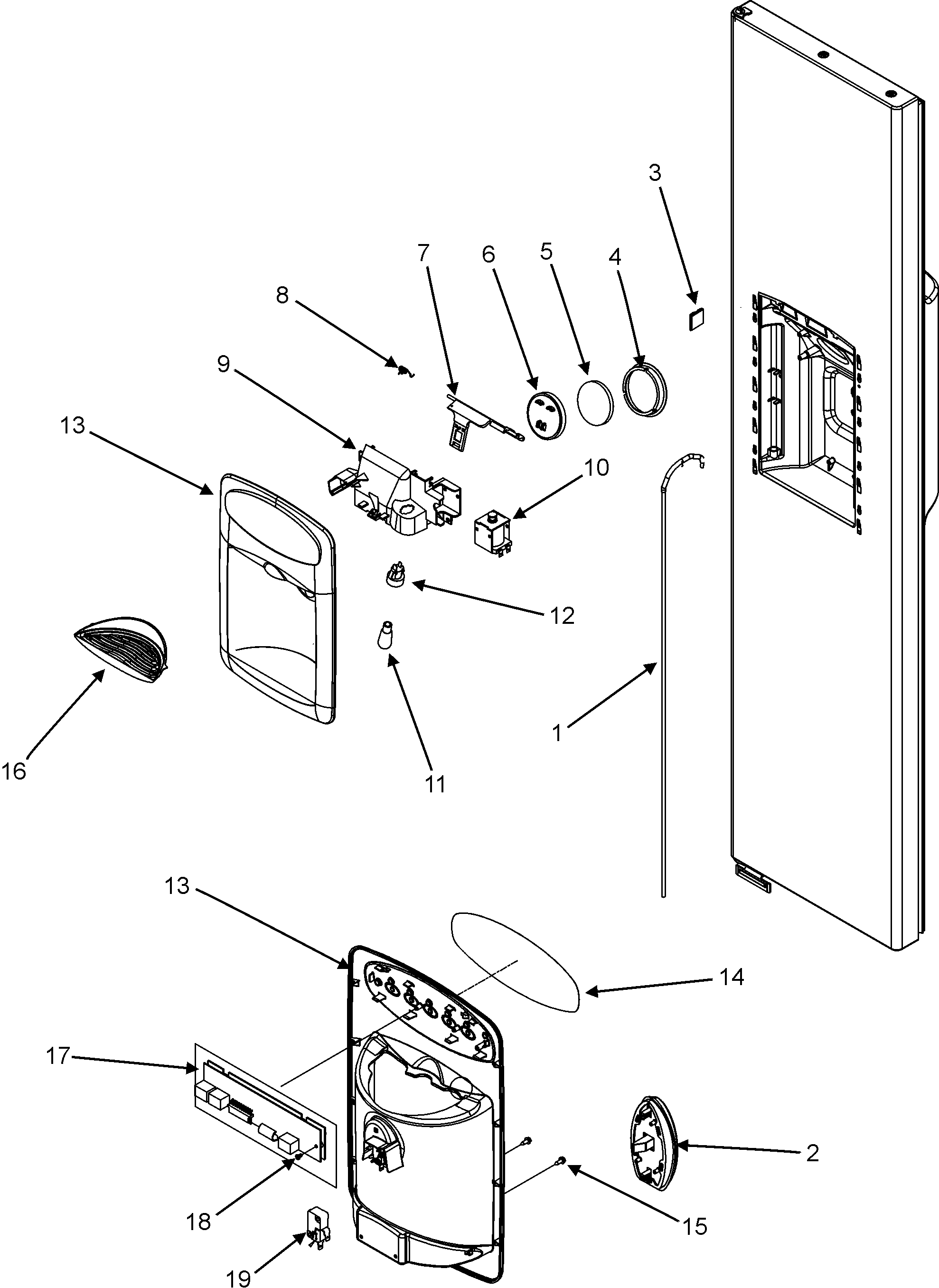

Fountain (gc2227hekb/s/w) diagram

Refrigerator door chute

Part #12562701

Replaced by #WP12562701

?
Manufacturer substitution
This part replaces 12562701. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Screw 95108-1
#9A

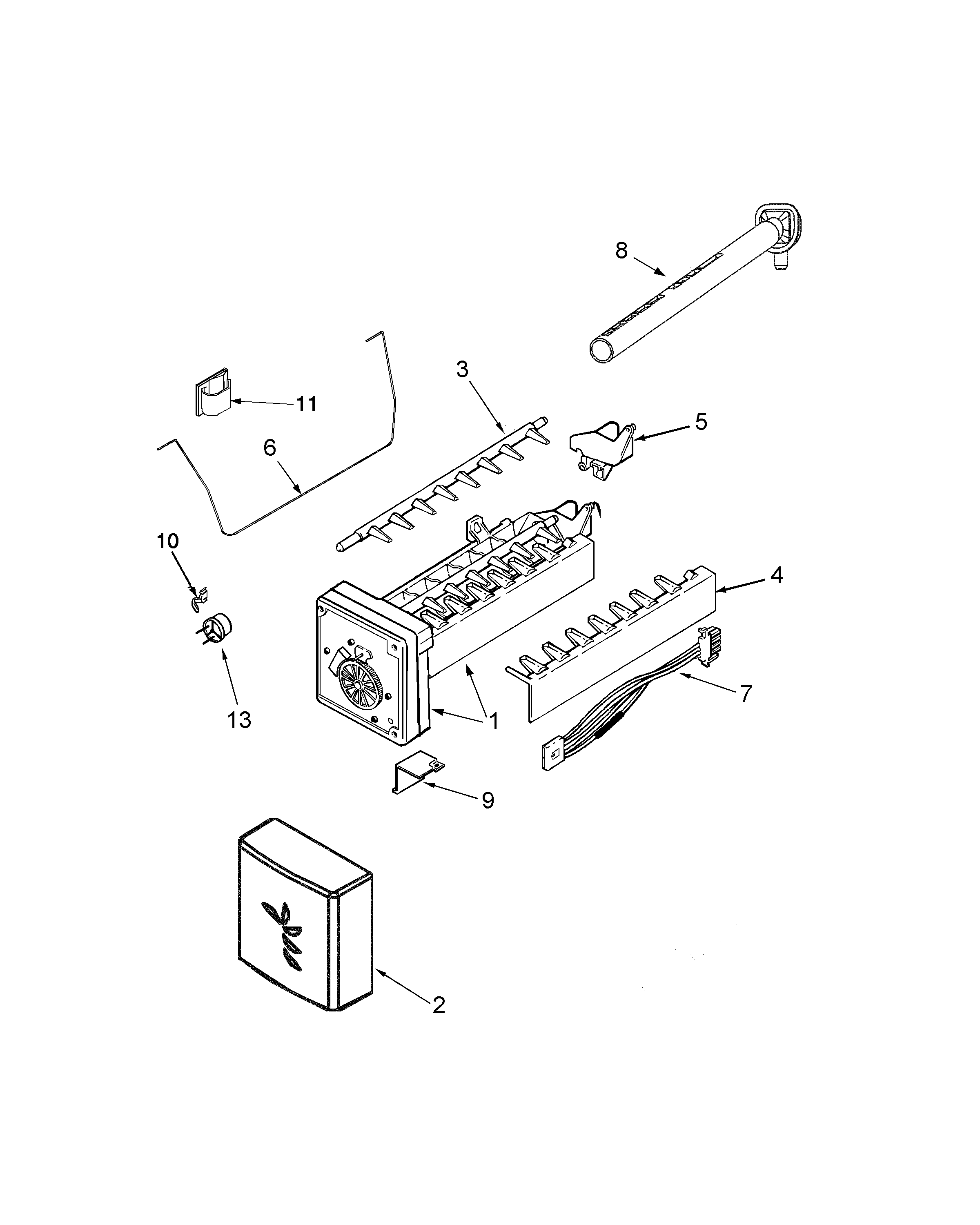

Ice maker (gc2227hekb/s/w) diagram

Refrigerator screw

Part #95108-1

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 95108-1. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Ice Ejector 95101-1
#3

Ice maker (gc2227hekb/s/w) diagram

Refrigerator ice ejector

Part #95101-1

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 95101-1. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Refrigerator Ice Maker Cover 12582501
Refrigerator ice maker cover

Part #12582501

Replaced by #WPW10289690

?
Manufacturer substitution
This part replaces 12582501. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Refrigerator Ice Dispenser Drive Auger End Cap D7749401
#2

Ice bucket assy. (gc2227hekb/s/w) diagram

Refrigerator ice dispenser drive auger end cap

Part #D7749401

Replaced by #WPD7749401

?
Manufacturer substitution
This part replaces D7749401. Substitute parts can look different from the original.
This item is not returnable
$22.49 |
21% OFF Phone Price : $28.49
In Stock
